Kussmaul Super 30 Auto Eject & Air/Electric Accessories

Optional Accessories for Super 30 Auto Eject and Super 30 Auto Eject Air/Electric

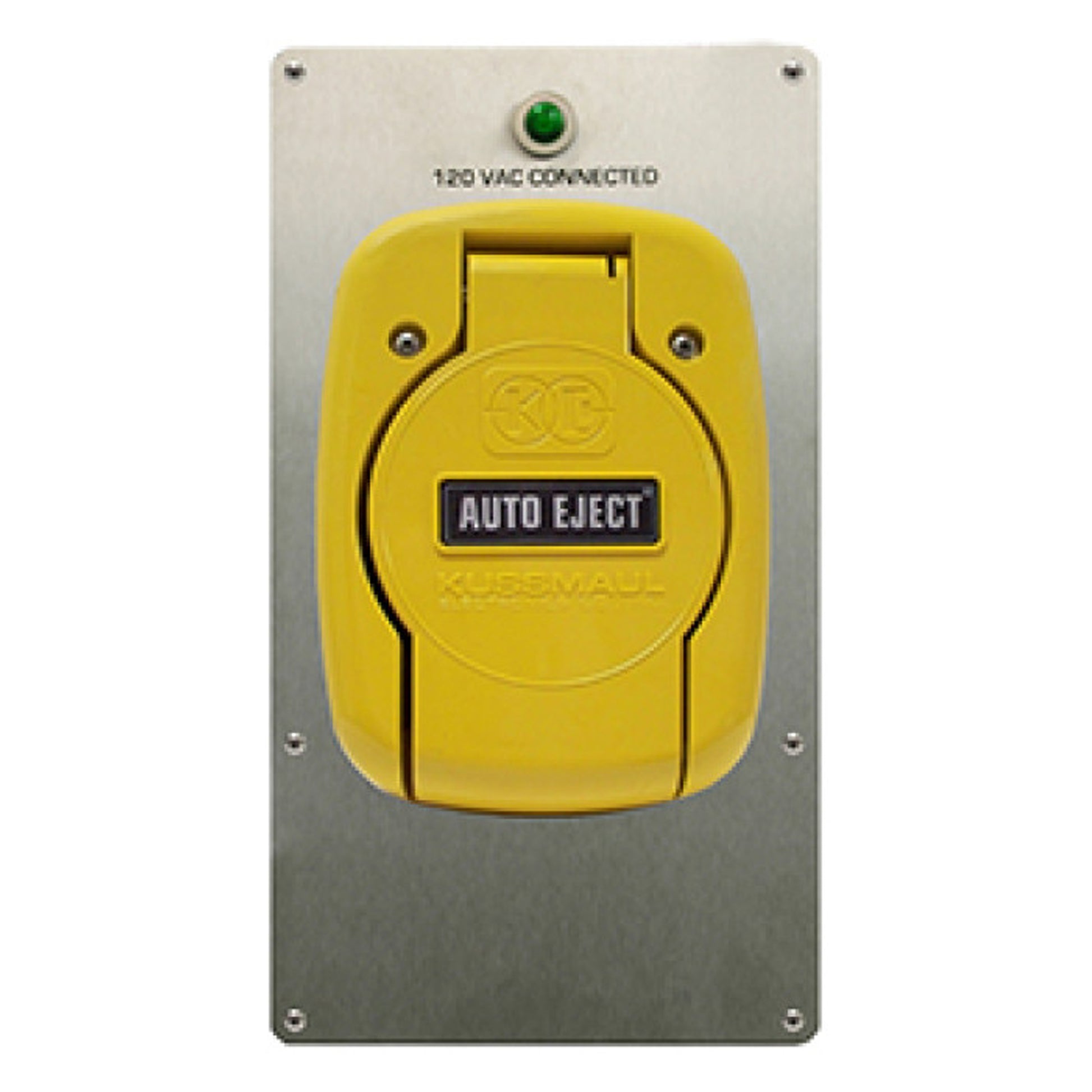

091-159-081-120 - EZ Mounting Plate with Power Indicator, 120 Vac

• Assemble and pre-wire the Auto Eject in this stainless steel plate, then mount to the vehicle wall. A green indicator light confirms the inlet is energized.
• For Super 30 Auto Eject and Super 30 Auto Eject Air/Electric

091-159-081-240 - EZ Mounting Plate with Power Indicator, 240 Vac

• Assemble and pre-wire the Auto Eject in this stainless steel plate, then mount to the vehicle wall. A green indicator light confirms the inlet is energized.
• For Super 30 Auto Eject and Super 30 Auto Eject Air/Electric

The industrial-grade 3-pin mating connector is designed specifically for use with the Super 30 Auto Eject. It provides a reliable 120V/250V AC shoreline connection for emergency vehicles, ensuring the plug is cleanly ejected upon engine start.

091-159-CON-3P-120 - Mating Connector for Super 30 Auto Eject, 120V

• For Super 30 Auto Eject
• 120 Volts AC, 30 Amps, 3 pin
• Yellow lid

091-159-CON-3P-250 - Mating Connector for Super 30 Auto Eject, 250V

• For Super 30 Auto Eject
• 250 Volts AC, 30 Amps, 3 pin
• Blue lid

The Air-Electric connector is a 30-amp, 120/240V Air/Electric mating connector (plug) designed for emergency vehicles. It integrates a 4-pin 120V electrical connector with a 175 PSI air connection, combining electrical power and air pressure line connections into a single unit. It is specifically designed to work with the Super 30 Auto Eject - Air/Electric systems to supply both power and brake air pressure, automatically disconnecting upon engine start.

091-169-CON-4P-120 - Mating Connector for Super 30 Auto Eject AE, 120V

• For Super 30 Auto Eject Air/Electric
• 30A, 120V, 175 PSI Plug
• Yellow lid

091-169-CON-4P-250 - Mating Connector for Super 30 Auto Eject AE, 250V

• For Super 30 Auto Eject Air/Electric
• 30A - 250V - 175 PSI Plug
• Blue lid
