Kussmaul Super 30 Auto Eject
Kussmaul Super 30 Auto Eject
Regular price
$690.52 USD
Regular price
Sale price
$690.52 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Eject 30 Amp Plug from Shore Power On Engine Start.

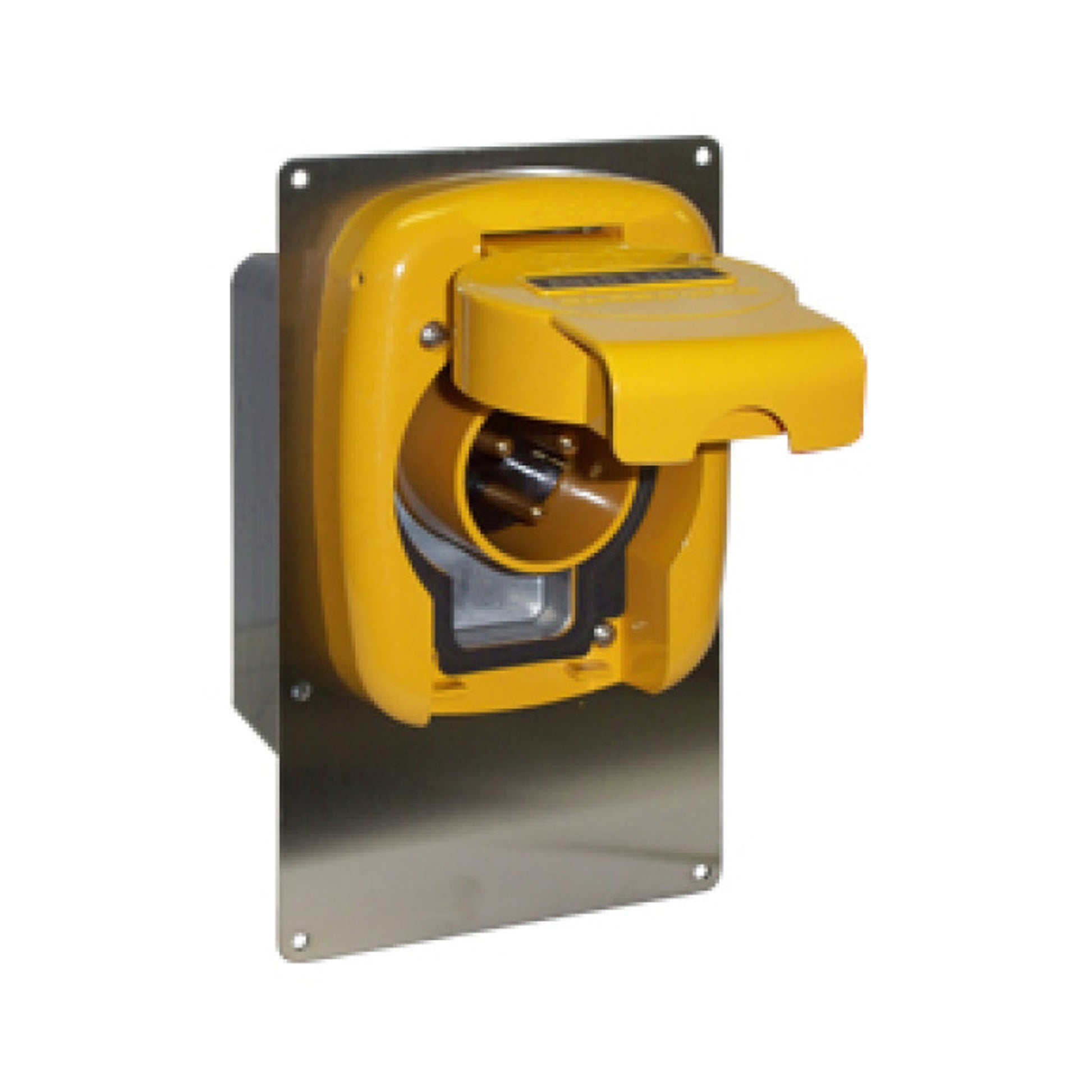

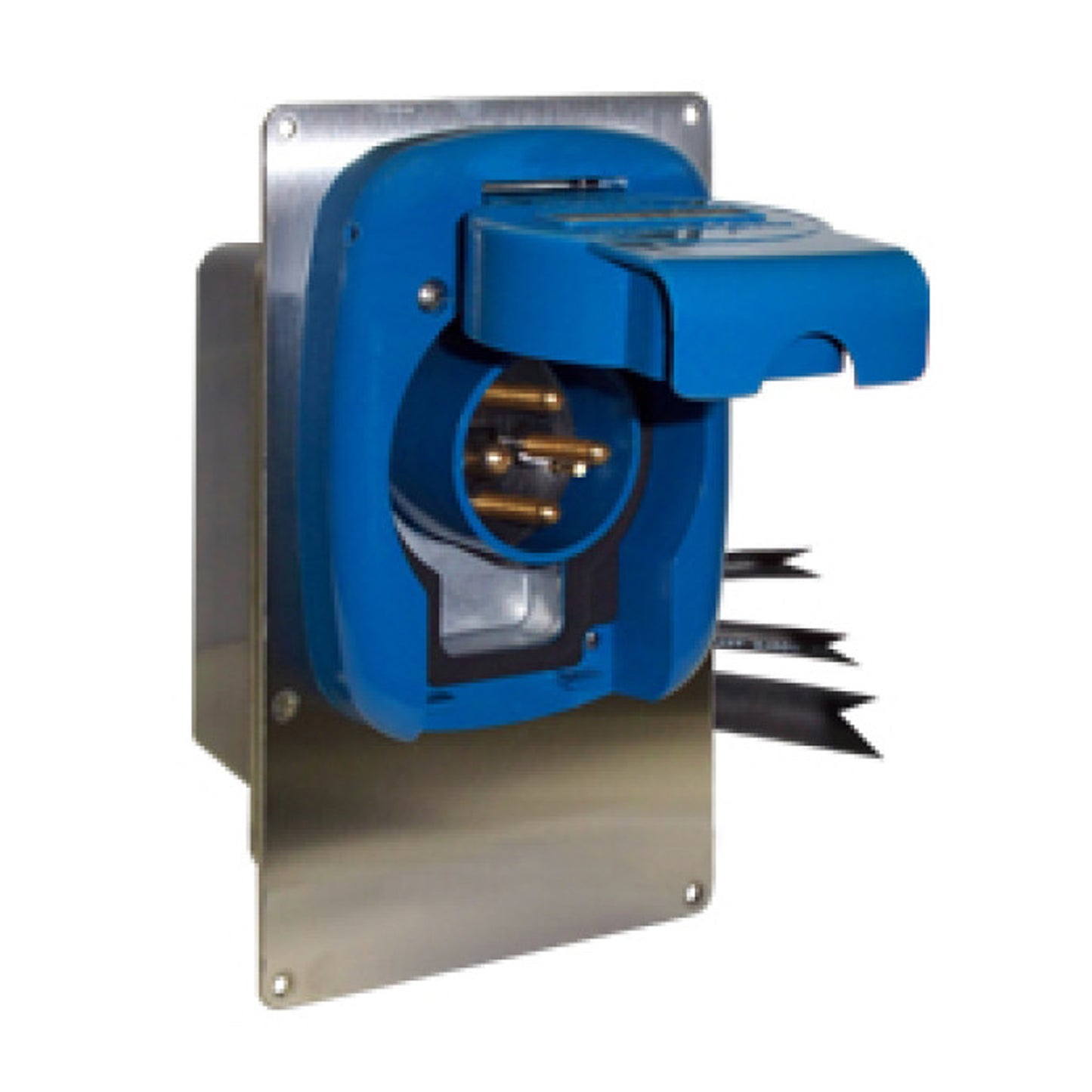

The Super 30 Auto Eject is a fully sealed automatic power line disconnect designed for reliable shoreline power management in demanding environments. Featuring an advanced plug detection system, the unit safely closes and opens the AC circuit only after the connector is fully inserted and before it is ejected. This intelligent sequencing eliminates electrical arcing at the contacts, helping extend connector life and improve overall safety.
-
091-159-30-120 - 120 Volts AC, 12/24 Volts DC, 30 Amps, 3 Pin
091-159-30-250 - 240 Volts AC, 12/24 Volts DC, 30 Amps, 3 Pin
091-159-430-250 - 240 Volts AC, 12/24 Volts DC, 30 Amps, 4 Pin
091-159-430-480 - 480 Volts AC, 12/24 Volts DC, 30 Amps, 4 Pin - Automatically disconnects shoreline
- Completely sealed
- Totally Automatic Operation, No Push Button
- Automatic Plug Detector
- Automatic Anti-Arc Device Built-In
- System includes: Auto-Eject, Cover, and Plug (091-159-CON-3P-120 or 091-159-CON-3P-250)
- Dimensions: 8.90" H x 6.68" W x 6.20" D
- 2 year warranty
