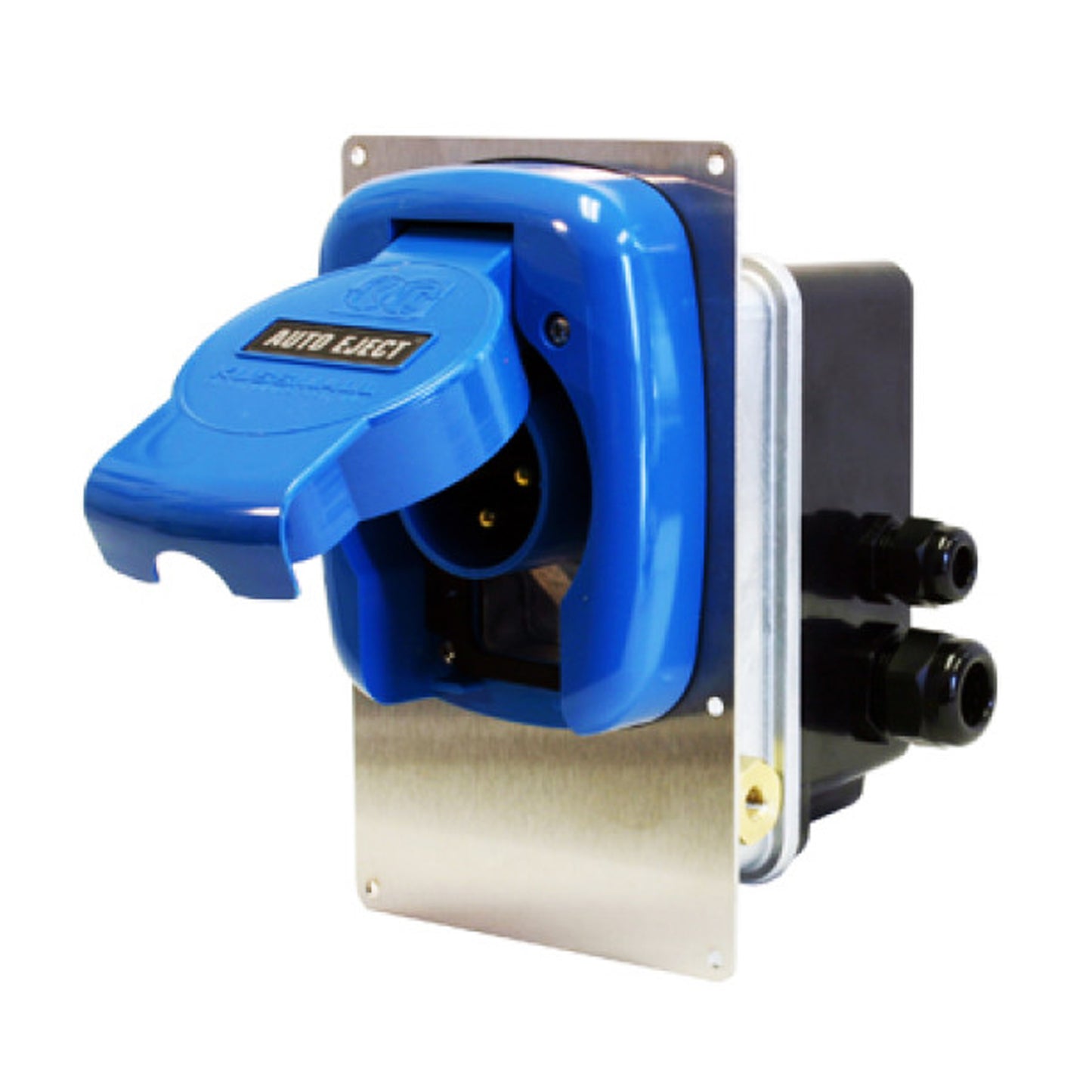

Kussmaul Super 30 Auto Eject - Air/Electric

Eject 30 Amp Plug from Shore Power On Engine Start.

The Kussmaul Super 30 Auto Eject - Air/Electric is a sealed, automatic shoreline disconnect system for emergency vehicles that combines combining electrical power and air pressure line. It has a 30-amp, 120/240V Air/Electric mating connector (plug) with an integrated 175 PSI air connection to supply both power and brake air pressure, automatically disconnecting upon engine start. It is primarily installed on fire trucks and emergency vehicles to keep systems powered and brakes pressurized while parked, with rapid disconnect capabilities for emergency responses.

• 091-169-30-120
  Input: 10 to 28 Vdc, 1.6 Amps Max
  Output: 120 Vac Max, 30 Amps, 175 PSI Max
  Output Fuse: 2 Amps
  Ejection Units, Input Voltage: 120 Vac
  091-169-30-250
  Input: 10 to 28 Vdc, 1.6 Amps Max
  Output: 250 Vac Max, 30 Amps, 175 PSI Max
  Output Fuse: 2 Amps
  Ejection Units, Input Voltage: 240 Vac
  Super 30 Auto Eject / Intl
• Heavy duty pin and sleeve contacts provide reliable connection over years of insertion/eject cycles
• System includes: Air/Electric Auto-Eject, Cover, Plug (091-169-CON-4P-120 or 091-169-CON-4P-250), and 30’ of Air Line
• Dimensions: 8.90" H x 6.68”" W x 6.20" D
• 091-169-30-120: 2 year warranty
  091-169-30-250: 3 year warranty

Optional Accessories for Kussmaul Super 30 Auto Eject - Air/Electric
