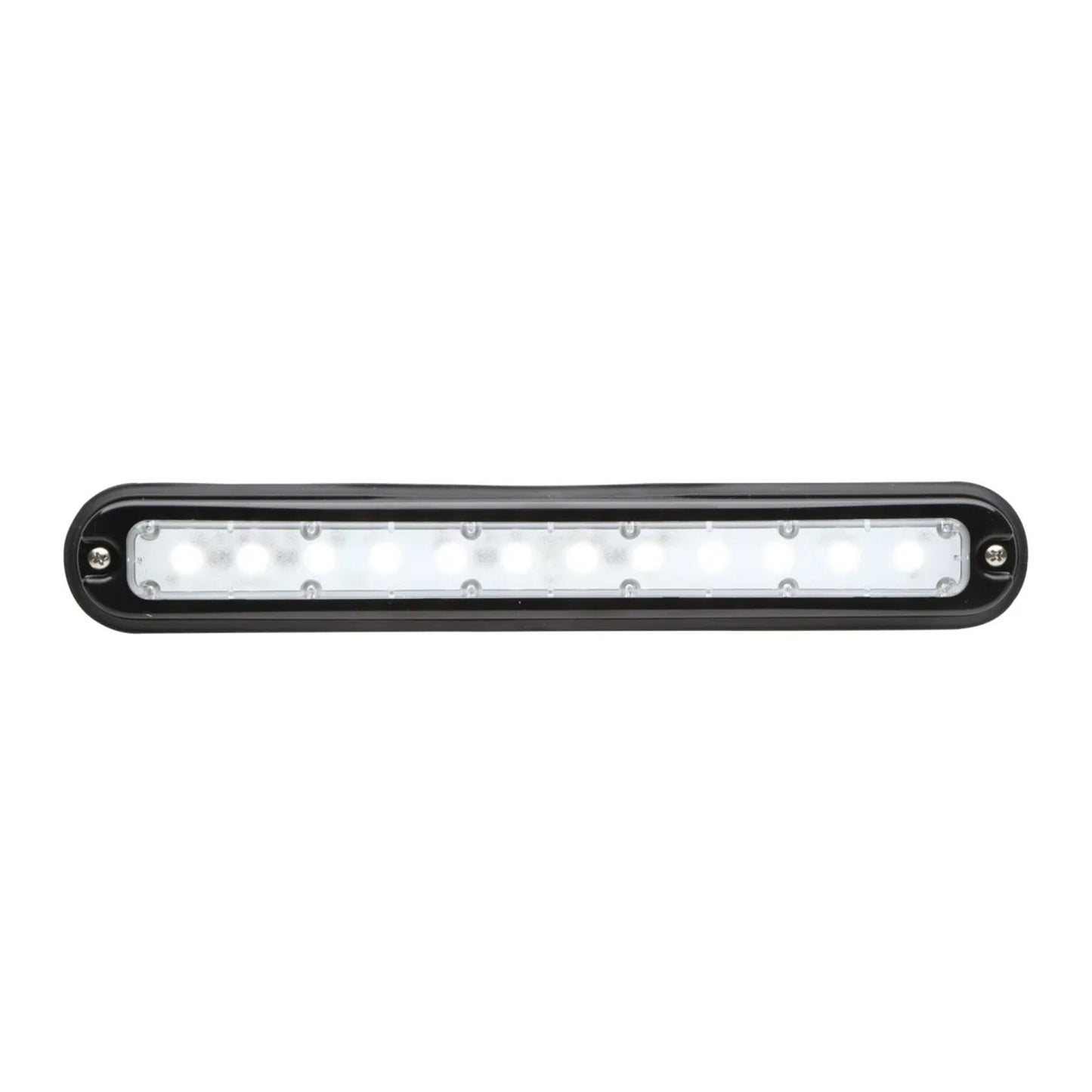

Whelen Strip-Lite™ Plus Surface Mount Super-LED® Series

The Strip-Lite™ Plus Series lighthead is built with Super-LED® technology, the Strip-Lite Plus Series offers bright, consistent light output, enhancing visibility in critical situations. The Sequencing Light features left arrow, right arrow, split arrow, and warning function for enhanced signaling. The Compartment Light is available in High or Low intensity models.

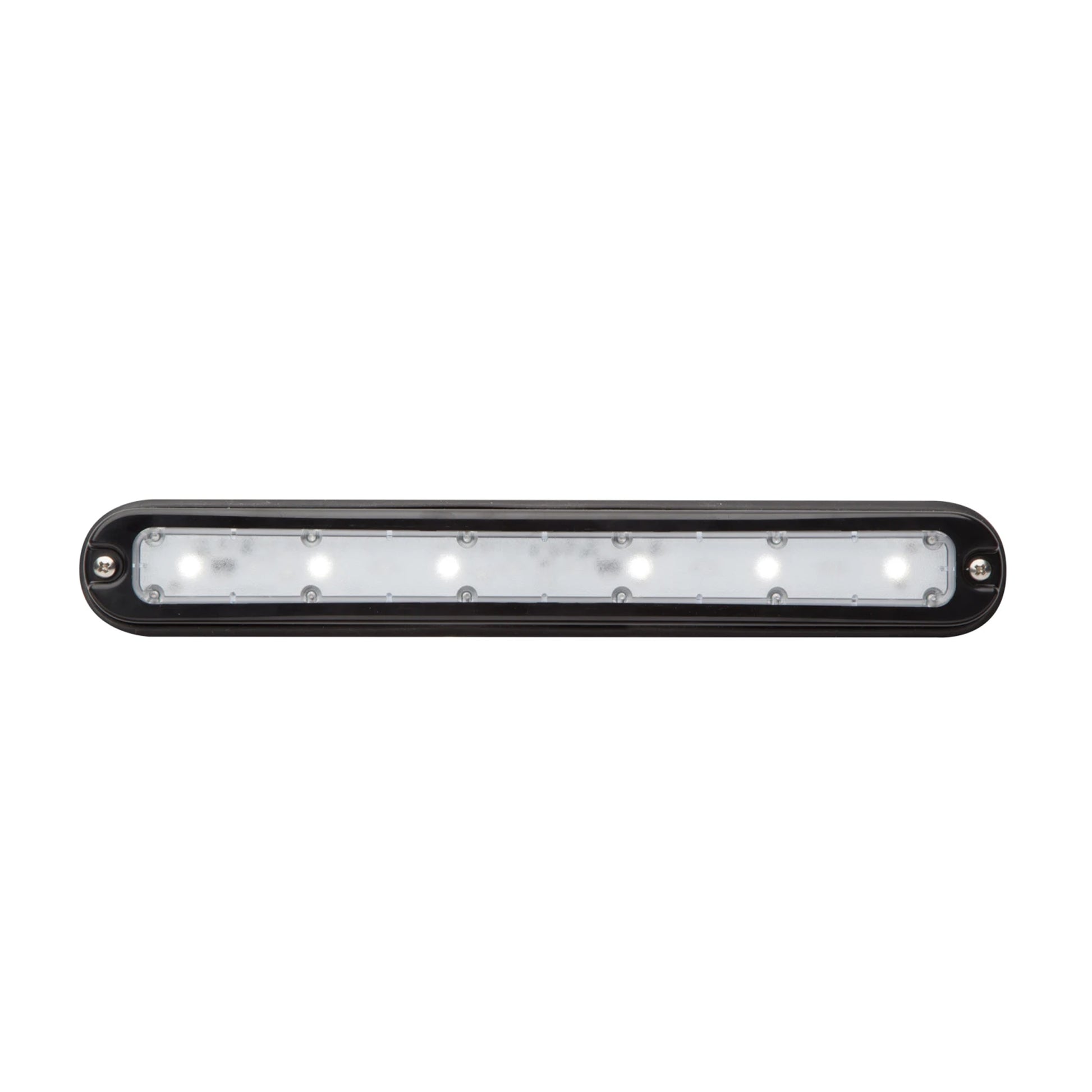

Compartment Light

• Optics: Non-Optic Frosted
• Voltage: 12/24 VDC
• Amps: High Intensity Models: 12 VDC: 0.80 (avg.) 24 VDC: 0.40 (avg.); Low Intensity Models: 12 VDC: 0.40 (avg.)
• Size: 1.68” H x 11.11” W x 0.54” D
• Includes 22 AWG 12" (30.48 cm) Pigtail

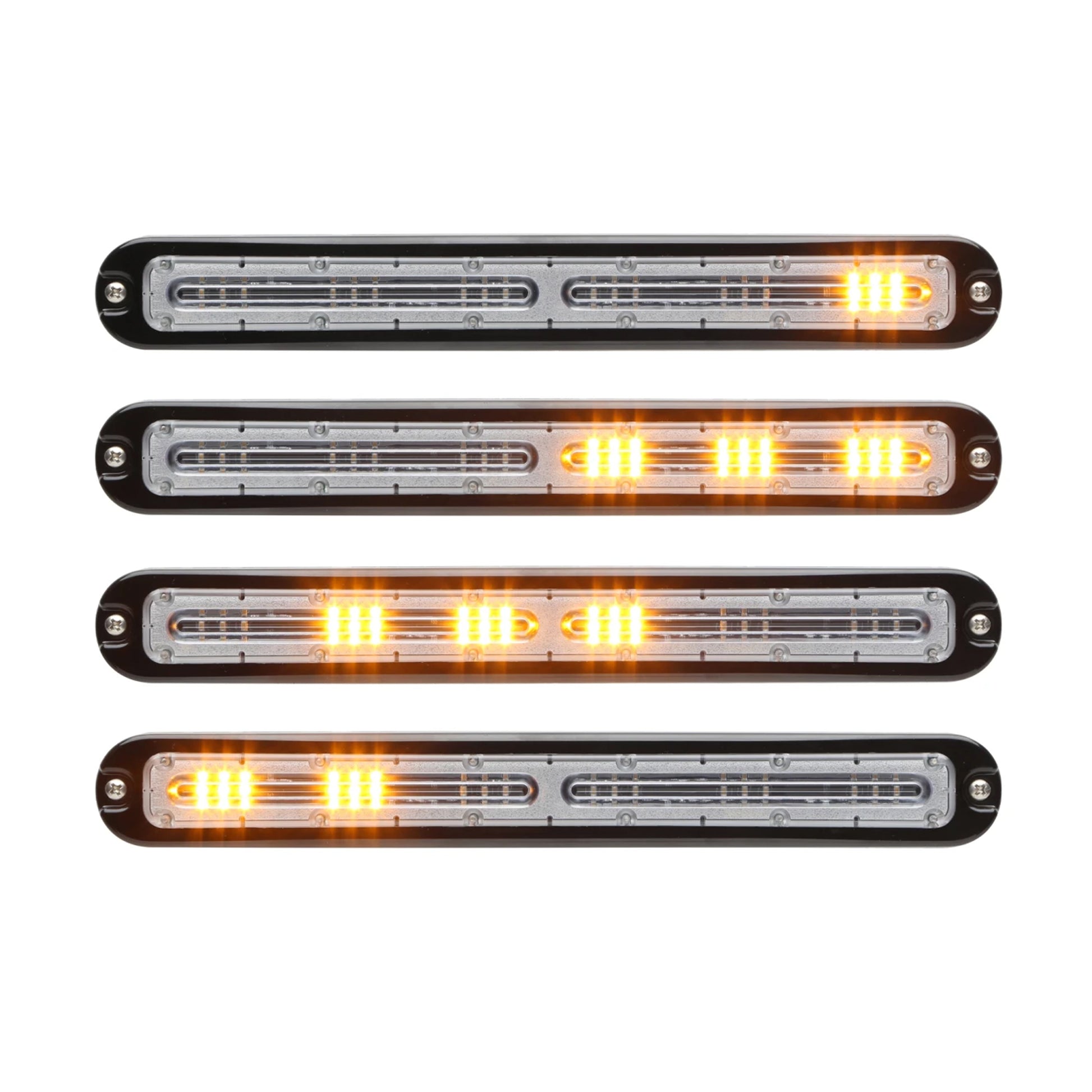

Sequencing Light

• Optics: Linear-LED®
• Scan-Lock™: Advanced flash pattern control
• Flash Patterns: Left, Right, Split and Flashing Patterns, 6 Scan-Lock™ sequencing patterns
• 11 Scan-Lock™ flashing patterns
• Clear Lens
• Voltage: 12 VDC
• Amps: 1.9 (peak), 0.80 (avg.)
• Size: 1.68” H x 11.11” W x 0.54” D
• Includes 22 AWG 12" (30.48 cm) Pigtail
