Whelen Dominator™ TIR3™ Super-LED®

The Dominator™ features TIR3 Super-LED lightheads. The Dominator™ is available in two, four, six or eight lamps with each lamp having three Super-LED®s. General warning light for interior or exterior use.

• 12 VDC
• Amps: 0.4 (peak), 0.16 (avg.) per module
• 7 Scan-Lock™ flash patterns, including steady-burn
• Low and Standard Current
• Mount: Slide bolt

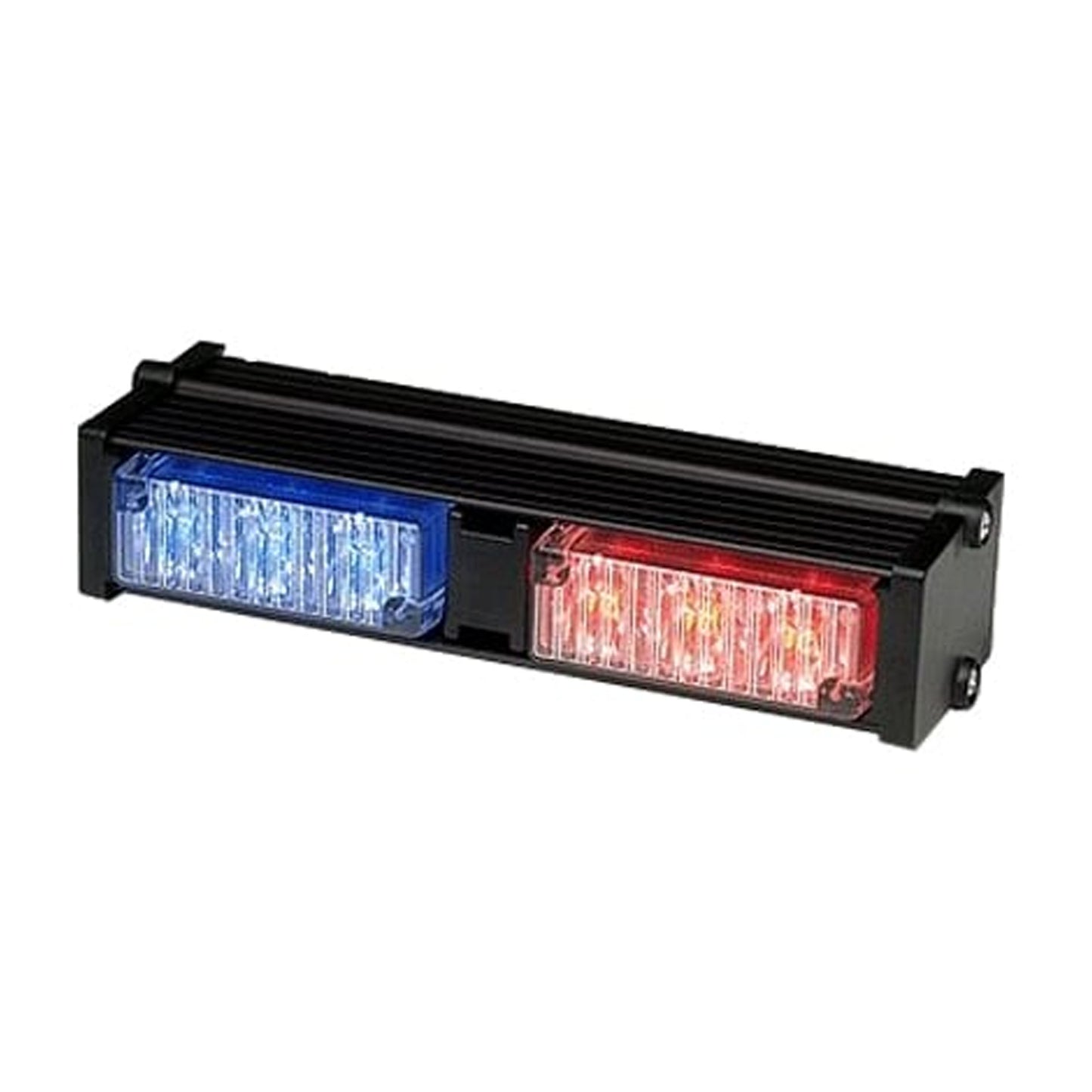

• D2 requires two TIR3™ Super-LED® Lightheads

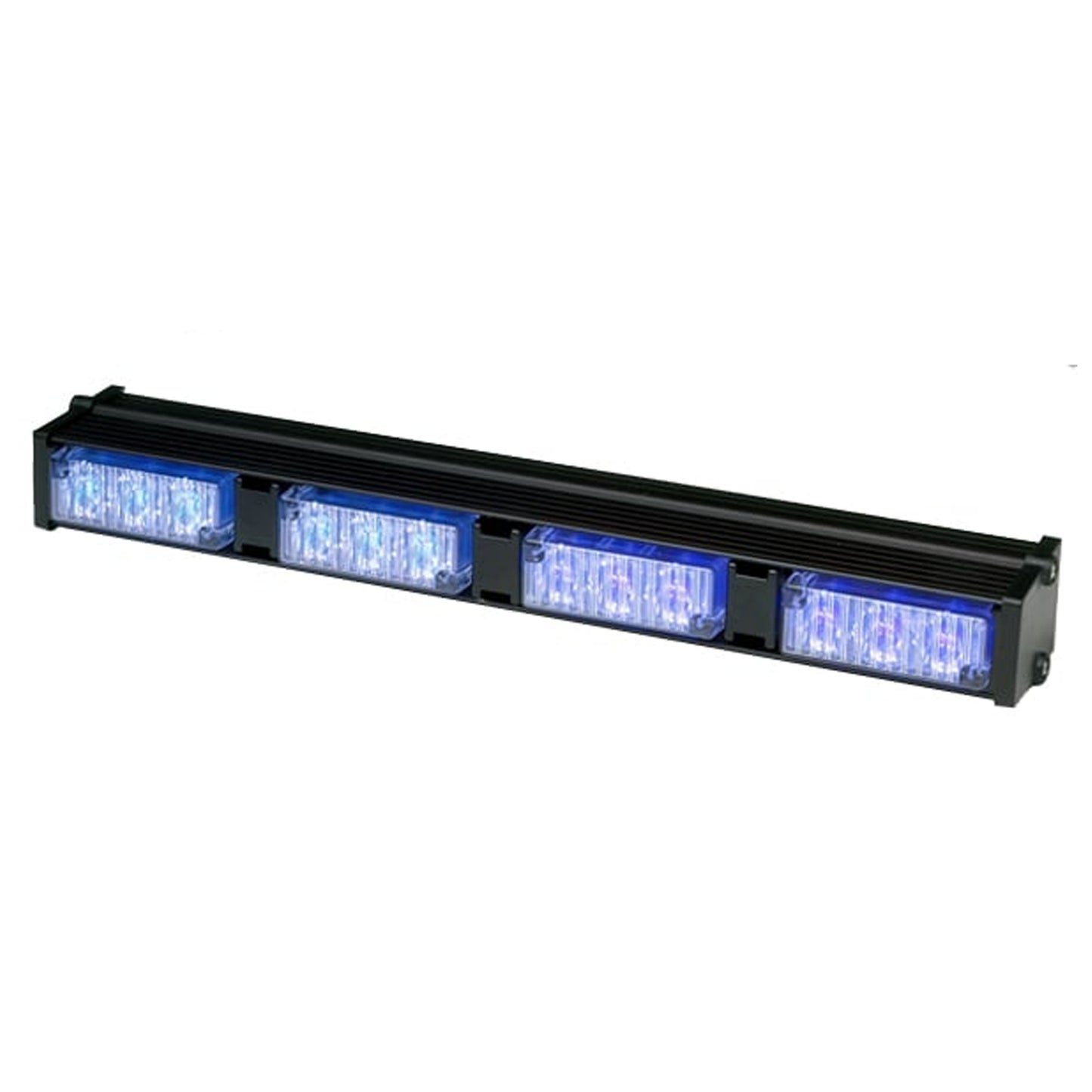

  D4 requires four TIR3™ Super-LED® Lightheads

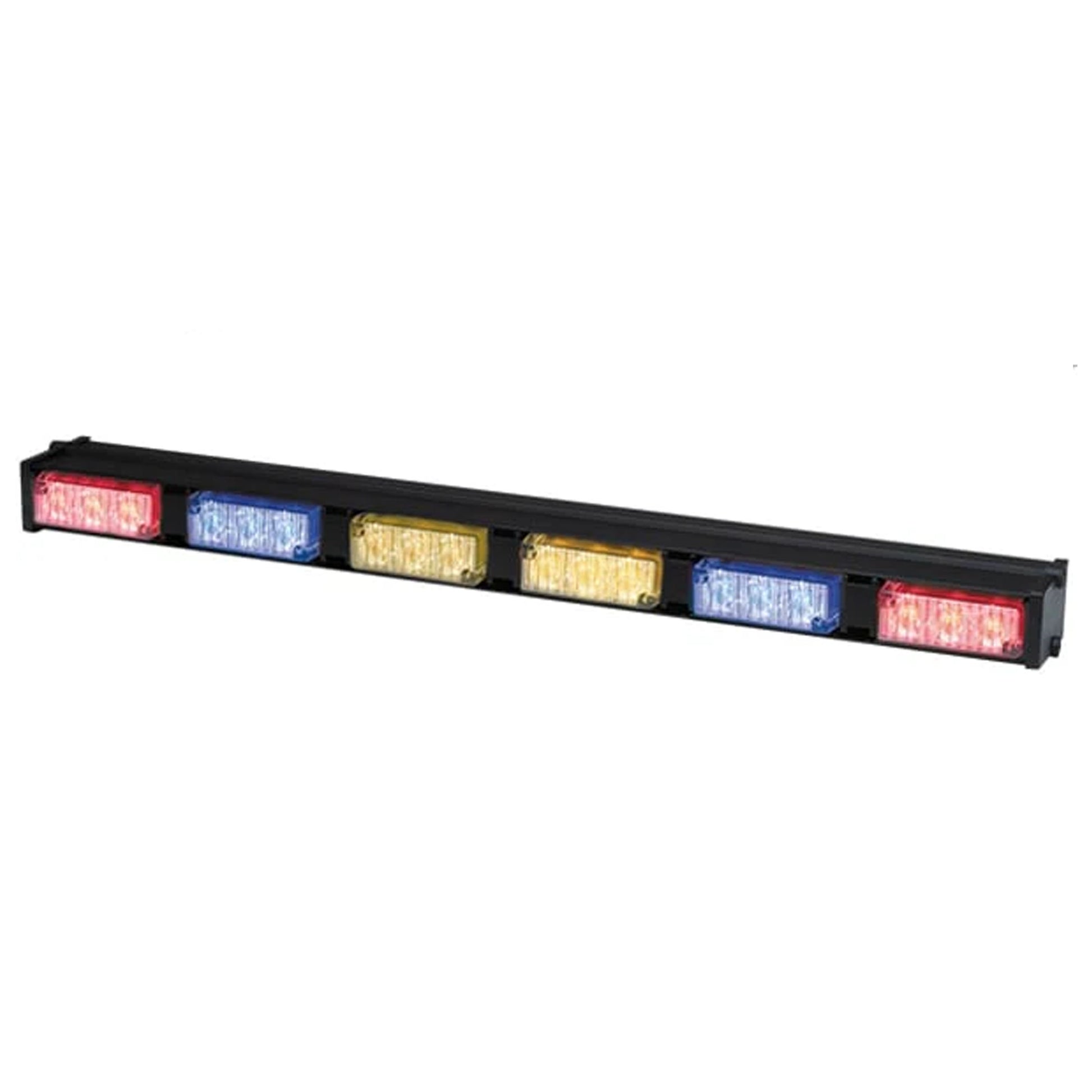

  D6 requires six TIR3™ Super-LED® Lightheads

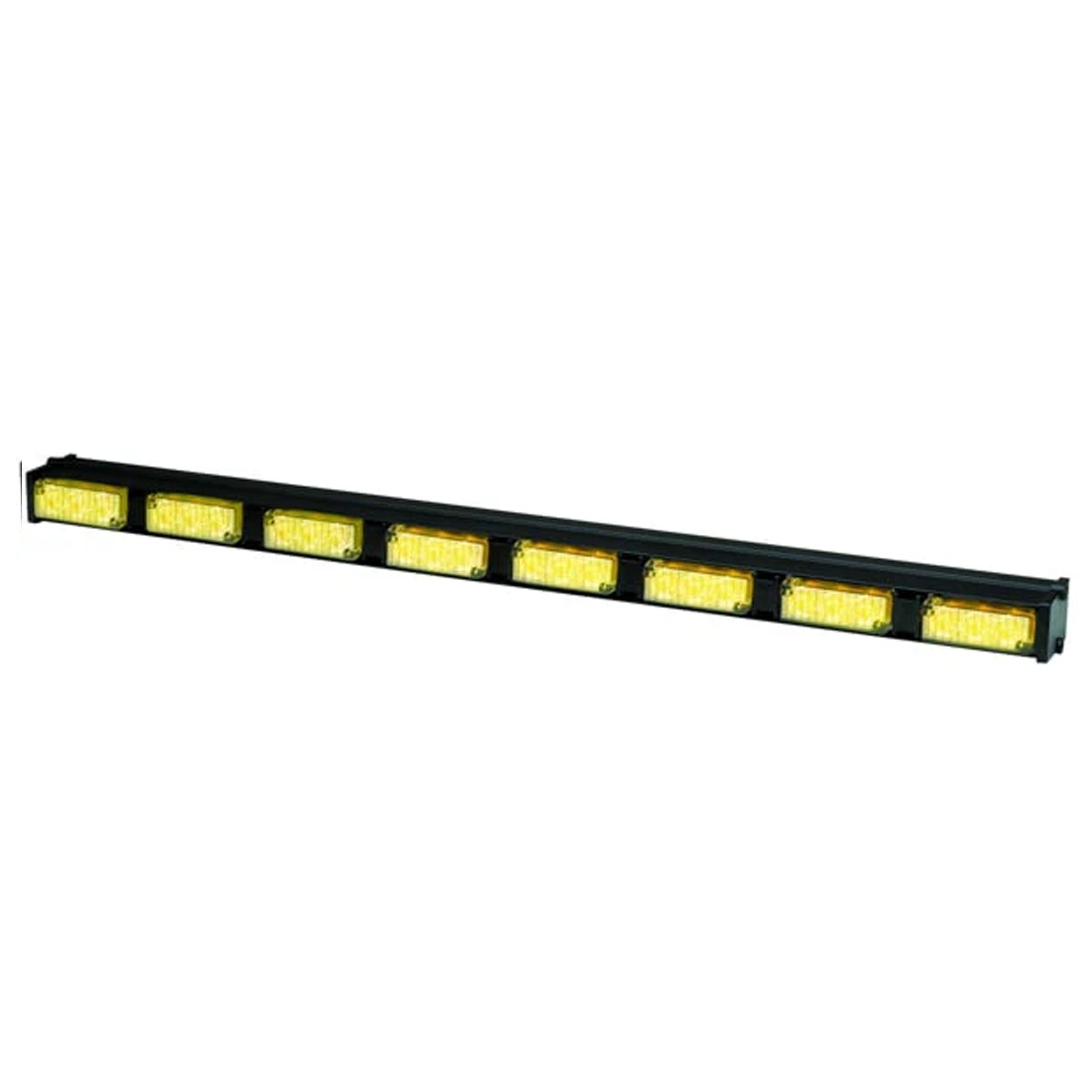

  D8 requires eight TIR3™ Super-LED® Lightheads
• Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
• Extruded Aluminum Platform
• Fully Encapsulated: Moisture, vibration, and corrosion resistance
• Molex® Waterproof Internal Connectors
• Includes 4 or 6 conductor #20 AWG wires
• D2 Size: 1.74" H x 7.11" W x 2.17" D
  D4 Size: 1.74" H x 14.21" W x 2.17" D
  D6 Size: 1.74" H x 23.26" W x 2.17" D
  D8 Size: 1.74" H x 30.36" W x 2.17" D
• 5 year warranty
