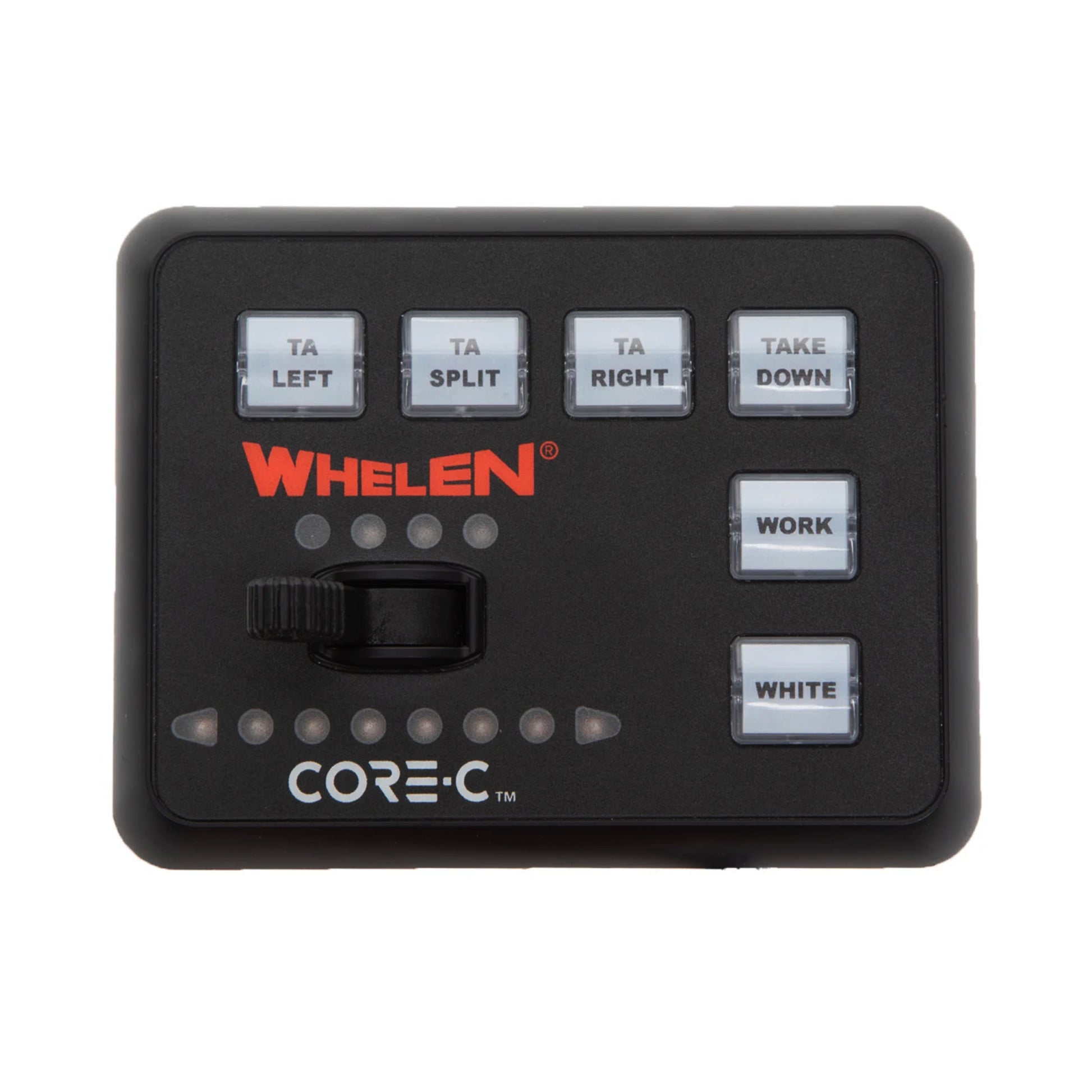

Whelen Core-C Core Control Point and Switch Combination

The Core-C® warning light system for work trucks combines WeCanX® intelligence with control head functionality for a seamless, plug-and-play installation. It offers full support for advanced safety features such as Vehicle-to-Vehicle (V2V) Synchronization and Dynamic Variable Intensity™ (DVI™) patterns, allowing for seamless coordination between multiple vehicles via the Whelen Cloud Platform®.

The Core-C® integrates effortlessly with WeCanX-enabled lightbars and other compatible devices, creating a cohesive safety solution for work trucks.

• Voltage: 10-30 VDC
• Core Control Point and Switch Combination
• 4-Position Slide Switch and 6 Push Buttons
• One 5 amp output for auxiliary lighting
• LED TA Indicator
• V2V Sync Capable
• Remote 8 or 16 Output Expansion Module
• (1) Ignition Power-Up Input
• (1) 5A Output
• 7.5 Amps
• Compatible with WeCanX Legacy®, Liberty™ II, Freedom® IV, Inner Edge® FST™, Inner Edge® RST™, and Inner Edge® XLP
• Control: WeCanX®
• Regulatory Compliance: CISPR 25 & R10
• Size: 3.4” H x 4.40” W x 1.18” D
• 10 year warranty
