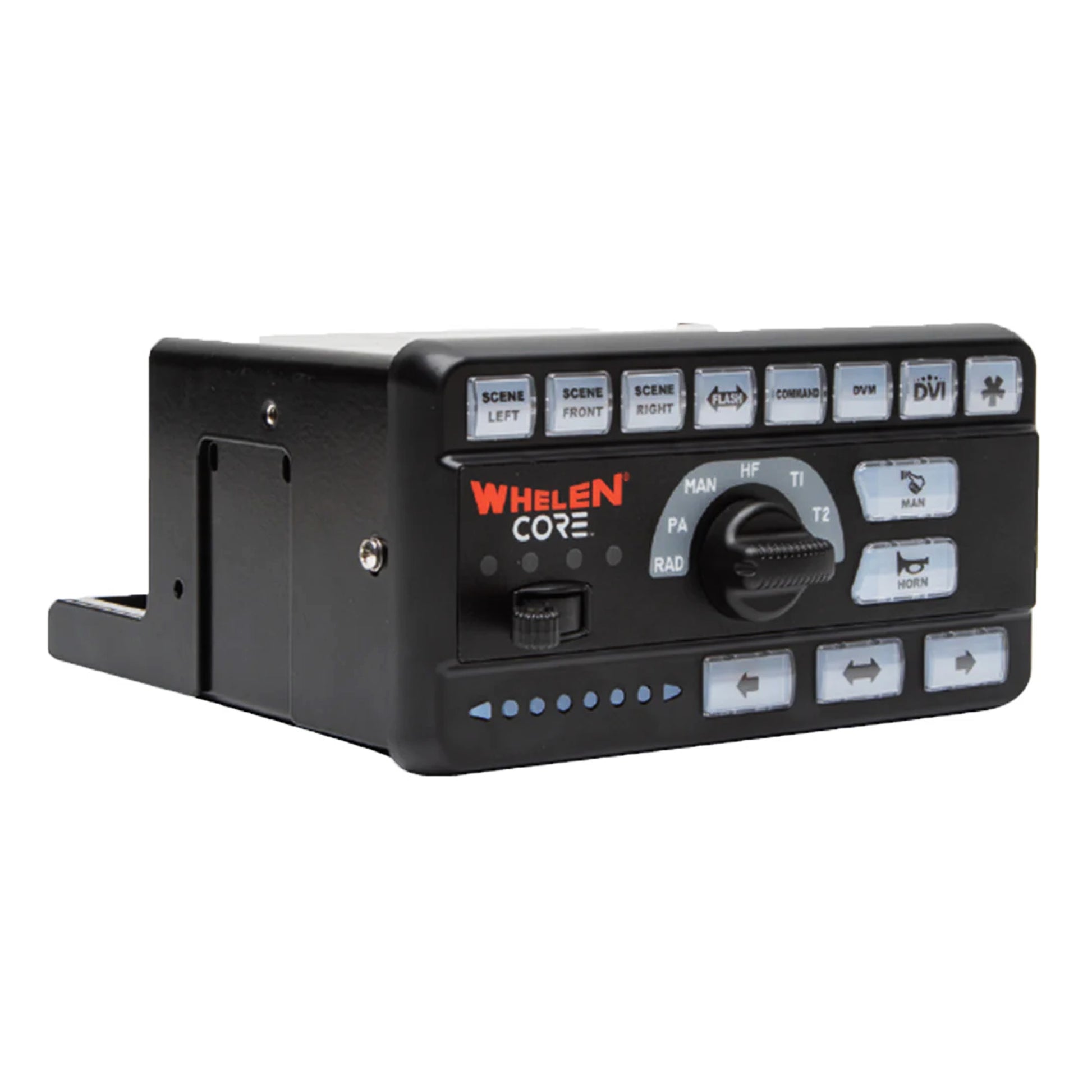

Whelen CenCom Core® Remote Siren

Core-S® is a high-performance, all-in-one vehicle control system designed for compact installations in tight spaces like under dashboards or in consoles. Core-S supports multiple WeCanX® devices, allowing seamless integration with products like Tracer™, Arges®, lightbars, sirens, and more. Its modular design allows for scaling with your fleet’s needs, ensuring smooth performance across different configurations. Core-S allows for Dynamic Variable Intensity™ (DVI™) patterns, which enhance nighttime safety by gradually adjusting the intensity of warning lights, helping motorists navigate emergency scenes more effectively. The system also supports Digital Voice Messaging (DVM), allowing pre-recorded messages to be played at the touch of a button, enhancing communication during critical operations.

• Compatible Control Heads: (Sold Separately)
  Integrated: CCTL6, CCTL7
  Remote: CCTL5, CCTL6, CCTL7, CCTL8, CCTL9, CCTL10, CCTL11
• Size: 3.66” H x 6.93” W x 6.51” D

Inputs:

• 11 Total Inputs
  6 Digital Inputs
  4 Analog Inputs
  1 Ignition Power-Up Input

Outputs:

•
  17 Total Outputs
  2 15A Outputs
  2 10A Outputs
  12 2A Outputs
  1 Dry Contact Relay
  Flashing Outputs
  Every Output Across System Can Be Synchronized

C399S Model:
- 12 VDC
- 200-Watt Amplifier Control Module
- Flashing Outputs
- Includes 3 CAN Ports and Controls Up to 99 Devices/Remote Modules

C399SH Model:
- 12 VDC
- 100-Watt Amplifier Control Module with 100-Watt Howler™
- Flashing Outputs
- Includes 3 CAN Ports and Controls Up to 99 Devices/Remote Modules

C399S6 Model:
- 10-30 VDC
- Single Unit 200-Watt Siren with Integrated 3 Section Control Head and 8 Push-Buttons
- 4-Position Slide Switch with a 7-Position Rotary Knob
- Manual, Airhorn Plus 3 Traffic Advisor™ Switches and Microphone with Extension Cable

C399S6H Model:
- 12VDC
- Single Unit 100-Watt Siren and 100-Watt Howler™ with Integrated 3 Section Control Head and 8 Push-Buttons
- 4-Position Slide Switch with a 7-Position Rotary Knob
- Manual, Airhorn Plus 3 Traffic Advisor™ Switches and Microphone with Extension Cable

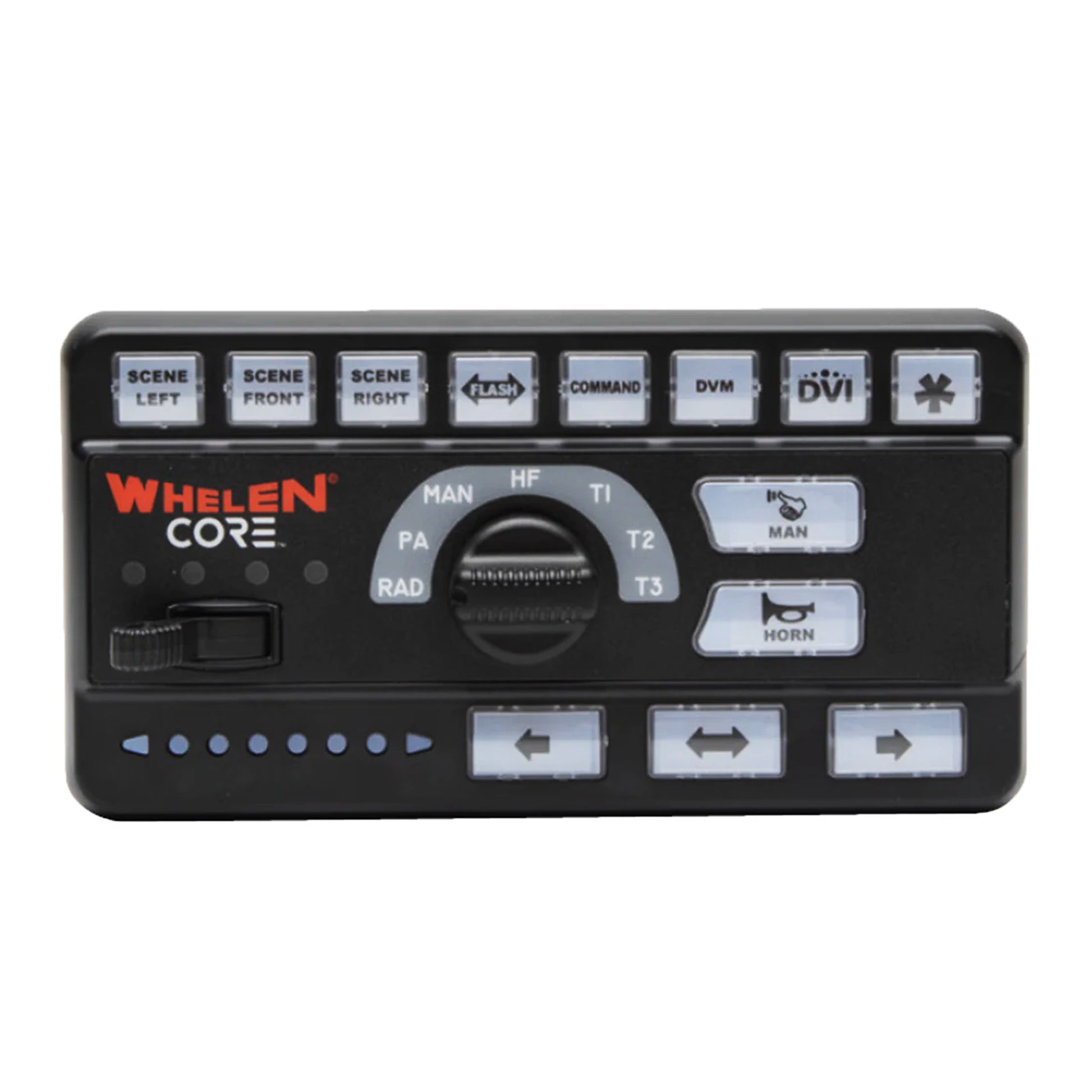

C399S7 Model:
- 10-30 VDC
- Single Unit 200-Watt Siren with Integrated 3 Section Control Head and 21 Push-Buttons
- 4-Position Slide Switch
- Microphone with Extension Cable

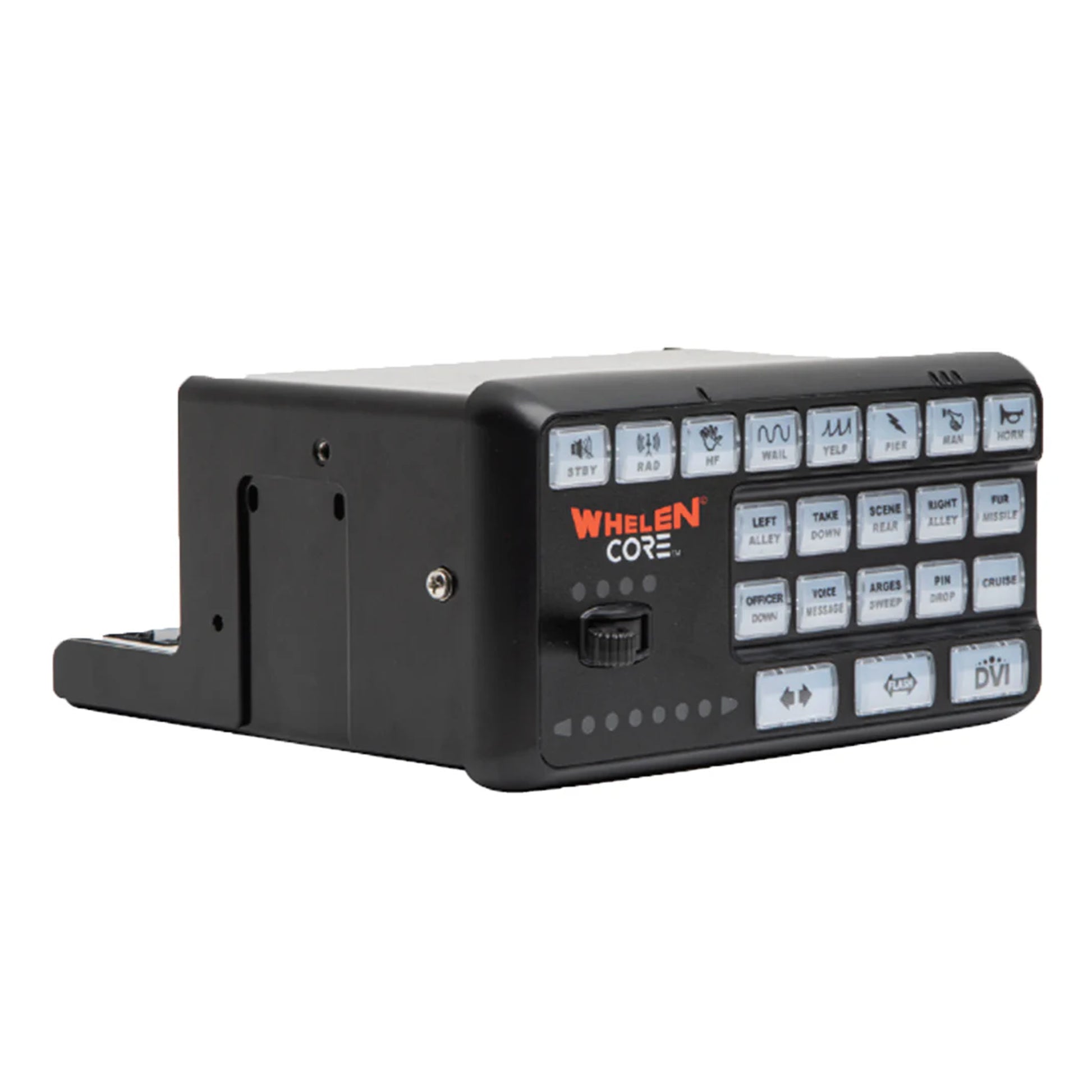

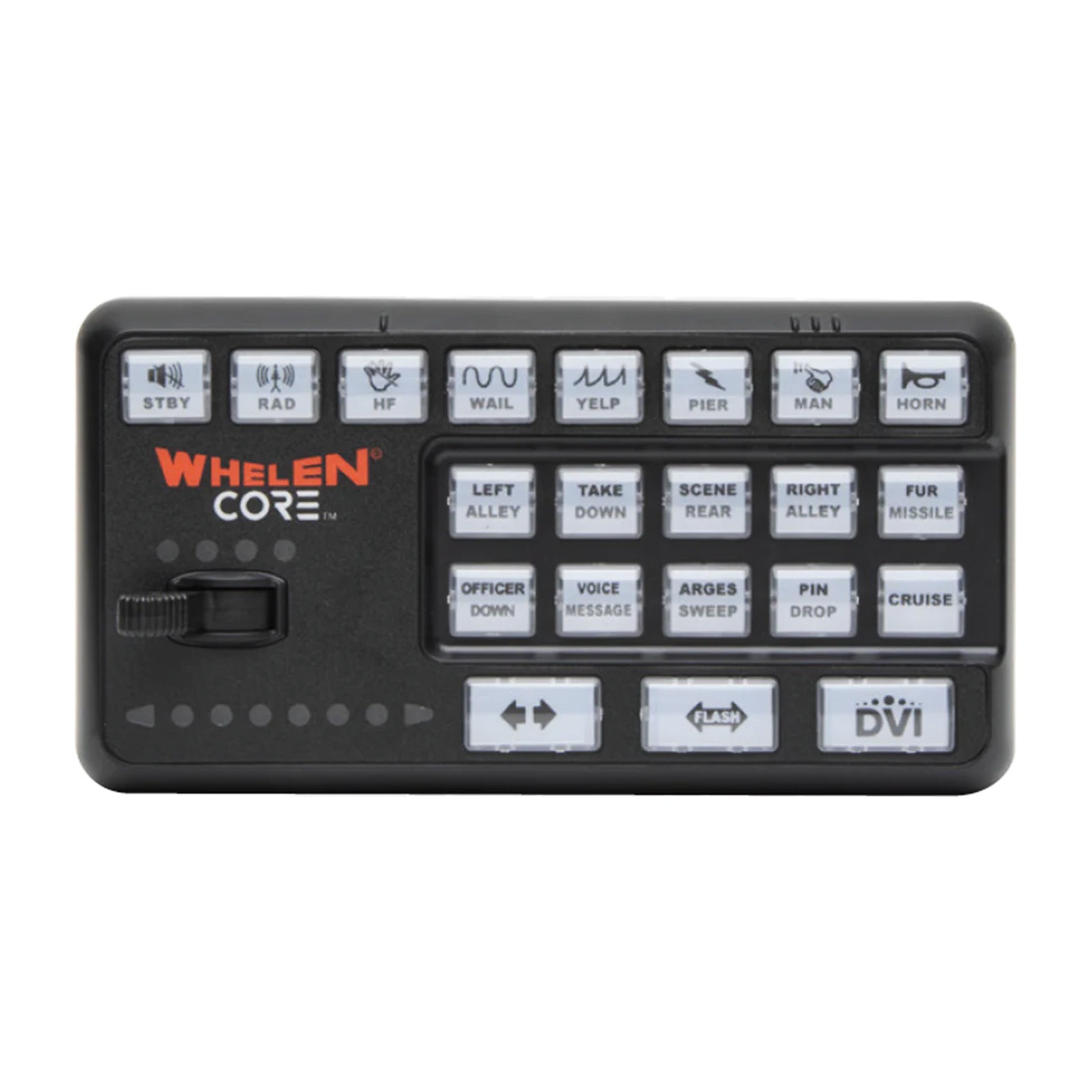

C399S7H Model:
- 12VDC
- Single Unit 100-Watt Siren and 100-Watt Howler™ with Integrated 3 Section Control Head and 21 Push-Buttons
- 4-Position Slide Switch
- Microphone with Extension Cable
