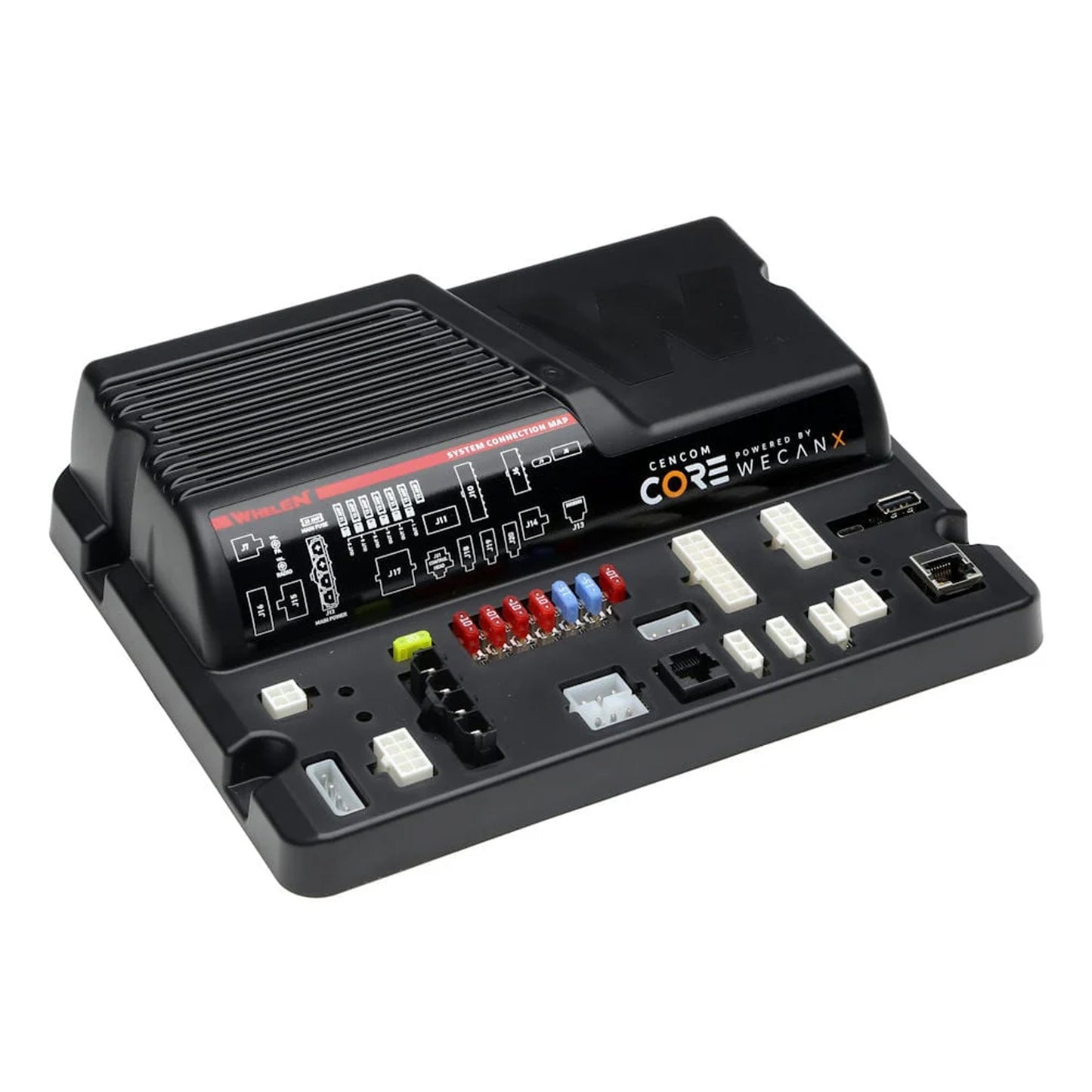

Whelen CenCom Core® Amplifier Control Module

Whelen is redefining control systems with CenCom Core. With the greatest configurability, speed, and expansion yet, CenCom Core is a system created to enhance officer safety with advanced automation and remote connectivity.

WeCanX™ is the smartest and most powerful CAN-based communication system we've ever engineered. Providing true system synchronization, greater speed capabilities, expanded peripheral add-ons, and full support of diagnostics, WeCanX is designed for optimal situational awareness programming.

INSTALLATION KITS ARE SOLD SEPARATELY.

• Access every connector and fuse from the top of the box
• Supports remote firmware updates through USB-C with Whelen Command or over-the-air with The Whelen Cloud Platform™
• Supports up to 99 WeCanX devices -the most ever in a Whelen control system
• Support multiple Whelen peripherals of the same type on the same vehicle
• Meets all applicable SAE and California Title XIII requirements with various Whelen speakers
• Dynamic Variable Intensity (DVI) Patterns and Tones (Patent-Pending)
  Gradually increase or decrease the output intensity within a flash pattern or tone.
• Tone Synchronization: Sync amplifiers together, Sync tones with lights (Patent-Pending)
• Diagnostics: Supports diagnostics
• Five year warranty

Inputs:

• 12 logic inputs
• 1 ignition power-up input
• 4 analog inputs
• 17 total inputs

Outputs:

• 2 15A outputs
• 4 10A outputs
• 16 2A outputs
• 1 dry contact relay
• 23 total outputs
• Max output current: 100
• Flashing outputs
• Every output across the system can be synchronized

Connections:

• 1 ethernet connection
• 1 WeCanX™ connection
• 2 CANport™
• 1 USB-A host
• 1 USB-C
• 1 Micro SD card
• 99 remote modules

Sensors:

• Battery voltage sensor
• Temperature sensor
• 3 axis accelerometer sensor

TO PURCHASE KITS ONLY, GO HERE
