Rear View Safety

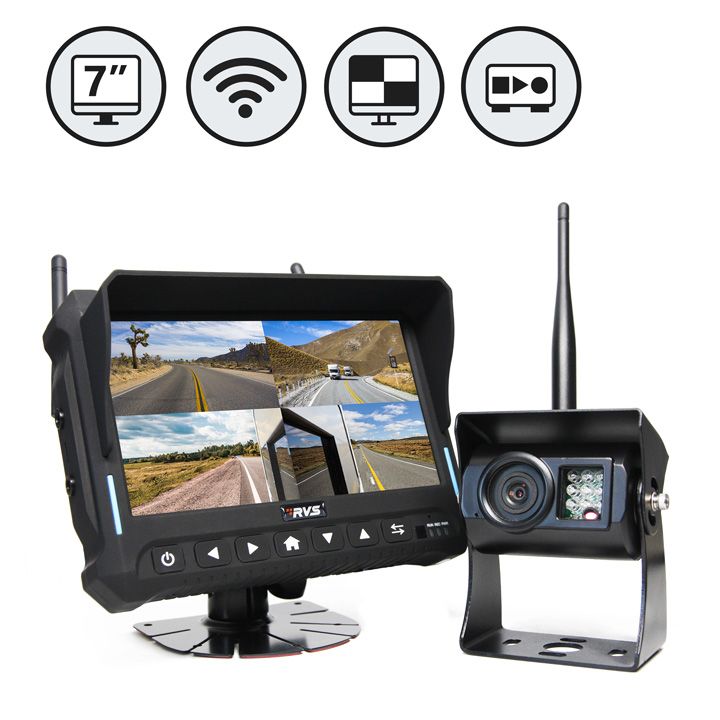

Rear View Safety Wireless Backup Camera System | 7" Quad View Display with Built-in DVR

Rear View Safety Wireless Backup Camera System | 7" Quad View Display with Built-in DVR

$576.46 USD
$576.46 USD
Sale Sold out
Monitor Type
Backup Cameras
Side Cameras + Monitor Mount

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

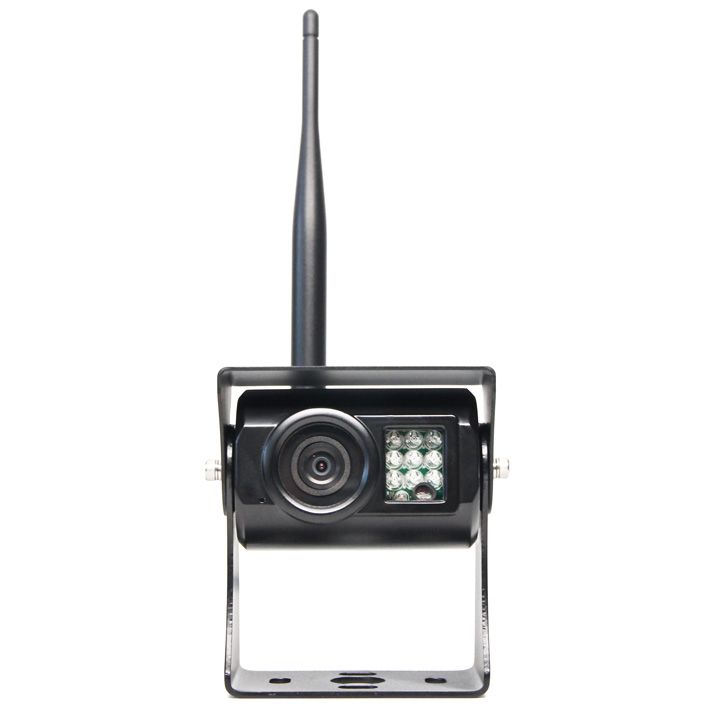

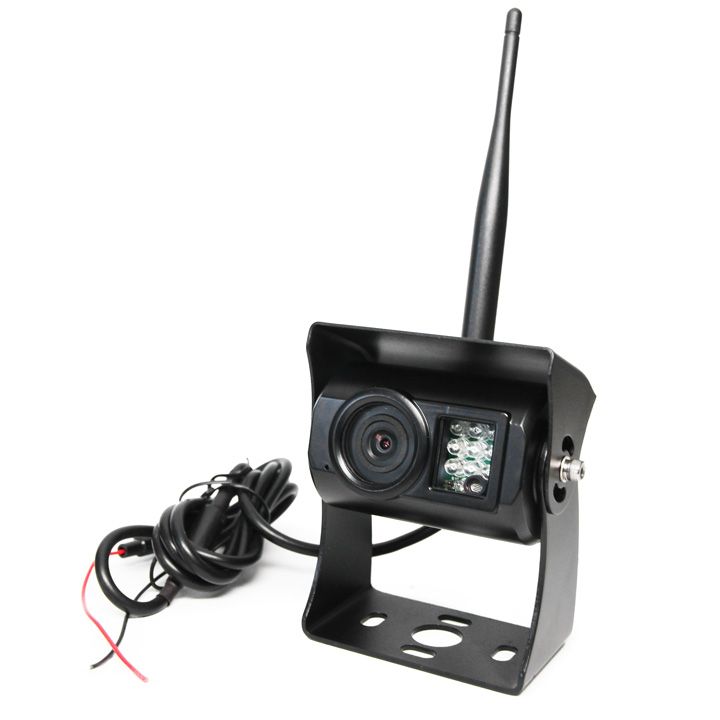

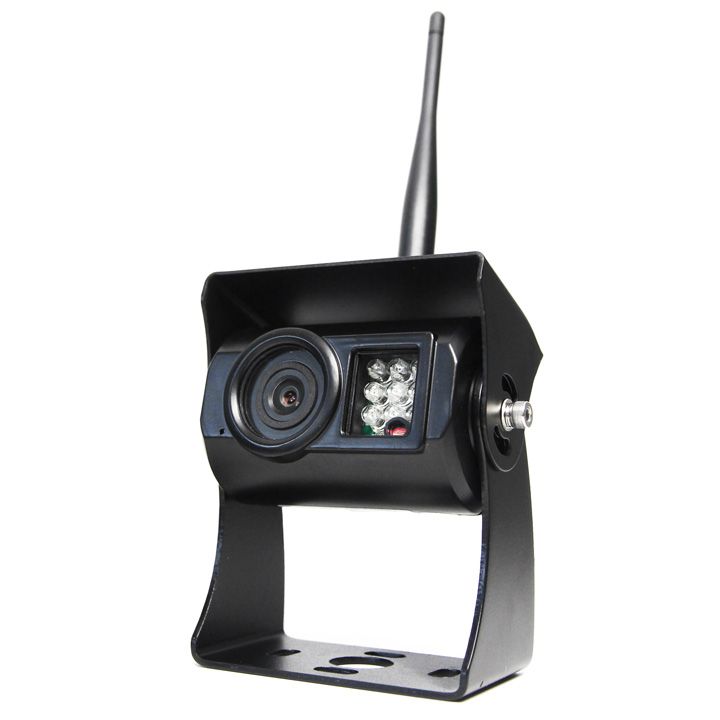

Wireless Backup Camera

This CCD Color Camera is built with heavy duty zinc metal which encases the 2.1 mm Sharp® lens. It has a

viewing angle of 130° and 540 TV lines, which means you get the best quality image with no blind spots.

The 9 infra-red lights allow you to see up to 50 feet even in the darkest of night and the foam around the lens

guarantees no glare from these infra-reds. The camera boasts a 20G vibration rating and with an IP68 weatherproof

rating, it is fit to ride out any storm.

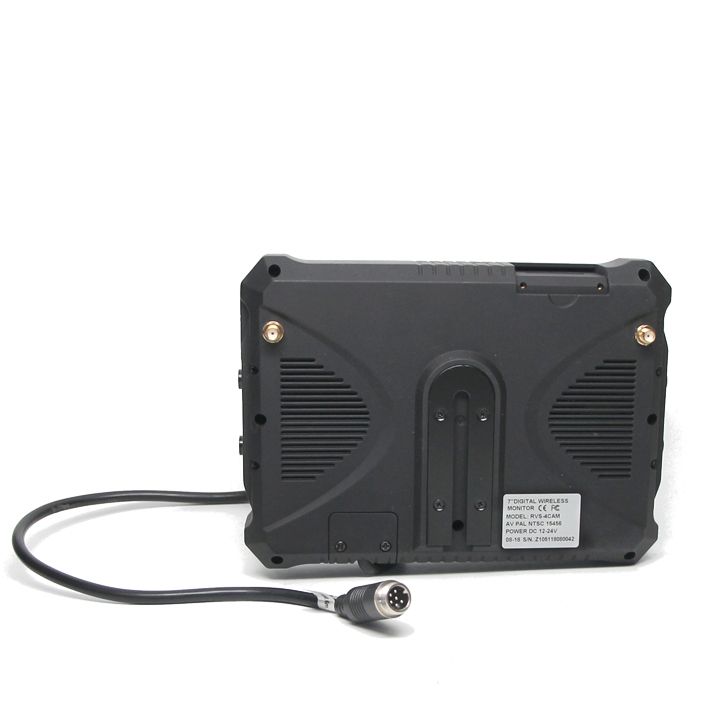

Wireless 7" Quad View Monitor with DVR

Our Wireless 7" TFT LCD Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel

resolution of 800 X 480. The monitor comes with a built-in DVR allowing you to record all camera views and its

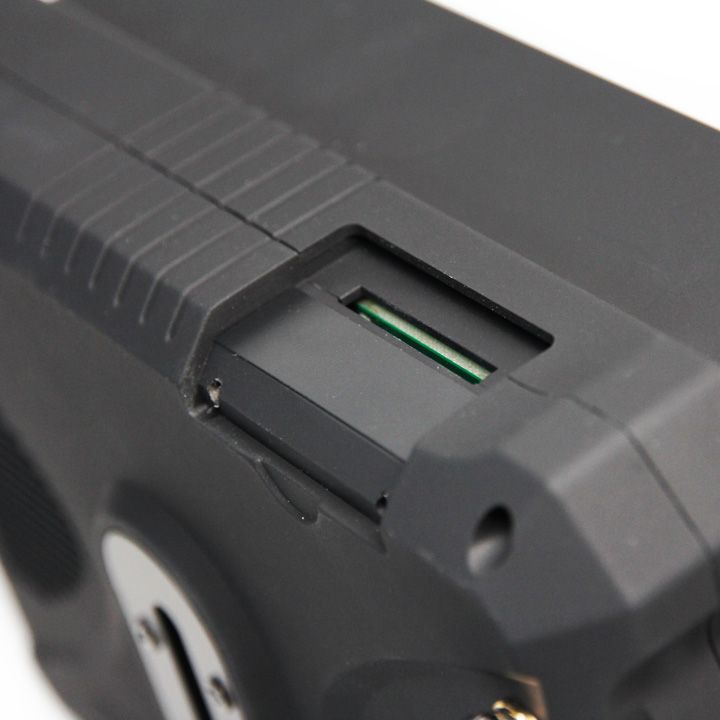

SD card slot can hold up to 128GB SD cards. The distance grid lines that come standard with this monitor are

optional and adjustable. Boasting a wireless distance of 70 feet, this monitor can

also record each camera individually.

Monitor Viewing Options

Specifications

Monitor Specs
      • TypeTFT LCD
      • Screen Size7"
      • Pixel Resolution800 X 480
      • Wireless System2.4G Digital Wireless System
      • Automatic StartYes (Can Be Turned Off)
      • Display Brightness400cd/㎡
      • Video Input4 Channel
      • Audio Input1 Channel
      • Trigger Capacity3 Triggers
      • SD Card Capacity128GB
      • Vibration/Shock Rating20G/100G
      • Input VoltageDC 12V-36V
      • Frequency2.4GHz
      • Transport Power10mW
      • Transmission Distance70ft
      • Operating Temperature-40°C ~ +75° C
      • Video SystemAuto NTSC/PAL

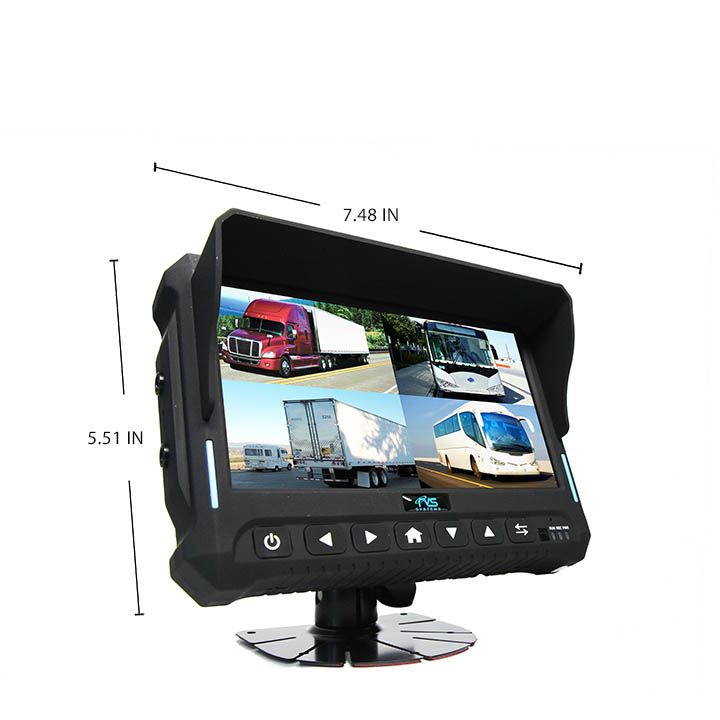

      • Overall Dimensions 5.51" (H) x 7.48" (L) x 2.5" (D)
Backup Camera Specs
    • Camera1/4" Sharp® Color CCD
    • Picture Elements250,000 pixels
    • Gamma Correctionr=0.45 to 1.0
    • Image Sensor540 TV lines, PAL: 752 (H) x 582 (V), NTSC: 769 (H) x 494 (V)
    • Lens2.1mm
    • Waterproof RatingIP68
    • View Angle130°
    • Sync SystemInternal Synchronization
    • Infra-red distance50 Feet (9 Infrared)
    • Usable Illumination0 Lux (IR On)
    • Power SourceDC 12V/3A (+/- 10%)
    • S/N RatioMore than 48dB
    • Electronic Iris1/50, 160-1/100,000sec
    • Video Output1Vp.p 75ohm
    • IR Switch ControlACDS Automatic Control
    • Vibration and Shock Rating20G / 100G
    • Operating Temperature-30°C ~ +80°C / RH 95% Max
    • Storage Temperature-30°C ~ +60°C / RH 95% Max

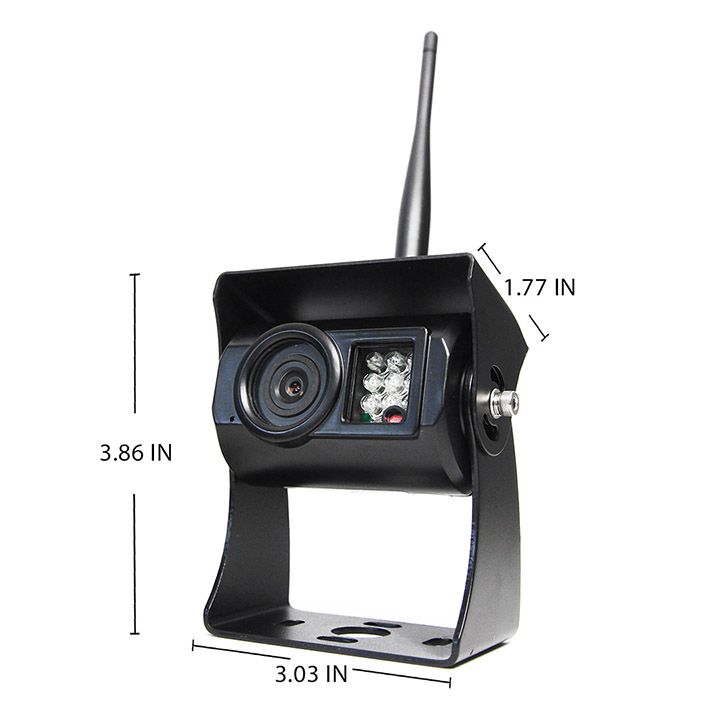

    • Overall Dimensions 3.86" (H) x 3.03" (L) x 1.77" (D)
