Select the model from the drop-down. Details for each part number are below.

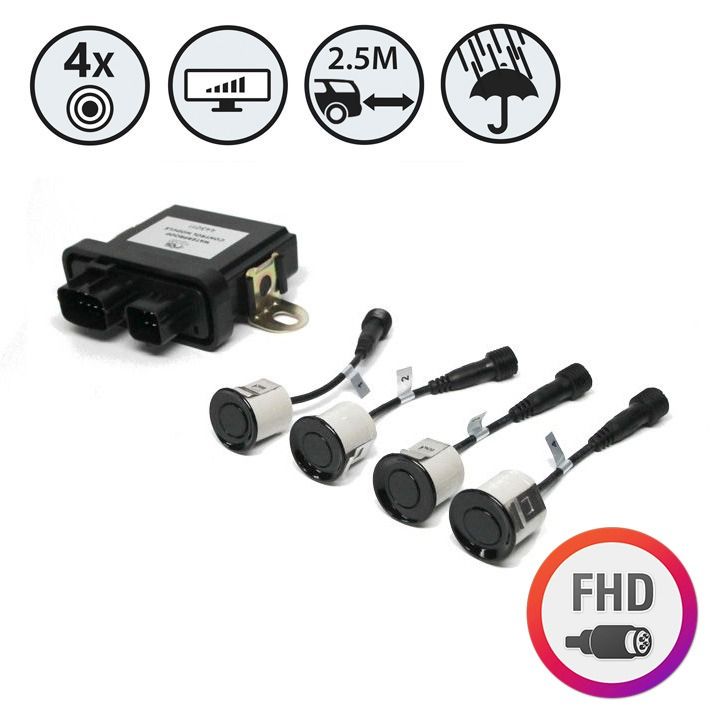

SN-U14 (replaces RVS-112-W) (SN-U14)
Replaces Rear View Safety part number RVS-112-W.
-
Waterproof
All components of the SN-U14 are waterproof, allowing you to install the control module outside the vehicle.
-
Large Detection Zone
Parking will be easy, as the SN-U14 warns of obstacles behind the vehicle with a detection range of up to 8ft away.
-
Simple Integration
This waterproof backup sensor system easily integrates into certain Rear View Safety camera systems.

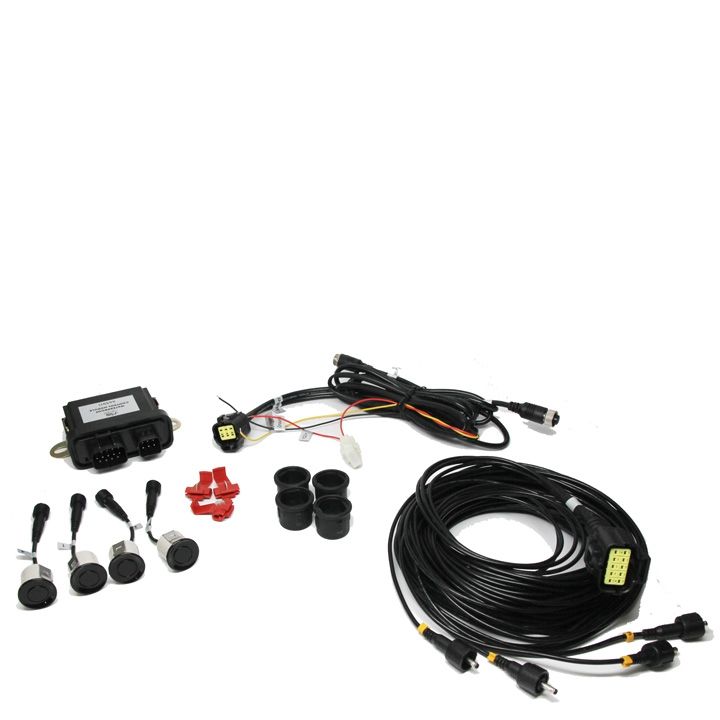

In the box

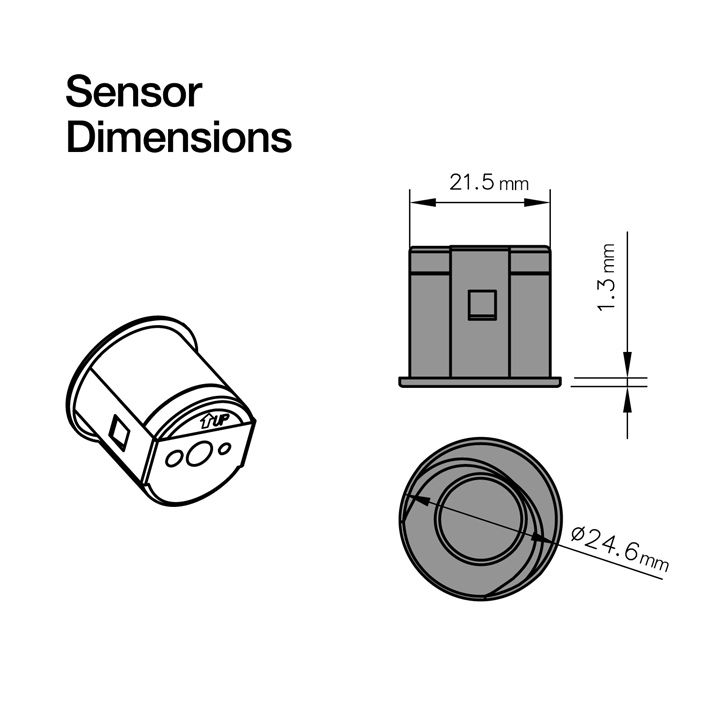

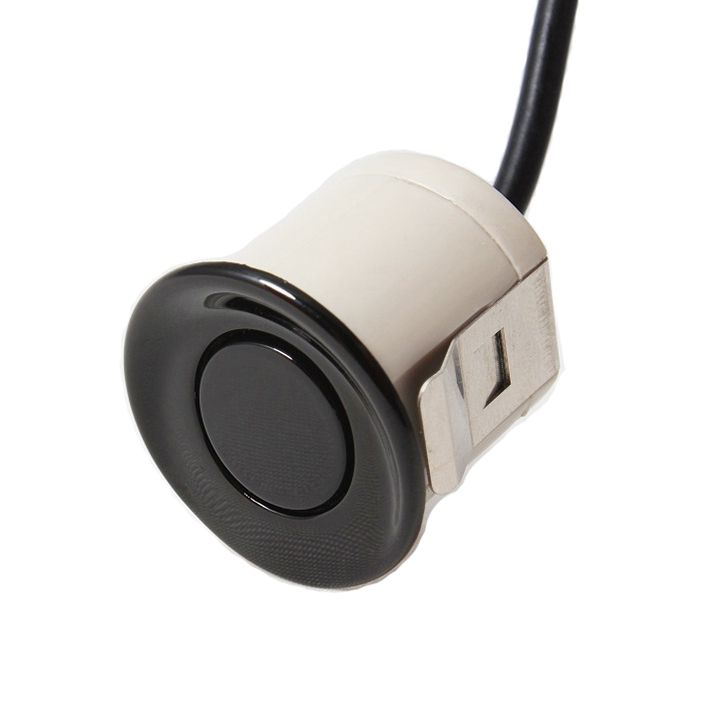

- 4 x Waterproof Sensors

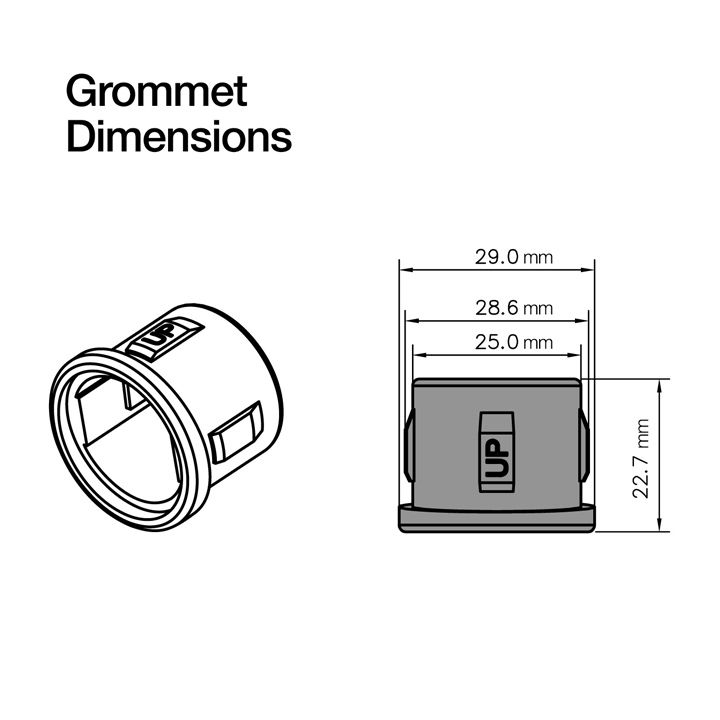

- 4 x Rubber Grommets
- 1 x Control Module
- 1 x 9.5' Y-Adapter Power Cable
- 3 x Cable Clips
- 1 x Sensor Cable Harness
Cable lengths in sensor harness:
(Sensors "1" and "2") - 26ft
(Sensors "3" and "4") - 13ft
Specifications
- Sensor Type Analog Sensor
- Sensor Quantity 4 Sensors
- Sensor Frequency 40kHz +/- kHz
- Waterproof Rating IP68
- Static Capacitance 2000± 15%pF
- Input Voltage max. 140 Vp-p {at 40KHz)
- Decay Time <1.2ms
- Decay Parameter 20±3 (Admissible parameter)
- Echo Sensitivity >200mV
- Horizontal Angle 51°
- Vertical Angle 62°
- Detection Range 0.22mm (0.08ft) to 2.5m (8ft)
- Working Voltage 10.0 ~ 28.0 VDC
- Rated Current (ECU) 60mA max
- Wiring Harness Vehicle Spec. T-Piece
- Working Temperature -40°C ~ +75°C
- Storage Temperature -40°C ~ +90°C
- Normal Voltage 12 VDC
- Operating Voltage 1.0 ~ 28 VDC
- Rated Current 60 mA
- Operating Frequency 40 +/- 1 kHz
- Housing Material ABS
- Housing Color Black
- Working Temperature -40°C ~ 75°C
- Storage Temperature -40°C ~ 90°C
- Waterproof Rating IP65

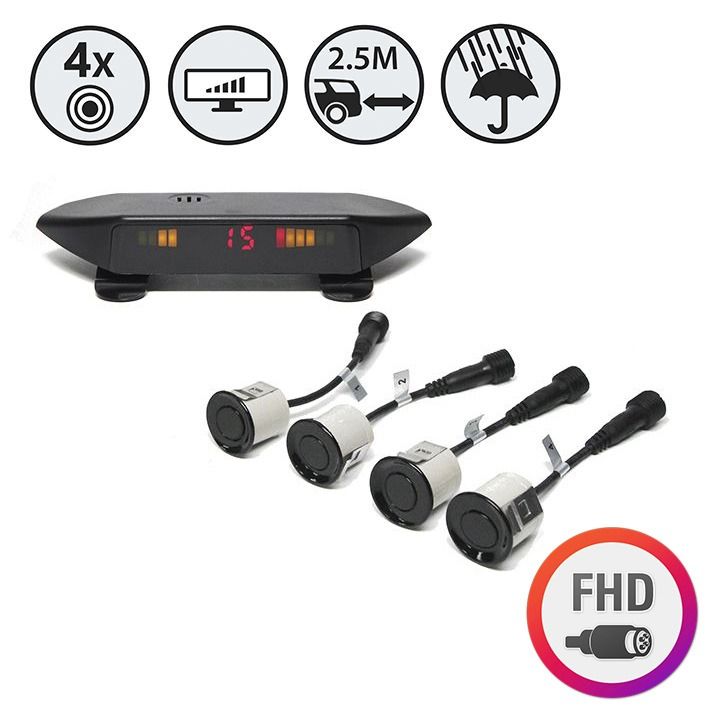

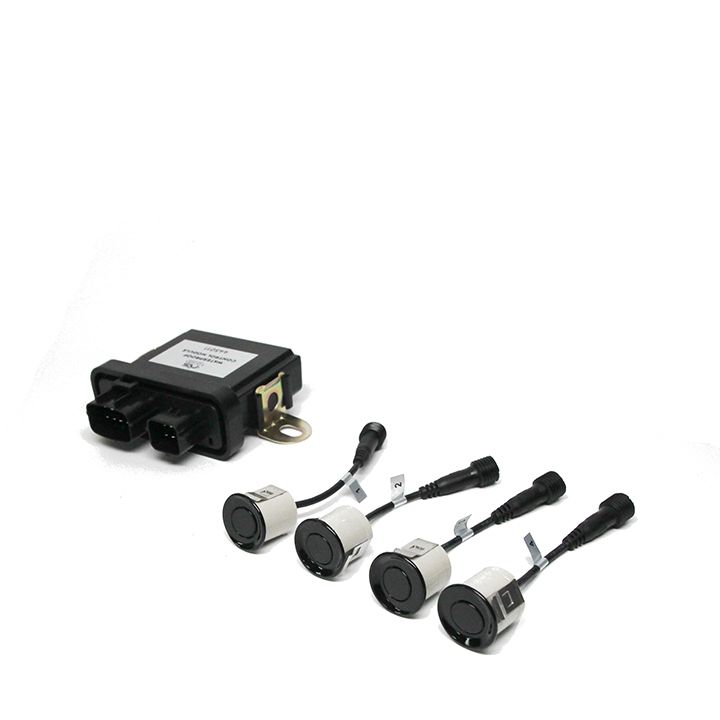

SN-U14S, with LED display (replaces RVS-115-W) (SN-U14S)
Replaces Rear View Safety part number RVS-115-W.
-
Waterproof
All components of the RVS-115-W are waterproof, allowing you to install the control module outside the vehicle.
-
Large Detection Zone
Parking will be easy, as the RVS-115-W warns of obstacles behind the vehicle with a detection distance of 8 ft.
-
Wide Detection Range
You can reverse in confidence as these backup sensors have a vertical detection range of 59° and a horizontal detection range of 50°.

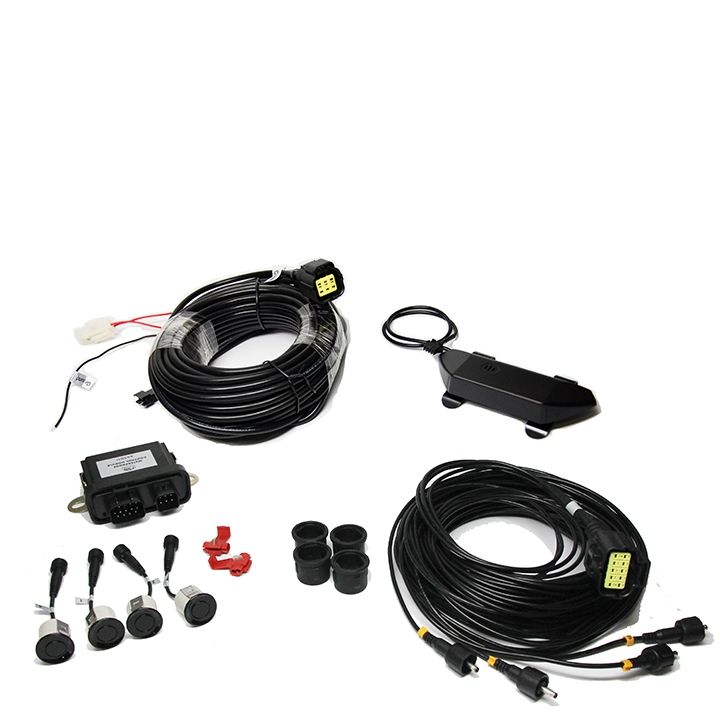

In the box:
4 x Waterproof Sensors
4 x Rubber Grommets

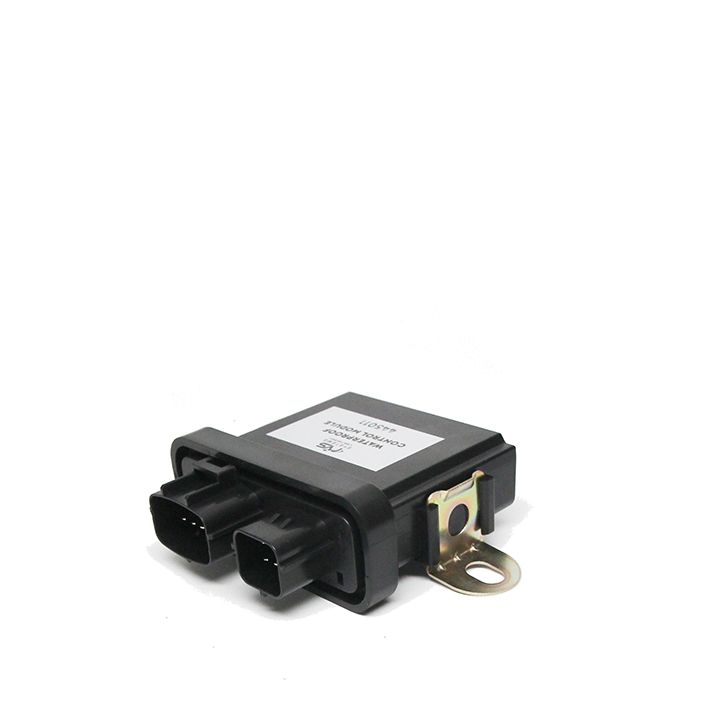

1 x Waterproof Control Module
1 x LED Display with Extension Cable

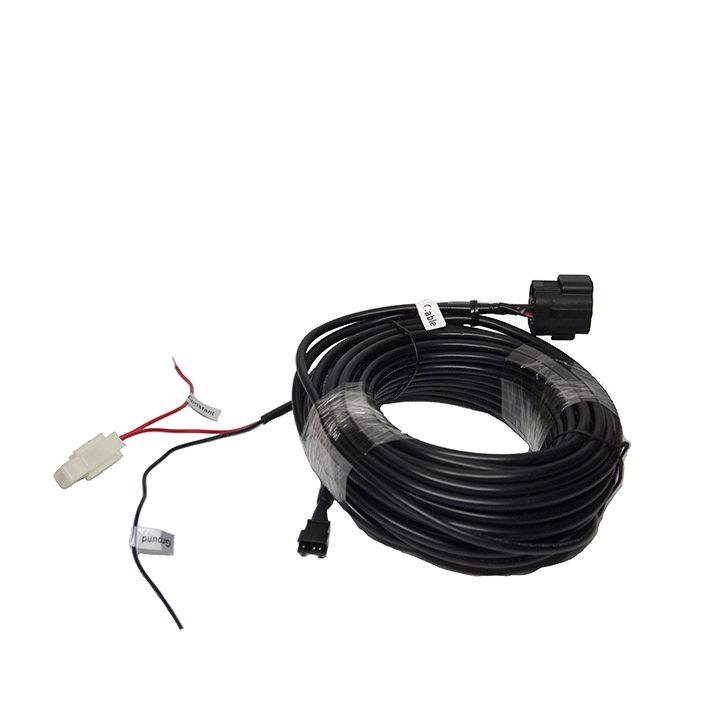

1 x Power Harness Cable
2 x Cable Clips
1 x Sensor Harness Cable
Cable lengths in sensor harness:
(Sensors "1" and "2") - 26ft
(Sensors "3" and "4") - 13ft
Power harness cable length: 48ft
Specifications:
- Sensor Type Analog Sensor
- Sensor Quantity 4 Sensors
- Sensor Frequency 40kHz +/- kHz
- Static Capacitance 2000± 15%pF
- Input Voltage max. 140 Vp-p {at 40KHz)
- Decay Time <1.2ms
- Decay Parameter 20±3 (Admissible parameter)
- Echo Sensitivity 800mV
- Horizontal Detection 50°
- Vertical Detection 59°
- Detection Range 0.22mm (0.08ft) to 2.5m (8ft)
- Working Voltage 10.0 ~ 28.0 VDC
- Rated Current (ECU) 60mA max
- Wiring Harness Vehicle Spec. T-Piece
- Working Temperature -30°C ~ +80°C
- Storage Temperature -40°C ~ +90°C
- Normal Voltage 12 VDC
- Operating Voltage 1.0 ~ 28 VDC
- Rated Current 60 mA
- Operating Frequency 40 +/- 1 kHz
- Housing Material ABS
- Housing Color Black
- Working Temperature -30°C ~ 80°C
- Storage Temperature -40°C ~ 90°C
- Waterproof Rating IP67
