Rear View Safety Surface Mounted Third Brake Light Rear View Camera

Universal Third Brake Light Camera

Our Universal Third Brake Light Camera mounts to any flat service making for a very clean install. It comes with a viewing angle of 150 degrees and it's MT9V139 lens provides an image quality of 700 TV lines. Night vision is supported and with even a very limited amount of ambient light, this camera will provide a crystal clear image.

With an IP68 weatherproof rating this camera will be fit to ride out any storm and boasts a 10G vibration rating as well as aircraft grade cable connections.

• Camera 1/3" 1099 Color Camera
• Effective Pixel Array 976 (H) x 496(V)
• Resolution 700 TVL
• Video System Internal
• Viewing Angle 150°
• Lens 2.21mm
• Usable Illumination 0.01 Lux
• Power Source DC 12V (+/- 10%)
• Power Consumption <50mA@12V
• Reverse Voltage Protection Yes
• Dynamic Range 63.2 [Db]
• White Balance Auto
• Exposure Control Auto
• Gain Control Auto
• Shutter Mode Electronic Rolling Shutter
• Frame Rate <30fps
• Camera Correction R=0.45-1.0
• Lens Construction <4G+IR
• S/N Ratio More than 48dB
• Electronic Iris 1/50, 160-1/100,000 sec
• Video Output 1Vp.p 75ohm
• Operating Temperature -40°C ~ +70°C
• Storage Temperature -40°C ~ +80°C
• Relative Humidity RH 90% Max

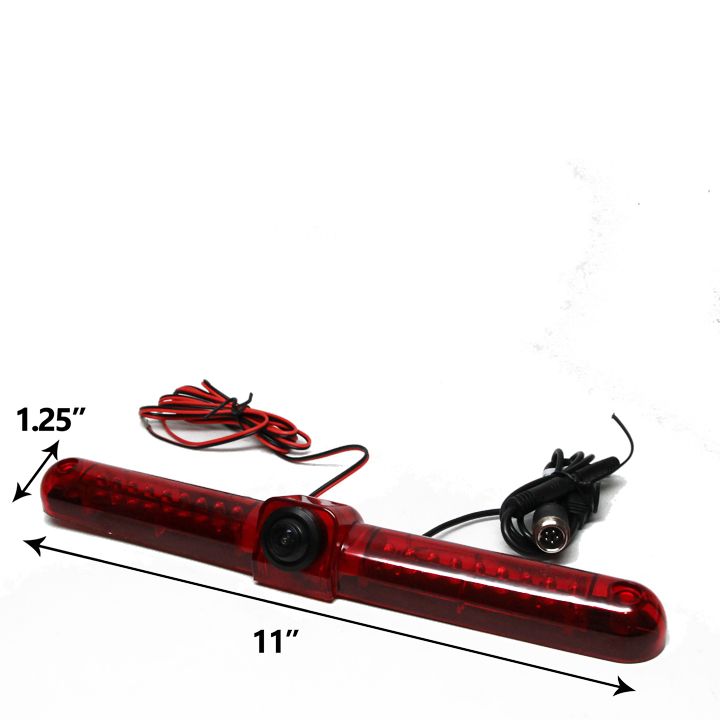

• Camera Dimensions 1.25" (H) x 11" (L) x 1.25" (D)
