Surface Mount Backup Camera

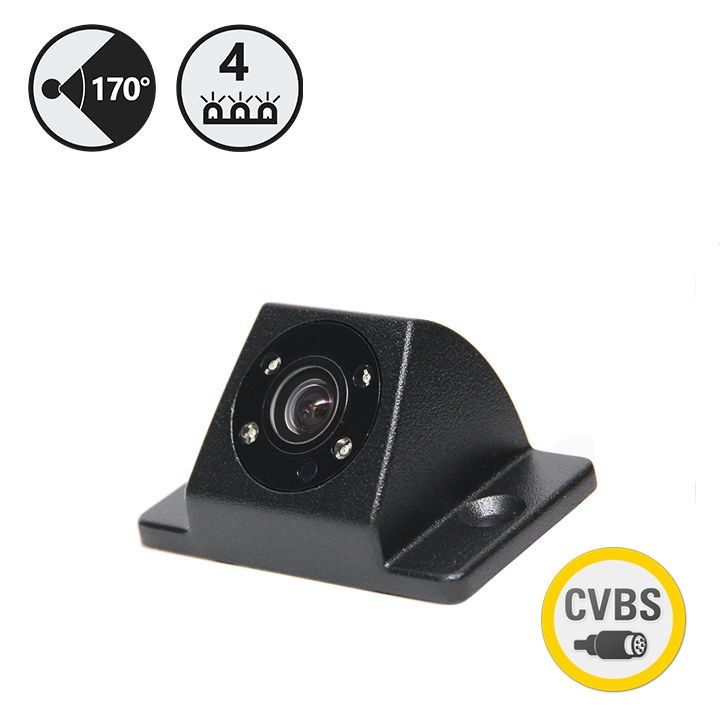

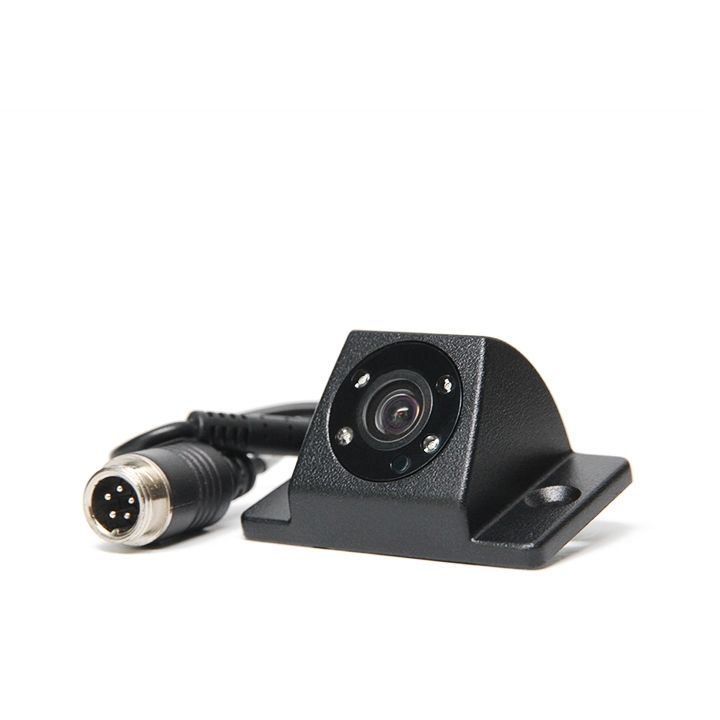

620 TV Lines together with an ultra wide viewing angle of 170° create an awesome, super sharp image from this surface mounted backup camera. Its compact design and surface mounting make it easy to install and with an IP68 rating is completely waterproof. Night vision is supported and with four infra-red lights this camera will provide a great image even on the darkest night.
A 3-D Look Inside
Take a closer look at the heavy duty components that make the RVS-MV3-IR a powerful and reliable backup camera.

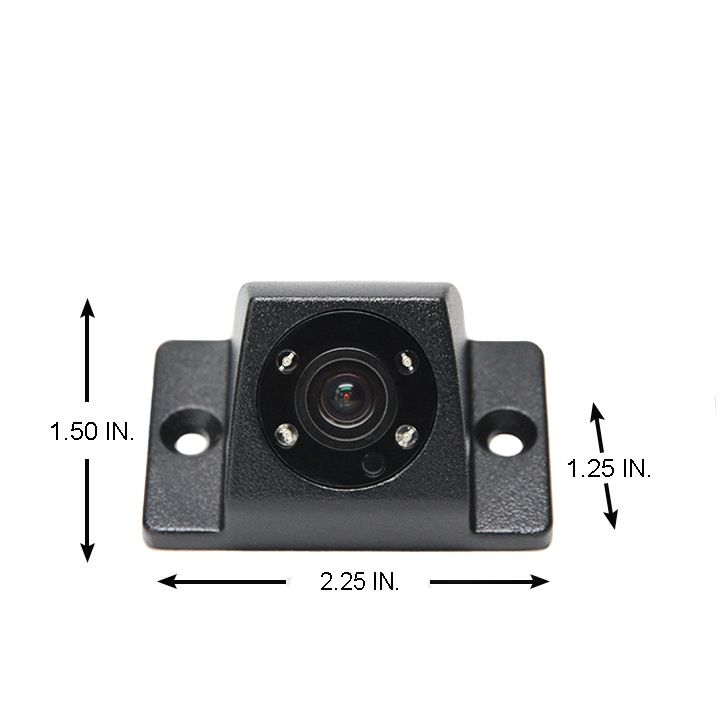

Mount Position Diagram
Specifications
Camera Specs
- Camera PC 3089
- Picture Elements 380,000 Pixels
- Image Sensor 620 TV Lines
- Lens 2.1mm
- Viewing Angle 170°
- Night Vision Yes - Infra-red Lights
- S/N Ratio More than 48dB
- Waterproof Rating IP68
- Max Frame Rate NTSC: 60 fields/sec, PAL: 50 fields/sec
- Sync System Internal Synchronization
- Power Source DC 12V
- Operating Temperature -40°C ~ +75°C
- Storage Temperature -40°C ~ +80°C
