Rear View Safety Surface Mount Backup Camera
Rear View Safety Surface Mount Backup Camera
Regular price
$144.11 USD
Regular price
Sale price
$144.11 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Replaces Rear View Safety part number RVS-776.
Compact Backup Camera

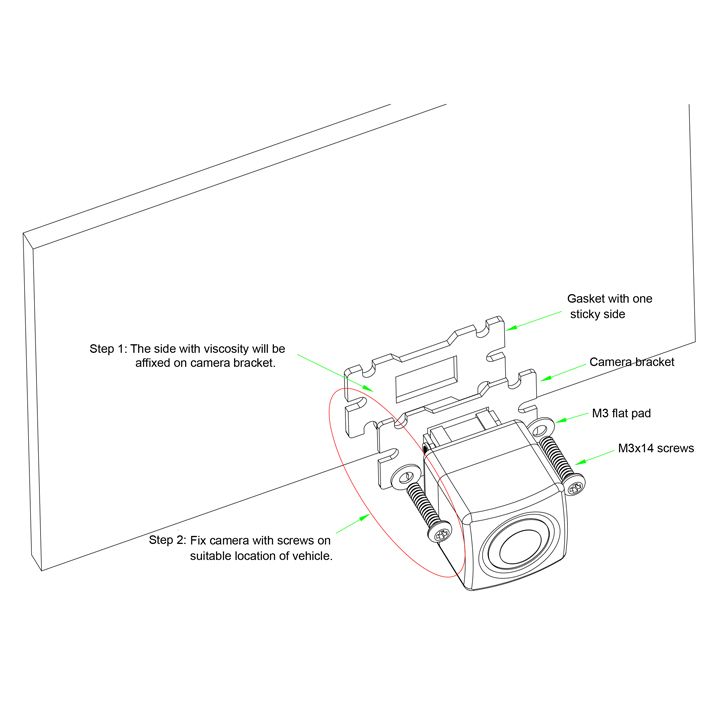

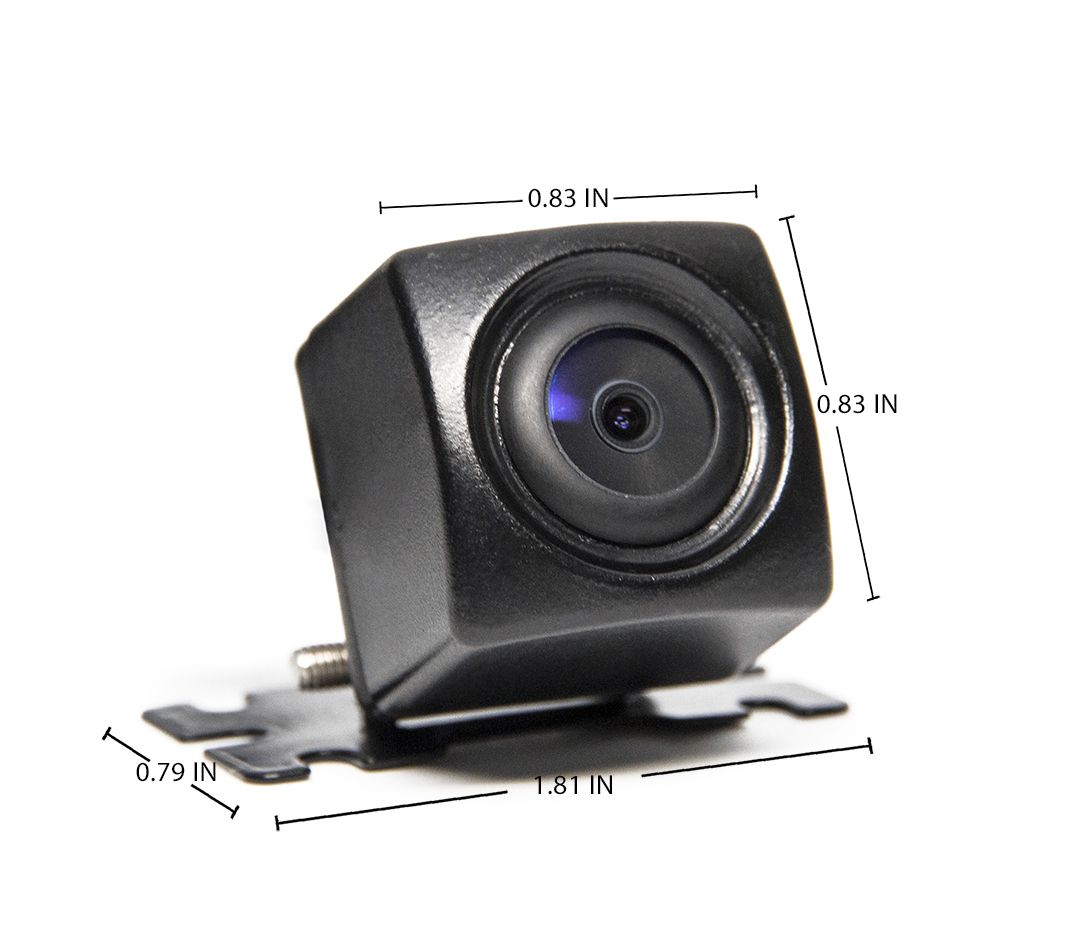

This Compact Backup Camera is built with a MT9V139 lens with an ultra wide viewing angle of 170°. It's tiny size (less than an inch long, wide and deep) makes it ideal for smaller vehicles and allows its installation to be virtually invisible. It comes with an adjustable mounting bracket and with an IP68 rating is fit to operate in almost all weather conditions.
Specifications
Camera Specs
- Camera MT9V139
- Sensor Format 728 (H) X 560 (V)
- NTSC Output 720 (H) X 480 (V)
- PAL Output 720 (H) X 576 (V)
- Optical Format 1/4 Inch
- Lens 2.1mm
- TV Lines 480
- Viewing Angle 170°
- Weatherproof Rating IP68
- Night Vision Yes
- Usable Illumination 0.5 Lux
- Power Source DC 12V-24V (+/- 10%)
- S/N Ratio 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Cable Length (from camera) 5.8'
- Video Output 1Vp-p, 75 Ω
- Shutter Type Electronic Rolling Shutter (ERS)
- Vibration and Shock Rating 10G / 100G
- White Balance Auto
- AGC Auto
- Operating Temperature -40°C ~ +70°C / RH 95% Max
- Storage Temperature -40°C ~ +80°C / RH 95% Max
