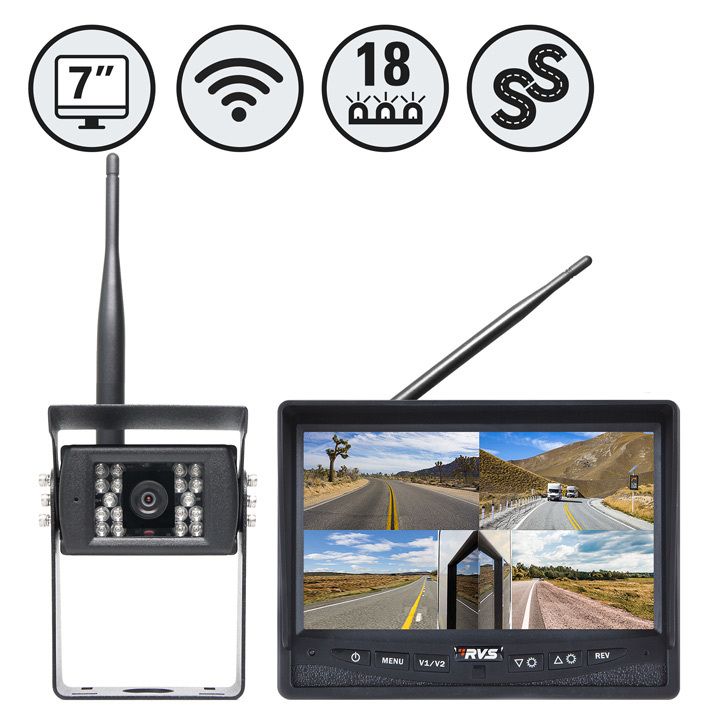

Rear View Safety SIMPLESIGHT™ WIRELESS HD 4 CAMERA SYSTEM | 7" QUAD-view Monitor
Rear View Safety SIMPLESIGHT™ WIRELESS HD 4 CAMERA SYSTEM | 7" QUAD-view Monitor
Regular price
$840.68 USD
Regular price
Sale price
$840.68 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
-
Crystal Clear HD Images
4 Channel Video, Quad View/Split View/Full View
-
Industrial Strength Design
Dustproof, Waterproof, Shockproof, Vibration Proof
-
Uninterrupted Transmission
Transmits Up To 100ft Away, Even At Highway Speeds
Specifications
Monitor Specs
- Panel 7'' digital HD panel
- Screen ratio 16:9
- Resolution 1024 X 3 (RGB) X 600
- Backlight,Luminance LED, 450cd/m2
- Contrast 500:1
- Viewing Angle U:50° D:70° L/R:70°
- Transmitting distance 100' in open area
- Video Source 1Vp-p, 75Ω
- Power Supply DC 10-36V
- Power Consumption <5W
- Operating Temperature -20°C ~ +60° C
- Maximum Current <550mA
- Vibration Rating 20G
- Storage Temperatue -30 to 70° C
- Working Temperatue -20 to 65° C
- Shock Rating 100G

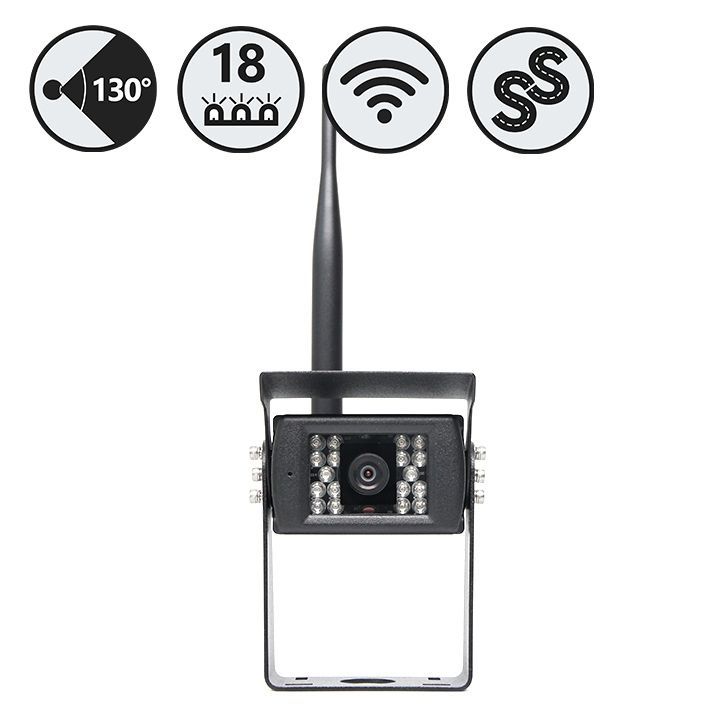

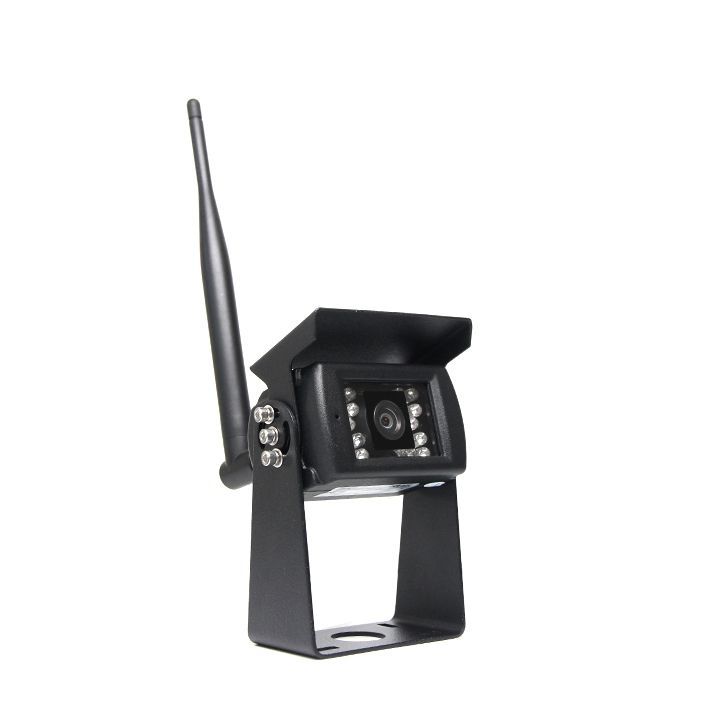

Backup Camera Specs
- Image Sensor 1/3" Color
- Active Pixels 1292 x 968V
- Waterproof Rating IP69K
- Chief Ray Angle 9° linear
- Night vision range ~5M
- Audio input High sensitivity, -36DB microphone
- 2.4G wireless transmitting distance 100'
- Power consumption <5W
- Degree 120°
- S/N ratio More than 48 Db
- Electron shutter 1/100,000(s), ON/OFF
- Video output 1Vp-p 75Ω
- Maximum Current <250mA
- Operating Temperature -20°C ~ +65°C
- Storage Temperature -30°C ~ +70°C
