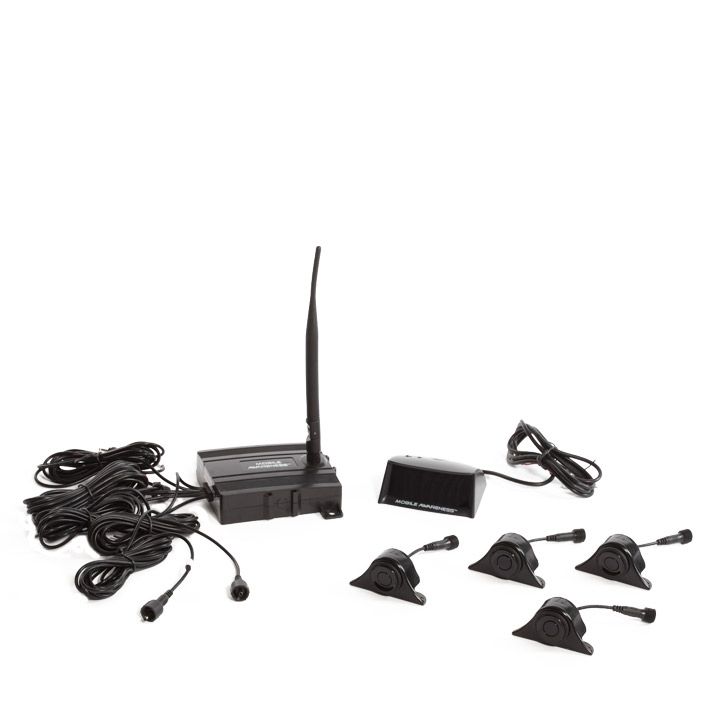

Rear View Safety SenseStat® Wireless Obstacle Detection Sensor System
Rear View Safety SenseStat® Wireless Obstacle Detection Sensor System
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
-
Wireless
The RVS-125 uses the latest wireless backup sensor technology. A simple and quick installation means there is no need to run excess cabling through the vehicle.
-
Visual & Aural Alerts
LED Monitor simultaneously monitors four zones, indicates actual distance to the closest object and provides 3 adjustable audible alarm levels.
-
Large Detection Zone
The RVS-125 warns drivers of potential obstacles behind their vehicle with a detection range of up to 8ft away.
-
Trailer Switch
For tractor trailer rigs, easily connect to any Sensestat-equipped trailer, by simply pressing the monitor's sync button.
-
Waterproof

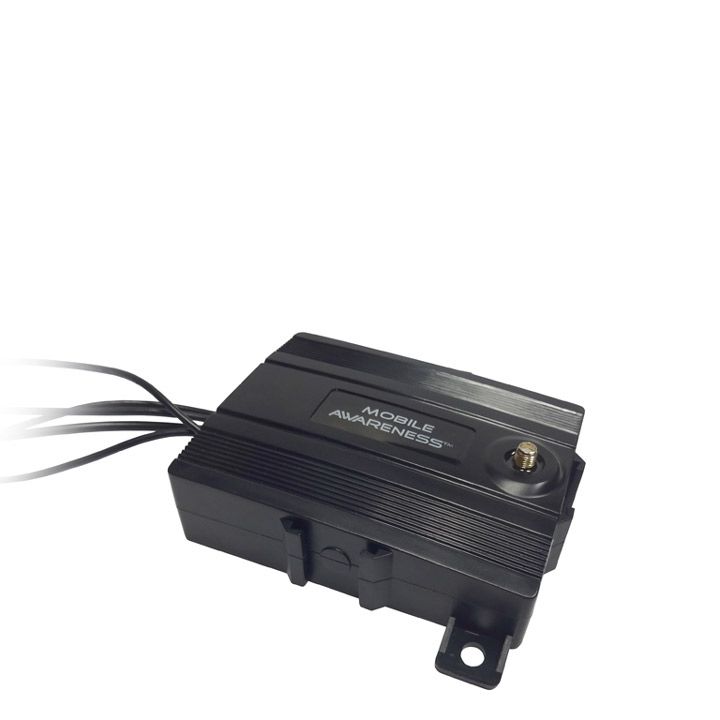

The industrial grade ECU is completely waterproof, it can be installed outside and under the vehicle.
-
Virtual Bumper
Stopline adjustment allows you to easily adjust zero point away from the actual bumper to provide accurate stopping with allowance for protrusions.
Specifications
- Power Input10.5-24VDC
- Power ConsumptionECU: 200mA Max / LED Monitor: 250mA Max
- Distance Detection0.72 ~ 8.20 (ft) / 0.22 ~ 2.5 (M)
- Detection Tolerance+/- 0.8 inches / +/- 0.02M (at 25°C)
- Operating Temperature-30°C ~ +75°C
- Storage Temperature-30°C ~ +80°C
- DimensionsECU: 4.33" (L) x 3.62" (W) x 1.25" (H) / Monitor: 2.95" (L) x 3.54 (W) x 1.57" (H)
- WeightECU: 1lb / Monitor: 0.22lb
