Rear View Safety
Rear View Safety Radar Object Detection System
Rear View Safety Radar Object Detection System
Regular price
$1,008.81 USD
Regular price
Sale price
$1,008.81 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
-
Radar Sensor
The RVS-123 uses radar technology to detect stationary objects and people in blind spots. The system features both visual and aural warnings.
-
Detection Modes
The ability to change the length/width of the detection zones makes this system ideal for heavy-duty vehicles of many shapes and sizes.
-
Industrial Grade
With a IP69K waterproof rating and built with tough, strong and durable polycarbonate, this sensor was designed for the tough construction industry.
In the box
- 1 x Radar Sensor
- 1 x Radar Sensor Display Unit
- 1 x Radar Sensor Wall Mount
- 1 x Radar Sensor Display Unit Mount
- 1 x Power Cable
- 2 x Screw Kits For Installation
Specifications

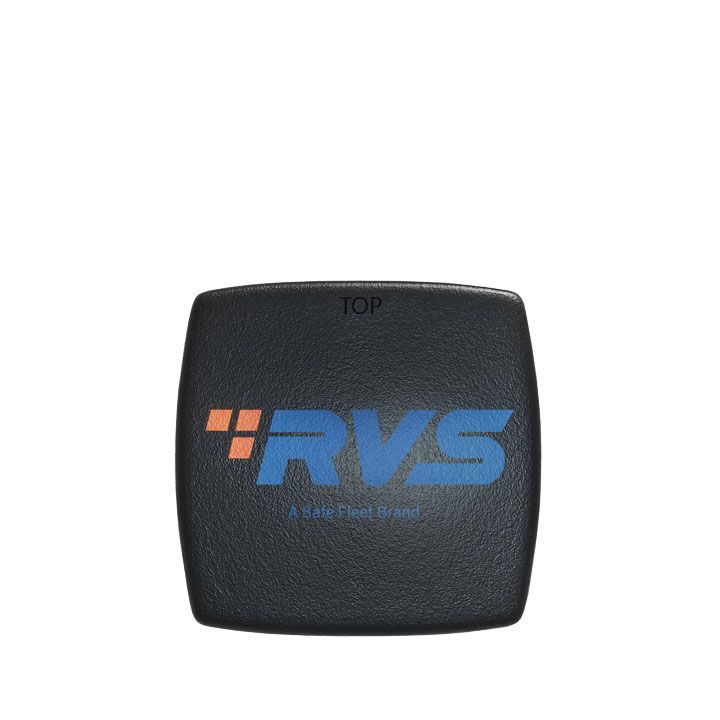

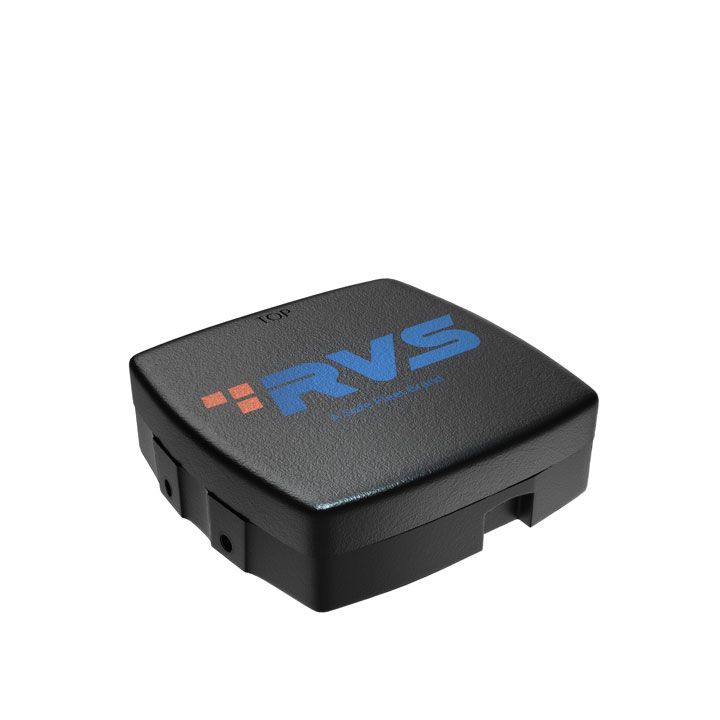

Radar Sensor Specs
- Transmit Frequency (GHz) 24.05~24.2
- Modulation FMCW (Frequency Modulated Continuous Wave)
- Power DC 5V
- Current Consumption <100mA
- Power On Time 500 ms
- Max Detection Range 7m
- Communication RS-485
- Operating Temperature -40°C ~ +85°C
- Waterproof Rating IP69K
- Shock Rating TBD
- Vibration Rating TBD
- Housing Material Polycarbonate
- Overall Dimensions 4.3" (H) x 4.2" (L) x 1.3" (D)
- Weight 390 w/o Bracket / 720g With Bracket

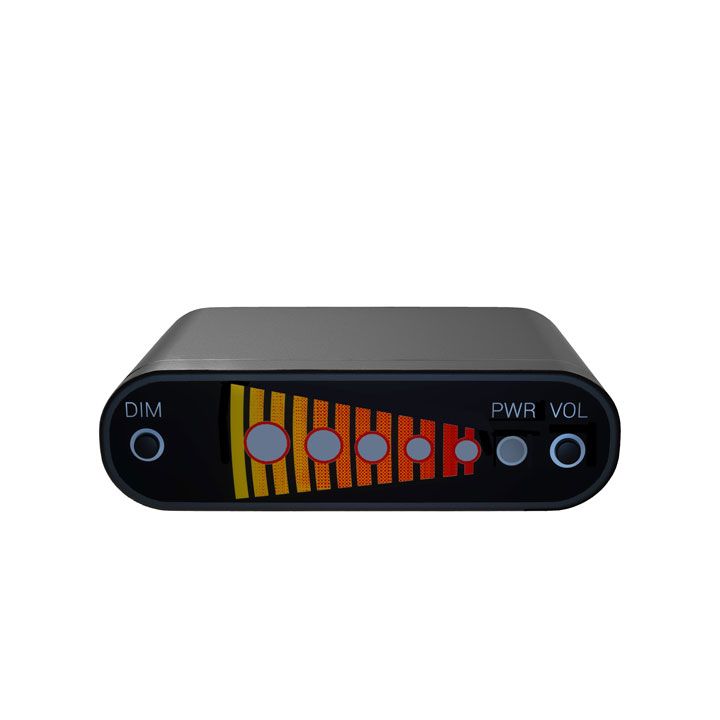

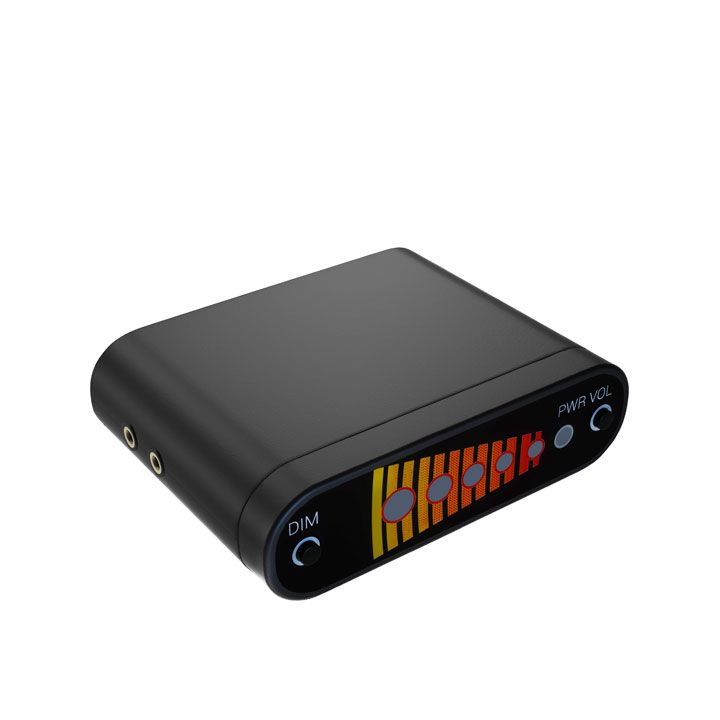

Radar Display Unit Specs
- Detection Zone 3 or 5 Zones
- Detection Width 3.5/5.8/7.0
- Detection Length 4.0/6.8/8.0 Meter
- Input Voltage 9 ~ 32V
- Cable Length 1.5M
- Connector Deutsch or Screw Lock Type
- Dimensions 0.07" (H) x 1.9" (L) x 2.5" (D)
- Weight 200g w/o Bracket / 220g With Bracket
