Rear View Safety Nissan NV Third Brake Light Backup Camera
Rear View Safety Nissan NV Third Brake Light Backup Camera
Regular price
$110.15 USD
Regular price
Sale price
$110.15 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

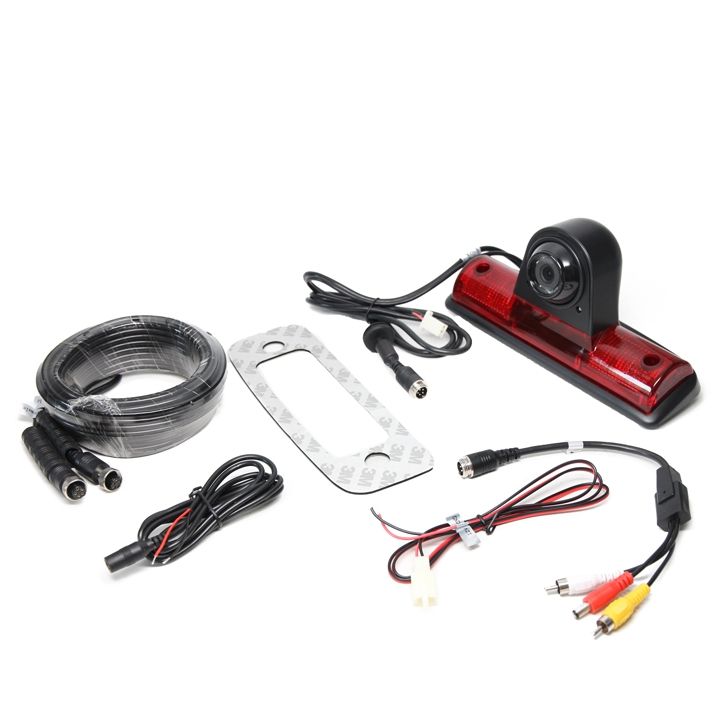

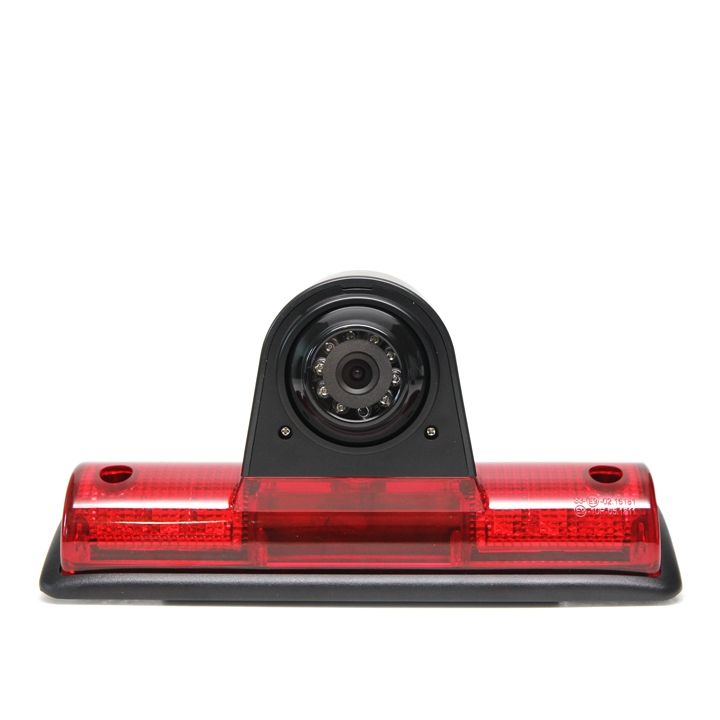

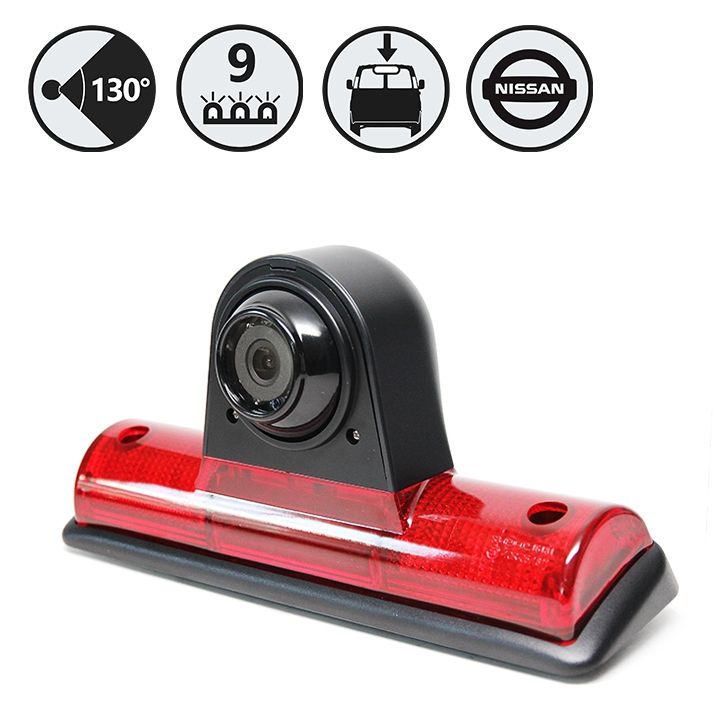

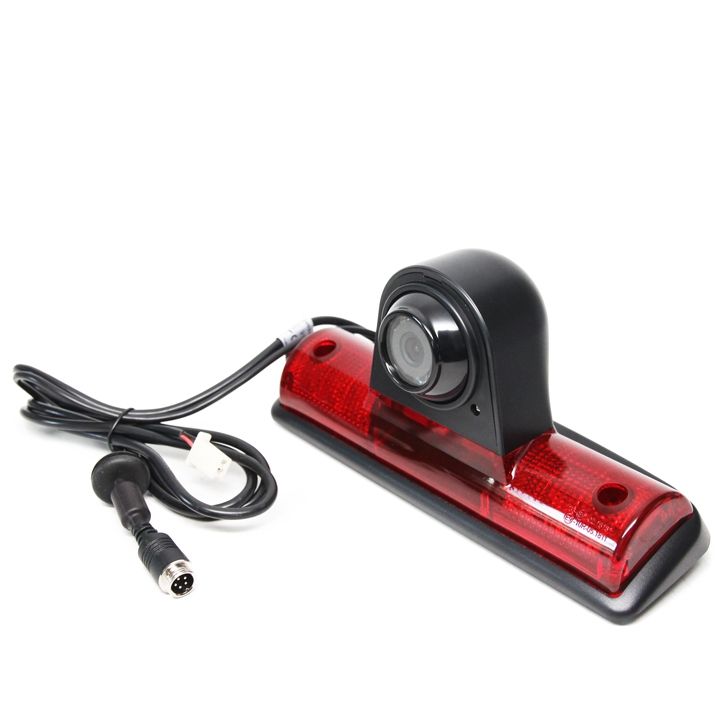

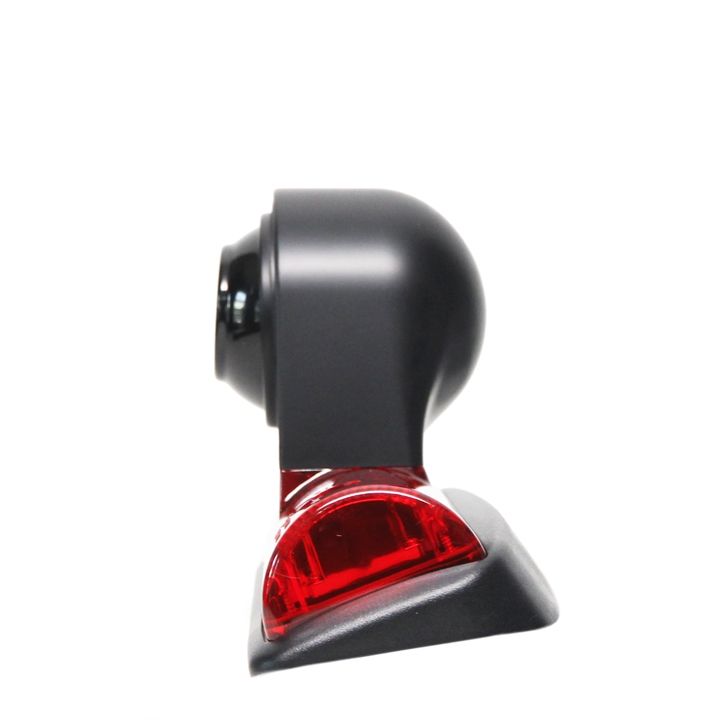

Nissan NV Backup Camera
Our Nissan NV Backup Camera replaces the third brake light in Nissan NV vans making for a very clean install. It comes with a viewing angle of 130 degrees and it's MT9V139 sensor provides an image quality of 480 TV lines. It's 9 infra-red lights provide a crystal clear image even in the darkest night and with an IP68 weatherproof rating this camera is fit to ride out any storm. It comes included with aircraft grade cable connections and boasts a 10G vibration rating.
Specifications
Camera Specs
- Current Consumption MAX: 150mA
- Sensor MT9V139
- Sensor Format 728 (H) X 560 (V)
- Picture Elements 307,200 Pixels
- NTSC Output 720 (H) X 480 (V)
- PAL Output 720 (H) X 576 (V)
- Optical Format 1/4 Inch
- Resolution (TV Lines) 480
- View Angle 130° (Diagonal)
- TV System NTCS, Colorful
- Parking Line Option On/Off Support Yes
- Minimum Illumination 0.1 Lux, 0 Lux With IR Night Vision
- Built-in Microphone Yes
- Video Output Colorful Video Out: 1.0Vp-p, 75 Ω Load
- Working Voltage DC9-16V
- LED Brake Light DC9-16V
- Waterproof Rating IP68
- Operating Temperature -40°C ~ +70°C
- Vibration Rating 10G
