MV1 Backup Camera

The MV1 Backup Camera is built with an MT9V139 sensor and a lens with an ultra wide viewing angle of 150°.

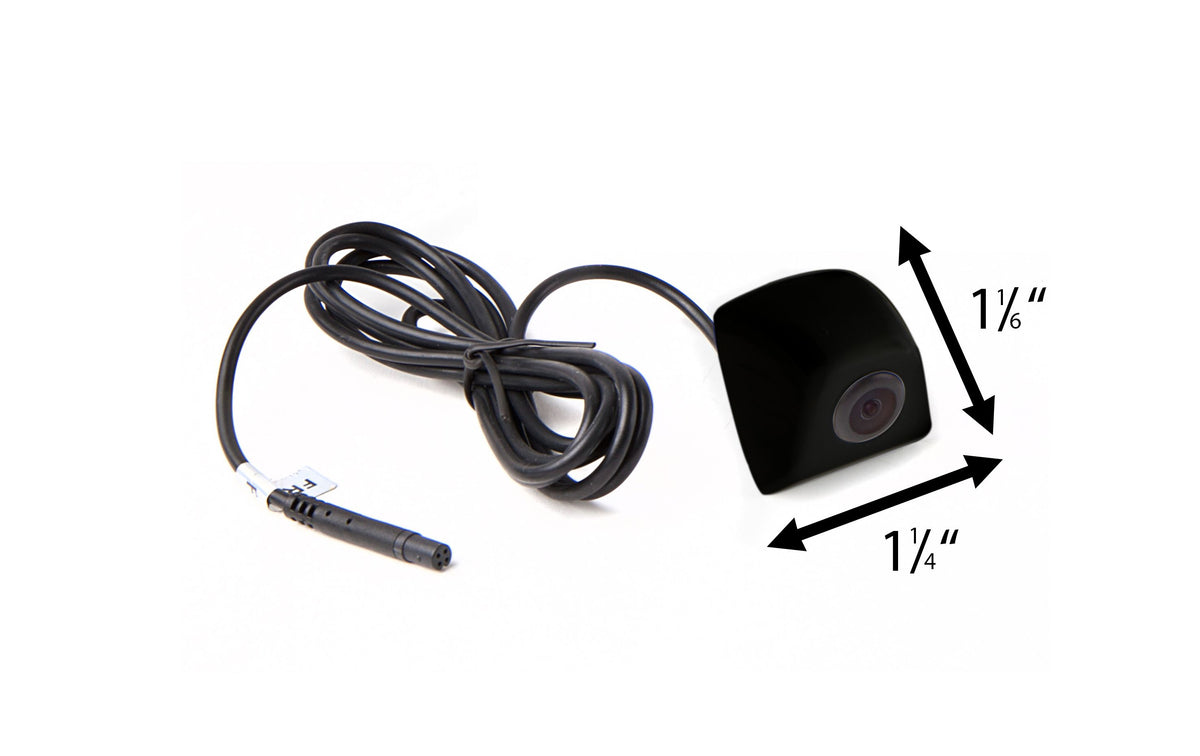

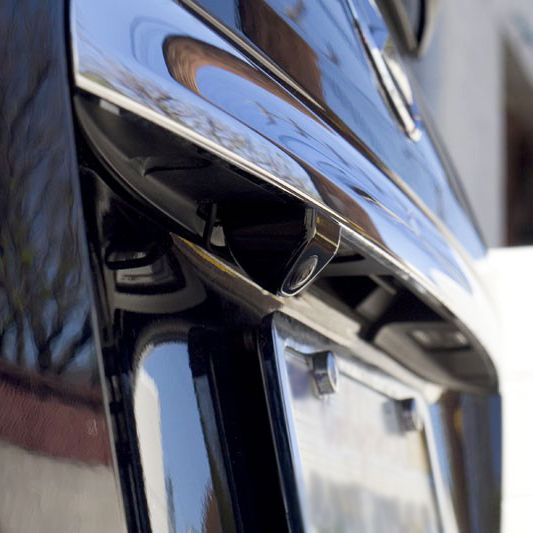

It's tiny size (less than an inch long, wide and deep) makes it ideal for smaller vehicles and allows its installation to be virtually invisible. It mounts flush against the vehicle and with an IP68 rating is fit to operate in almost all weather conditions.

Specifications

Camera Specs
  • Camera 1/3" 1099 Color Camera
  • Effective Pixel Array 976 (H) x 496(V)
  • Resolution 700 TVL
  • Video System Internal
  • Viewing Angle 150°
  • Lens 2.21mm
  • Usable Illumination 0.01 Lux
  • Power Source DC 12V (+/- 10%)
  • Power Consumption <50mA@12V
  • Reverse Voltage Protection Yes
  • Dynamic Range 63.2 [Db]
  • White Balance Auto
  • Exposure Control Auto
  • Gain Control Auto
  • Shutter Mode Electronic Rolling Shutter
  • Frame Rate <30fps
  • Camera Correction R=0.45-1.0
  • Lens Construction <4G+IR
  • S/N Ratio More than 48dB
  • Electronic Iris 1/50, 160-1/100,000 sec
  • Video Output 1Vp.p 75ohm
  • Operating Temperature-40°C ~ +70°C
  • Storage Temperature-40°C ~ +80°C
  • Relative Humidity90% Max
