Rear View Safety License Plate Backup Camera System
Rear View Safety License Plate Backup Camera System
Regular price
$317.99 USD
Regular price
Sale price
$317.99 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Replaces Rear View Safety part number RVS-7180355-IR.
-

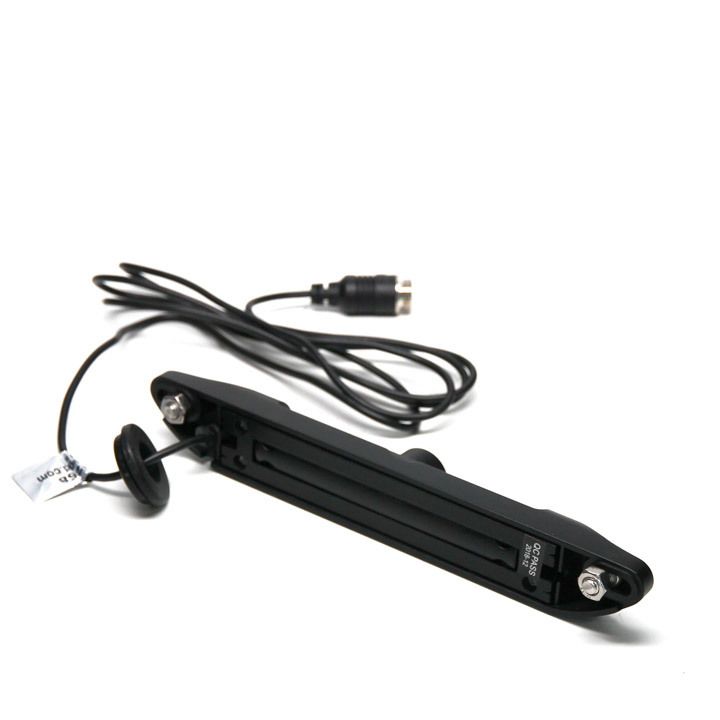

Simple Installation
The RVS-0355-IR has a very simple install. Simply screw on the camera together with the license plate and you're good to go!
-
Adjustable Lens
The lens of the RVS-0355-IR can rotate 90° to capture the ideal view.
-
Infra-red Illuminators
The RVS-0355-IR is equipped with excellent night vision.
In the box

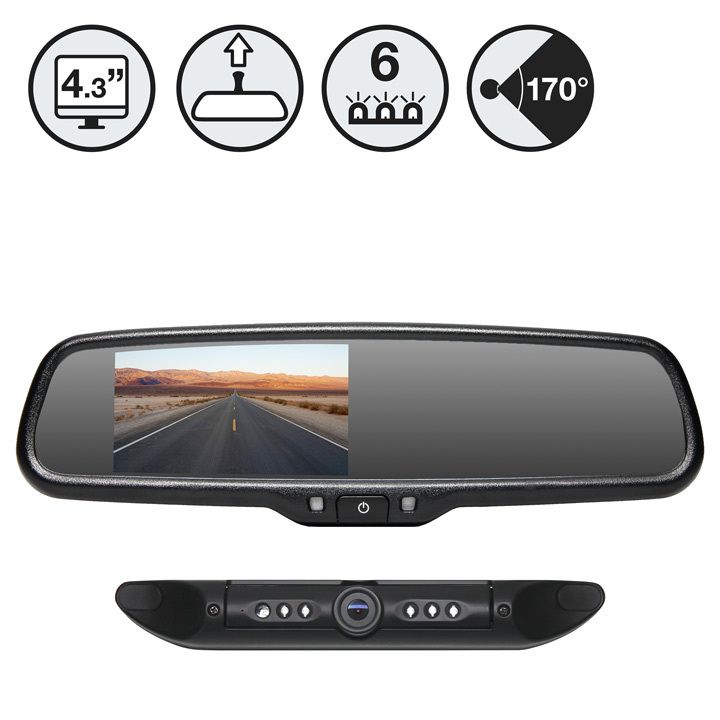

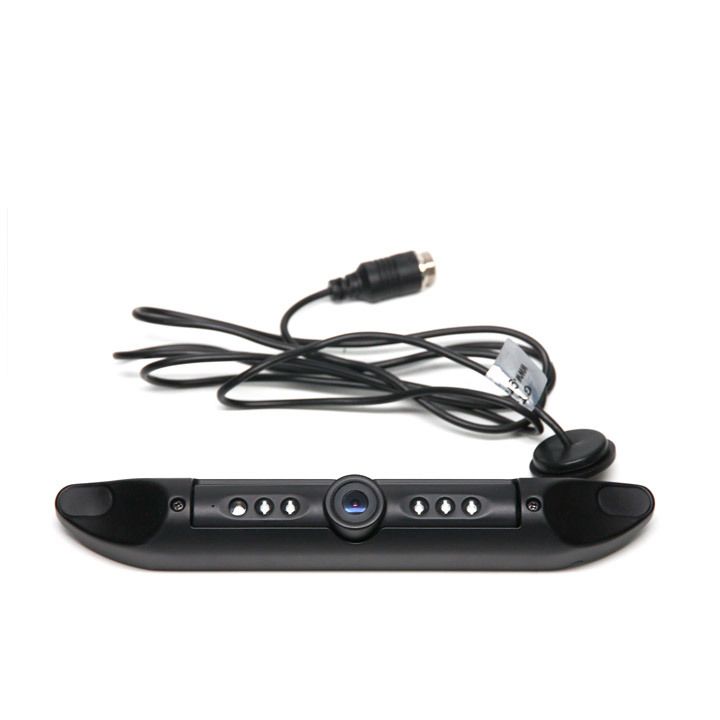

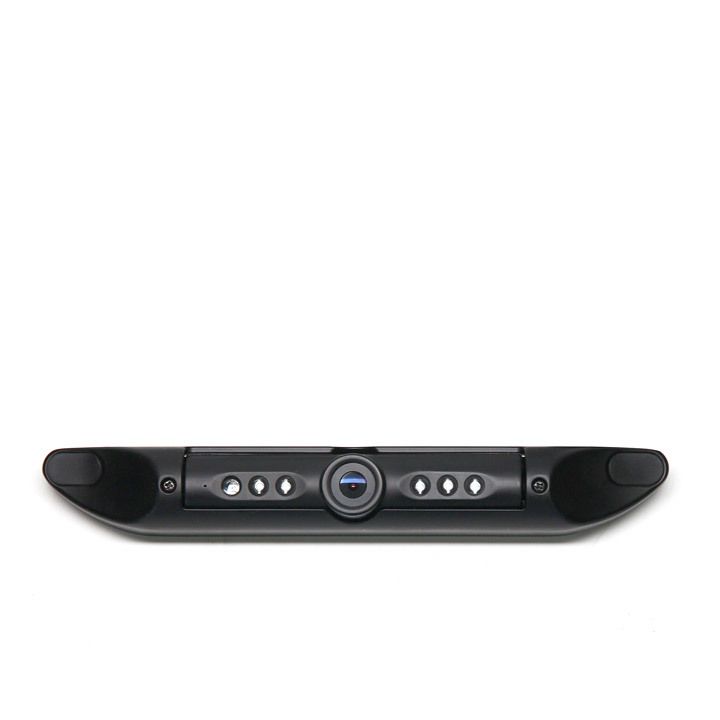

- 1 x License Plate Backup Camera
- 1 x 33' Camera Cable

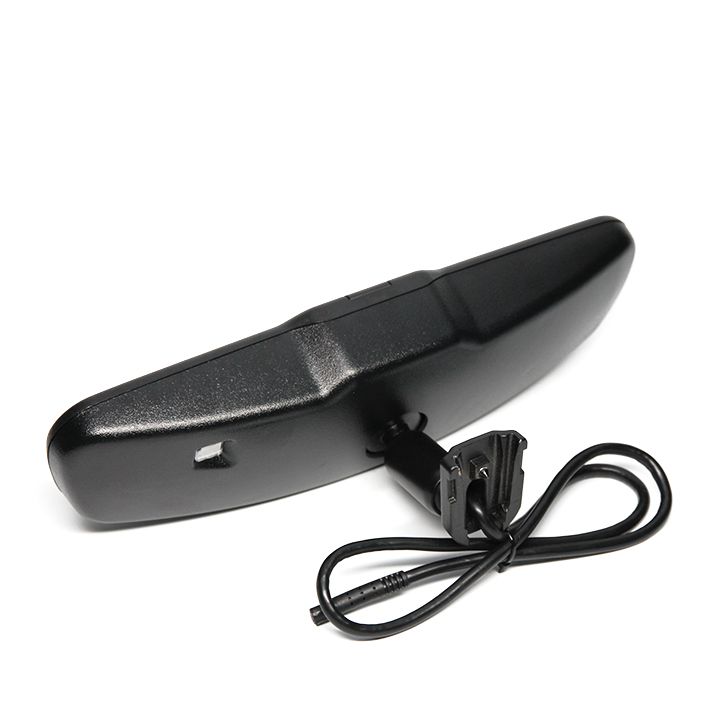

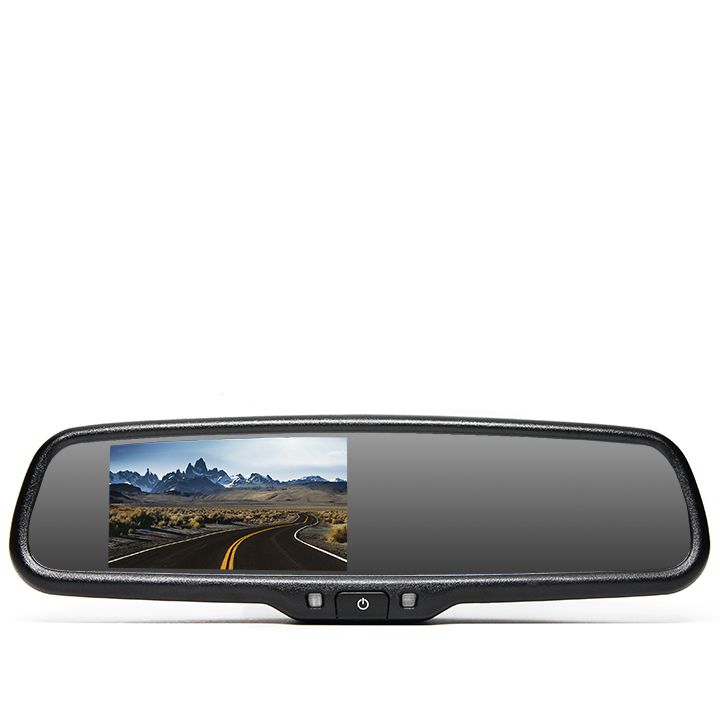

- 1 x Replacement Mirror Monitor with 4.3" Display
- 1 x Power Harness with Two Camera Inputs
- 1 x Remote Control
Specifications
Camera Specs
- Sensor Sony® CCD
- Effective Pixels 728 x 582 / 728 x 512
- TV System PAL / NTSC
- Viewing Angle 170°
- Customizable Camera Angle 90°
- TV Lines 700
- Weatherproof Rating IP68
- Infra-red Illuminators 6
- Usable Illumination 0.1 Lux
- Power Source DC 12V - 24V (+/- 10%)
- S/N Ratio 48dB
- Video Output 1.0Vp-p 75ohm
- White Balance Auto
- AGC Auto
- Operating Temperature -20°C ~ +75°C
Monitor Specs
- Screen Size 4.3"
- Dot Resolution 480 x 3 (RGB) x 272
- Display Format 16:9
- Display Brightness 12001x
- Viewing Angle U&D: 100°, L&R: 120°
- Video Input 2 Channel
- Video Source 1Vp-p, 75 Ω
- Power Supply DC 9V - 32V
- Power Consumption 8W
- Operating Temperature -20°C ~ +75°C
- Video System Auto NTSC/PAL

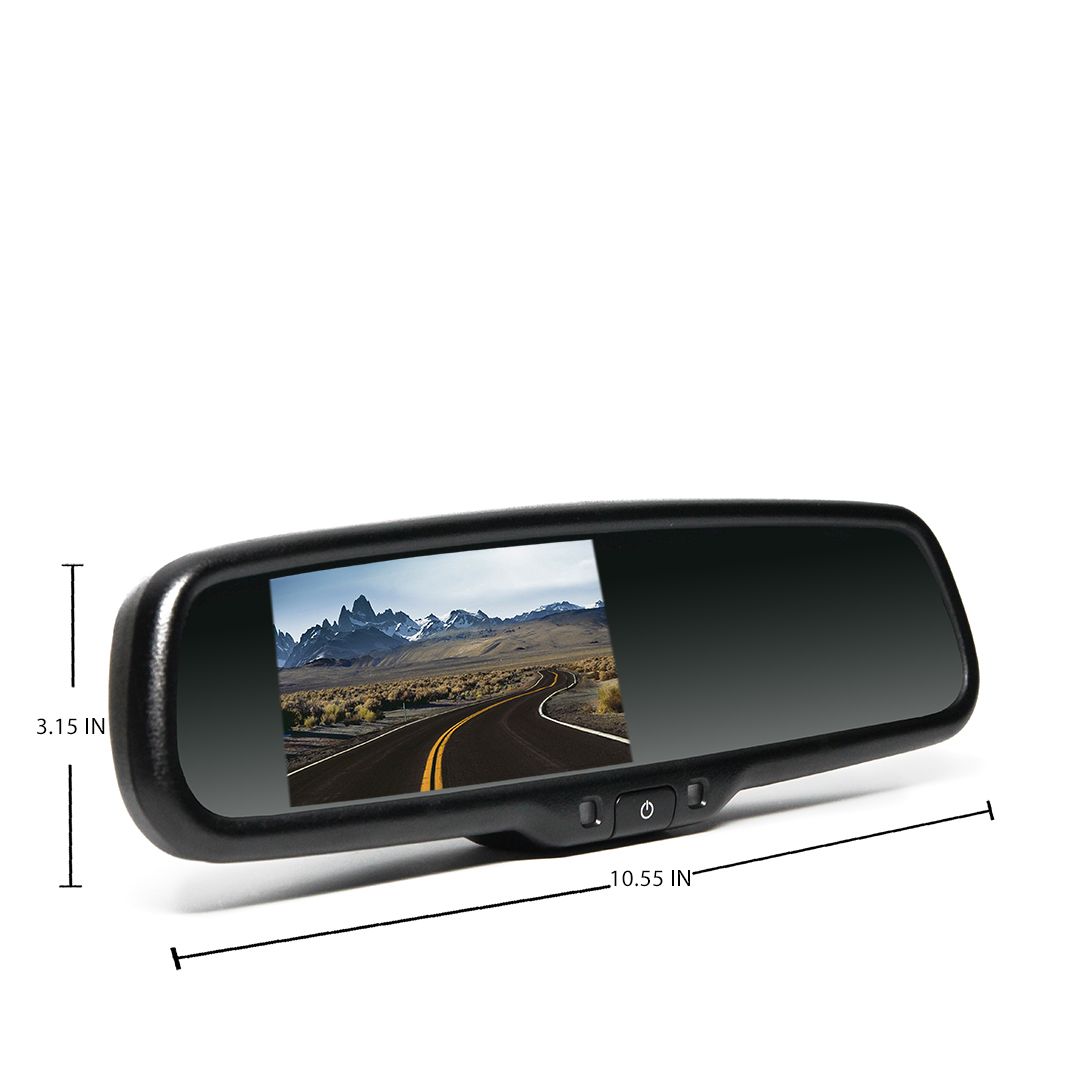

- Overall Dimensions 10.55" (L) x 3.15" (H) x 1" (D)
- Weight 800G
- Vibration Rating 5G
- Sync System Internal
