Rear View Safety Jason Cap Third Brake Light Rear View Camera

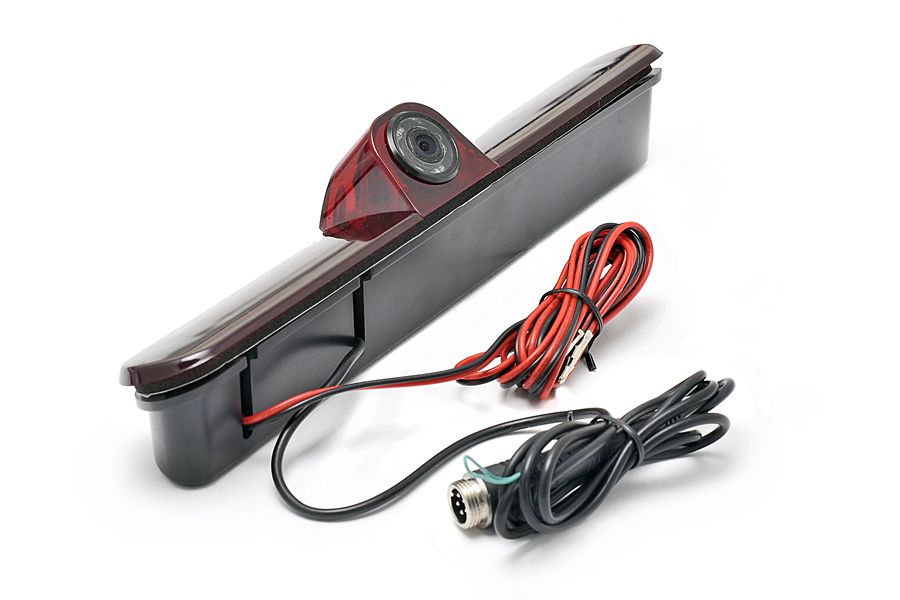

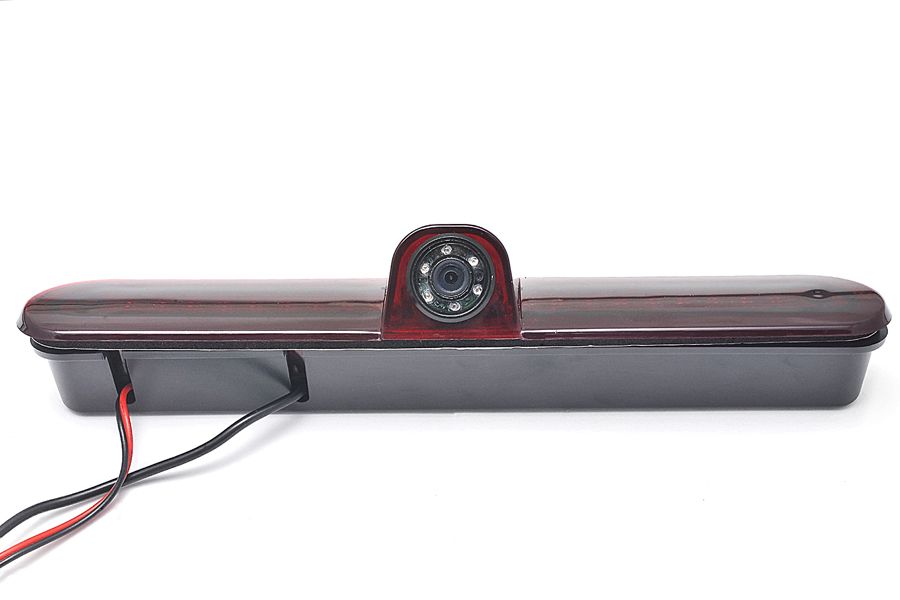

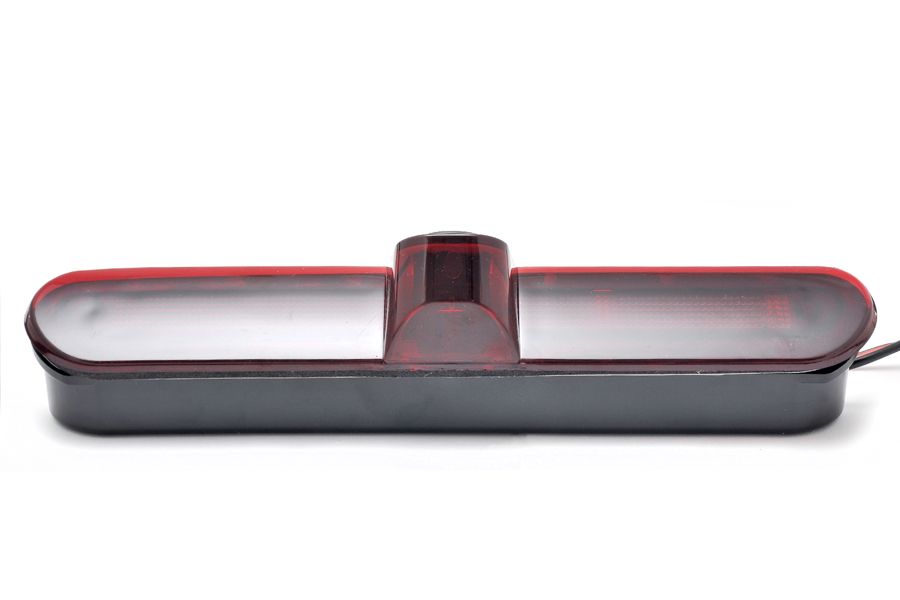

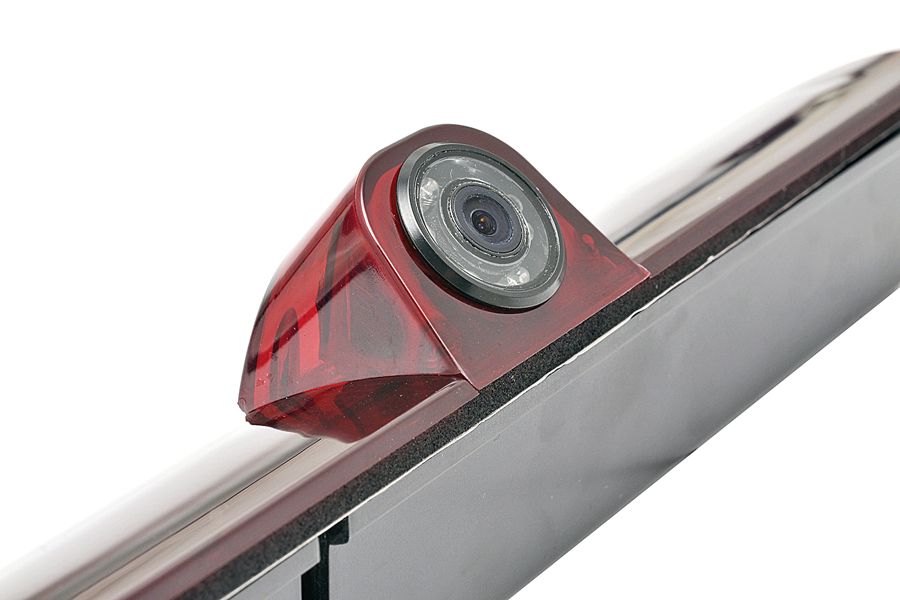

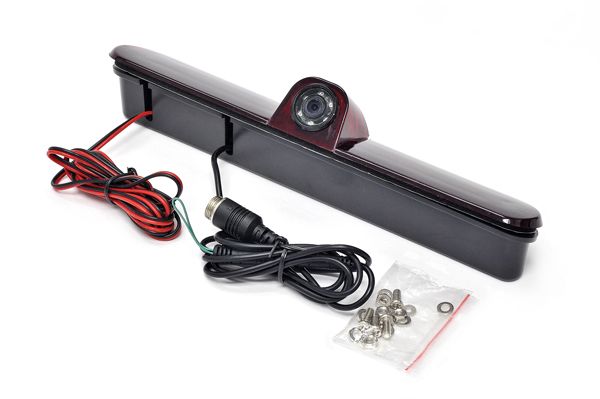

Jason Cap Third Brake Light Rear View Camera

Our Jason Cap Backup Camera replaces the Jason Cap Truck models making for a very clean install.

It comes with a viewing angle of 130 degrees and it's MT9V139 sensor provides an image quality of 480 TV lines.

Night vision is supported and with even a very limited amount of ambient light, this camera will provide a crystal clear image. With an IP68 weatherproof rating this camera will be fit to ride out any storm and boasts a 10G vibration rating as well as aircraft grade cable connections.

• Sensor MT9V139
• Sensor Format 728 (H) X 560 (V)
• Picture Elements 307,200 Pixels
• NTSC Output 720 (H) X 480 (V)
• PAL Output 720 (H) X 576 (V)
• Optical Format 1/4 Inch
• Gamma Correction r=0.45 to 1.0
• Image Sensor 480 TV lines
• Lens 2.1mm
• View Angle 130°
• Sync System Internal Synchronization
• Night Vision Yes
• Usable Illumination 0.3 Lux
• Power Source DC 12V-24V (+/- 10%)
• S/N Ratio More than 48dB
• Electronic Iris 1/50, 160-1/100,000sec
• Video Output 1Vp.p 75ohm
• IR Switch Control CDS Automatic Control
• Vibration Rating 10G
• Operating Temperature -25°C ~ +50°C / RH 95% Max
• Storage Temperature -25°C ~ +60°C / RH 95% Max
