Select the system from the drop-down. Details for each part number are below.

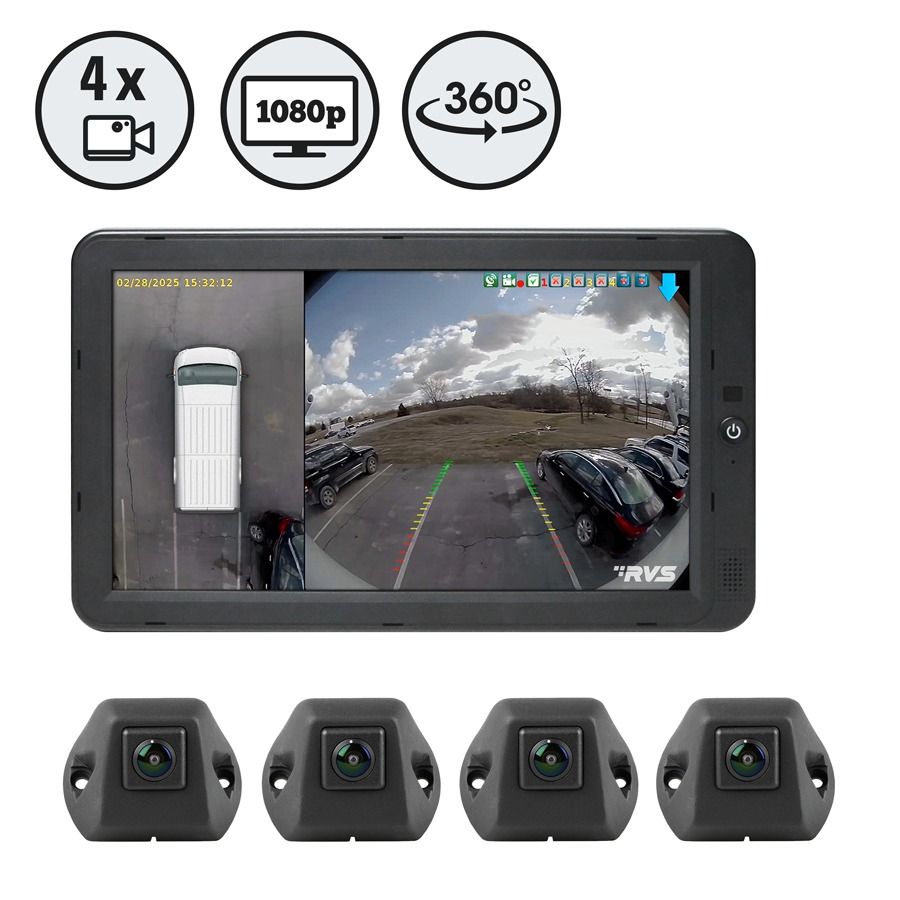

Quick-Install System, non-DVR (RVS-360-MO)
-
Full Around Vehicle Monitoring (AVM)
The standard system consists of four cameras that can provide multiple views, including a 2D bird’s eye four camera stitched-around vehicle view (top view). All connected cameras are recorded.
-
HD
System features 4 HD 1080P Fisheye Cameras and a high video output to attach a Full HD monitor.
-
HD Video Output

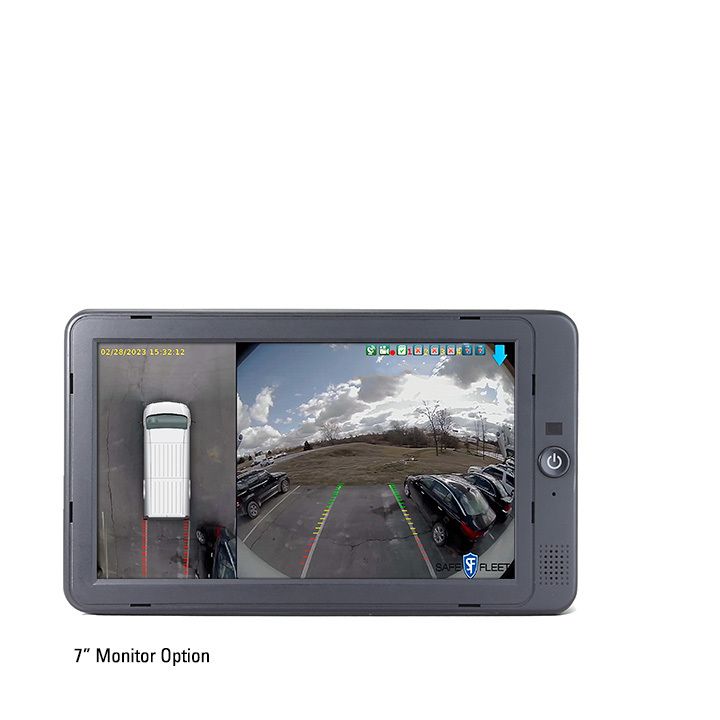

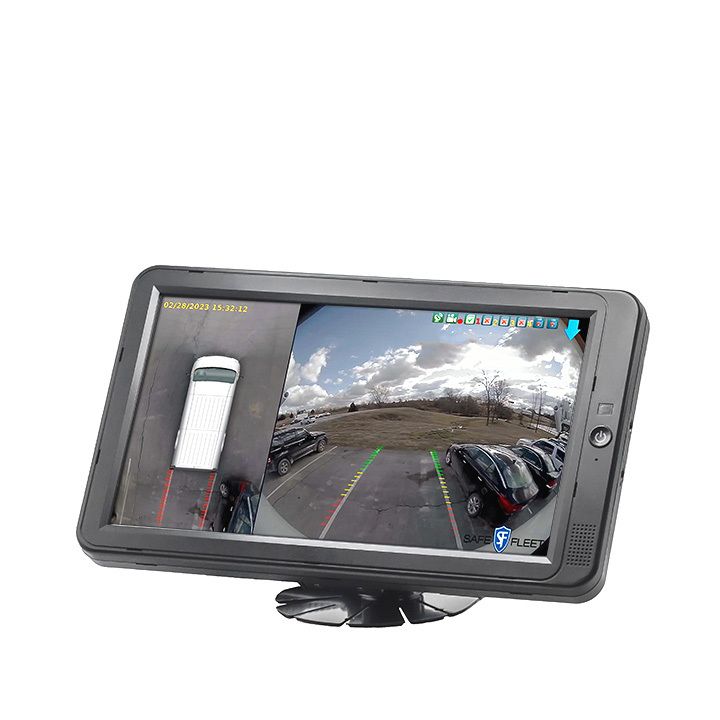

Choose between a 7" HD Monitor Kit, starting at $1,099 and 10" HD Monitor Kit, starting at $1,150.
-
Automatic Triggers
Set triggers to have the camera view change automatically (Left/Right/Reverse/Default).
-
Customizable On-screen Overlay
Customize the length, width, and position of the overlay for specific applications.
-
Budget-Friendly Non-DVR Pricing
Enjoy all the cutting-edge features of the Inview 360 at a lower price point!
In the box
- 1 x monitor w/ built-in harness

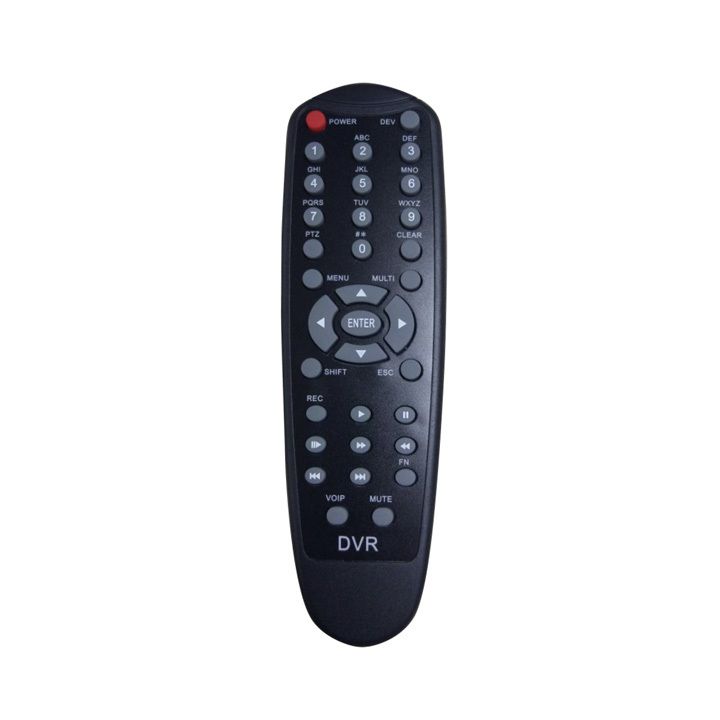

- 1 x 34-button remote control
- 1 x U-bracket for the monitor
- 4 x screws for U-bracket mount

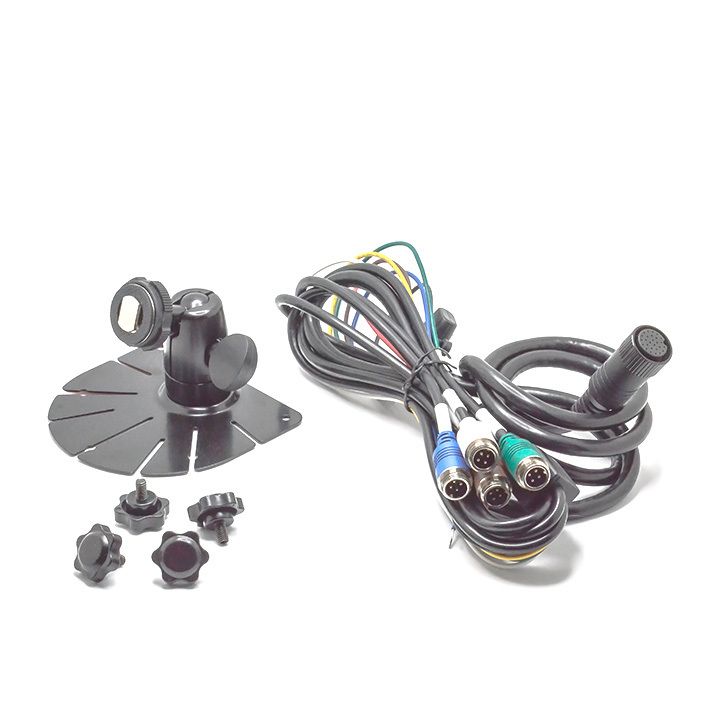

- 1 x center mount bracket for monitor
- 1 x monitor power and camera harness
- 1 x 360 monitor operation manual

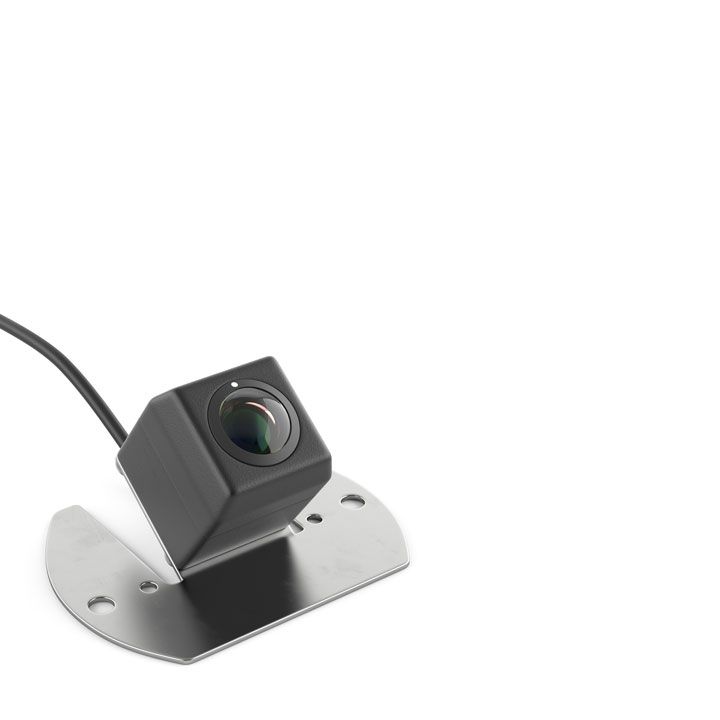

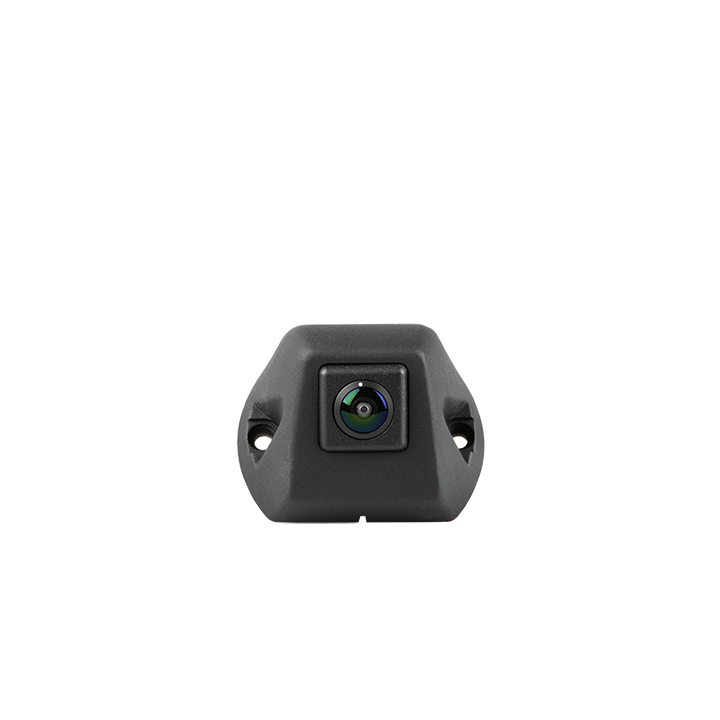

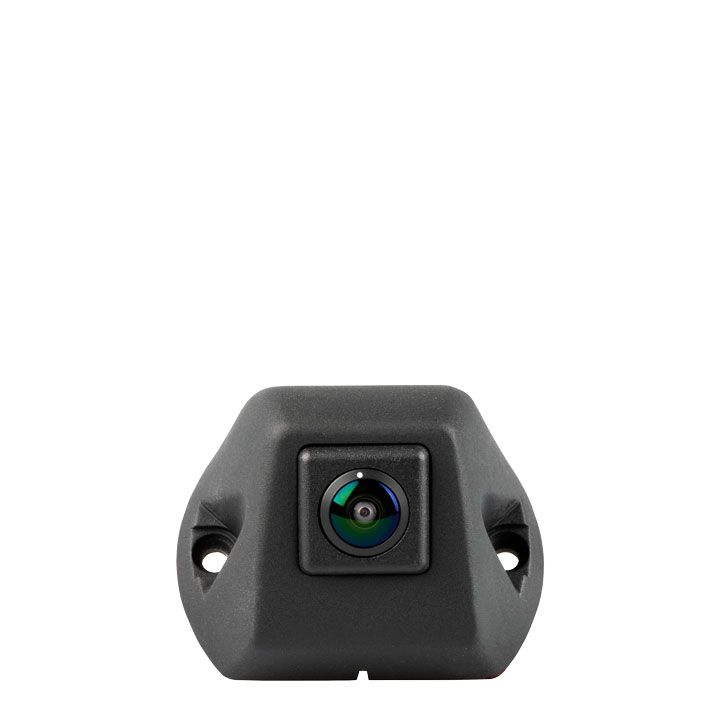

- 4 x 360 fisheye cameras
- 8 x cross countersunk self-tapping self-drilling screw
- 8 x camera screw covers
- 4 x camera enclosures
- 4 x camera installation template
- 1 x calibration kit (sold separately)
Specifications
- Enclosure Die-cast aluminum ADC12 with a 304 stainless steel bracket; IP69K-rated
- Dimensions 52 x 42 x 40 mm; 2.0 x 1.7 x 1.6 in (approximate)
- Sensor 2.9 mega-pixel CMOS
- Power ECU-supplied
- Voltage 12VDC @65 mA
- Focal Length 2.8mm
- Field of View (FOV) 130º (V) x 190º (H)
- SNR >80dB
- Input Video Max.4CH720P@25/720P@30
- High Definition Output 720P
- Refresh rate 50/60
- Working Voltage 8-32V
- Working voltage range for external trigger signals 8-32V
- Working electric current <2A/12V
- Working temperature range -20°C-70°C
- Storage Temperature -40°C ~85°C
- Working Humidity 10%-95%
- Dimensions 10.5"x6.2"(10" monitor), 7.5" x 4.375" (7" monitor)

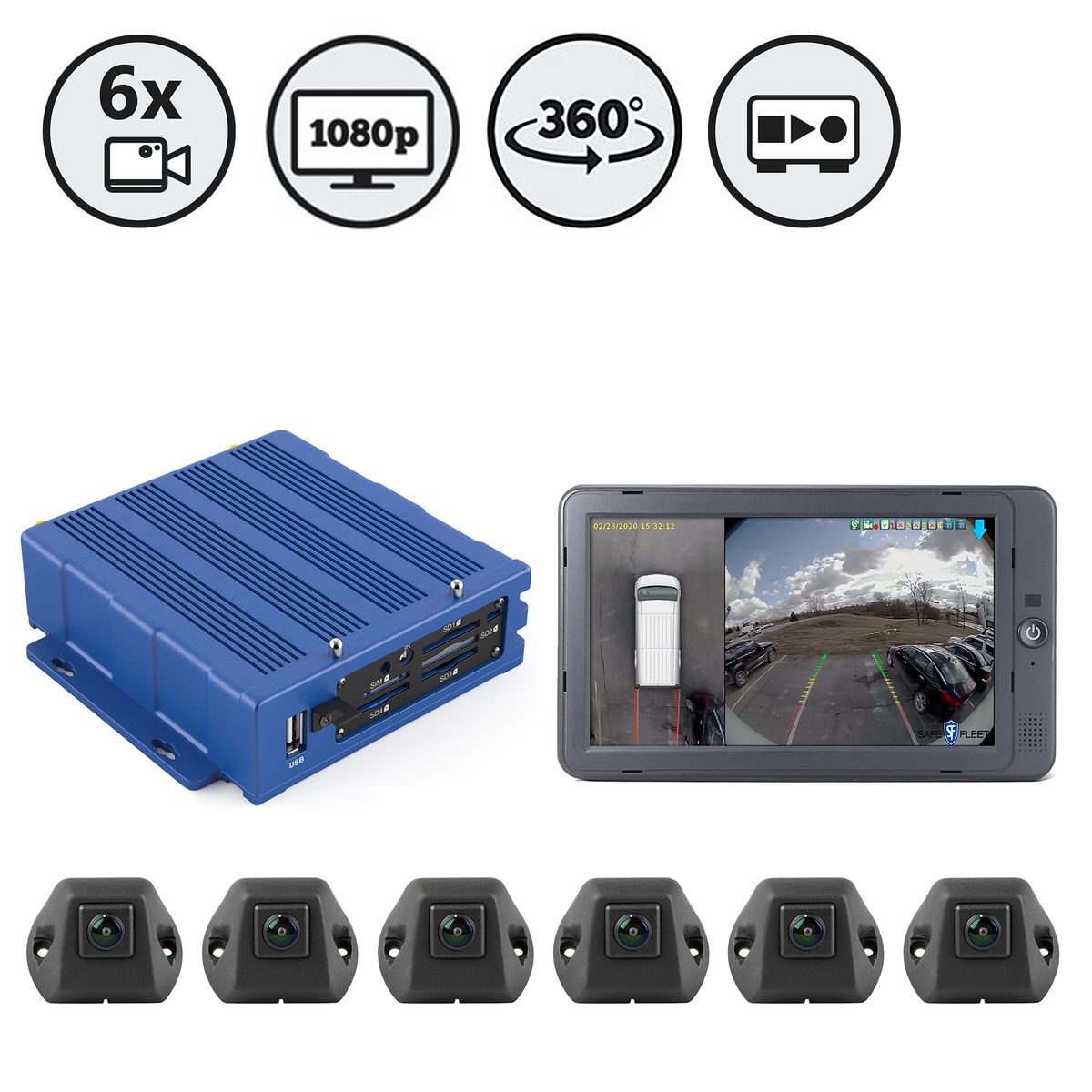

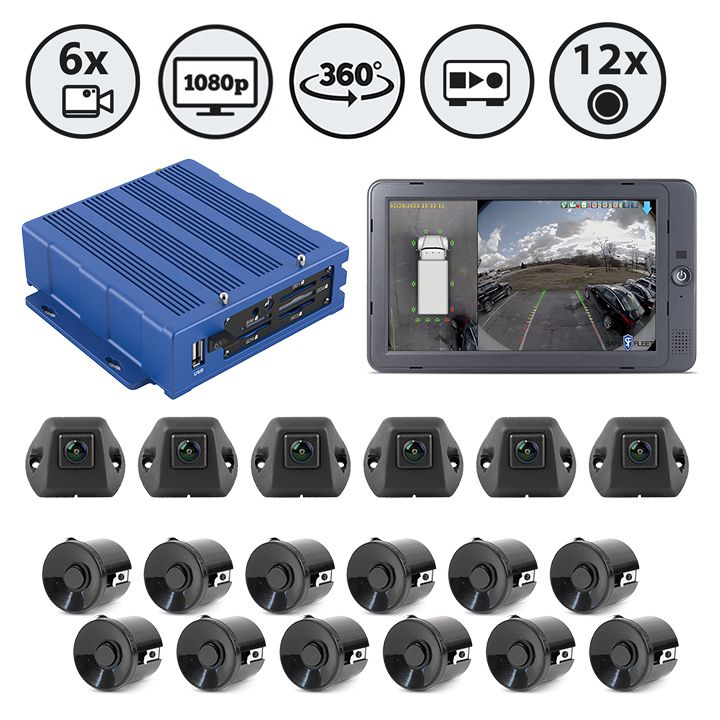

Around Vehicle Monitoring System with recording (RVS-02-360)
-
Full Around Vehicle Monitoring (AVM)
System comes standard with 4 cameras that provide multiple views, including a 2D bird’s-eye 4-cam vehicle view (overhead view). The system is capable of connecting two additional cameras. All connected cameras are recorded.
-
Full HD
System can support up to 6 Full HD 1080P Fisheye Cameras and a high definition video output to attach a Full HD monitor.
-
Out-Of-The-Box Recording
Integrated HD recording onto 4 solid state SD cards, for a total capacity of 1 TB. (Sold Separately).
-
1080 HD Video Output

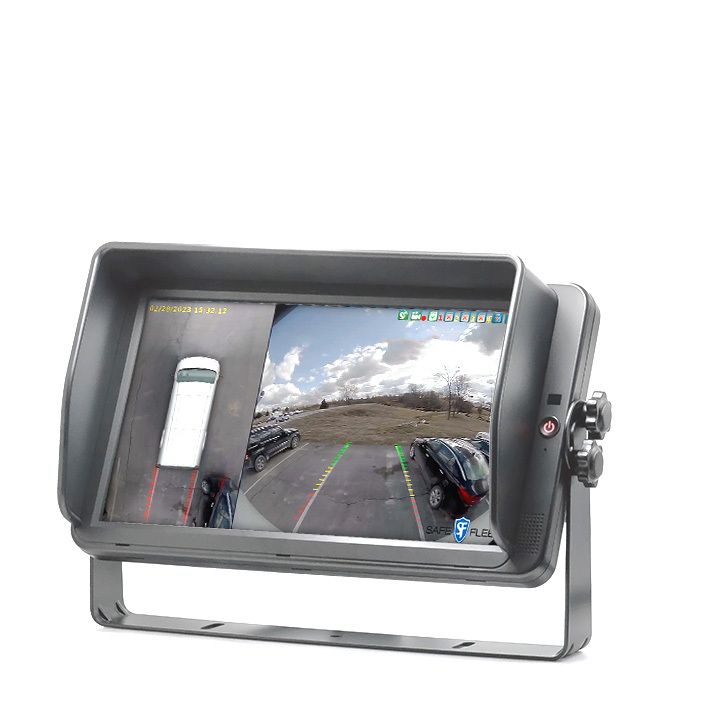

Choose between a 7" and 10" HD Monitor
-
Automatic Triggers
Set triggers to have the camera view change automatically (Left/Right/Reverse/Default).
-
Customizable On Screen Overlay
Customize the length, width, and position of the overlay for specific applications.
-
Instant Reverse
The system activates the rear camera image with 2 seconds of ignition, enabling FMVSS-111 compliance.
-
Auto Calibration
Calibration is performed simply and easily, directly through the system monitor.
-

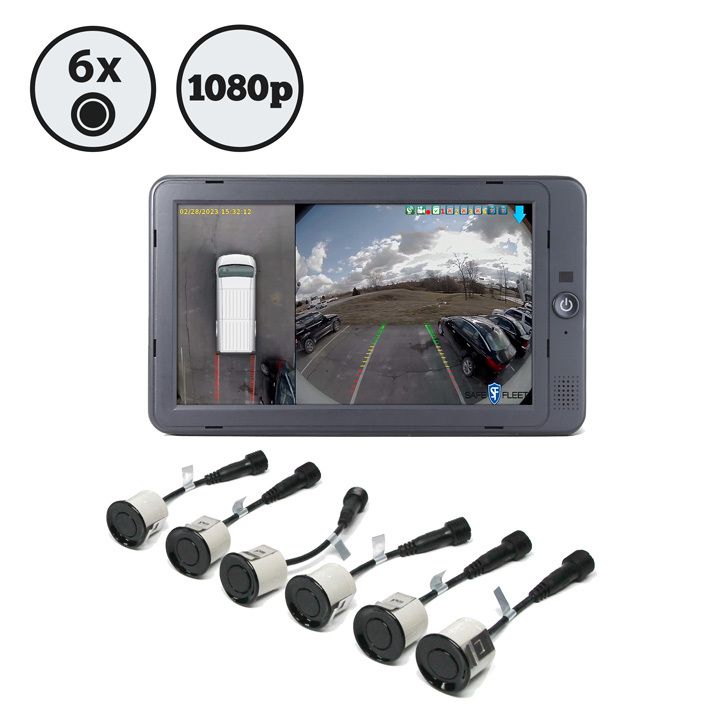

6-Sensor Integration
Get audible and visual proximity alerts to assist in backing up, parking, and clearing tight/short spaces

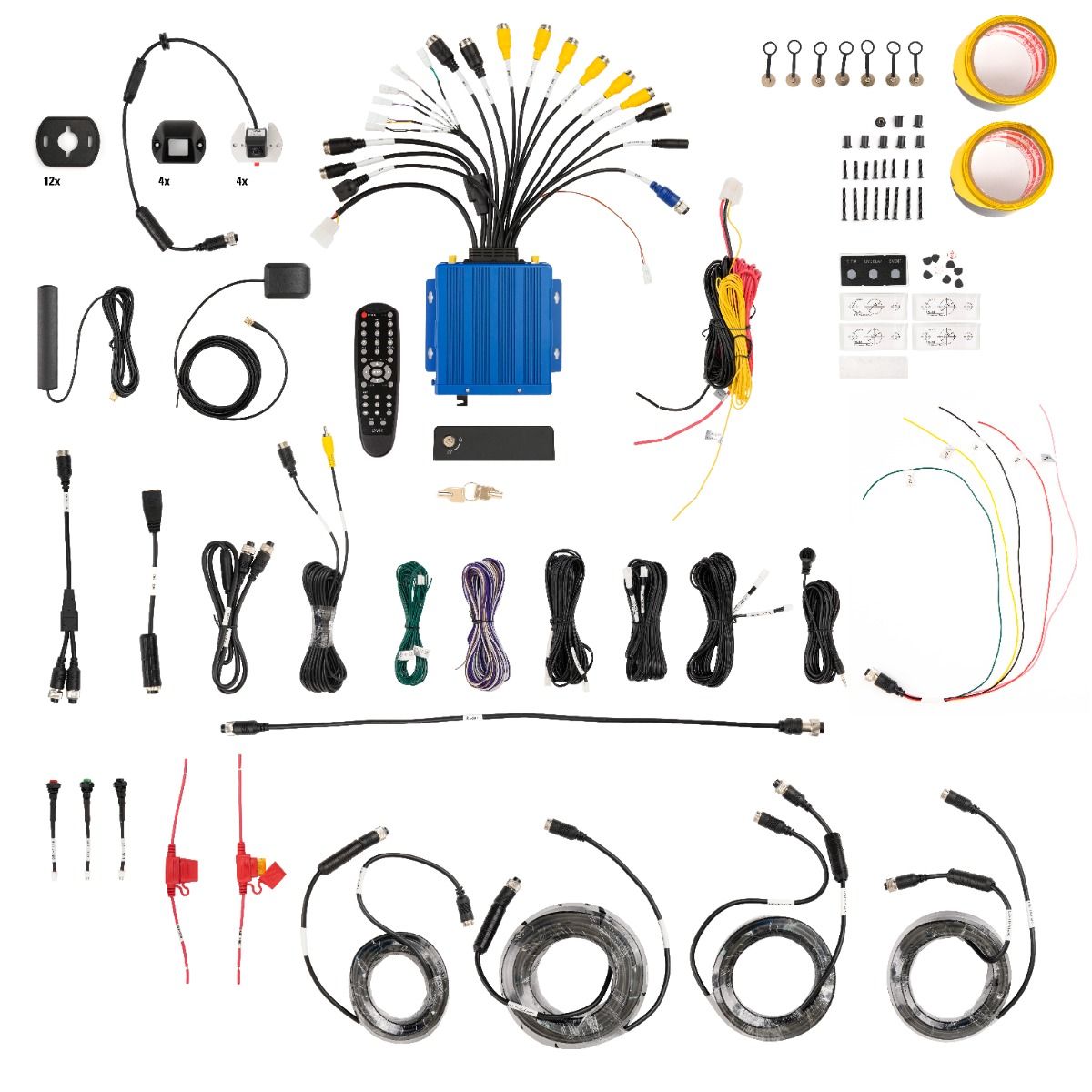

In the box
- 1 x Cable Harness

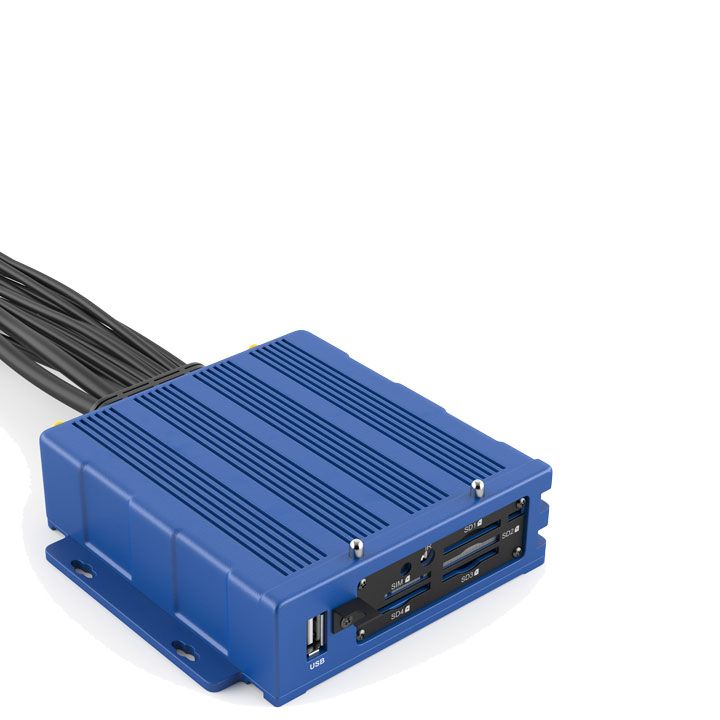

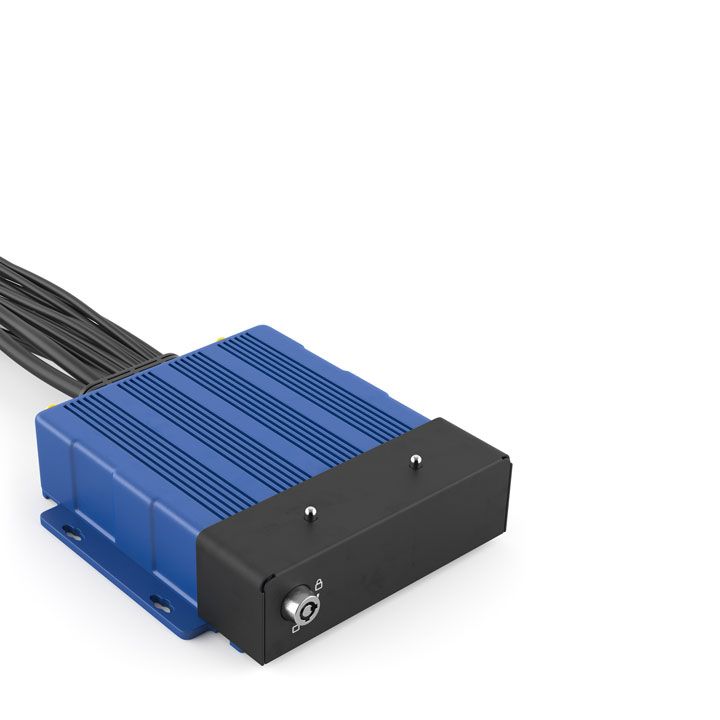

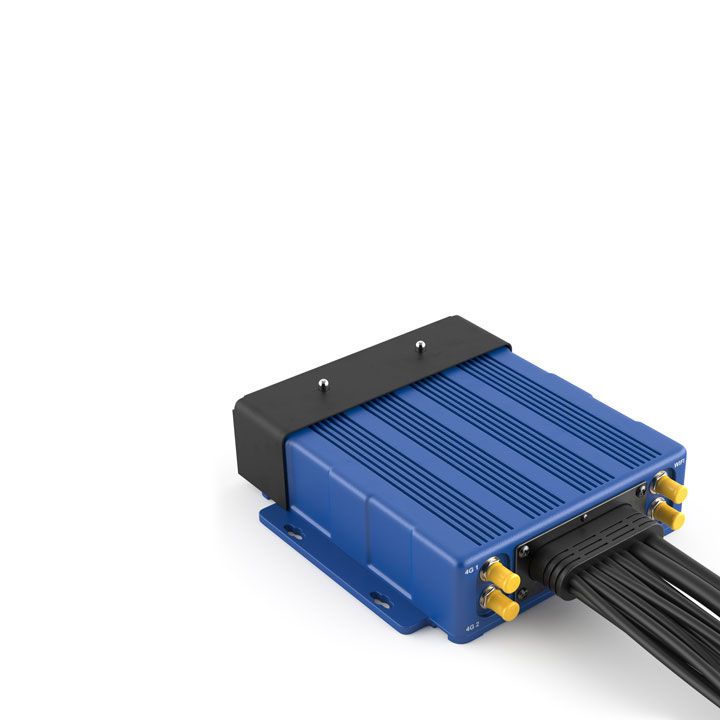

- 1 x Electronic Control Unit (ECU)
- 1 x Camera Modules 2.9 MP

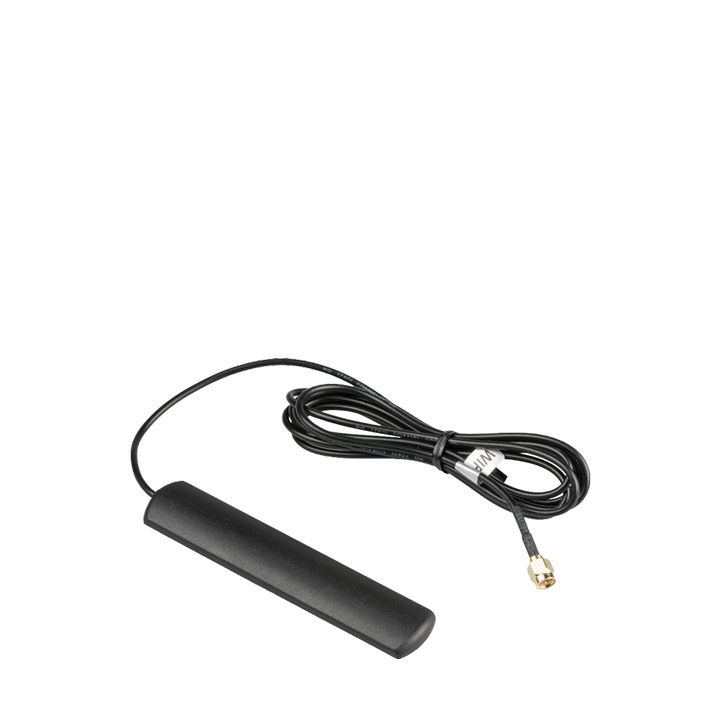

- 1 x External Wi-Fi Antenna
- 4 x Camera Housings
- 1 x 8M Camera Cable Extension
- 2 x 12M Camera Cable Extension
- 1 x 15M Camera Cable Extension
- 1 x Y-Splitter
- 1 x Remote Control
- 2 x 4p-to-RCA Adapter Cables

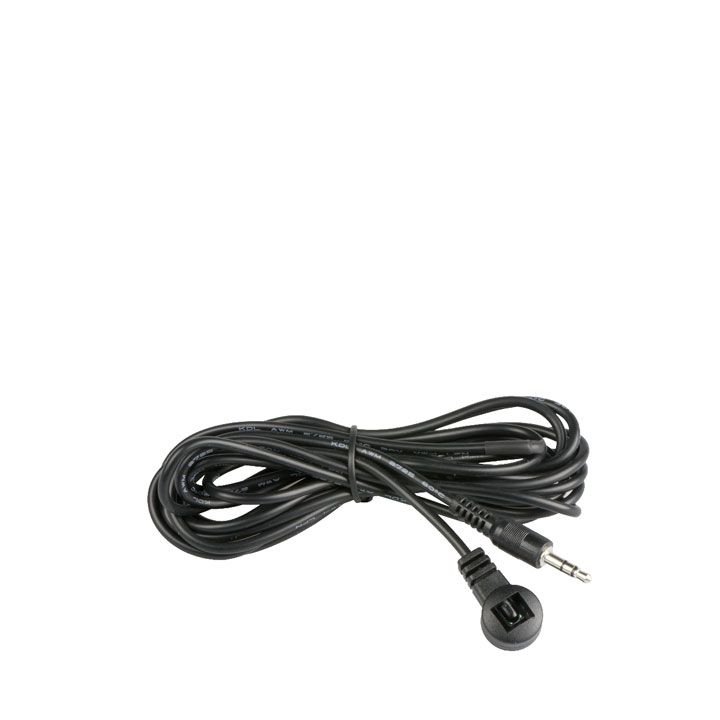

- 1 x External IR Sensor Receiver
- 1 x Event Button Cable Harness
- 1 x Driver Button Cable Harness
- 1 x Outrigger Button Cable Harness
- 1 x View Select Signal Cable Harness

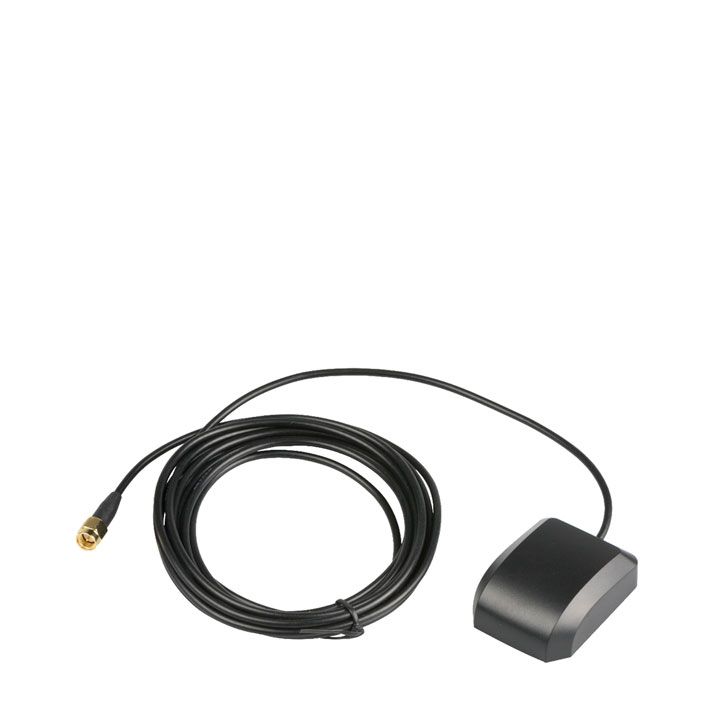

- 1 x External GPS Antenna
- 1 x Ethernet Adapter
- 1 x External Wi-Fi Antenna
- 1 x Green Driver/View Push Button
- 1 x Red Event Push Button
- 1 x Black Outrigger Push Button
- 1 x Dashboard Push Button Mount/Template

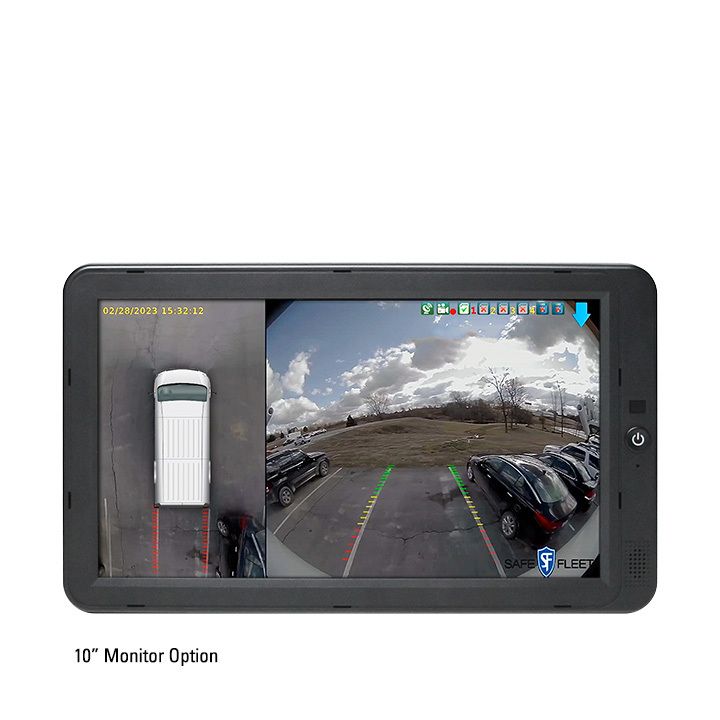

- 1 x 10.1" HD Monitor
- 1 x U-Bracket
- 1 x Camera Mount
- 1 x Sun Shade
- 1 x Monitor Power Harness
- 4 x Monitor Adjustment Screws
Specifications
- Operating Voltage 8 VDC to 32 VDC. Reverse polarity protection on power
- Operating Temperature -20ºC to 70ºC
- Storage Temperature -40ºC to 85ºC
- Self-Diagnostics On boot. LED indicators, on-screen indicators
- Views Top View, 2D stitched around vehicle view / Front / Reverse / Left / Right | Top view combined with one of the following views Front / Reverse / Left / Right | Auto-switched based on external signal triggers: Left / Right / Reverse Signals | Manual-switched with an external push button | Instantaneous reverse view after engine ignition and reverse gear engaged
- Bulk Calibration Supported
- Trigger Signal Voltage 6 to 32 VDC
- Video Download Via Wi-Fi
- Configuration Via IR, via Wi-Fi, via monitor (touch screen or mouse driven)
- Video Recording Supported; continuous
- Frame Rate 1080p @30fps NTSC, @25fps PAL; all channels
- Compression/Encoding H.264
- Storage Up to 4 SD cards in series; max capacity 256 GB for a total of 1TB max system storage
- Monitor Supports 720p (CVBS) and /or 1080p (HD); touch screen capable
- Video Streaming RTSP support via ethernet
- Vehicle Image Library Editable | Preloaded with 8 vehicle types
- Enclosure Die-cast aluminum ADC12; lockable / removable front cover (metal)
- Video Outputs 1080p / CBVS, 2 ports
- Video Inputs Up to 6; 4 cameras to provide top view, 2 spare channels
- Trigger Signals Left / Right / Reverse / Panic (event marking), 6-32VDC @ 0.12 to 0.63 mA
- Camera Port Impedance 75 Ω
- Video Output Impedance 75 Ω
- GPS <28mA @ 3.3V
- Dimension 135 x 120 x 40 mm; 5.8 x 6.8 x1.5 in
- IR Sensor 3m extension
- Enclosure Die-cast aluminum ADC12 with a 304 stainless steel bracket; IP69K-rated
- Dimensions 52 x 42 x 40 mm; 2.0 x 1.7 x 1.6 in (approximate)
- Sensor 2.9 mega-pixel CMOS
- Power ECU-supplied
- Voltage 12VDC @65 mA
- Focal Length 2.8mm
- Field of View (FOV) 130º (V) x 190º (H)
- SNR >80dB
- G-Sensor Equipped; Built-In
- GPS External Receiver
- Wi-Fi External antenna; 802.11 b/g/n/ac
- Language English / French / German / Dutch
- Units of Measure Metric / Imperial
- Ports USB / RS232C / RS485 / Can Bus
- Homologation FCC / EMark / CE
- Video Player HD Player (native) - with routing information | H.264 compliant - without routing information | Recorded video selectable/filterable by event types
- LCD Size 10.1"
- Resolution 1024 x 3 (RGB) x 600
- Outer Dimension 267mm (W) 159.5mm (H) 30mm (D)
- Resolution 1024 x 3(RGB) x 600
- Power Inputs 10-32V
- Dot Pitch 0.15(H) 0.1444 (V)
- Contrast 800:1
- Brightness 500 cd/m²
- Viewing Angle U: 85° / D: 85°, R/L: 85° / 85°
- Speaker Yes (24x15x4.5mm)
- Audio Output 1W
- Operating Temperature -20~+70°C, RH 90%
- Storage Temperature -30~+80°C, RH 90%
- Power Consumption Max 25W
- Video Inputs 4 Camera inputs, 1 HDMI, 1 VGA, 1 DVD
- Audio Inputs 4 Camera inputs, 1 VGA, 1 DVD
- Trigger Signal 5 Trigger Wires (5PIN)
- Anti-Vibration 3 g (Center Mount Bracket) /7 g (U-bracket)
