• Rear View Safety HD Waterproof Wireless Transmitters
1 1

Rear View Safety

Rear View Safety HD Waterproof Wireless Transmitters

Rear View Safety HD Waterproof Wireless Transmitters

$122.50 USD
$122.50 USD
Sale Sold out
Kit

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

Select the kit from the drop-down. Details for each part number are below.

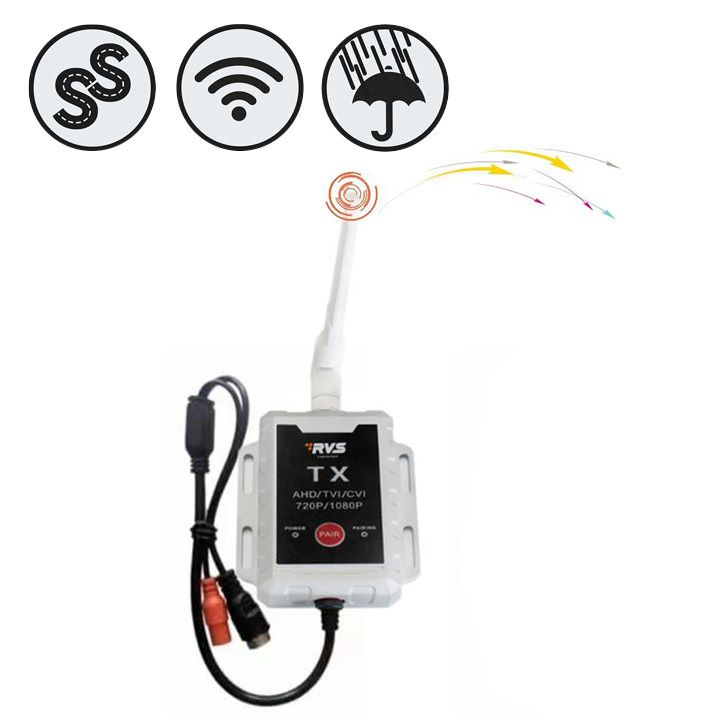

Transmitter for SimpleSight Series (RVS-DS65)

Order Your HD Waterproof Wireless Transmitter for Simplesight™ Series Today!: Get crystal clear video and audio with our easy-to-use and affordable wireless transmitter.

In the box:

  • 1 x Wireless Transmitter
  • 1 x Antenna
  • 1 x Power Cable

Specifications

Transmitter Specs

  • Operating Voltage 9V~36V
  • Video PAL / NTSC
  • Waterproof Rating IP67
  • Wireless Transmission Range 100'
  • Overall Dimensions (With antenna) 2.5" (H) x 3.7" (L) x 1" (D)
  • TX Resolutionn AHD/TVI/CVI/1080P/720P
  • Operating Temp -20℃~+80℃
  • Short latency 90-120ms
  • Output Power 24dBm±1dBm
  • TX Current consumption 140mA(Typ.)@12V
  • Receiving sensitivity -78dBm(Typ.)@12MHz,16QAM BER<1E-3; -86dBm(Typ.)@12MHz QPSK BER<1E-3

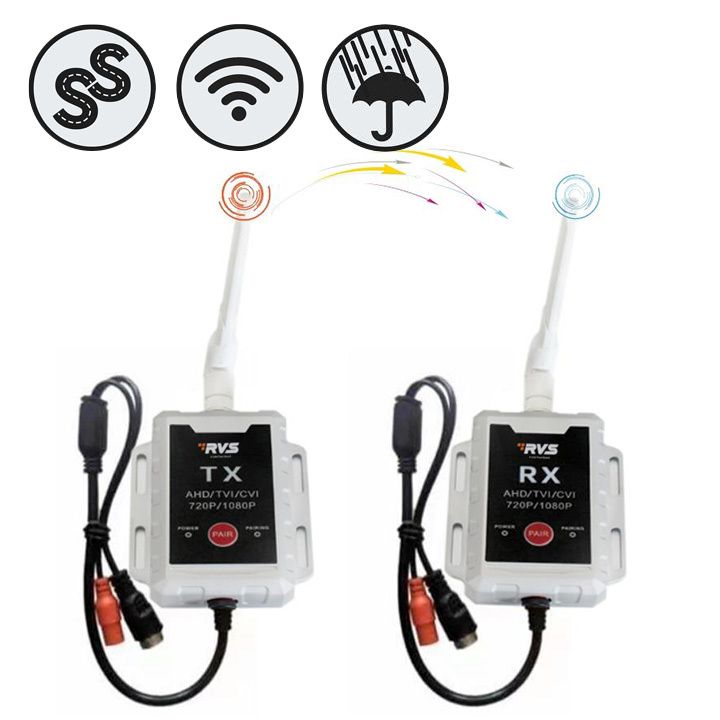

Transmitter & Receiver Set for wired cameras, monitors & MobileMule (pre-order) (RVS-DS66-4)

HD Waterproof Wireless Transmitter & Receiver Set: Transmit HD video and audio up to 100 range in any weather condition. Ideal for wired cameras, monitors, & MobileMule. Order now.

In the box:

  • 1 x Wireless Transmitter
  • 1 x Wireless Receiver
  • 2 x Antennas
  • 2 x Power Cables

Specifications

Specs

  • Video in system AHD/TVI/CVI/CVBS Auto detection @1080P/720P/48
  • Waterproof Rating IP69K
  • TV System 26CH(NTSC)/76CH(PAL)
  • Wireless Transmission Range 100'
  • Operating Voltage 12-42V DC
  • Current Consumption 200 mA Ma
  • Power Consumption 2.4 Watt Max
  • RF Output Power 20dBm
  • Video Output 1Vp-p, 75 Ω
  • Booting Time Under 2s
  • Video Latency 90-120ms
  • Video Bit Rate 1.5-6MBPS
  • Smart Modulation 16QAM,QPSK,BPSK
  • High Resolution 1080P,720P
  • Short Latency 90-120ms
  • Fast Hopping Rate 600
  • Multi Channel 26ch(NTSC), 76ch(PAL)
  • One way Audio MP3 or PCM format
  • Free Voltage 12V-42V
  • Shock rating 100G
  • Vibration rating 10G
  • Operating Temperature -40℃~+85℃
  • Storage Temperature -50℃~+90℃
