Rear View Safety G-SERIES Backup Camera System with Auto Dimming and OnStar

Rear View Safety G-SERIES Backup Camera System with Auto Dimming and OnStar

$504.40 USD
$504.40 USD
Sale Sold out

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

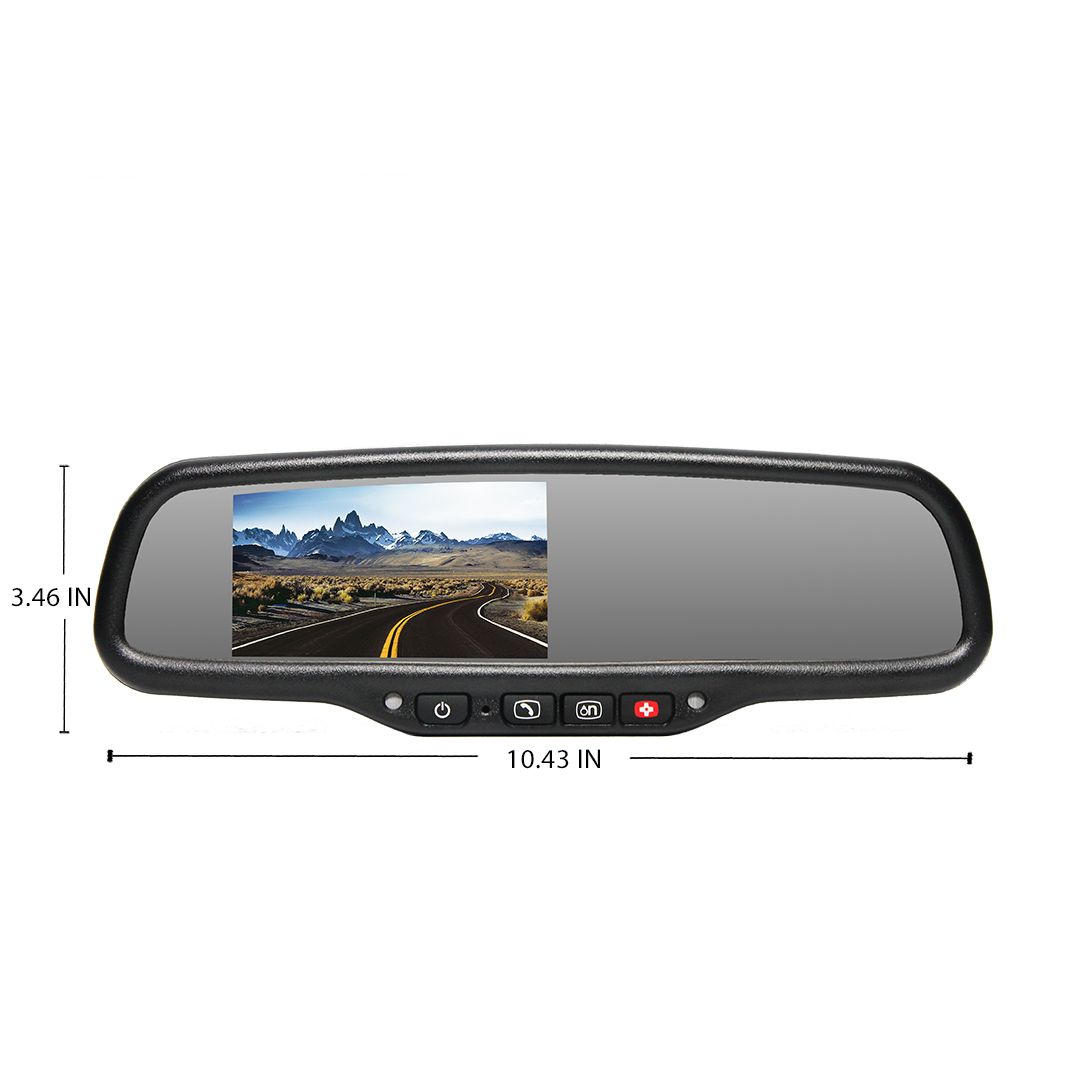

Mirror Monitor

Our G-Series monitor completely replaces your rear view mirror.
In addition to having a high quality display, the entire surface is an ultra reflective mirror.

Reflective

Acts just like a regular rear view mirror monitor

Monitor Introduction

G-Series monitor equipped with OnStar capabilities and auto-dimming

OnStar Compatible

Easily enjoy all your Onstar features (if your vehicle has Onstar) after replacing monitor

Auto-Dimming

Monitor automatically reduces distracting headlight glare

Two Light Sensors

The back sensor detects ambient light while the front sensor detects light from rearward approaching vehicles

Speed of Auto-Dimming

When headlight glare is detected monitor automatically increases dimming

Super Sharp Digital Image

With a pixel resolution of 480 x 272 the monitor guarantees a super sharp digital image

4.3" LCD Digital Display

A bright 4.3" display appears on the left side of the mirror when camera is triggered on

Distance Grid Lines

The monitor will display grid lines for reference of distance to obstacles behind you

Adjustable

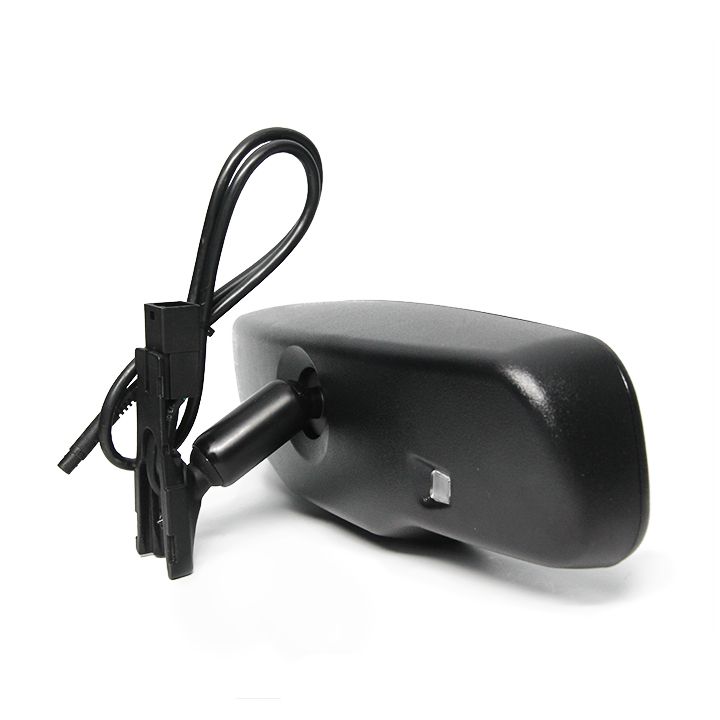

Easily adjust mirror monitor to any position with a double ball joint

Clean Install

The beauty of the G-Series is how well it seamlessly integrates into your vehicle for a sleek OEM look

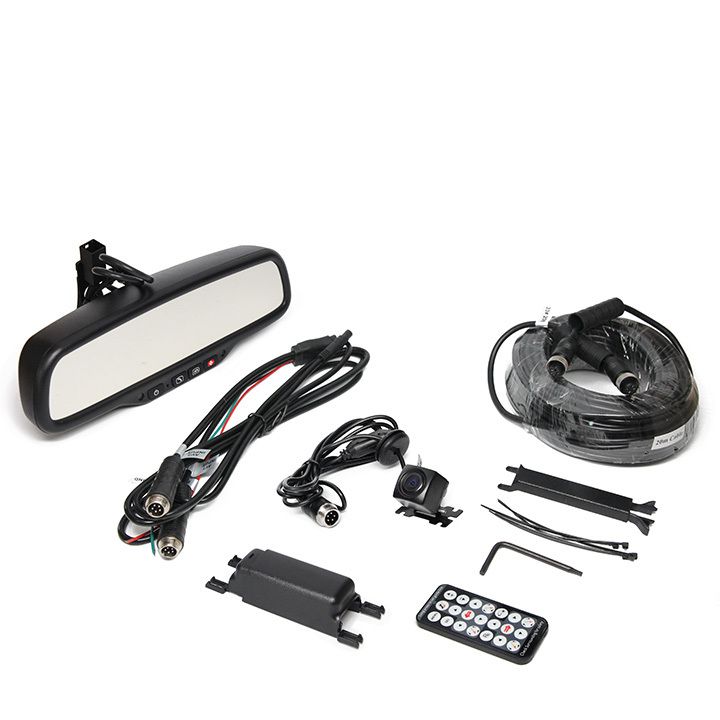

In the box

  • 1 x Compact Waterproof Color Backup Camera with Night Vision
  • 1 x Replacement Mirror Monitor with 4.3" Display, Auto Dimming and OnStar
  • 1 x Double RCA + Power Converter (to connect external audio, video and power)
  • 1 x OnStar Adaptor
  • 1 x 33' Camera Cable
  • 1 x Remote Control
  • 1 x Cord Protector
  • 1 x Screw Kit for Installation

Specifications

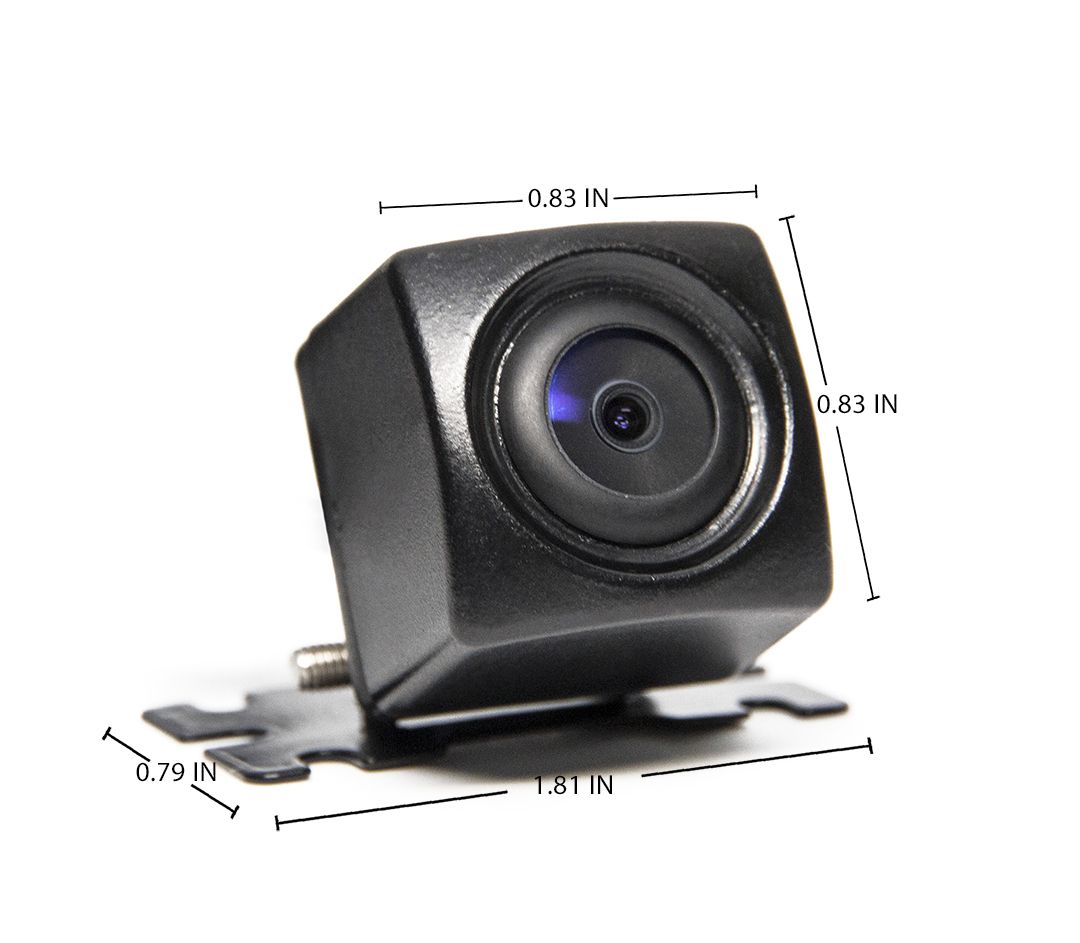

Camera Specs
  • Sensor MT9V139
  • Sensor Format 728 (H) X 560 (V)
  • Picture Elements 307,200 Pixels
  • NTSC Output 720 (H) X 576 (V)
  • PAL Output 720 (H) X 576 (V)
  • Optical Format 1/4 Inch
  • Gamma Correction r=0.45 to 1.0
  • Image Sensor 480 TV lines
  • Lens 2.1mm
  • View Angle 170°
  • Sync System Internal Synchronization
  • Night Vision Yes
  • Usable Illumination 0.5 Lux
  • Power Source DC 9V - 32V
  • S/N Ratio More than 48dB
  • Electronic Iris 1/50, 160-1/100,000sec
  • Video Output 1Vp-p 75 Ω
  • Vibration and Impact Rating 10G / 100G
  • Operating Temperature -40°C ~ +70°C / RH 95% Max
  • Storage Temperature -40°C ~ +80°C / RH 95% Max
  • Overall Dimensions 0.83" (H) x 1.81" (L) x 0.79" (D)
Monitor Specs
  • Screen Size 4.3"
  • Dot Resolution 480 x 3 (RGB) x 272
  • Display Format 16:9
  • Display Brightness 12001x
  • Viewing Angle U&D: 100°, L&R: 120°
  • Video Input 2 Channel
  • Video Source 1Vp-p, 75 Ω
  • Power Supply DC 9V - 32V
  • Power Consumption 8W
  • Operating Temperature -20°C ~ +75°C
  • Video System Auto NTSC/PAL
  • Overall Dimensions 10.43" (L) x 3.46" (H) x 1" (D)
  • Weight 800G
  • Vibration Rating 5G
  • Sync System Internal
