Rear View Safety
Rear View Safety Flush Mount Backup Camera
Rear View Safety Flush Mount Backup Camera
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

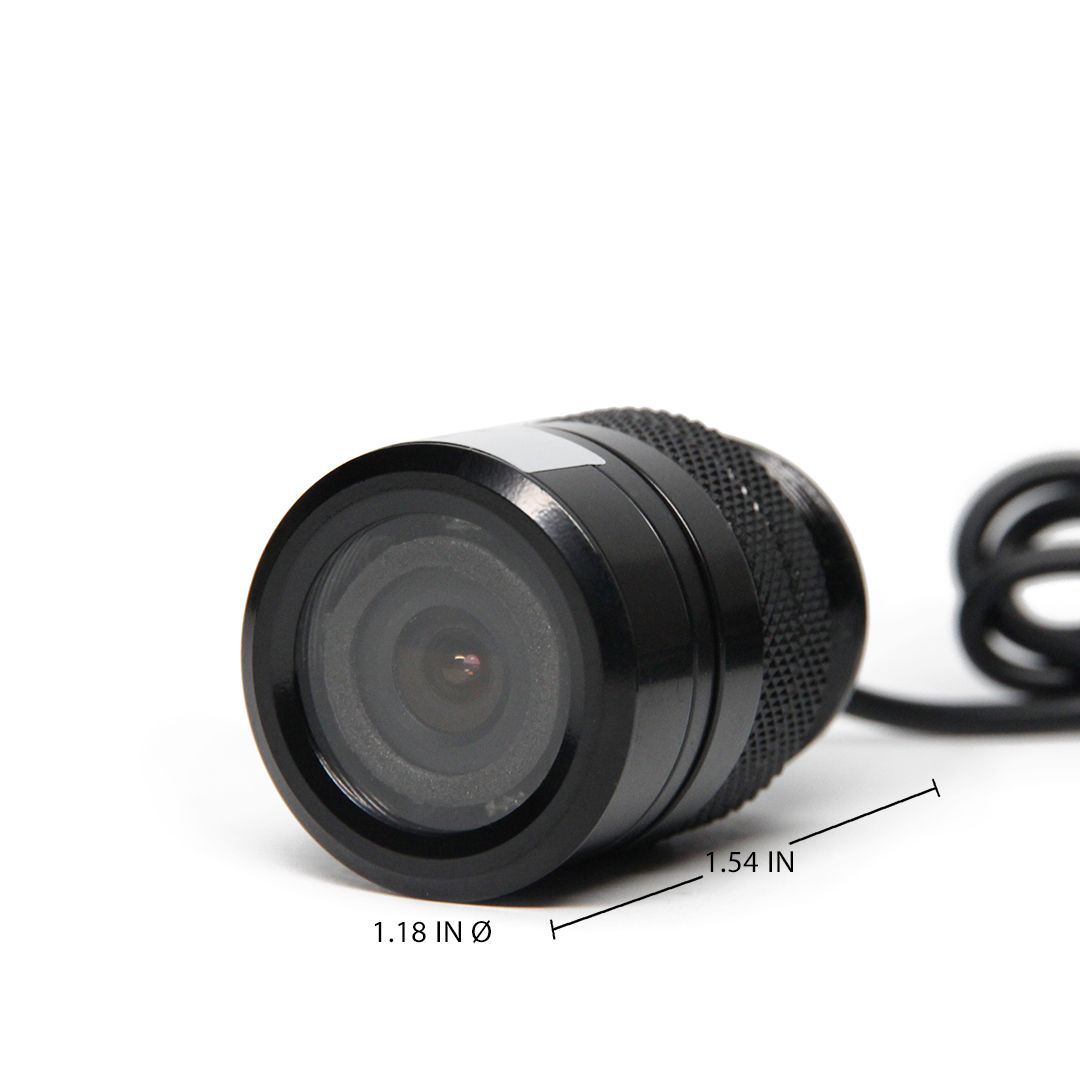

Flushmount Backup Camera

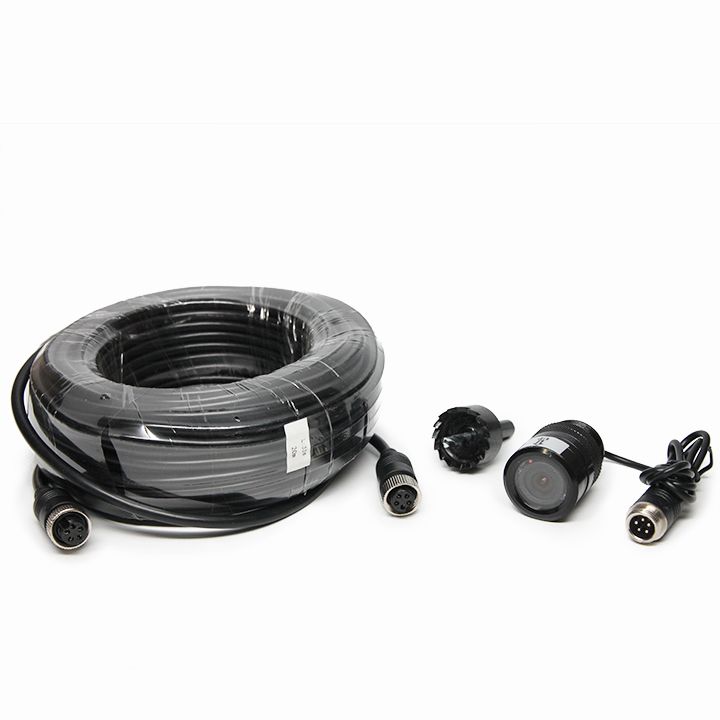

This color MT9V139 camera is designed to sit flush on the vehicle but comes with a mounting bracket as a second option.
It has a viewing angle of 120° and 480 TV lines, which means you get the best quality image with no blind spots.

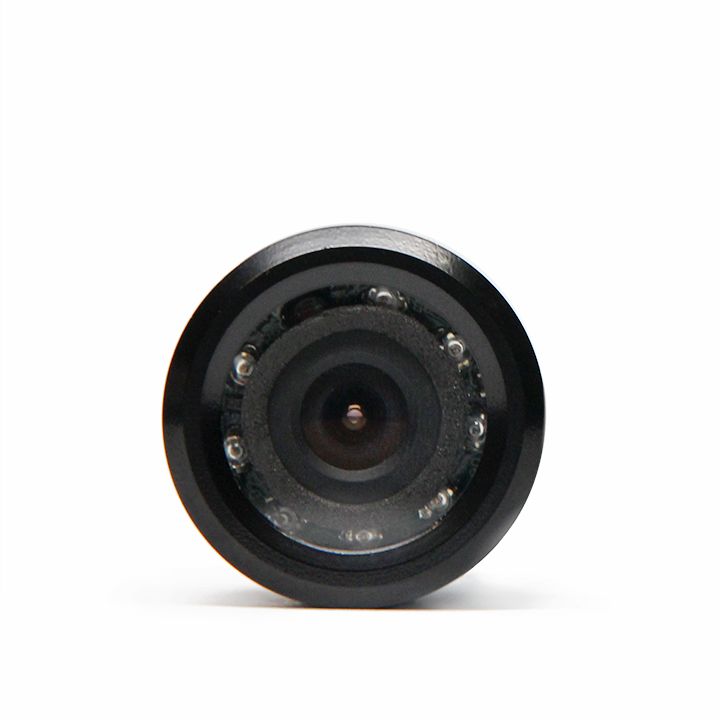

The 8 infra-red lights allow you to see up to 30 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds. With an IP68 weatherproof rating this camera will be fit to ride out any storm and boasts a 15 vibration rating as well as aircraft grade cable connections.
Specifications
- Sensor MT9V139
- Sensor Format 728 (H) X 560 (V)
- Picture Elements 307,200
- NTSC Output 720 (H) X 480 (V)
- Pal Output 720 (H) X 576 (V)
- Optical Format 1/4 Inch
- Lens F=2.8
- Resolution 480 TV Lines
- TV System NTSC or PAL
- Minimum Light 0.5 Lux
- Weatherproof Rating IP68
- Viewing Angle 120°
- Infrared 8 PCS
- AGC Auto
- BLC Auto
- S/N Ratio More than 48dB
- Video Output CVBS
- Signal 1.0vp-p
- Impedance 75ohm
- Power 1.5 Watts
- Operating Temperature -40 ~ 75 °C
