Rear View Safety FHD Waterproof Backup Camera System with 7" Quad View Monitor
Rear View Safety FHD Waterproof Backup Camera System with 7" Quad View Monitor
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Backup Camera
This color CCD camera is built with heavy duty zinc metal which encases the 2.1 mm Sharp lens. It has a viewing angle
of 130 degrees and 600 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allow
you to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.
With an IP69K rating this camera will be fit to ride out any storm and boasts a 20G impact rating as well as
aircraft grade cable connectors.
A 3-D Look Inside
Take a closer look at the components that make this a powerful, durable, and reliable system.
Waterproof Quad View Monitor
In addition to all the features packed into this monitor, its casing is also waterproof!
It has an IP66 rating which means that even with the most severe weather thrown against it, this monitor will
still function perfectly. With its built-in speakers, quad view display, grid lines, auto dimming, back-lit buttons
and touch screen, this monitor truly has it all.
Monitor Viewing Options

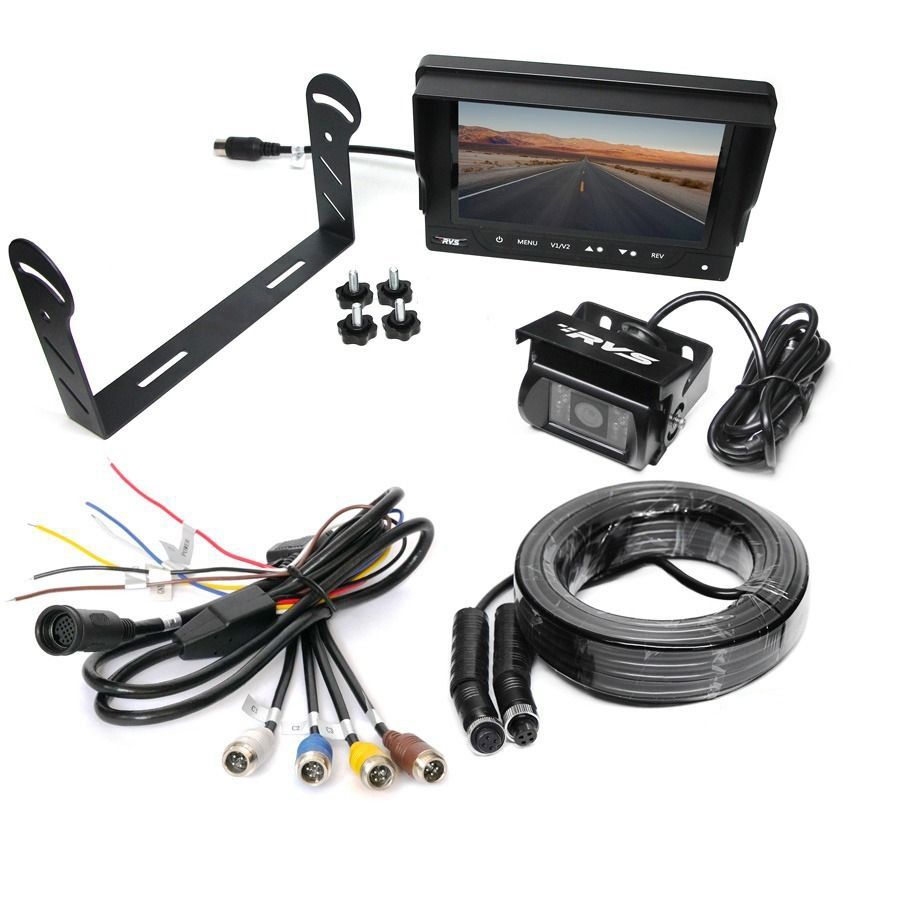

In the box
- 1 x Color CCD Weatherproof Camera with Infra-red Lights
- 1 x 7" Quad View Waterproof Digital TFT LCD Color Monitor
- 1 x U-Mount Bracket
- 1 x 66’ Extension Cable for Camera
- 1 x Remote Control
- 1 x Power Connection Wire
- 1 x Monitor Mount
- 1 x Double RCA + Power Converter (to Connect External Audio, Video and Power)
- 1 x Screw Kit for Installation
Specifications
- Dimension 7"
- TV System NTSC/ PAL
- Resolution 800 x 3 (RGB) x 480
- Brightness 400 cd/m²
- Contrast 500 :1
- Waterproof Rating IP66
- Viewing Angle U: 50°/ D: 60°, R/L: 70°
- Aspect Ratio 16:9
- Operating Temperature -10~+65ºC
- Storage Temperature -30~+80ºC
- Power Source DC 9V -32V
- Power for Cameras Max. 4300mA, 12V
- Dot Pitch 0.192 (H) x 0.1805 (V)
- Video Inputs 4 Video inputs; 1 DVD Input
- Audio Inputs 4 audio inputs; 1 DVD input
- Video Outputs 1 Rec Video Output
- Audio Output 1 Live Audio Output
- Touch Screen Transmittance ≥80%
- Screen Operation Pressure 10~110g
- Screen Response Time <10ms
- Overall Dimensions 6.25" (H) x 7.75" (L) x 1" (D)
- <
- Camera 1/3" Sharp® Color CCD
- Picture Elements 410,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 620 TV lines
- Pixels PAL: 752 (H) x 582 (V) NTSC: 811 (H) x 507 (V)
- Lens F=2.5mm
- View Angle 130°
- Waterproof Rating IP69K
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 9V - 32V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp-p 75 Ω
- IR Switch Control ACDS Automatic Control
- Vibration and Shock Rating 20G / 100G
- Operating Temperature -40°C ~ +70°C / RH 95% Max
- Storage Temperature -40°C ~ +85°C / RH 95% Max
- Net Weight 22oz

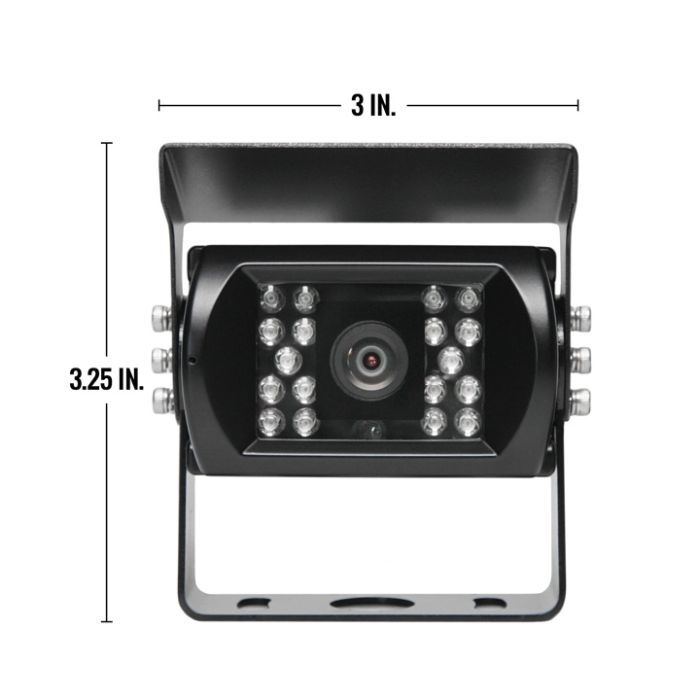

- Overall Dimensions 3.25" (H) x 3" (L) x 1.5" (D)
