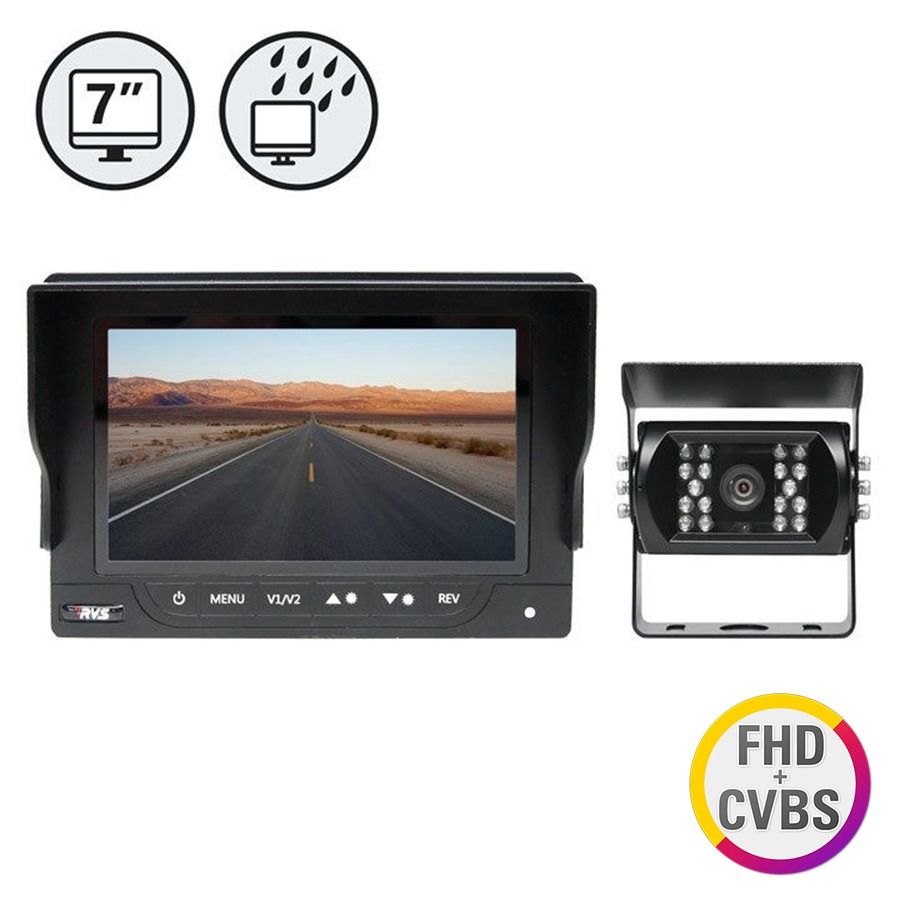

Rear View Safety FHD Waterproof Backup Camera System with 7" Monitor
Rear View Safety FHD Waterproof Backup Camera System with 7" Monitor
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
-
Waterproof
The monitor is completely waterproof with an IP69K rating.
-
Auto Dimming
Screen dims in low light.
-
3 Channel
With a three-port power harness, you can attach 2 additional cameras to the system.
-

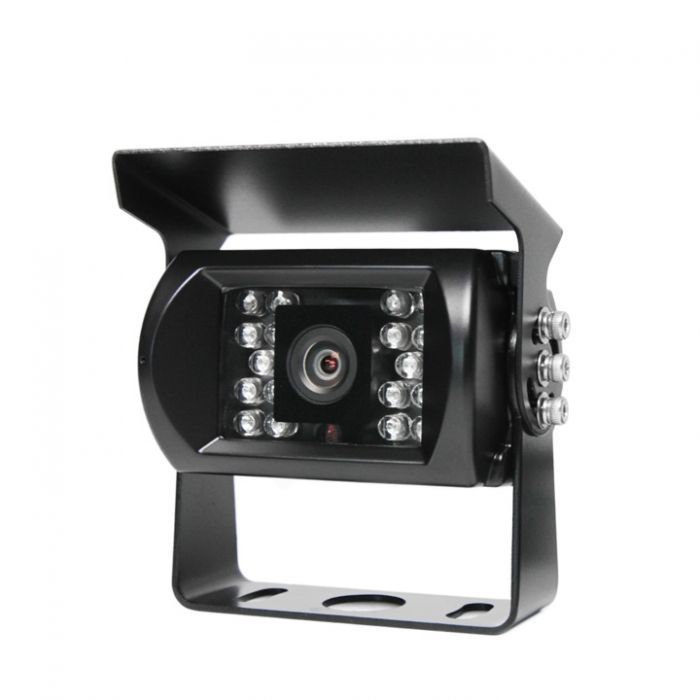

Waterproof – IP69K Rating
Backup Camera is completely waterproof with an IP69K rating. This is the highest IP rating there is and means the camera will work fine in all weather conditions.
-
Infra-Red Night Vision
With 18 infra-red lights, the backup camera will be able to see up to 50ft even in complete darkness! This night vision will be even without any ambient light at all.
-
130° Viewing Angle
With an ultra-wide viewing angle, the backup camera will provide a complete view from behind your vehicle. This ensures complete safety with no blind spots.

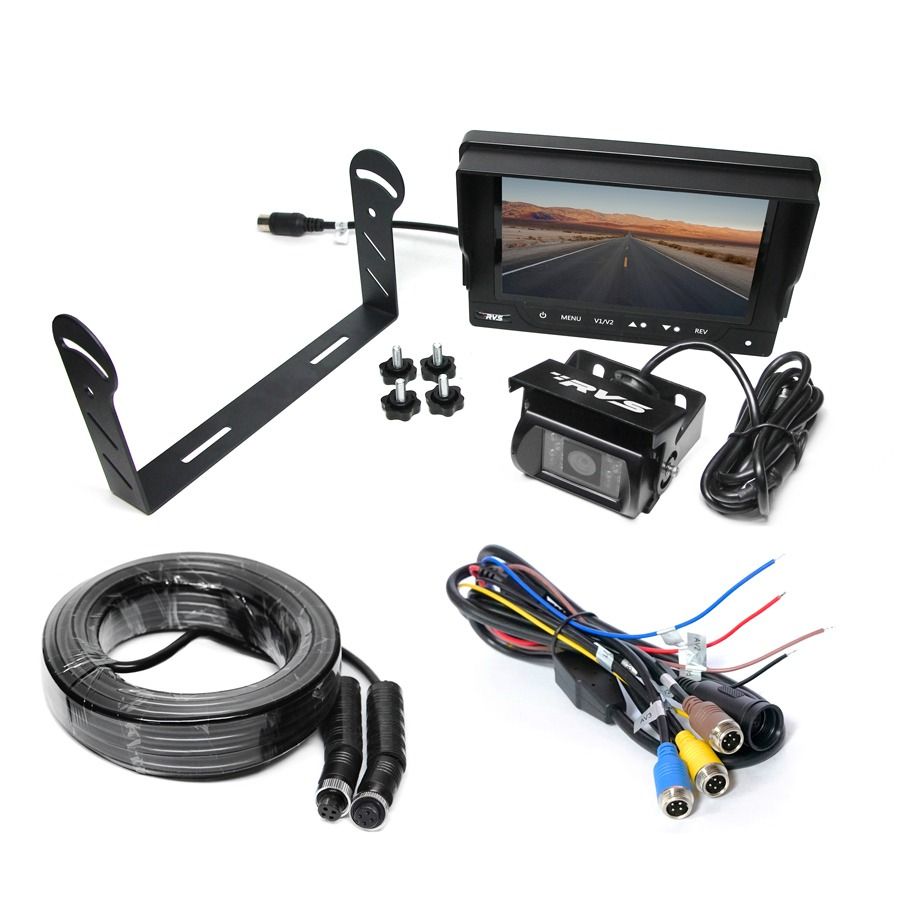

In the box
- 1 x Waterproof 7" Digital LED Color Monitor

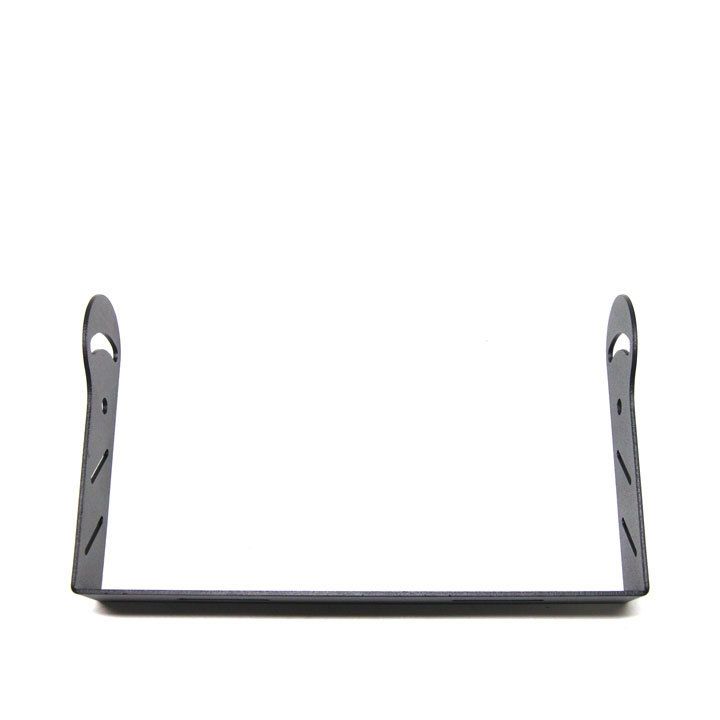

- 1 x U-Bracket
- 1 x Power Harness
- 1 x Color CCD Waterproof Camera with Infra-Reds
- 1 x 66’ Extension Cable for Camera
Specifications
- Monitor7” LED Digital Panel
- Waterproof RatingIP69K
- Video SystemNTSC / PAL Automatic detection
- Resolution800 x 3 (RGB) x 480
- Contrast500:1
- Brightness400 cd/m²
- Field Of ViewU: 50 / D: 70, L/R: 70
- Video Input3 Channel
- Auto DimmingYes
- Audio Output0.5W Speaker
- Dot Pitch0.1926(H) 0.1710(V) mm
- Active Area154.08(H) 85.92(V) mm
- Power SupplyDC12/24V (+/-10%)
- Operating Temperature-20°C ~ +70°C
- Storage Temperature-30°C ~ +85°C
- Weight1 lb
- Trigger1 Backup, 1 Left, 1 Right
- Impact Rating5G
- Camera1/3" Sharp® Color CCD
- Picture Elements410,000 pixels
- Gamma Correctionr=0.45 to 1.0
- Image Sensor620 TV lines
- PixelsPAL: 752 (H) x 582 (V), NTSC: 811 (H) x 507 (V)
- LensF=2.5mm
- View Angle130°
- Waterproof RatingIP69K
- Sync SystemInternal Synchronization
- Infra-red distance50 Feet (18 Infrared)
- Usable Illumination0 Lux (IR On)
- Power SourceDC 9V - 32V
- S/N RatioMore than 48dB
- Electronic Iris1/50, 160-1/100,000sec
- Video Output1Vp-p 75 Ω
- IR Switch ControlACDS Automatic Control
- Vibration and Shock Rating20G / 100G
- Operating Temperature-40°C ~ +70°C / RH 95% Max
- Storage Temperature-40°C ~ +85°C / RH 95% Max
- Net Weight22oz

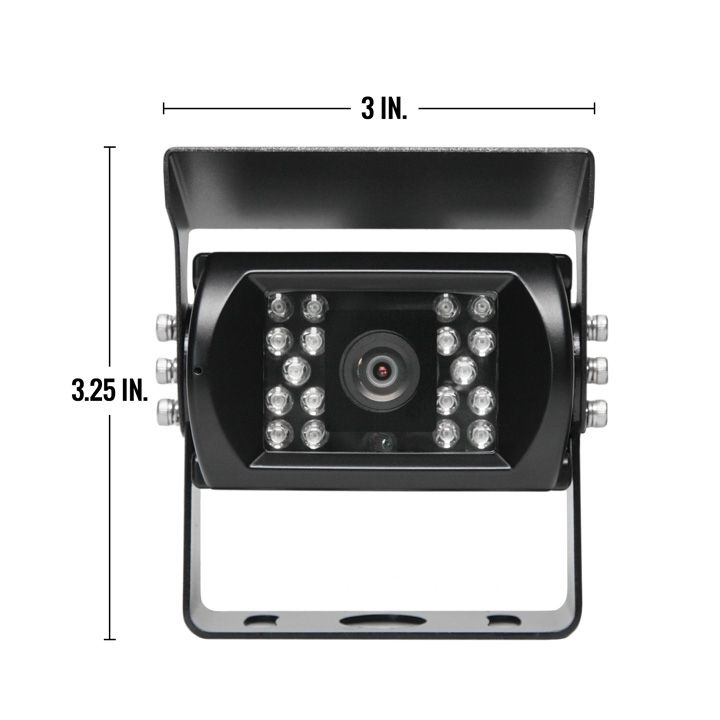

- Overall DImensions 3.25" (H) x 3" (L) x 1.5" (D)
