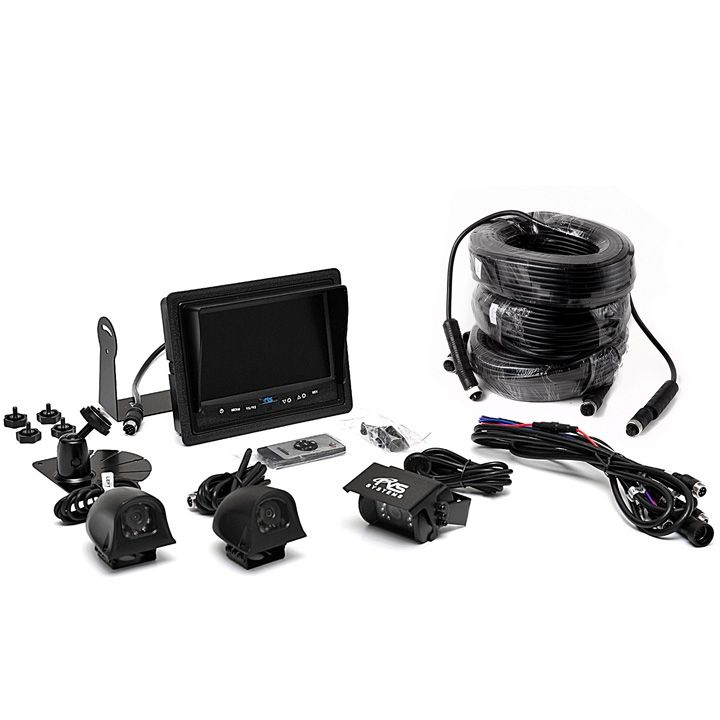

Rear View Safety FHD Backup Camera System with Quad View Monitor

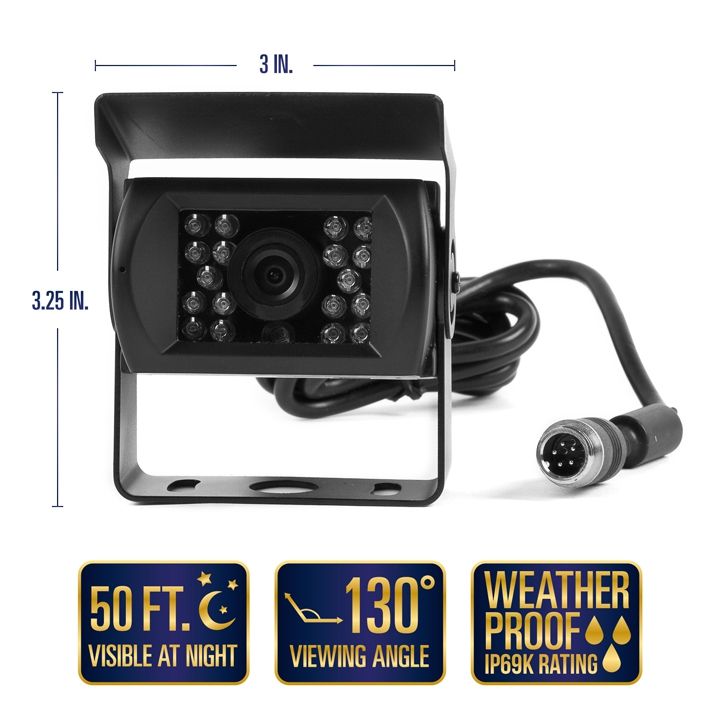

Backup Camera

This color CCD camera is built with heavy duty zinc metal which encases the 2.1 mm Sharp® lens. It has a viewing angle

of 130 degrees and 600 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allow

you to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.

With an IP69K rating this camera will be fit to ride out any storm and boasts a 20G vibration rating as well as

aircraft grade cable connectors.

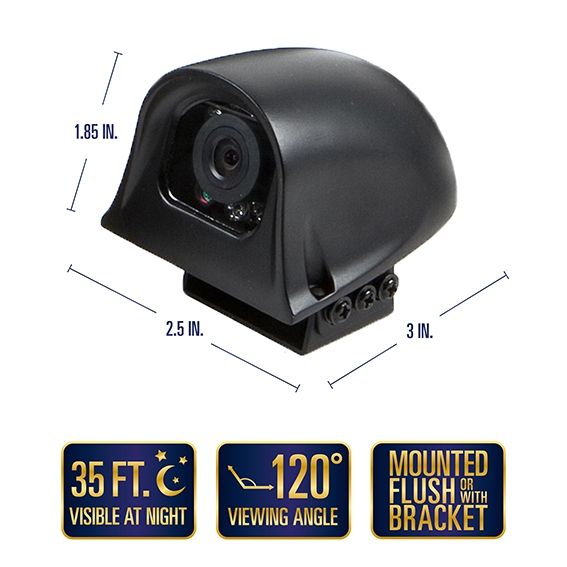

Side Camera

The Side Cameras that come with our systems are made from heavy duty zinc metal and come with a 2.1 mm

Sharp® CCD lens. Their viewing angle is 120° and with 9 Infrared Lights will allow you to see more than 30ft

in total darkness. Its mounting bracket is removable allowing the camera to be mounted flush on the vehicle if so desired.

Our Side Cameras are completely weather proof with an IP68 rating, shock resistant with a 20G Vibration Rating

and come with Aircraft Grade Cable Connections.

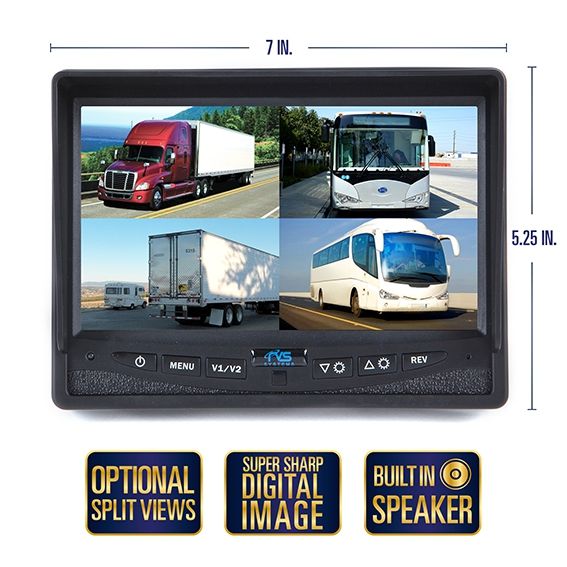

Quad View Monitor

Our 7" Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 480.

This monitor allows connection of up to four cameras and has the ability to view each camera separately or all at the same

time with multiple options in between. It comes with distance grid lines, built-in speakers and its menu can be navigated

with the on dash buttons or from the remote which comes included.

Monitor Viewing Options
