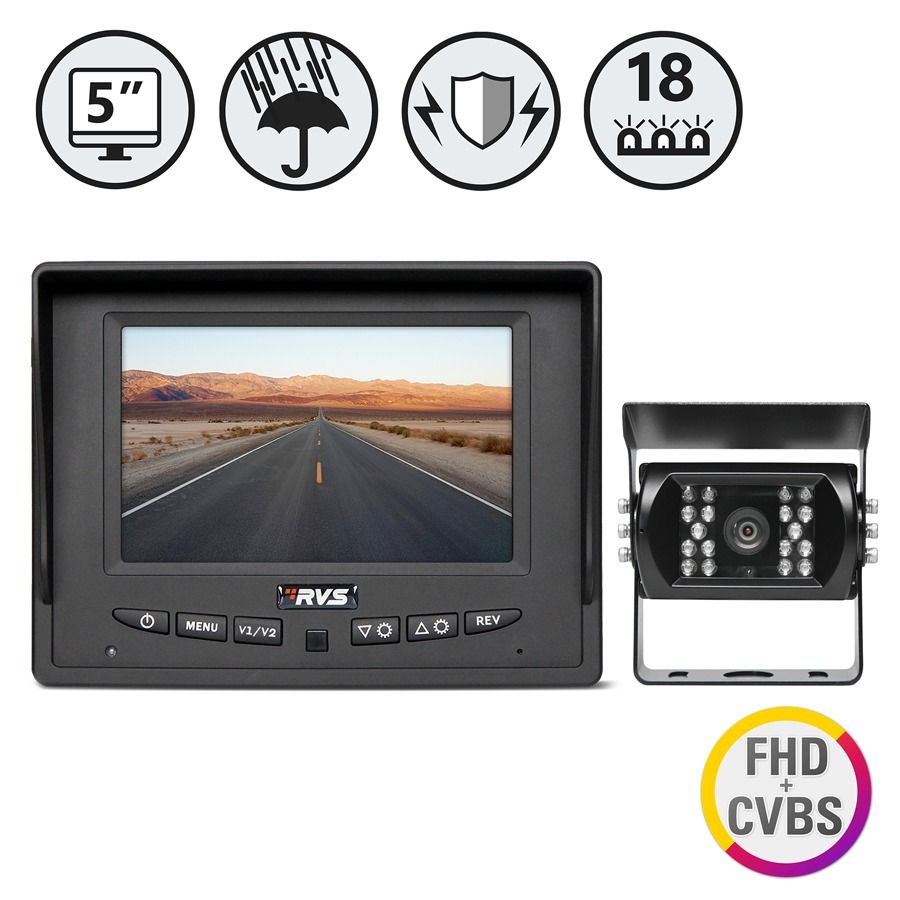

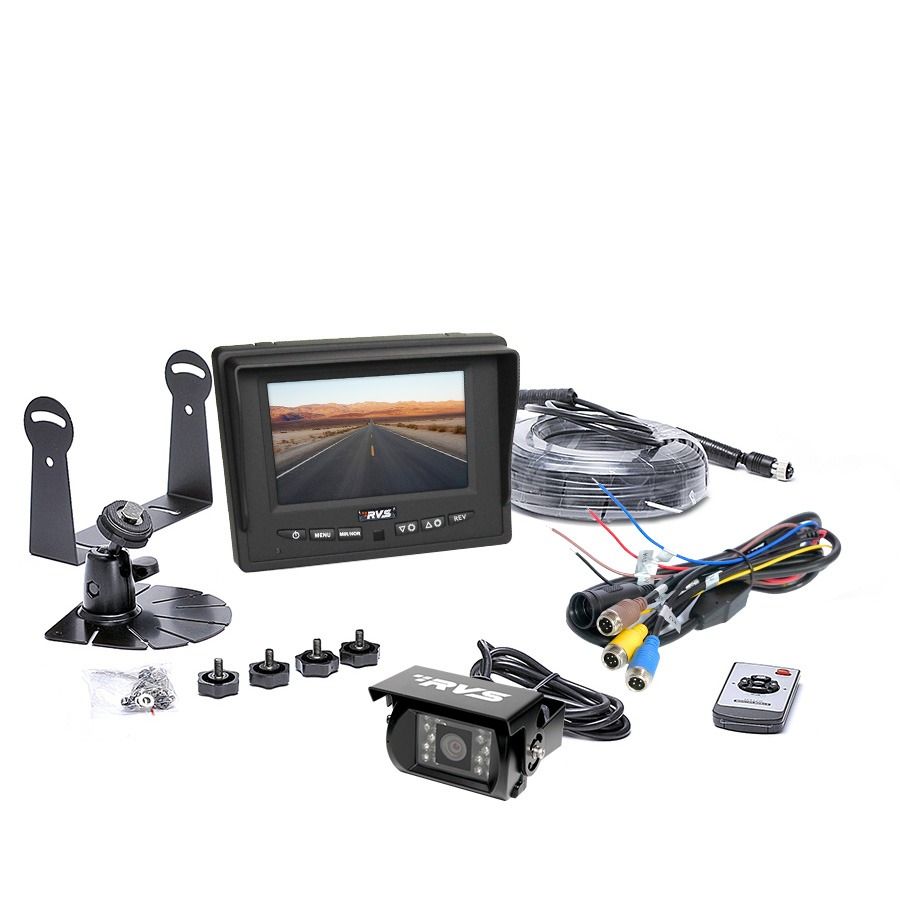

Rear View Safety FHD Backup Camera System with 3-Channel 5" LCD Monitor (With Power Harness)
Rear View Safety FHD Backup Camera System with 3-Channel 5" LCD Monitor (With Power Harness)
Regular price
$360.28 USD
Regular price
Sale price
$360.28 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
-
Built For Industrial Usage
Able to withstand the water, shock, vibration, and dust of industrial applications.
-
Adjustable Gridlines
Gridlines adjust down, left, and right as you move.
-
Built-In Speakers
Audio built right into monitor.
-
Ultra Wide-Angle Views
See the road with a full 130° view.
-
Night Vision
18 Infrared Lights give up to 50ft of night vision.
-
Waterproof Camera
A IP69K rating offers the highest level of protection.
Specifications

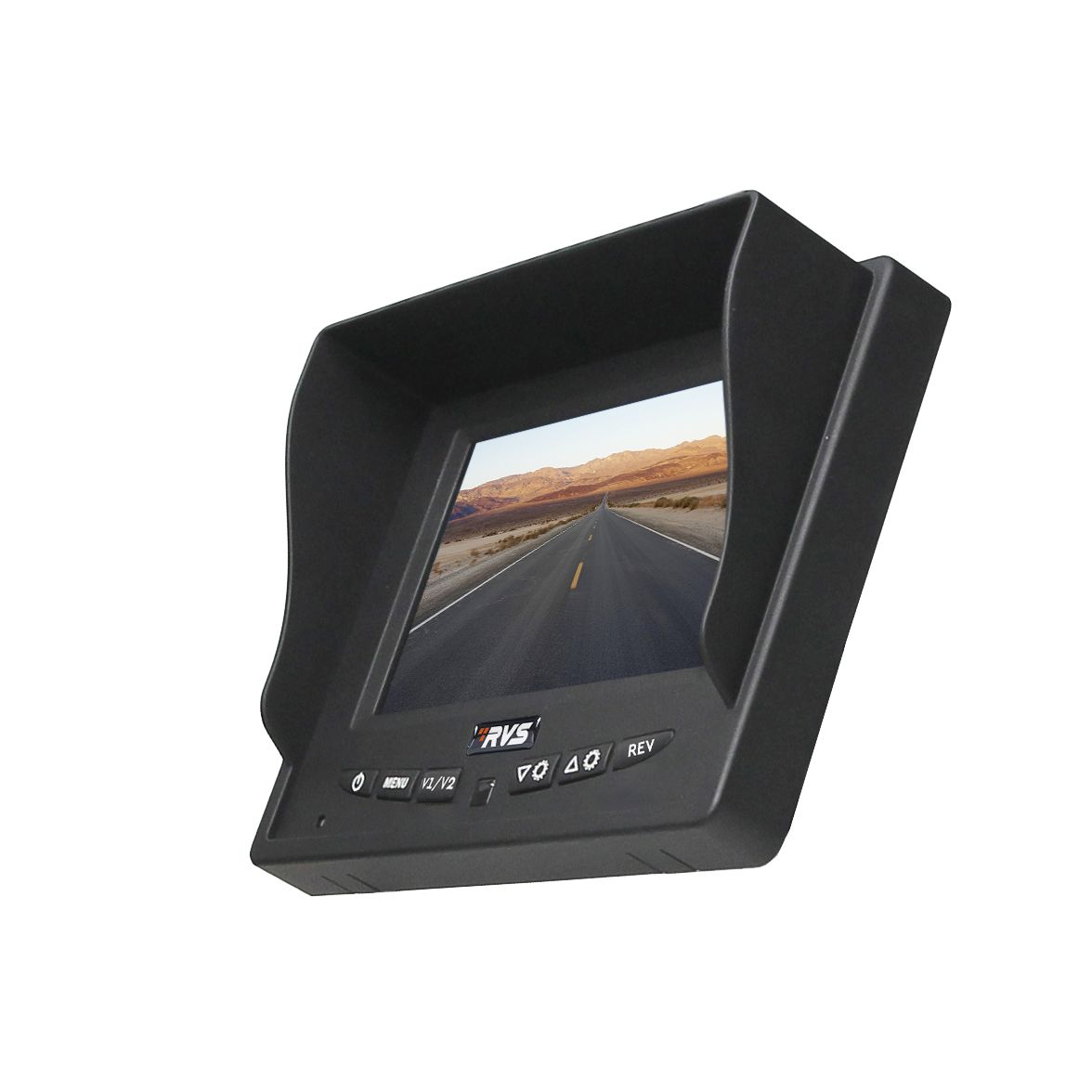

Monitor Specs
- Type TFT LCD
- Screen Size 5"
- Dot Resolution 480 X 3 (RGB) X 272
- Display Format/Contrast 16:9 / 500:1
- Display Brightness 300cd/㎡
- Viewing Angle U:40° D:40° L/R:70°
- Video Input 3 channel
- Video Source 1Vp-p, 75Ω
- Power Supply DC 9v-32V
- Power Consumption 5W
- Operating Temperature -30°C ~ +70° C
- Storage Temperature -30°C ~ +80° C
- Video System Auto NTSC/PAL
- Overall Dimensions 5" (L) x 5" (H) x 1" (D)
- Weight 400G
- Vibration Rating 5G
- Dot Pitch 154.08 (H) x 86.58 (V)
- Sync System Internal

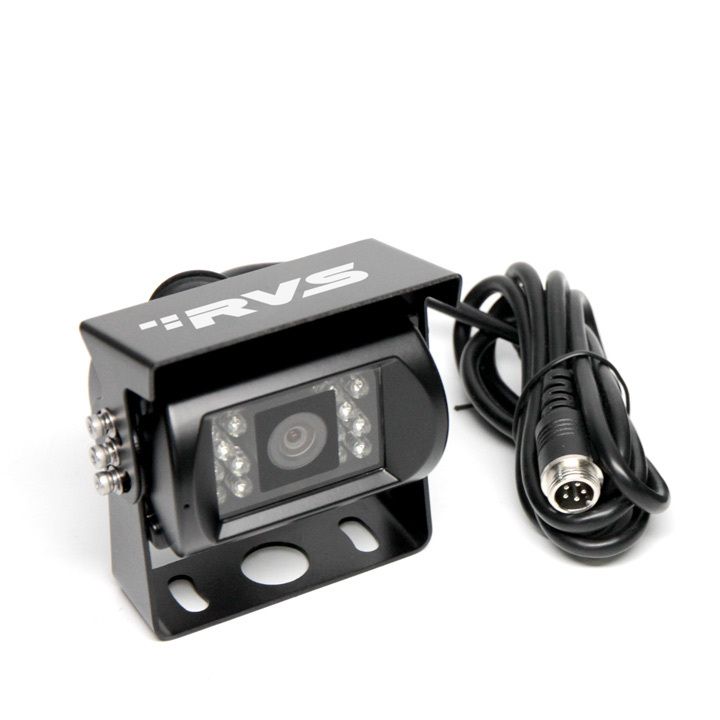

Camera Specs
- Camera 1/3" Sharp® Color CCD
- Picture Elements 410,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 620 TV lines
- Pixels PAL: 752 (H) x 582 (V) NTSC: 811 (H) x 507 (V)
- Lens F=2.5mm
- View Angle 130°
- Waterproof Rating IP69K
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 9V-32V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp-p 75 Ω
- IR Switch Control ACDS Automatic Control
- Vibration and Impact Rating 20G / 100G
- Operating Temperature -40°C ~ +70°C / RH 95% Max
- Storage Temperature -40°C ~ +85°C / RH 95% Max
