Rear View Safety FHD 7" Monitors
Rear View Safety FHD 7" Monitors
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Select the model from the drop-down. Details for each part number are below.

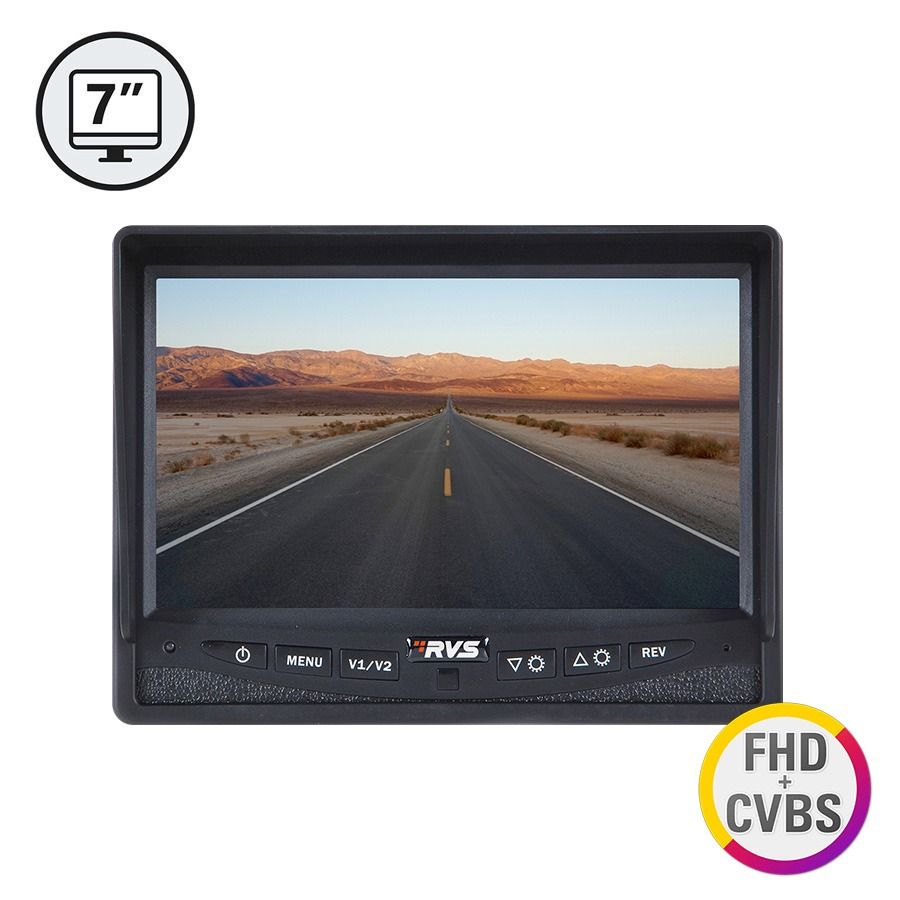

3-Channel (MN-M137D)
Widescreen Monitor
Our 7" LED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x 480.
The distance grid lines that come standard with these monitors are optional and adjustable.
It has built-in speakers and its menu can be navigated with the on dash buttons.
which comes included.

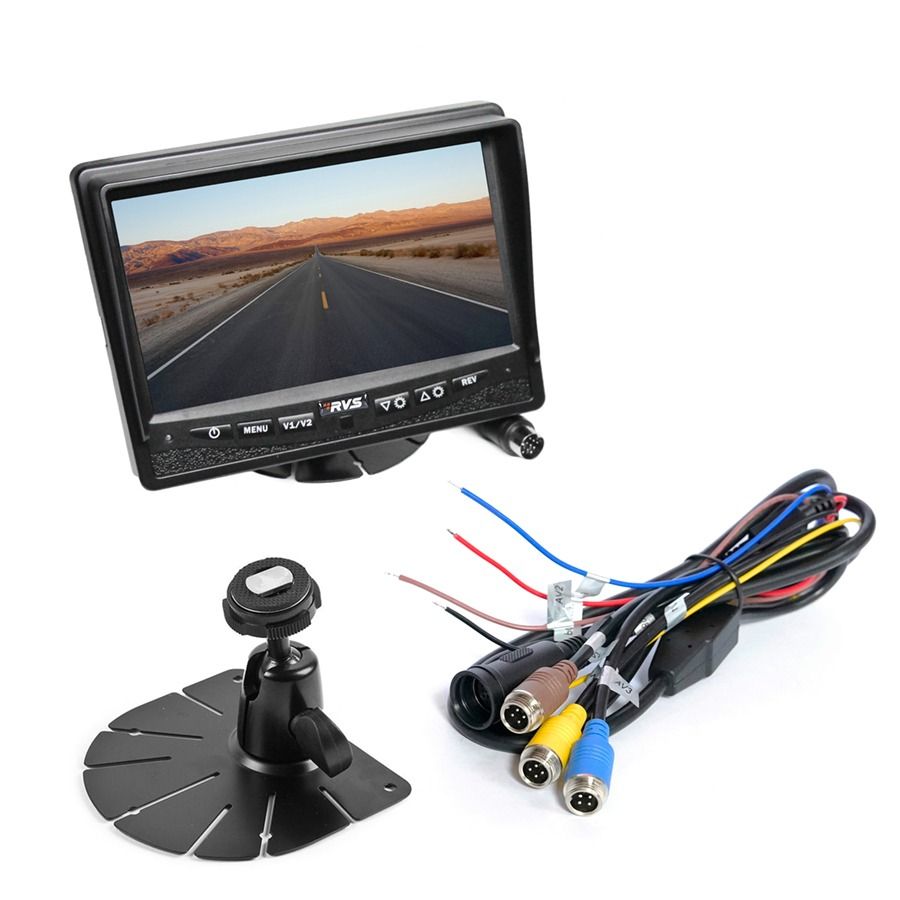

In the box

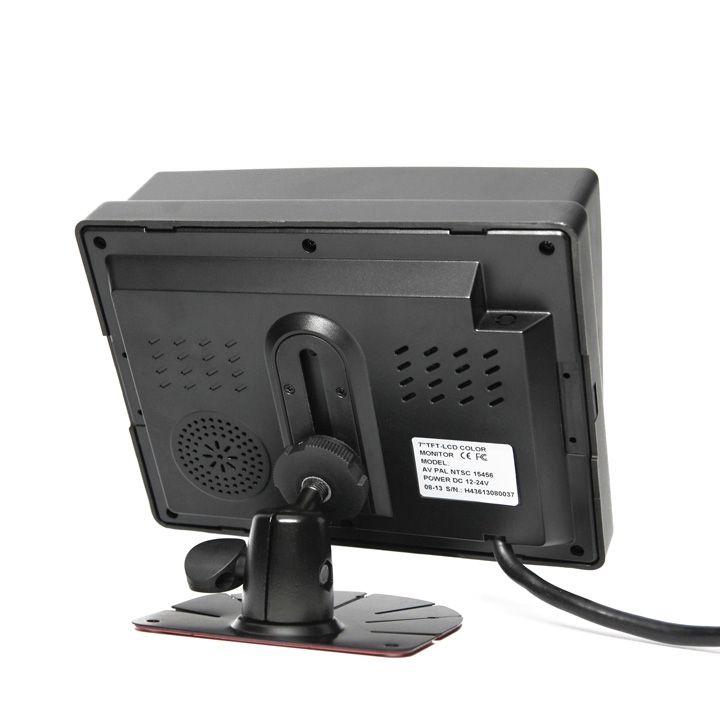

- 1 - 7" LED Digital Panel Color Monitor with Universal Mount/Stand and Wire

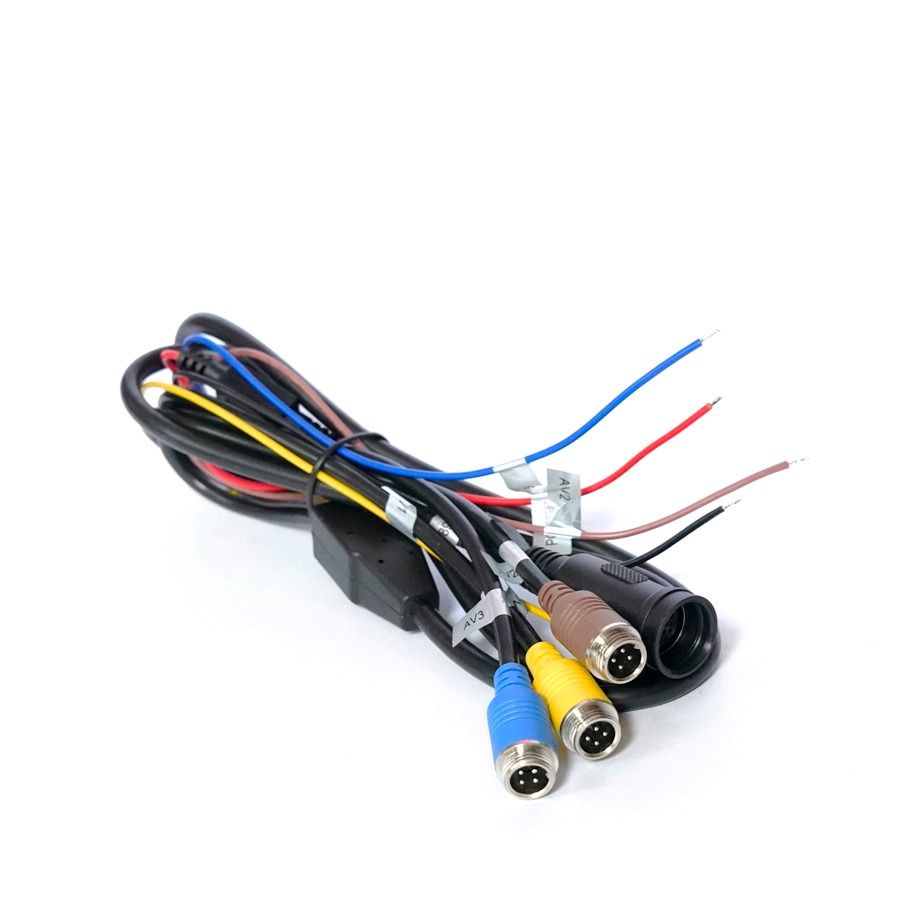

- 1 - 3 Port Power Harness

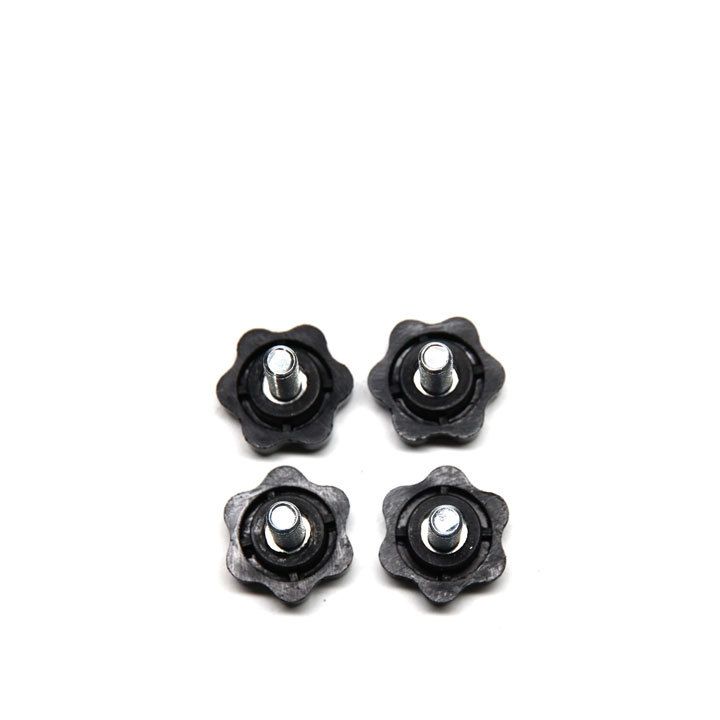

- 1 - Screw Kit for installation
Specifications
- Panel Size 7" LED Digital Panel
- Dot Resolution 800 X 3 (RGB) X 480
- Screen Mode 16:09
- Contrast Ratio 500:01
- Display Brightness 400cd/㎡
- Field Of View U:50° D:60° L/R:70°
- Camera Input 3 channel CVBS
- Video Source 1Vp-p, 75Ω
- Power Supply DC 9V-32V
- Power Consumption 5W
- Operating Temperature -20°C ~ +70° C
-
Storage Temperature -30°C ~ +85°C
- Video System Auto NTSC/PAL

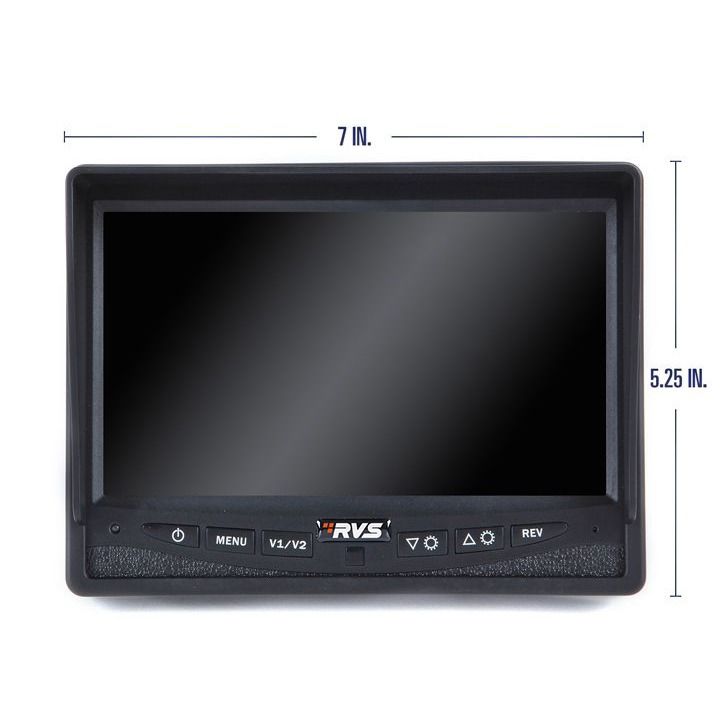

- Overall Dimensions 7" (L) x 5" (H) x 1" (D)
- Weight 400G
- Impact Rating 5G
- DOT PITCH 0.1926 (H) X 0.1710 (V)
- Sync System Internal

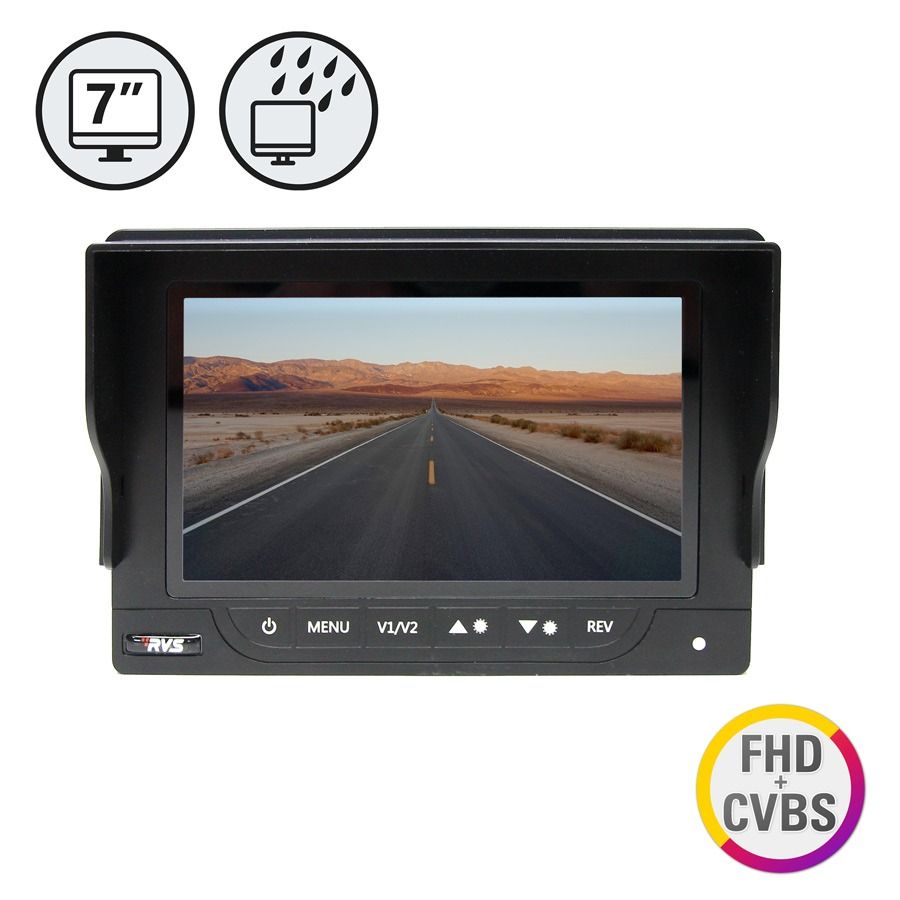

3-Channel Waterproof (MN-M137DX)
-
Waterproof
The RVS-9910 is completely waterproof with an IP69K rating.
-
Auto Dimming
Screen dims in low light.
-
3 Channel
With a three-port power harness, the system can handle up to three cameras.

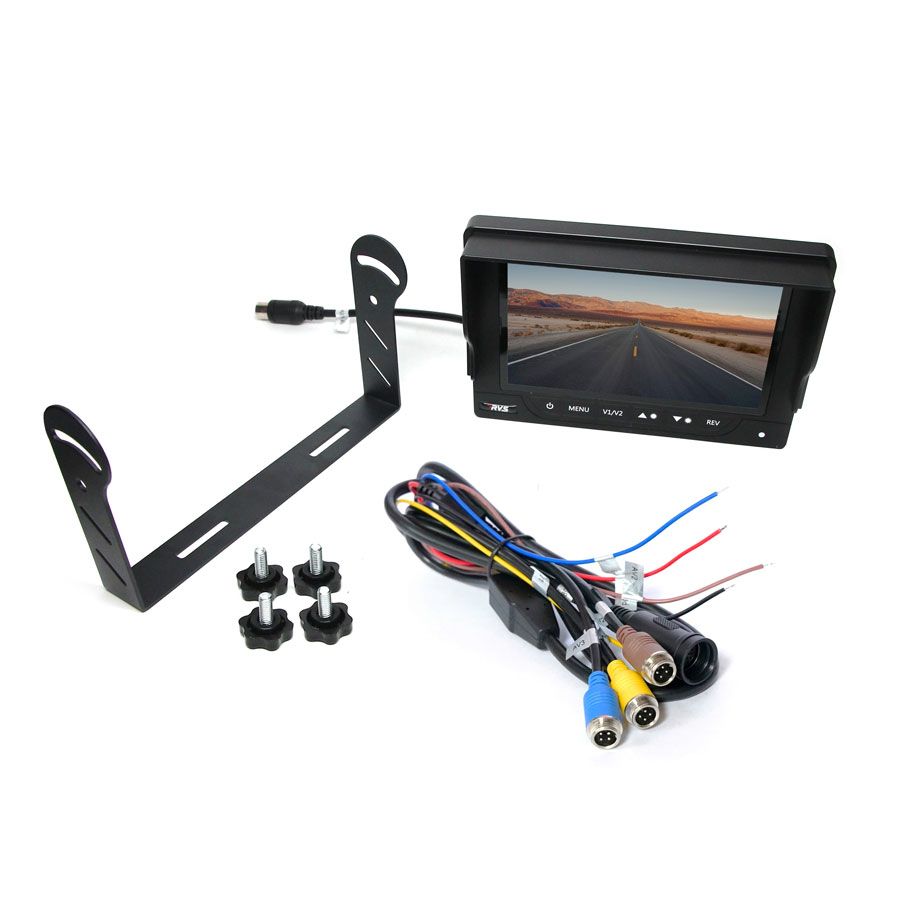

In the box
- 1 x Waterproof 7" Digital LED Color Monitor

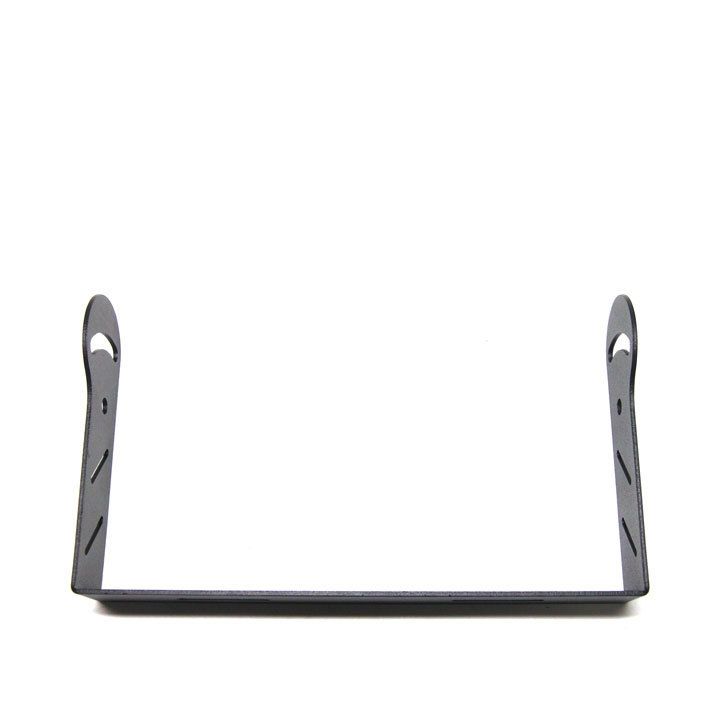

- 1 x U-Bracket
- 1 x Power Harness
Specifications
- Monitor 7” LED Digital Panel
- Waterproof Rating IP69K
- Video System NTSC / PAL Automatic detection
- Resolution 800 x 3 (RGB) x 480
- Contrast 500:1
- Brightness 400 cd/m²
- Field Of View U: 50 / D: 70, L/R: 70
- Video Input 3 Channel
- Auto Dimming Yes
- Audio Output 0.5W Speaker
- Dot Pitch 0.1926(H) 0.1710(V) mm
- Active Area 154.08(H) 85.92(V) mm
- Power Supply DC12/24V (+/-10%)
- Operating Temperature -20°C ~ +70°C
- Storage Temperature -30°C ~ +85°C
- Weight 1 lb
- Trigger 1 Backup, 1 Left, 1 Right
- Impact Rating 5G

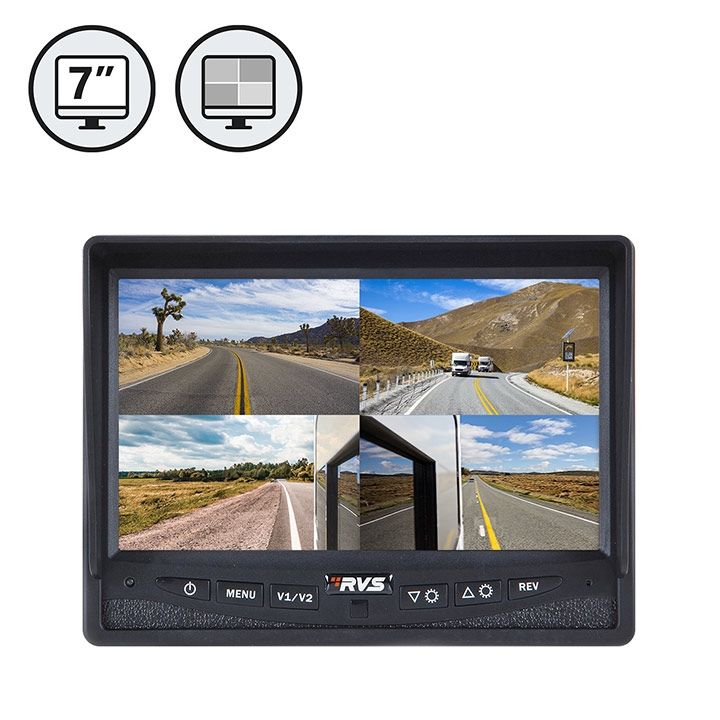

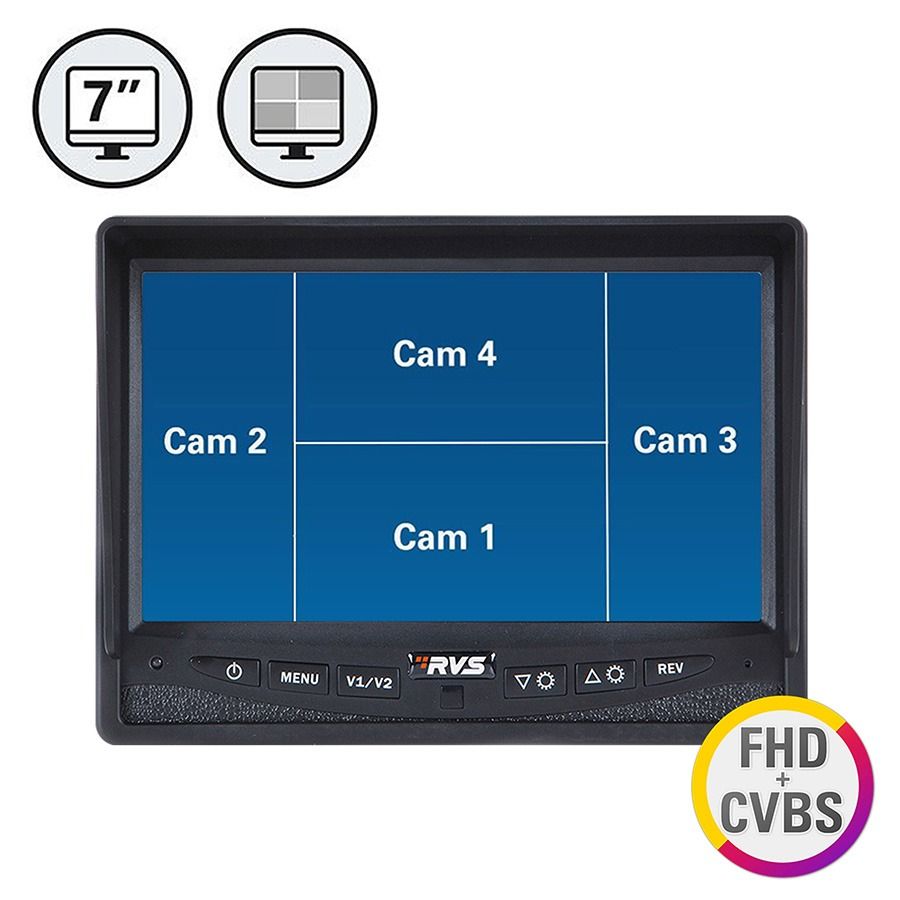

4-Channel Quad View (MN-M147D)
Quad View Monitor
Our 7" Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 x 480.
This monitor allows connection of up to four cameras and has the ability to view each camera separately or all at the same
time with multiple options in between. It comes with distance grid lines, built-in speakers and its menu can be navigated
with the on dash buttons.
Monitor Viewing Options
In the box
- 1 x 7" TFT LCD Digital Quad View Color Monitor
- 1 x Universal Mount with Adhesive Pad.

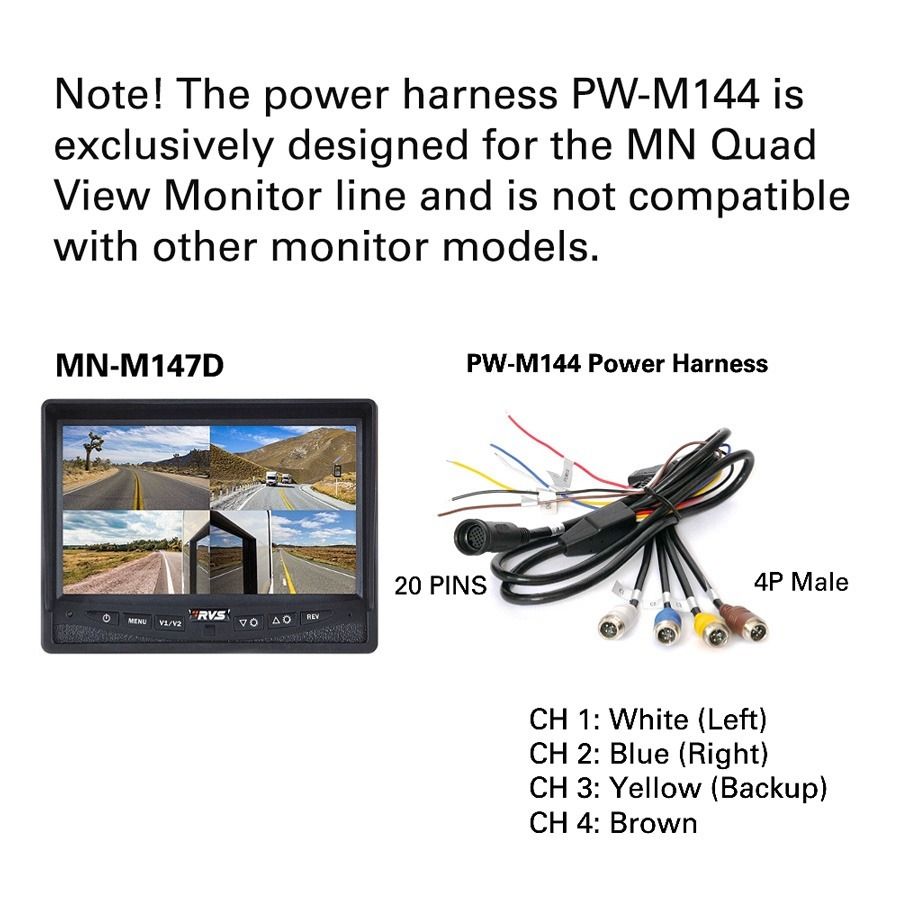

- 1 x Power Harness with 4 Camera Inputs.
Specifications
- Type TFT LCD
- Screen Size 7"
- Dot Resolution 800 X 3 (RGB) X 480
- Display Format/Contrast 16:9 / 500:1
- Display Brightness 400cd/㎡
- Viewing Angle U:50° D:60° L/R:70°
- Video Input 4 channel
- Video Source 1Vp-p, 75Ω
- Power Supply 12V - 24V (+/- 10%)
- Power Consumption 5W
- Operating Temperature -30°C ~ +80° C
- Video System Auto NTSC/PAL
- Overall Dimensions 7" (L) x 5" (H) x 1" (D)
- Individual Quadrant Size 2.75" x 3"
- Weight 400G
- Vibration Rating 5G
- Active Area 154.08 (H) X 86.58 (V)
- Sync System Internal
- Dimensions 5.25" (H) x 7" (L) x 1.25" (D)
