Rear View Safety Backup Camera System With Trailer Tow Quick Connect Kit
Rear View Safety Backup Camera System With Trailer Tow Quick Connect Kit
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

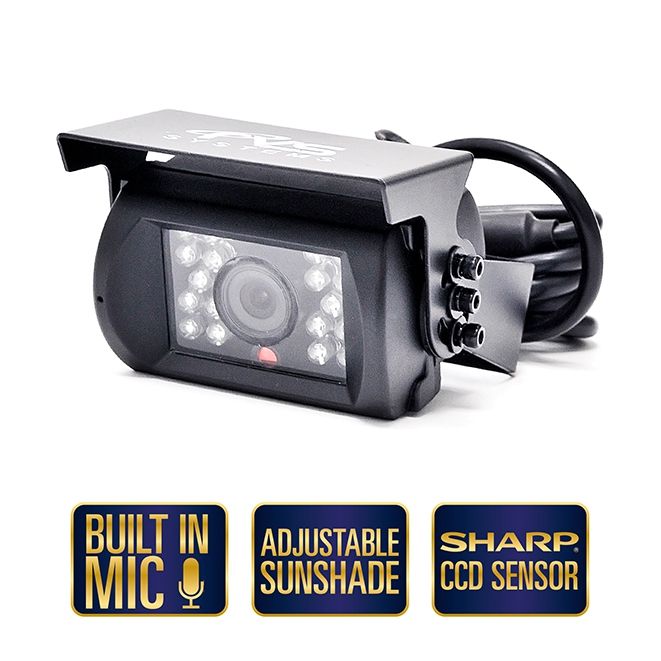

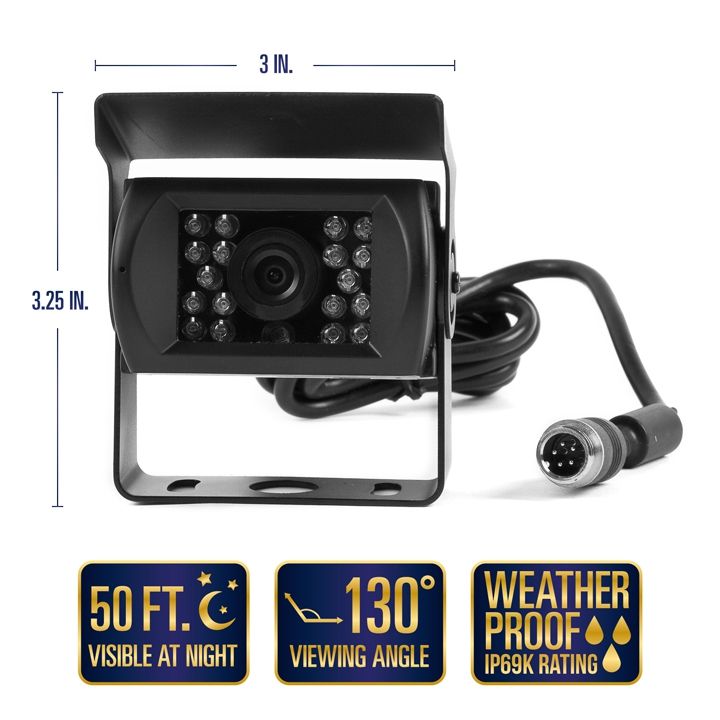

Backup Camera
This color CCD camera is built with heavy duty zinc metal which encases the 2.1 mm Sharp lens. It has a viewing angle
of 130 degrees and 600 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allow
you to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.
With an IP69K weatherproof rating this camera will be fit to ride out any storm and boasts a 20G vibration rating as well as aircraft grade cable connections.

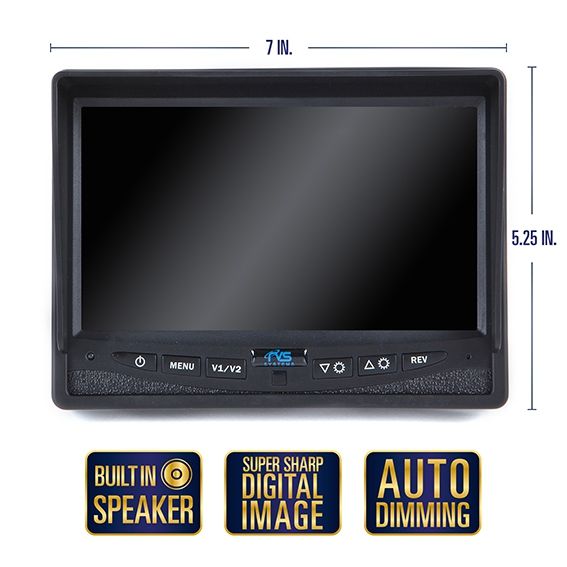

Widescreen Monitor
Our 7" TFT LCD Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 480.
The distance grid lines that come standard with these monitors are optional and adjustable.
It has built-in speakers and its menu can be navigated with the on dash buttons or with the remote which comes included.

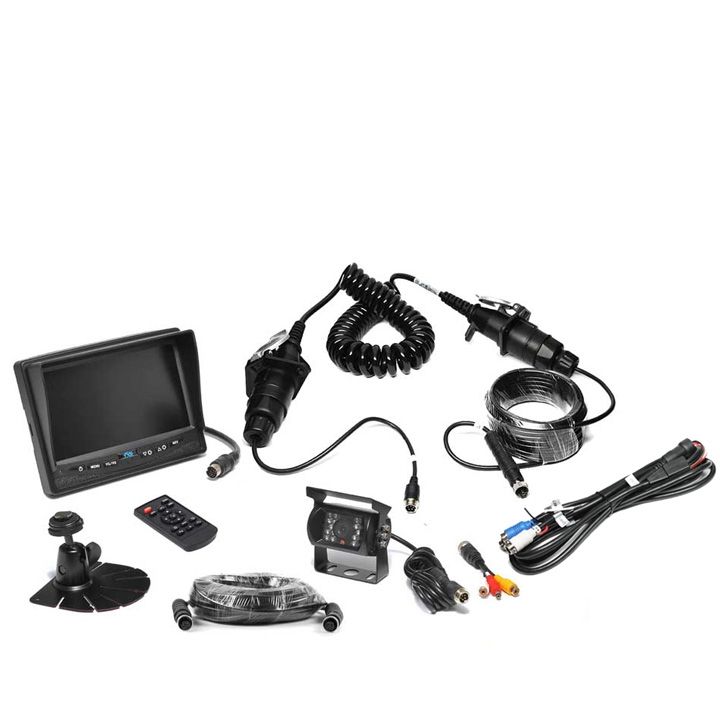

In the box
- 1 x Color CCD Weatherproof Camera with Infra-red
- 1 x 7" TFT LCD Color Monitor with Universal Mount
- 1 x Trailer Quick Connect/Disconnect Kit
- 1 x 3 Channel Power Harness
- 1 x Remote Control
- 1 x Double RCA + Power Converter (to connect external audio, video and power)
- 1 x 66' Camera Cable
- 1 x Screw Kit for installation
Specifications
- Type TFT LCD
- Screen Size 7
- Dot Resolution 800 X 3 (RGB) X 480
- Display Format/Contrast 16:9 / 500:1
- Display Brightness 400cd/㎡
- Viewing Angle U:50° D:60° L/R:70°
- Video Input 3 channel
- Video Source 1Vp-p, 75Ω
- Power Supply DC 12V-24V (+/- 10%)
- Power Consumption 5W
- Operating Temperature -30°C ~ +80° C
- Video System Auto NTSC/PAL
- Overall Dimensions 7 (L) x 5 (H) x 1 (D)
- Weight 400G
- Vibration Rating 5G
- DOT PITCH 0.192 (H) X 0.1805 (V)
- Sync System Internal
- Camera 1/4 Sharp® Color CCD
- Picture Elements 250,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 600 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
- Lens 2.1mm
- View Angle 130°
- Waterproof Rating IP69K
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 12V-24V (+/- 10%)
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp.p 75Ω
- IR Switch Control ACDS Automatic Control
- Vibration and Impact Rating 20G / 100G
- Operating Temperature -40°C ~ +80°C / RH 95% Max
- Storage Temperature -40°C ~ +60°C / RH 95% Max
- Net Weight 22oz
