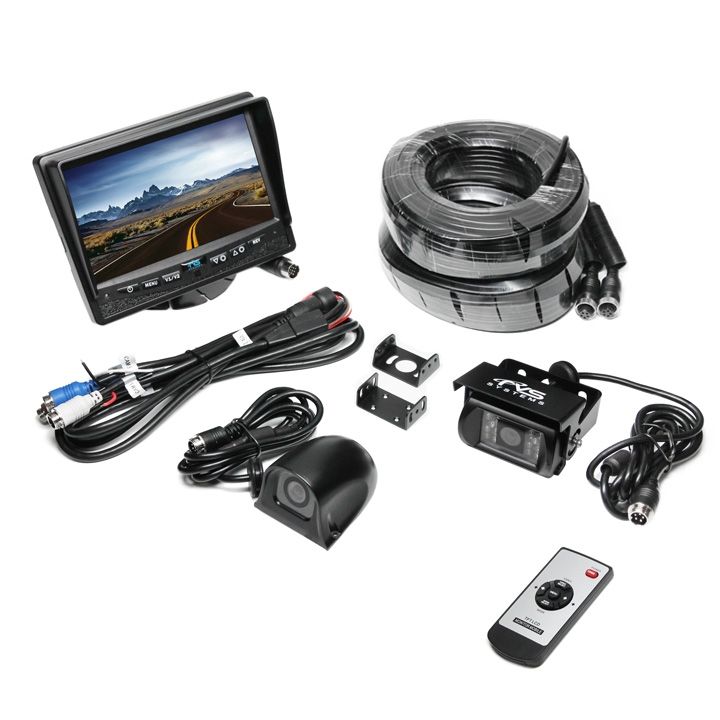

Rear View Safety Backup Camera System with Side Camera

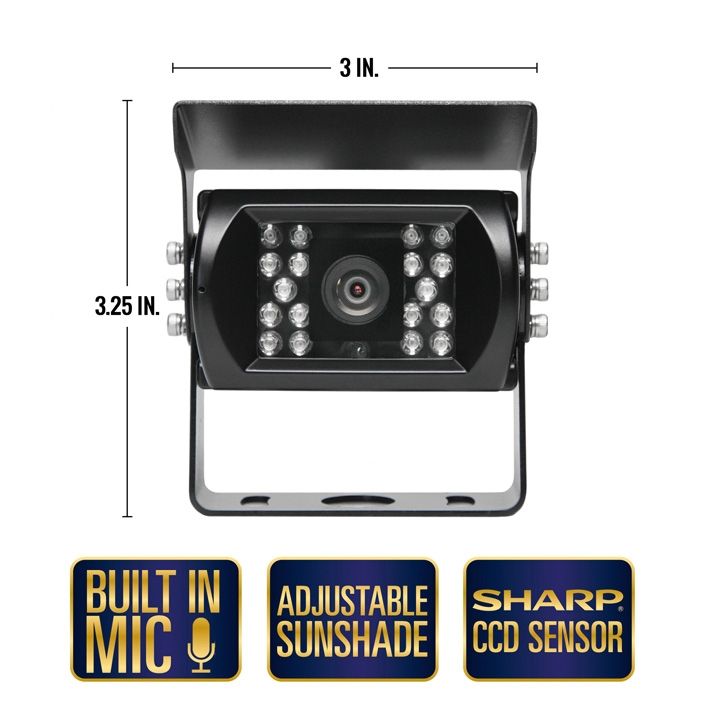

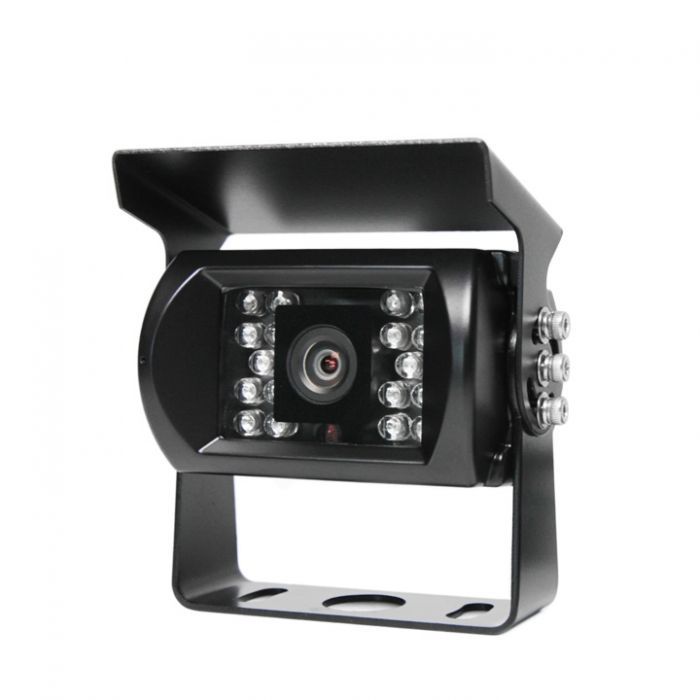

Backup Camera

This 1/3" color CCD camera is built with heavy duty zinc metal which encases the 2.5 mm Sharp lens. It has a viewing angle

of 130 degrees and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allow

you to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.

With an IP69K rating this camera will be fit to ride out any storm and boasts a 20G vibration rating as well as aircraft grade cable connectors.

A 3-D Look Inside

Take a closer look at the components that make this a powerful, durable, and reliable system.

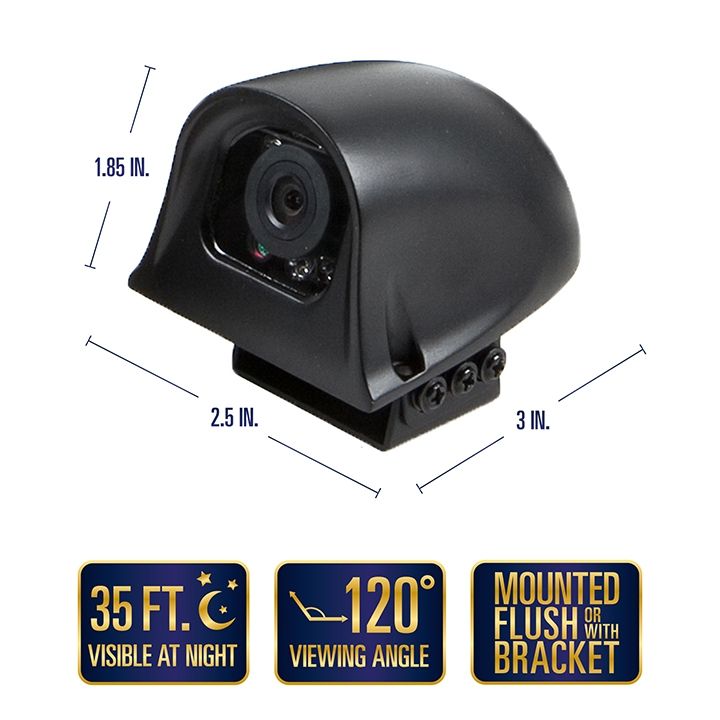

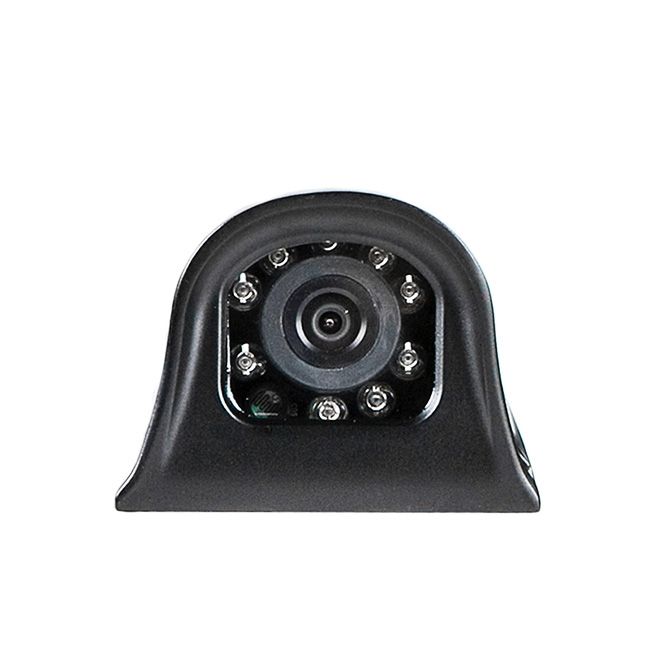

Side Camera

The Side Cameras that come with our systems are made from heavy duty zinc metal and come with a 2.1 mm

Sharp lens. Their viewing angle is 120° and with 9 Infrared Lights will allow you to see more than 30ft

in total darkness. Its mounting bracket is removable allowing the camera to be mounted flush on the vehicle if so desired.

Our Side Cameras are completely weatherproof with an IP68 rating, shock resistant with a 20G Vibration Rating

and come with Aircraft Grade Cable Connections.

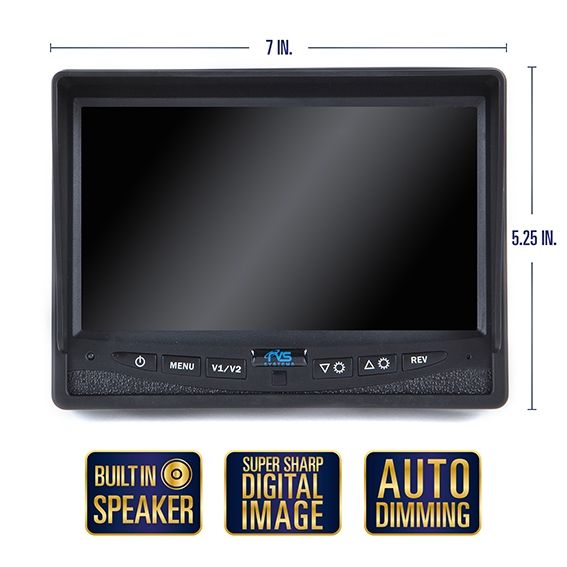

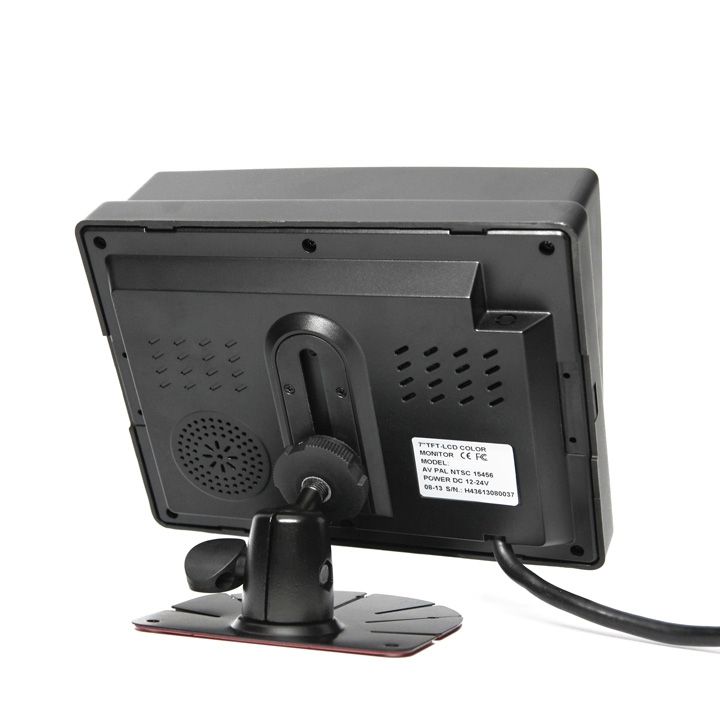

Widescreen Monitor

Our 7" LED Digital Panel monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) X 480.

The distance grid lines that come standard with these monitors are optional and adjustable.

It has built-in speakers and its menu can be navigated with the on dash buttons or with the remote

which comes included.

• Panel Size 7" LED Digital Panel
• Dot Resolution 800 X 3 (RGB) X 480
• Screen Mode 16:9
• Contrast Ratio 500:01:00

• Display Brightness 400cd/㎡
• Field Of View U:50° D:60° L/R:70°
• Camera Input 3 channel
• Video Source 1Vp-p, 75Ω
• Power Supply DC 9V-32V
• Power Consumption 5W
• Operating Temperature -20°C ~ +70° C
• Storage Temperature -30°C ~ +85°C
• Video System Auto NTSC/PAL
• Overall Dimensions 7" (L) x 5.25" (H) x 1" (D)
• Weight 400G
• Vibration Rating 5G
• DOT PITCH 0.1926 (H) X 0.1710 (V)
• Sync System Internal

• Camera 1/3" Sharp® Color CCD
• Picture Elements 410,000 pixels
• Gamma Correction r=0.45 to 1.0
• Image Sensor 620 TV lines, PAL: 752 (H) x 582 (V), NTSC: 811 (H) x 507 (V)
• Lens 2.5mm
• View Angle 130°
• Waterproof Rating IP69K
• Sync System Internal Synchronization
• Infra-red distance 50 Feet (18 Infrared)
• Usable Illumination 0 Lux (IR On)
• Power Source DC 9V-32V
• S/N Ratio More than 48dB
• Electronic Iris 1/50, 160-1/100,000sec
• Video Output 1Vp-p 75 Ω
• IR Switch Control ACDS Automatic Control
• Vibration and Shock Rating 20G / 100G
• Operating Temperature -40°C ~ +70°C / RH 95% Max
• Storage Temperature -40°C ~ +85°C / RH 95% Max
• Net Weight 22oz
• Overall Dimensions 3.25" (H) x 3" (L) x 1.5" (D)

• Camera 1/4" Sharp® Color CCD
• Picture Elements 250,000 pixels
• Gamma Correction r=0.45 to 1.0
• Image Sensor 420 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
• Lens 2.1mm
• View Angle 120°
• Sync System Internal Synchronization
• Infra-red distance 30 Feet (9 Infrared)
• Usable Illumination 0 Lux (IR On)
• Power Source DC 9V-32V
• S/N Ratio More than 48dB
• Electronic Iris 1/50, 160-1/100,000sec
• Video Output 1Vp-p 75 Ω
• IR Switch Control ACDS Automatic Control
• Vibration and Shock Rating 20G / 100G
• Operating Temperature -40°C ~ +80°C / RH 95% Max
• Storage Temperature -40°C ~ +60°C / RH 95% Max
• Overall Dimensions 1.85" (H) x 2.5" (L) x 3" (D
