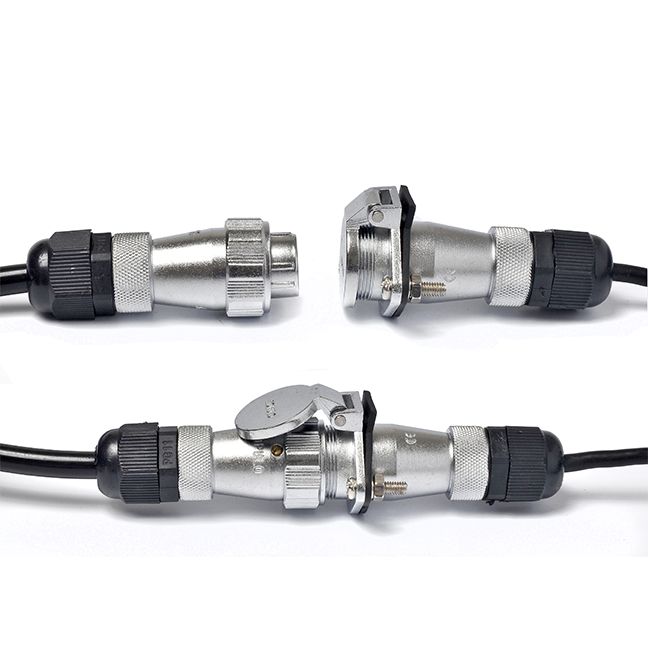

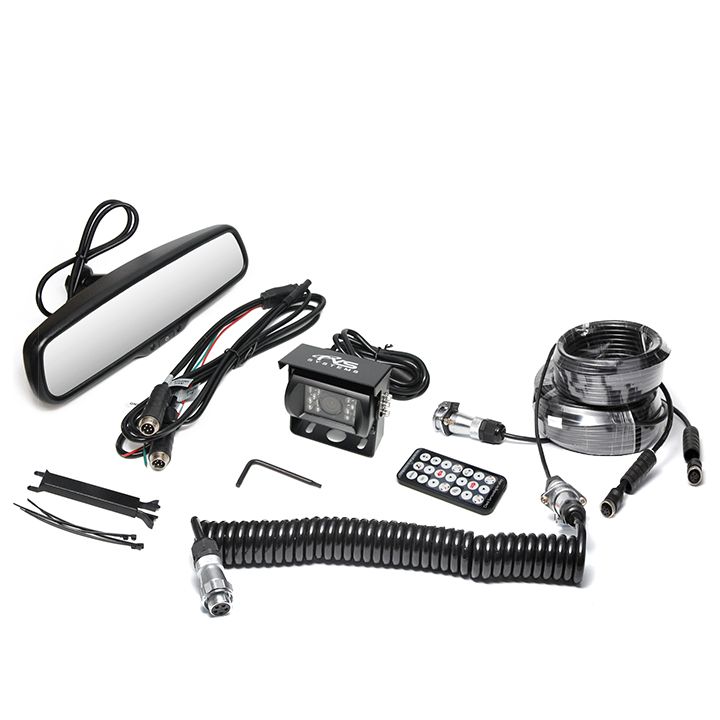

Rear View Safety Backup Camera System with Replacement Mirror Monitor and Quick Connect/Disconnect Kit (213-613)

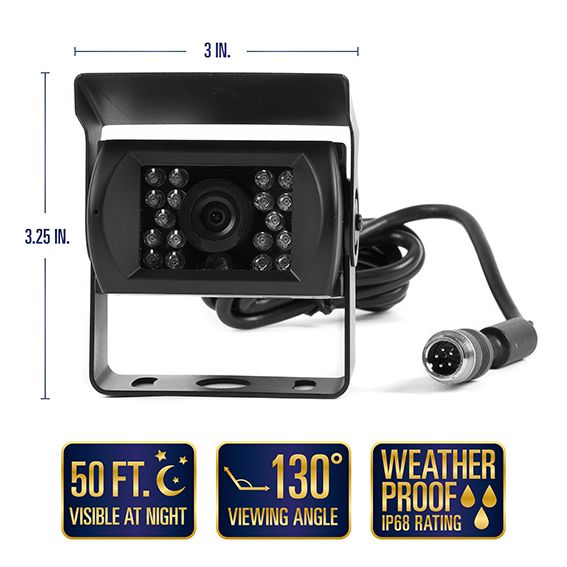

Backup Camera

This 1/3" color CCD camera is built with heavy duty zinc metal which encases the 2.5 mm Sharp lens. It has a viewing angle

of 130 degrees and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allow

you to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.

With an IP69k rating this camera will be fit to ride out any storm and boasts a 20G vibration rating as well as

aircraft grade cable connectors.

A 3-D Look Inside

Take a closer look at the components that make this a powerful, durable, and reliable system.

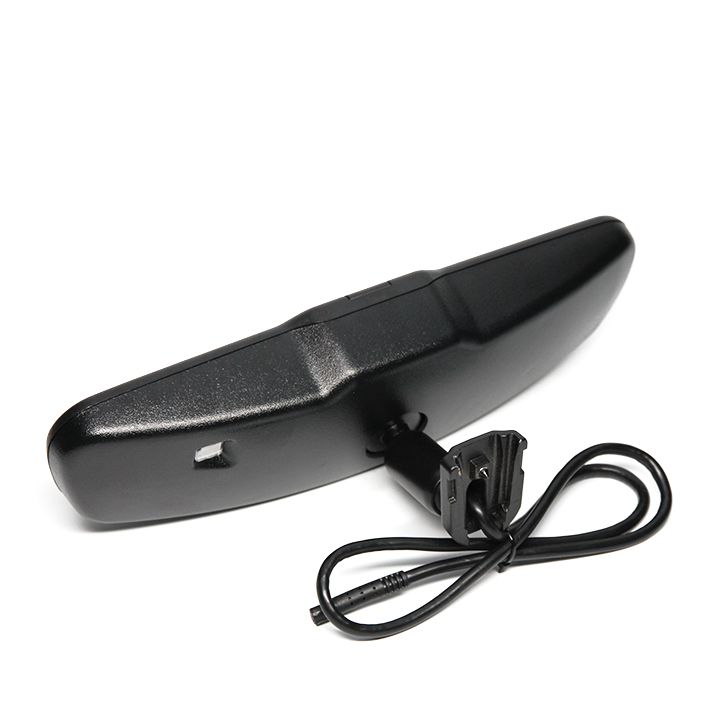

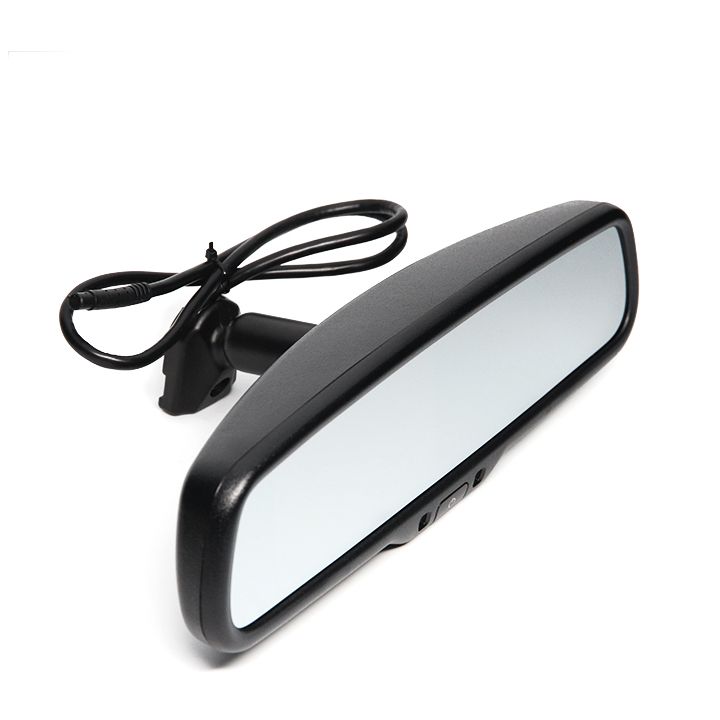

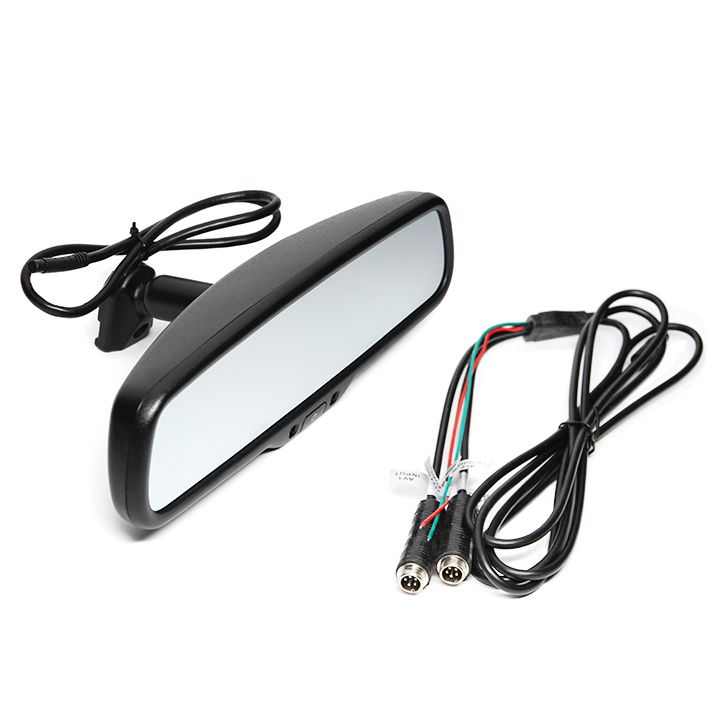

OEM Mirror Monitor

Our OEM Style Mirror Monitor provides ultimate performance together with a clean, factory like install.

It attaches to the windshield, either connecting to, or replacing the existing rear view mirror (see item options)

and its bright screen and reflective ability contribute to an all-in-one backup experience.

It comes with a 4.3" Color TFT Digital Displayand its distance grid lines are optional and adjustable.

• Camera 1/3" Sharp® Color CCD
• Picture Elements 410,000 pixels
• Gamma Correction r=0.45 to 1.0
• Image Sensor 620 TV lines
• Pixels PAL: 752 (H) x 582 (V), NTSC: 811 (H) x 507 (V)
• Lens F=2.5mm
• View Angle 130°
• Sync System Internal Synchronization
• Infra-red distance 50 Feet (18 Infrared)
• Usable Illumination 0 Lux (IR On)
• Power Source DC 9V-32V
• S/N Ratio More than 48dB
• Electronic Iris 1/50, 160-1/100,000sec
• Video Output 1Vp.p 75ohm
• IR Switch Control ACDS Automatic Control
• Vibration and Impact Rating 20G / 100G
• Operating Temperature -40°C ~ +70°C / RH 95% Max
• Storage Temperature -40°C ~ +85°C / RH 95% Max
• Overall Dimension 3.25" (H) x 3" (L) x 1.5" (D)

• Screen Size 4.3"
• Dot Resolution 480 x 3 (RGB) x 272
• Display Format 16:9
• Display Brightness 400
• Viewing Angle U&D: 100°, L&R: 120°
• Video Input 2 Channel
• Video Source 1Vp-p, 75Ω
• Power Supply DC 9V - 32V (+/-10%)
• Power Consumption 8W
• Operating Temperature -20°C ~ +75°C
• Video System Auto NTSC/PAL

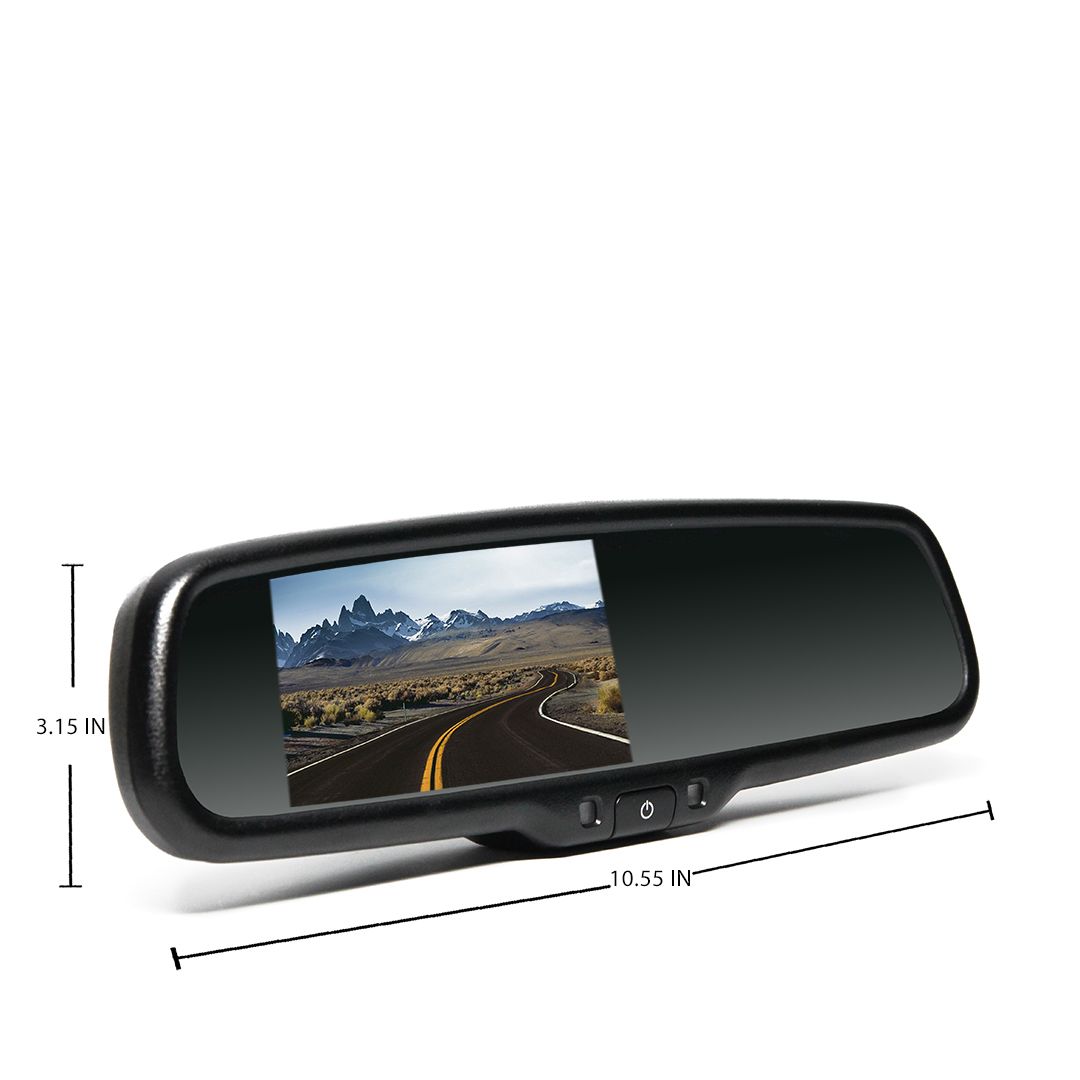

• Overall Dimensions 10.55" (L) x 3.15" (H) x 1" (D)
• Weight 800G
• Vibration Rating 5G
• Sync System Internal
• Overall Dimensions 3.15" (H) x 10.55" (L) x 1" (D)
