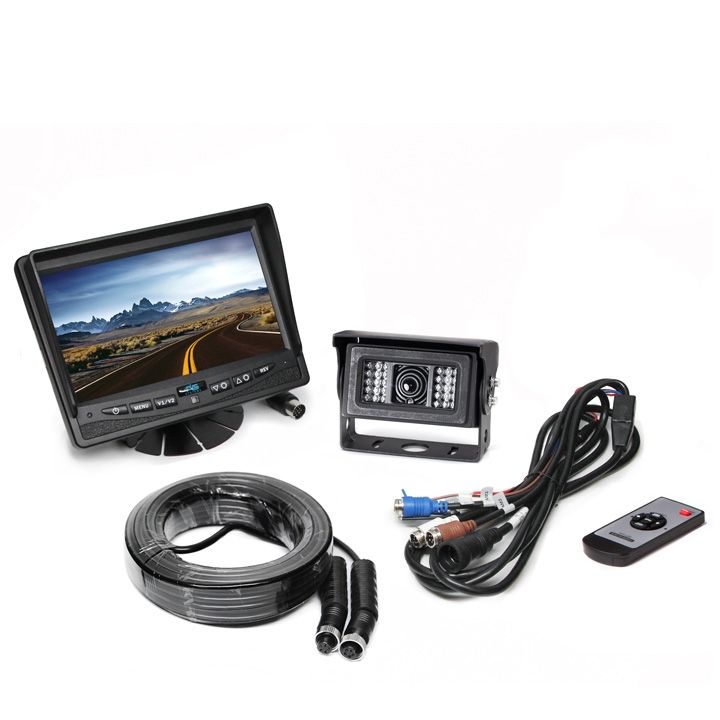

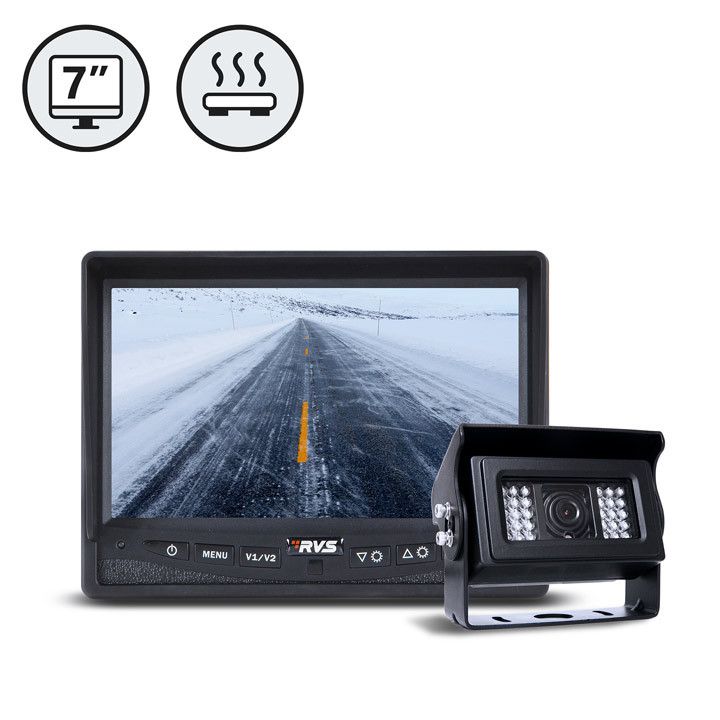

Rear View Safety Backup Camera System with Heated Camera

Rear View Safety Backup Camera System with Heated Camera

$432.34 USD
$432.34 USD
Sale Sold out
Monitor Type
Cable Length
Backup Cameras

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

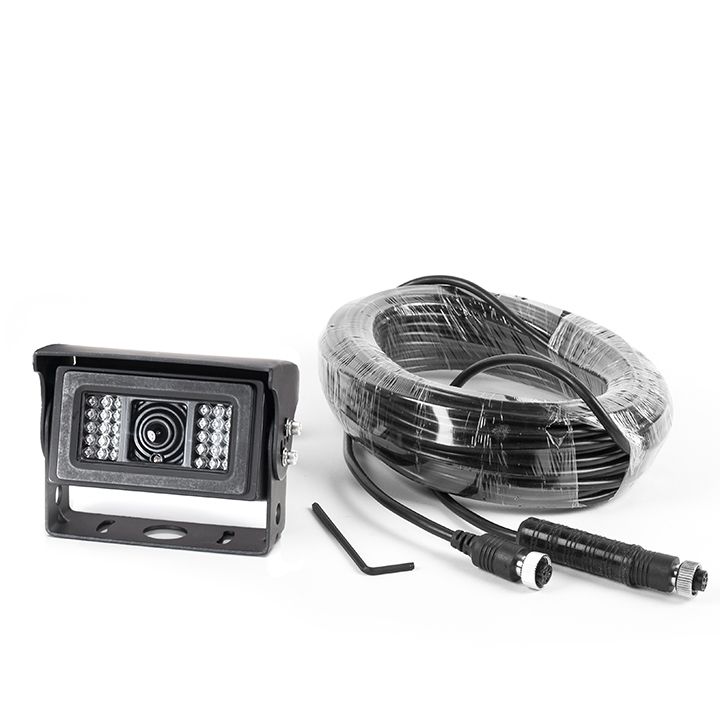

Heated Camera

Our Heated CCD Camera is made for those real intense moments. With an IP69K rating and heated lens,

this camera is made to withstand almost anything mother nature throws against us. It has a viewing angle of 120°

and boasts 30 Infra-red Illuminators giving you an ideal image at all times. Adding to its durability is its

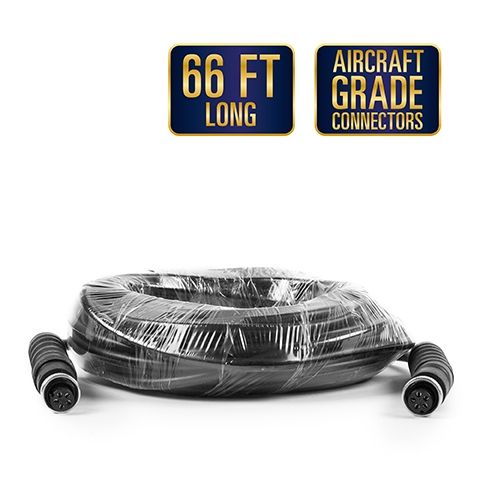

100G Impact Rating and Aircraft Grade Cable Connections.

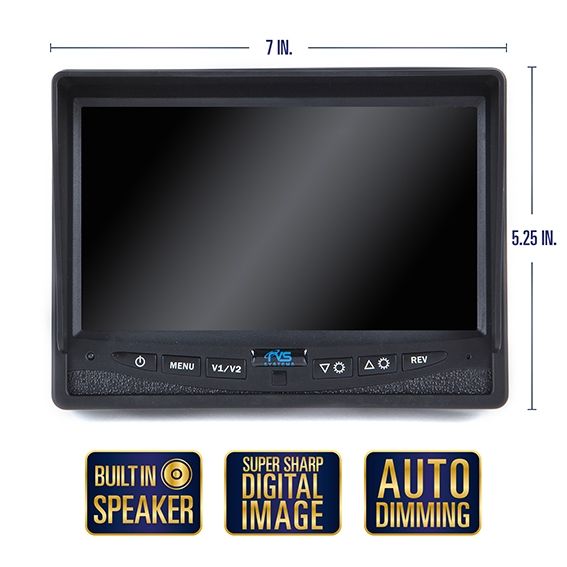

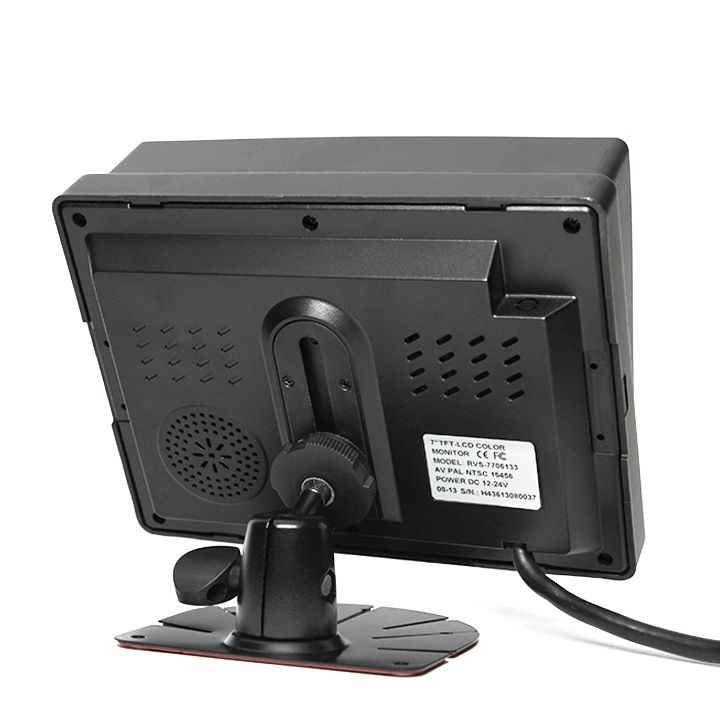

Widescreen Monitor

Our 7" LED Digital Panel Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x  480.

The distance grid lines that come standard with these monitors are optional and adjustable.

It has built-in speakers and its menu can be navigated with the on dash buttons or with the remote which comes included.



A 3-D Look Inside

The monitor that displays your footage is made of robust components and includes features not seen in other monitors.



Specifications

Monitor Specs
  • Type LED Digital Panel
  • Screen Size 7"
  • Dot Resolution 800 X 3 (RGB) X 480
  • Display Format/Contrast 16:09 / 500:01:00
  • Display Brightness 400cd/㎡
  • Viewing Angle U:50° D:60° L/R:70°
  • Video Input 3 channel
  • Video Source 1Vp-p, 75Ω
  • Power Supply DC 9V-32V
  • Power Consumption 5W
  • Audio Output 0.5W Speaker
  • Operating Temperature -20°C ~ +70° C
  • Storage Temperature -30°C ~ +85°C
  • Video System Auto NTSC/PAL
  • Overall Dimensions 7" (L) x 5" (H) x 1" (D)
  • Weight 400G
  • Vibration Rating 5G
  • DOT PITCH 0.1926 (H) X 0.1710 (V)mm
  • Active Area 154.08 (H) x 85.92 (V)mm
  • Sync System Internal
Camera Specs
  • Image Device 1/3'' SONY® Super HAD CCD
  • TV System PAL / NTSC
  • Total Number Of Pixels PAL: 537 (H) 597 (V) / NTSC: 537 (H) 505 (V)
  • Effective Pixels PAL: 500 (H) 582 (V) / NTSC: 510 (H) 492 (V)
  • Sensing Area 4.9 mm (H) 3.7 mm (V)
  • Sync. System Internal
  • Resolution 700 TV Lines
  • Minimum Illumination 0 Lux (With IR)
  • Microphone Yes
  • Video Output Composite Signal (1.0 Vp-p, 75 Ω)
  • Gamma Correction 0.45
  • AGC On
  • S/N Ratio Better Than 48 dB
  • White Balance Auto
  • Electronic Shutter 1/50-1/100,000 Sec. / 1/60-1/100,000 Sec.
  • BLC Auto
  • Current Consumption Max. 300 mA
  • Power Supply DC 9V-32V
  • Anti-vibration 5.9 g
  • Operating Temperature -45°C~70°C, RH 95% MAX.
  • Storage Temperature -45°C~80°C, RH 95% MAX.
  • Lens 3.6 mm Optional
  • Lens Angle 120°

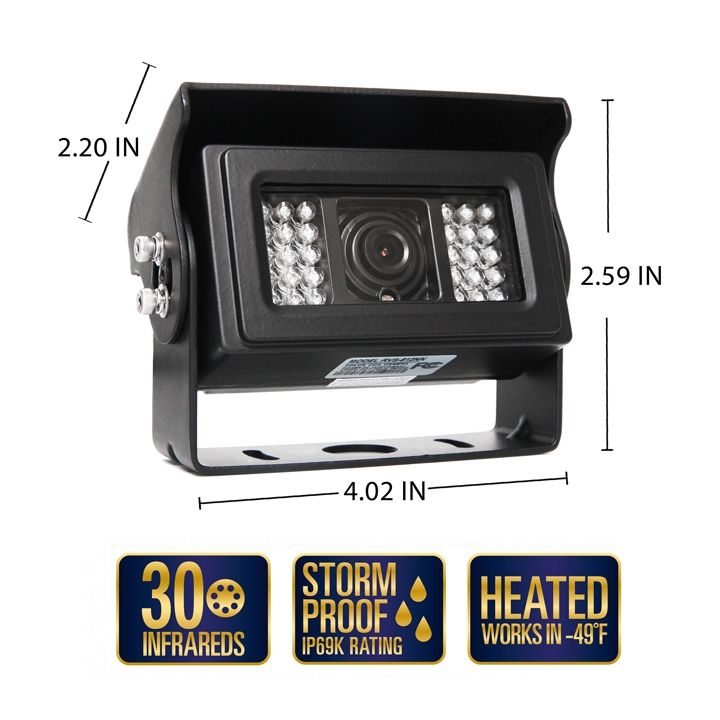

  • Overall Dimensions 2.59" (H) x 4.02" (L) x 2.20" (D)
