Rear View Safety Backup Camera System with Flush Mount Camera and Mirror Monitor

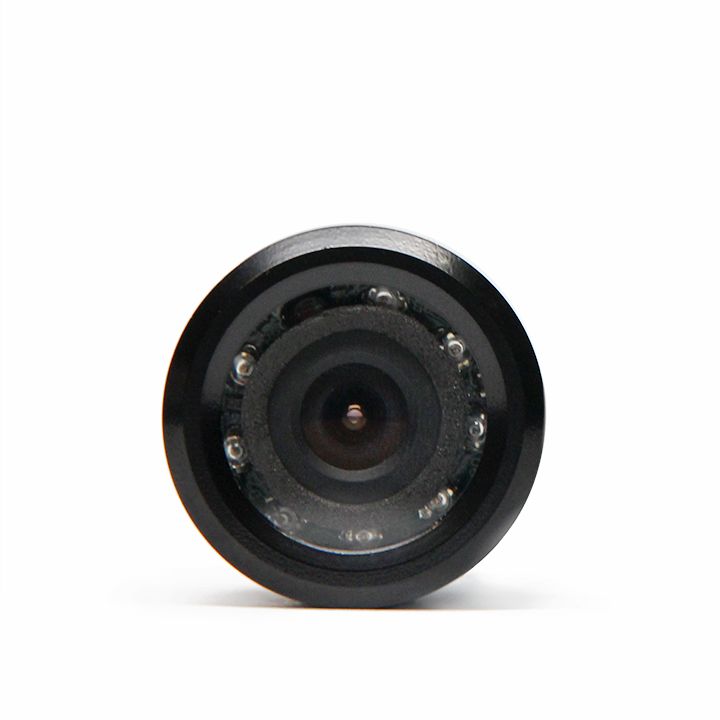

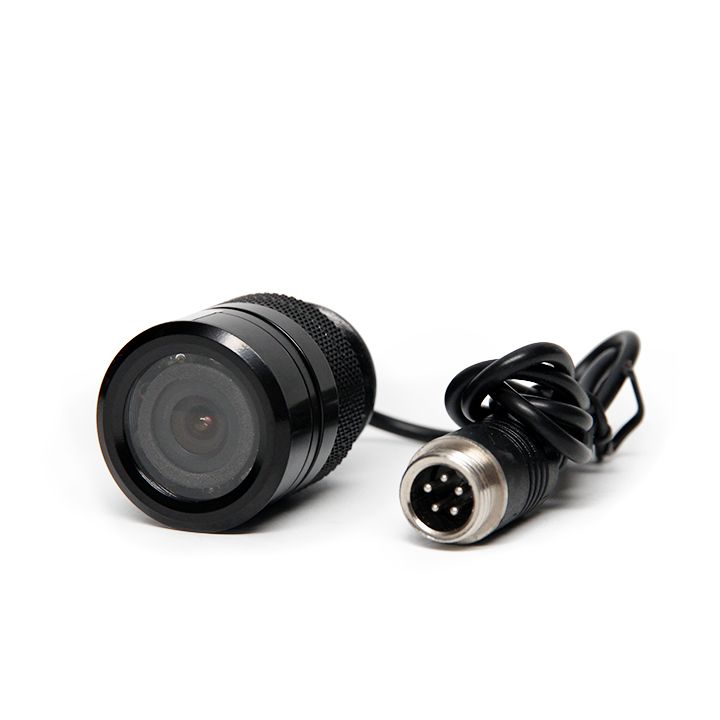

Flushmount Camera

This color MT9V139 camera is designed to sit flush on the vehicle but comes with a mounting bracket as a second option.

Its lens has a viewing angle of 120° and 480 TV lines, which means you get the best quality image with no blind spots.

The 9 infra-red lights allow you to see up to 30 feet even in the darkest night and the foam around the lens guarantees

no glare from these infra reds. With an IP68 rating this camera will be fit to ride out any storm and boasts a 15G

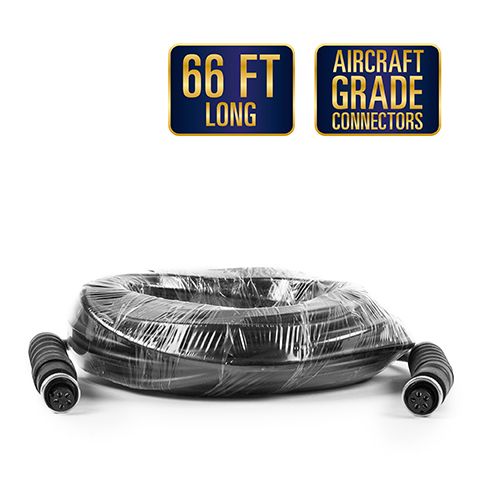

vibration rating as well as aircraft grade cable connections.

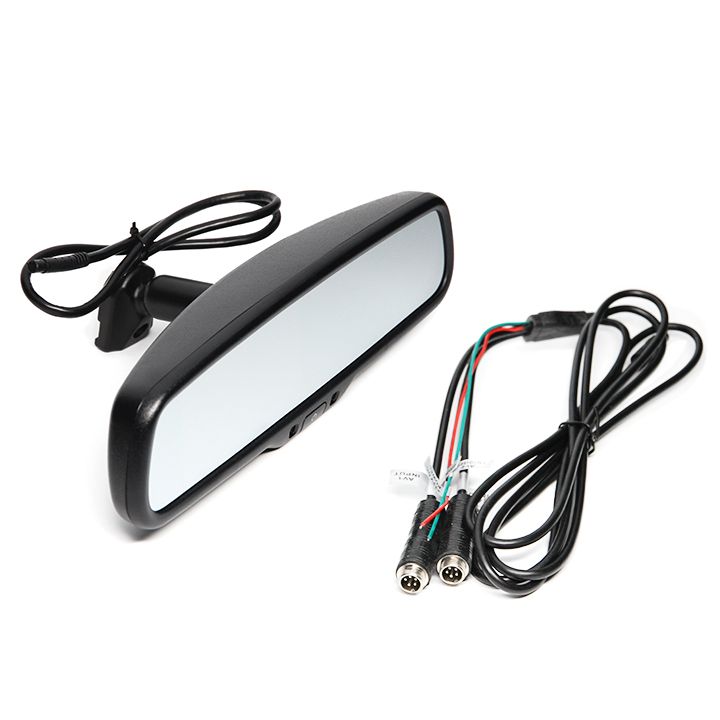

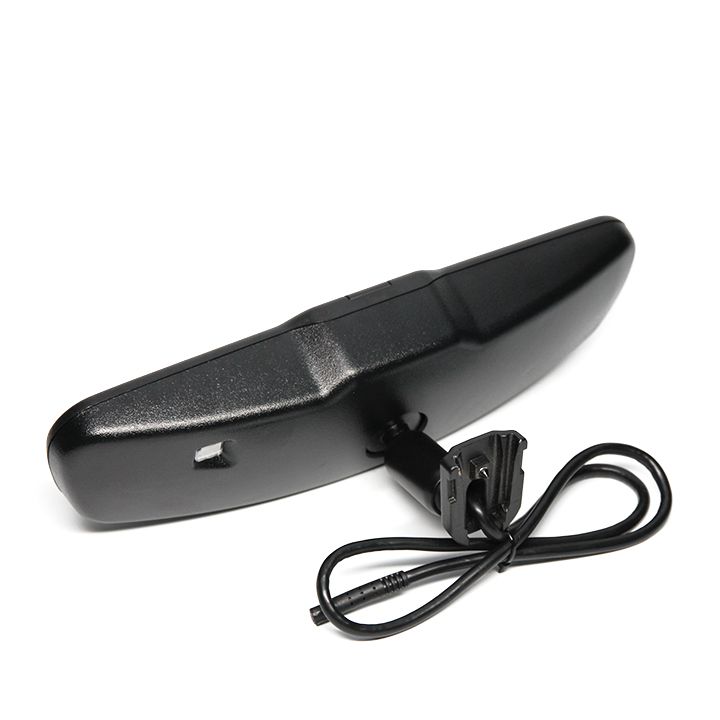

OEM Mirror Monitor

Our OEM Style Mirror Monitor provides ultimate performance together with a clean, factory like install.

It attaches to the windshield, either connecting to, or replacing the existing rear view mirror (see item options)

and its bright screen and reflective ability contribute to an all-in-one backup experience.

It comes with a 4.3" Color TFT Digital Displayand its distance grid lines are optional and adjustable.

• Sensor MT9V139
• Sensor Format 728 (H) X 560 (V)
• Picture Elements 307,200 Pixels
• NTSC Output 720 (H) X 576 (V)
• PAL Output 720 (H) X 576 (V)
• Optical Format 1/4 Inch
• Lens F=2.8
• Resolution 480 TV Lines
• Minimum Light 0.5 Lux
• Waterproof Rating IP68
• Viewing Angle 120°
• Infrared 9 PCS
• AGC Auto
• BLC Auto
• S/N Ratio More than 48dB
• Video Output CVBS
• Signal 1.0vp-p
• Impedance 75ohm
• Power Supply DC 9V-32V
• Power 1.5 Watts
• Operating Temperature -30 ~ 75 °C

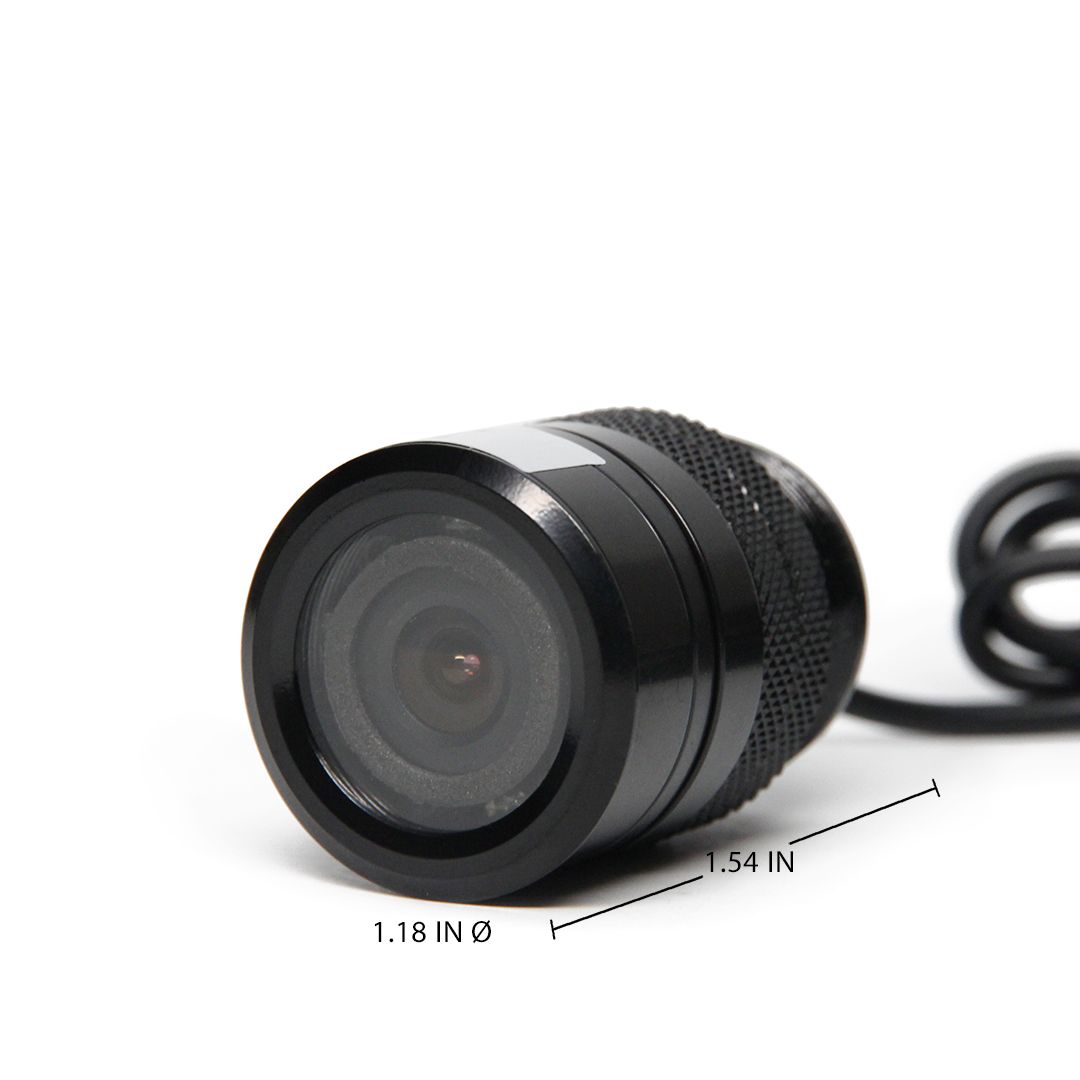

• Overall Dimensions 1.15" (H) x 1.18" (L) x 1.54" (D)

• Screen Size 4.3"
• Dot Resolution 480 x 3 (RGB) x 272
• Display Format 16:9
• Display Brightness 400
• Viewing Angle U&D: 100°, L&R: 120°
• Video Input 2 Channel
• Video Source 1Vp-p, 750
• Power Supply DC 9V - 32V
• Power Consumption 5W
• Operating Temperature -20°C ~ +75°C
• Video System Auto NTSC/PAL

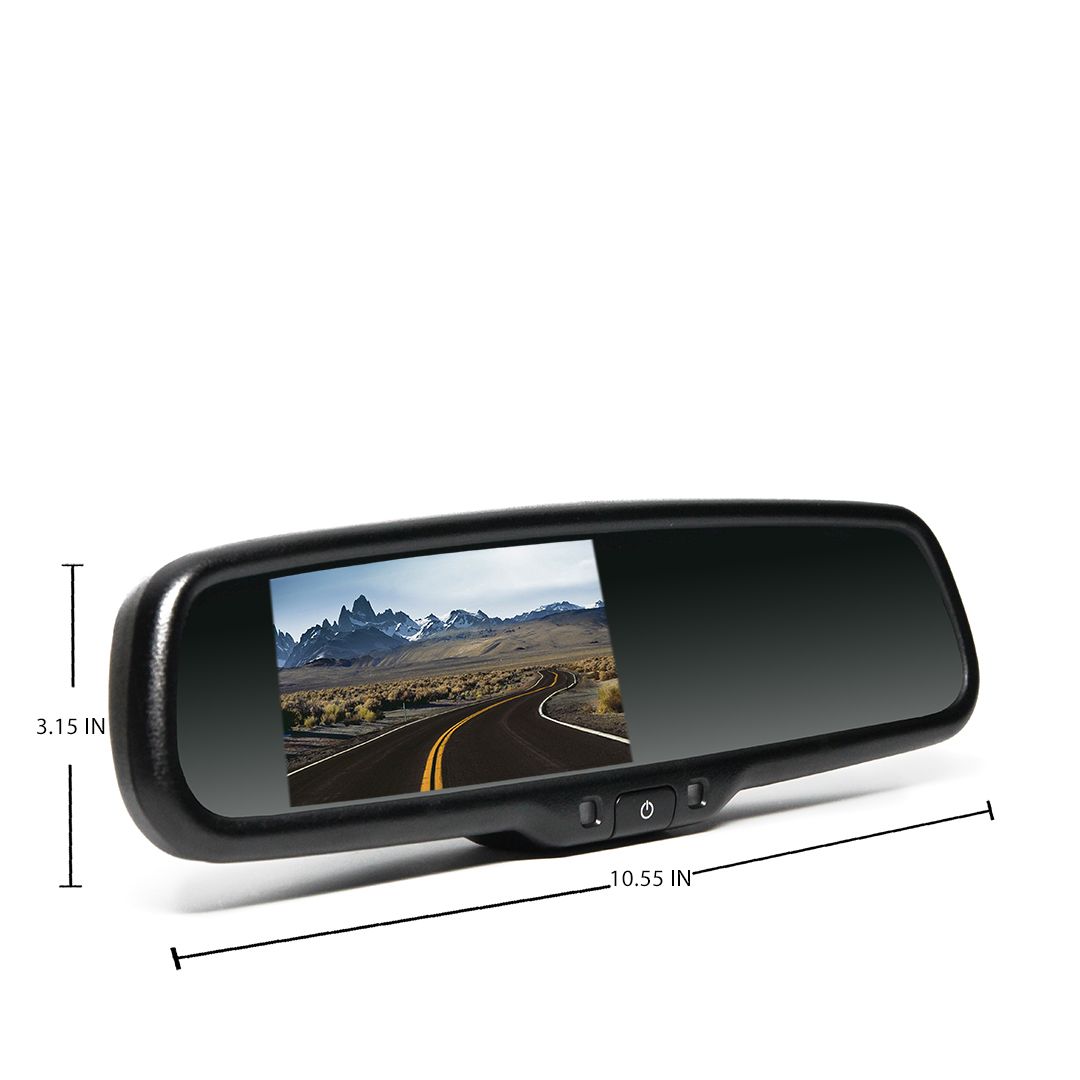

• Overall Dimensions 10.55" (L) x 3.15" (H) x 1" (D)
• Weight 800G
• Vibration Rating 5G
• Sync System Internal
