Rear View Safety
Rear View Safety Backup Camera System with Dual Lens Camera
Rear View Safety Backup Camera System with Dual Lens Camera
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

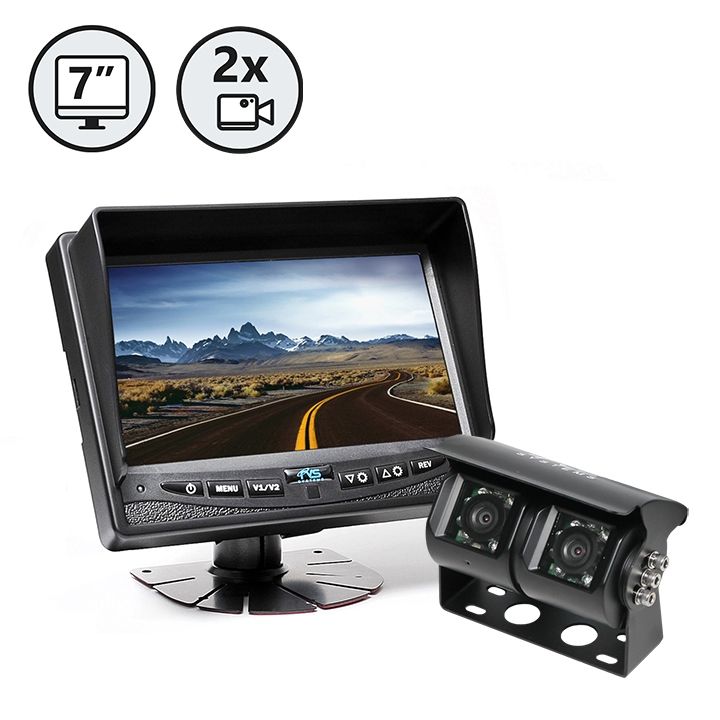

Dual Lens Backup Camera
Our CCD Dual Lens Backup Color Camera comes with two 2.1mm Sony® Lenses encased in heavy duty
zinc metal. The camera angles are adjustable making this camera perfect to face one down at the bumper
and one out at traffic. They each have a viewing angle of 130° with 480 TV lines for the best quality image.
The infra-red Lights on each camera allow vision at night up to 50ft and with its IP68 rating,
this camera is fit to ride out any storm.

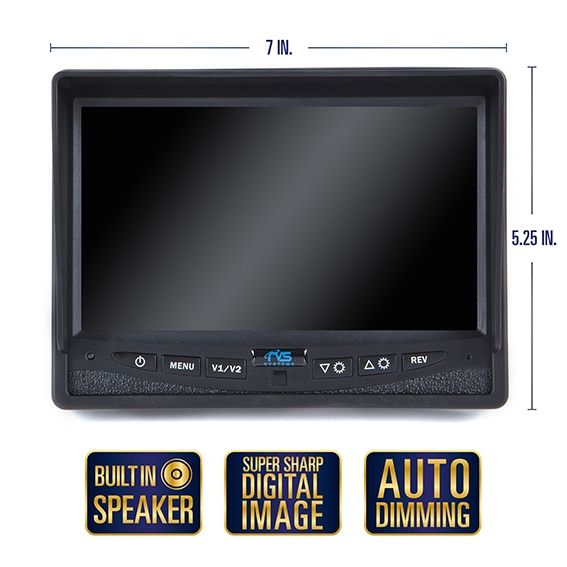

Widescreen Monitor
Our 7" LED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x 480.
The distance grid lines that come standard with these monitors are optional and adjustable.
It has built-in speakers, and its menu can be navigated with the on dash buttons, or with the remote,
which comes included.
A 3-D Look Inside
The monitor that displays your footage is made of robust components and includes features not seen in other monitors.
Specifications
- Panel Size 7" Digital Panel
- Dot Resolution 800 X 3 (RGB) X 480
- Screen Mode 16:09
- Contrast Ratio 500:1:00
- Display Brightness 400cd/㎡
- Field Of View U:50° D:60° L/R:70°
- Camera Input 3 channel CVBS
- Video Source 1Vp-p, 75Ω
- Power Supply DC 9v-32v
- Power Consumption 5W
- Audio Output 0.5W Speaker
- Operating Temperature -20°C ~ +70°
- Storage Temperature -30°C ~ +85°C
- Video System Auto NTSC/PAL
- Overall Dimensions 7" (L) x 5" (H) x 1" (D)
- Weight 400G
- Vibration Rating 5G
- DOT PITCH 0.1926 (H) X 0.1710 (V)mm
- Active Area 154.08(H) x 85.92(V)mm
- Sync System Internal
- Dimensions 5.25" (H) x 7" (L) x 1" (D)
- Camera 1/3" Sony® CCD
- Picture Elements 250,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 480 TV Lines PAL: 500 (H) X 582 (V), NTSC: 510 (H) X 492 (V)
- Lens 2.1mm
- View Angle 130°
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 9v-32V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp-p 75 Ω
- IR Switch Control ACDS Automatic Control
- Vibration Rating 20G
- Operating Temperature -40°C ~ +50°C / RH 95% Max
- Storage Temperature -40°C ~ +60°C / RH 95% Max
- Dimensions 3.25" (H) x 4" (L) x 2" (D)
