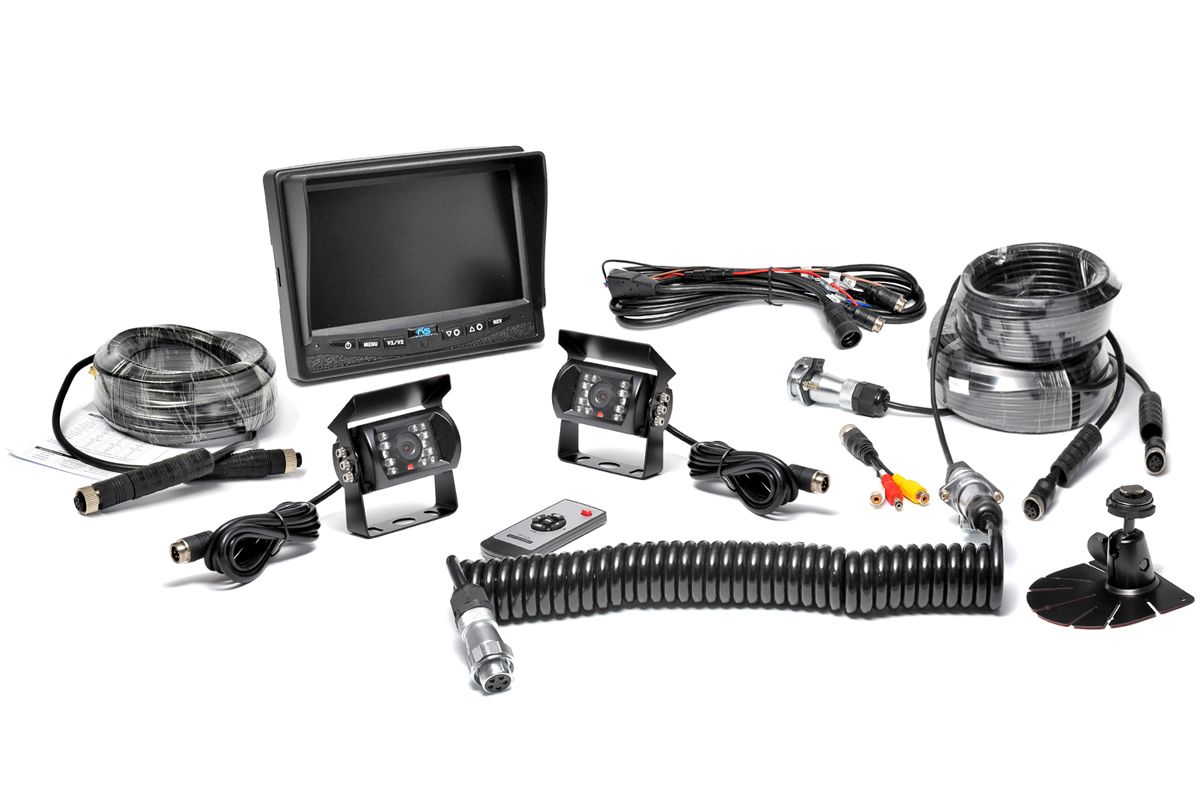

Rear View Safety Backup Camera System | Two Camera Setup with Trailer Tow Quick Connect Kit
Rear View Safety Backup Camera System | Two Camera Setup with Trailer Tow Quick Connect Kit
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Backup Camera

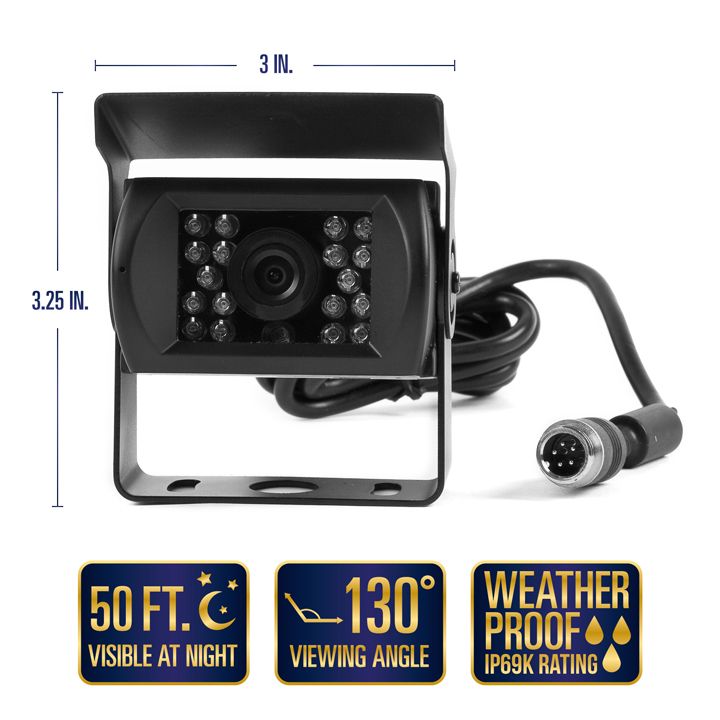

This 1/3" Sharp® CCD Color Camera is built with heavy duty zinc metal which encases the 2.5mm Sharp® lens. It has a viewing angle
of 130° and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra-red lights allow
you to see up to 50 feet even in the darkest of night, and the foam around the lens guarantees no glare from these infra-reds.
With an IP69K rating, this camera is fit to ride out any storm and boasts a 20G vibration rating.
This device comes equipped with Aircraft Grade cable connections.
A 3-D Look Inside
Take a closer look at the components that make this a powerful, durable, and reliable system.

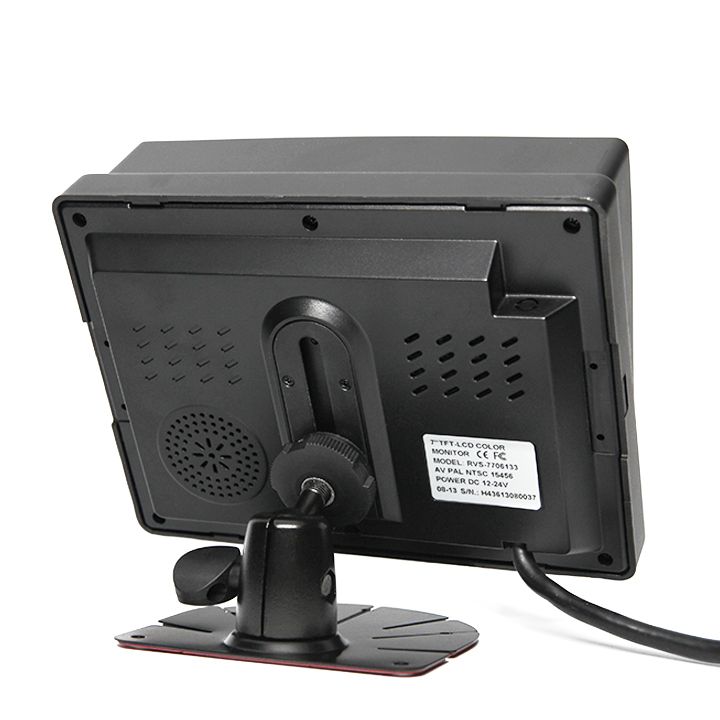

Widescreen Monitor

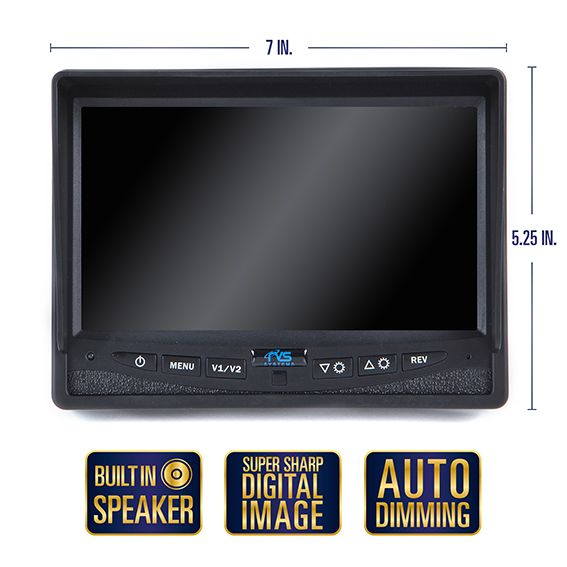

Our 7" LED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3 (RGB) 480.

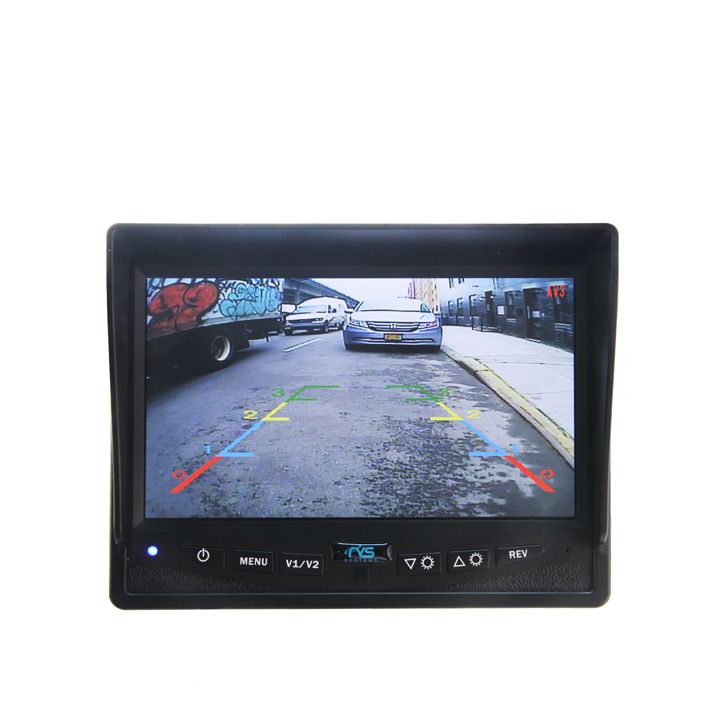

The distance grid lines that come standard with these monitors are optional and adjustable.
It has built-in speakers, and its menu can be navigated with the on dash buttons, or with the remote, which comes included.
A 3-D Look Inside
The monitor that displays your footage is made of robust components and includes features not seen in other monitors.
System Diagram
Specifications
- Panel Size 7" LED Digital Panel
- Dot Resolution 800 X 3 (RGB) X 480
- Display Format 16:09
- Contrast 500:01:00
- Display Brightness 400cd/㎡
- Field of View U:50° D:60° L/R:70°
- Video Input 3 channel CVBS
- Video Source 1Vp-p, 75Ω
- Power Supply DC 9v-32v
- Power Consumption 5W
- Audio Output 0.5w speaker
- Operating Temperature -20°C ~ +70° C
- Storage Temperaure -30°c ~ +85°C
- Video System Auto NTSC/PAL
- Overall Dimensions 7" (L) x 5" (H) x 1" (D)
- Weight 400G
- Vibration Rating 5G
- DOT PITCH 0.1926 (H) X 0.1710 (V)mm
-
Active Area 154.08(H) x 85.92(V)mm
- Sync System Internal
- Camera 1/3" Sharp® Color CCD
- Picture Elements 410,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 620 TV lines
- Pixels PAL: 752 (H) x 582 (V) NTSC: 811 (H) x 507 (V)
- Lens F=2.5mm
- View Angle 130°
- Waterproof Rating IP69K
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 9V-32V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp-p 75 Ω
- IR Switch Control ACDS Automatic Control
- Vibration and Impact Rating 20G / 100G
- Operating Temperature -40°C ~ +70°C / RH 95% Max
- Storage Temperature -40°C ~ +85°C / RH 95% Max
- Overall Dimensions 3.25" (H) x 3" (L) x 1.5" (D)
