Rear View Safety

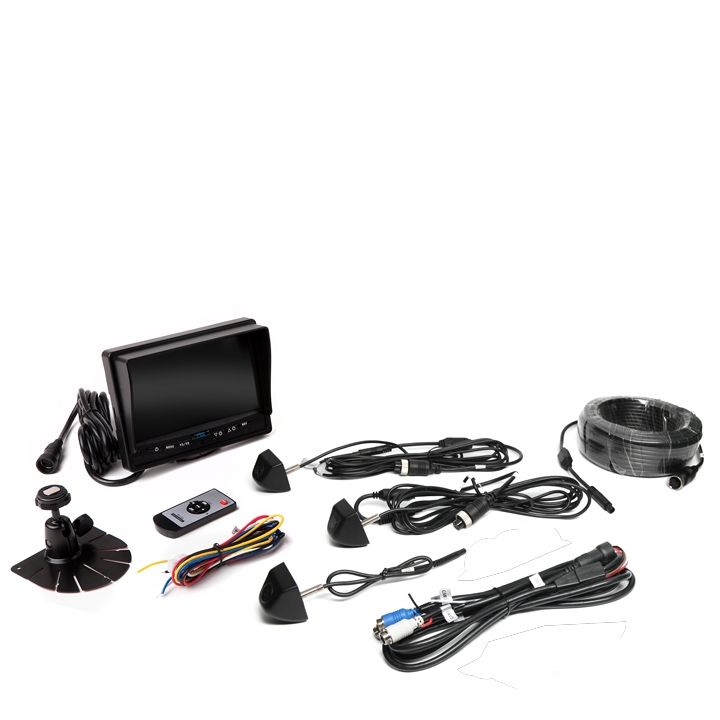

Rear View Safety Backup Camera System | Three Camera Setup with MV1 Cameras

Rear View Safety Backup Camera System | Three Camera Setup with MV1 Cameras

$576.46 USD
$576.46 USD
Sale Sold out

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

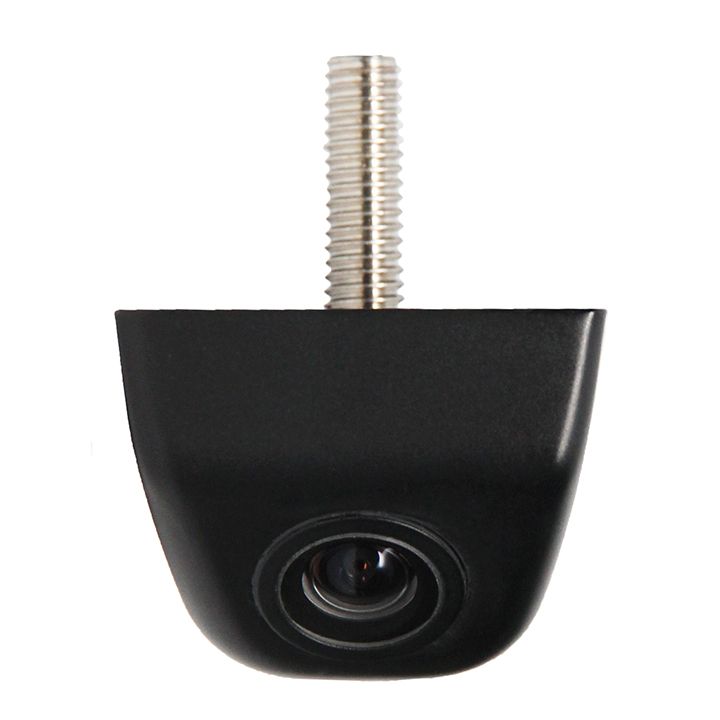

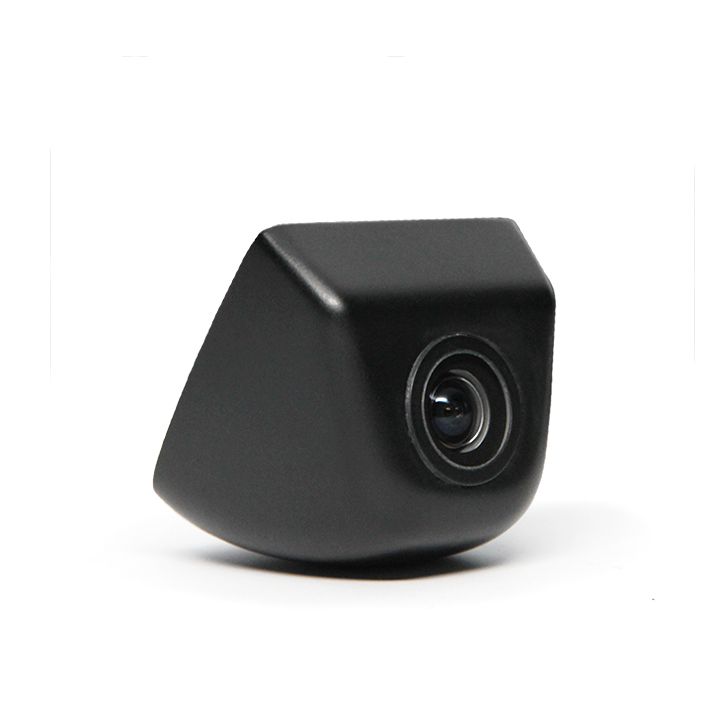

MV1 Backup Camera

The MV1 Backup Camera is built with an MT9V139 sensor and a lens with an ultra wide viewing angle of 150°.

It's tiny size (less than an inch long, wide and deep) makes it ideal for smaller vehicles and allows its installation

to be virtually invisible. It mounts flush against the vehicle and with an IP68 rating is fit to

operate in almost all weather conditions.

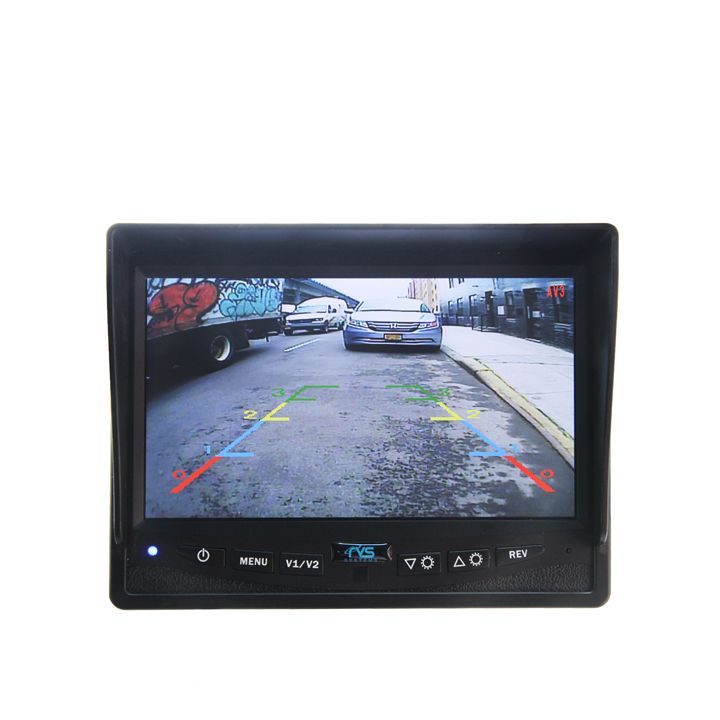

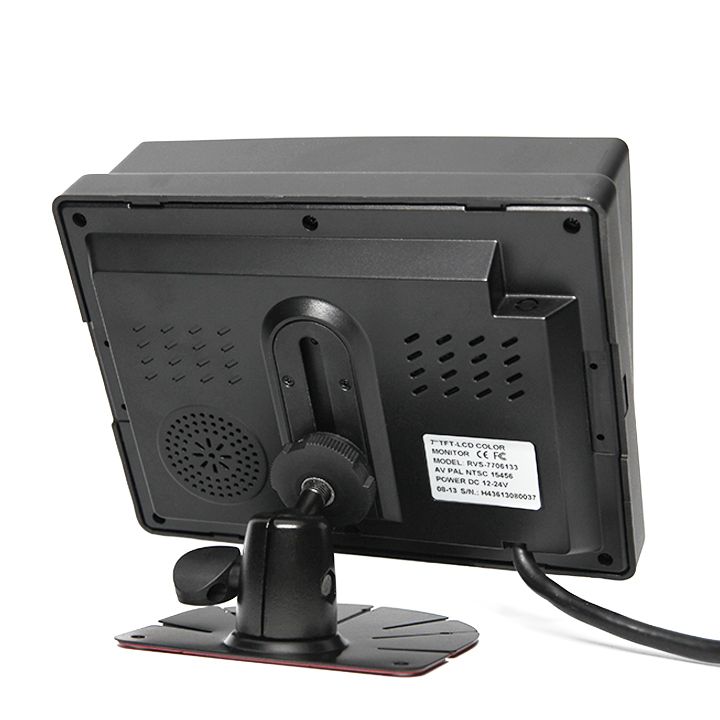

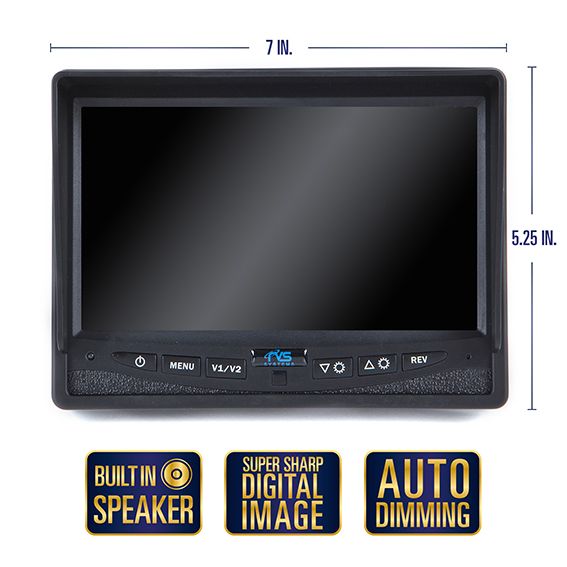

Widescreen Monitor

Our 7" LED Digital Panel Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x 480.

The distance grid lines that come standard with these monitors are optional and adjustable.

It has built-in speakers and its menu can be navigated with the on dash buttons or with the remote which comes included.

Specifications

Monitor Specs
    • Type LED Digital Panel
    • Screen Size 7"
    • Dot Resolution 800 X 3 (RGB) X 480
    • Display Format/Contrast 16:09 / 500:01:00
    • Display Brightness 400cd/㎡
    • Viewing Angle U:50° D:60° L/R:70°
    • Video Input 3 channel
    • Video Source 1Vp-p, 75Ω
    • Power Supply DC 9V-32V
    • Power Consumption 5W
    • Audio Output 0.5W Speaker
    • Operating Temperature -20°C ~ +70° C
    • Storage Temperature -30°C ~ +85°C
    • Video System Auto NTSC/PAL
    • Overall Dimensions 7" (L) x 5" (H) x 1" (D)
    • Weight 400G
    • Vibration Rating 5G
    • DOT PITCH 0.1926 (H) X 0.1710 (V)mm
    • Active Area 154.08 (H) x 85.92 (V)mm
    • Sync System Internal
Camera Specs
  • Camera 1/3" 1099 Color Camera
  • Effective Pixel Array 976 (H) x 496(V)
  • Resolution 700TVL
  • Video System Internal
  • Viewing Angle 150°
  • Lens 2.21mm
  • Usable Illumination 0.01 Lux
  • Power Source DC 12V (+/- 10%)
  • Power Consumption <50mA@12V
  • Reverse Voltage Protection Yes
  • Dynamic Range 63.2 [Db]
  • White Balance Auto
  • Exposure Control Auto
  • Gain Control Auto
  • Shutter Mode Electronic Rolling Shutter
  • Frame Rate <30fps
  • Camera Correction R=0.45-1.0
  • Lens Construction <4G+IR
  • S/N Ratio More than 48dB
  • Electronic Iris 1/50, 160-1/100,000 sec
  • Video Output 1Vp.p 75ohm
  • Operating Temperature -40°C ~ +70°C
  • Storage Temperature -40°C ~ +80°C
