Rear View Safety Backup Camera System For Tractor-Trailer with Integrated Sensors | 4 Camera Setup
Rear View Safety Backup Camera System For Tractor-Trailer with Integrated Sensors | 4 Camera Setup
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
-

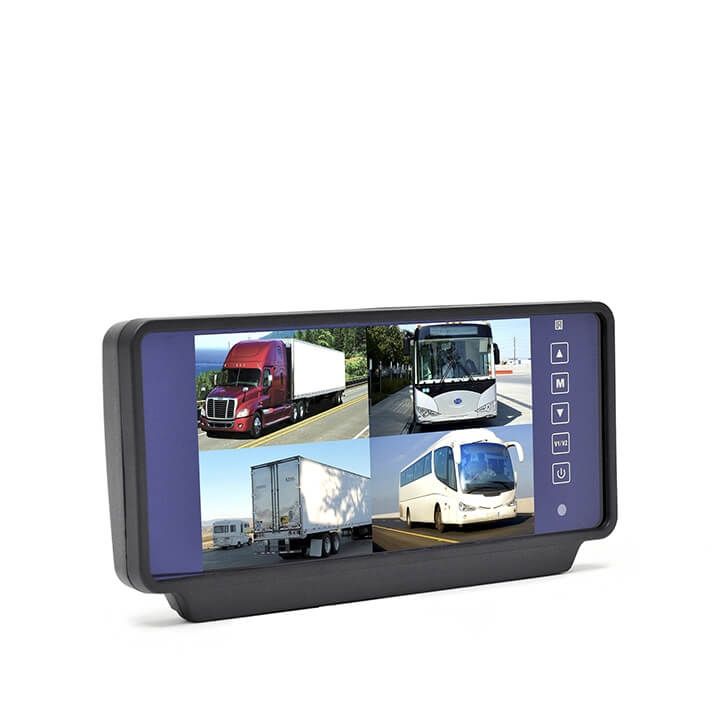

Quad View Monitor
This system can connect and view up to 4 cameras simultaneously with multiple monitor viewing options.
-
Mirror Monitor
Monitor replaces the existing rear view mirror. Placement helps driver see display without turning head away from oncoming traffic.
-
4 Camera Setup
The RVS-2782 gives you complete protection with 4 cameras. They system includes a backup camera, two side cameras, and a forward-facing camera.
-

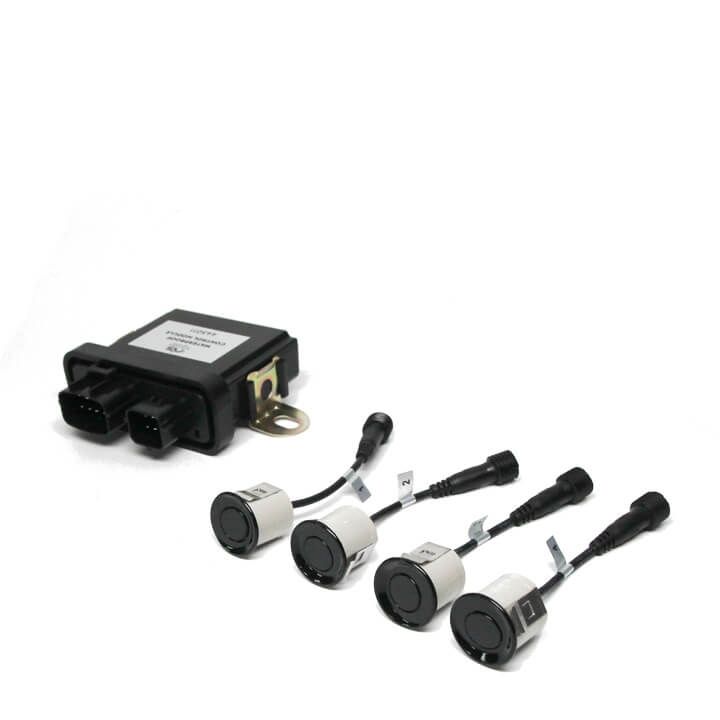

Sensor Integration
Sensors integrate right into camera system. Audio alerts come right through the monitor. These sensors are perfect for assisting in parking and tight driving situations.
-

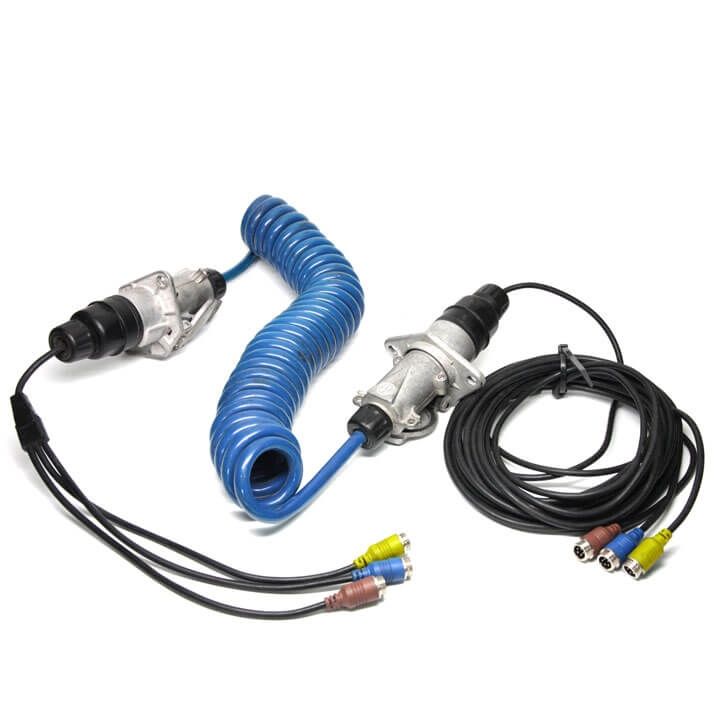

Quick Connect Kit
Commercial grade quick connect kit enables you to wire the truck and trailer separately and connect/disconnect with just one pigtail cable.
-
Touch Buttons
Control the monitor with on-screen touch buttons right at your fingertips. Adjust grid lines, brightness, sharpness, trigger delays, plus other customizable features.
-

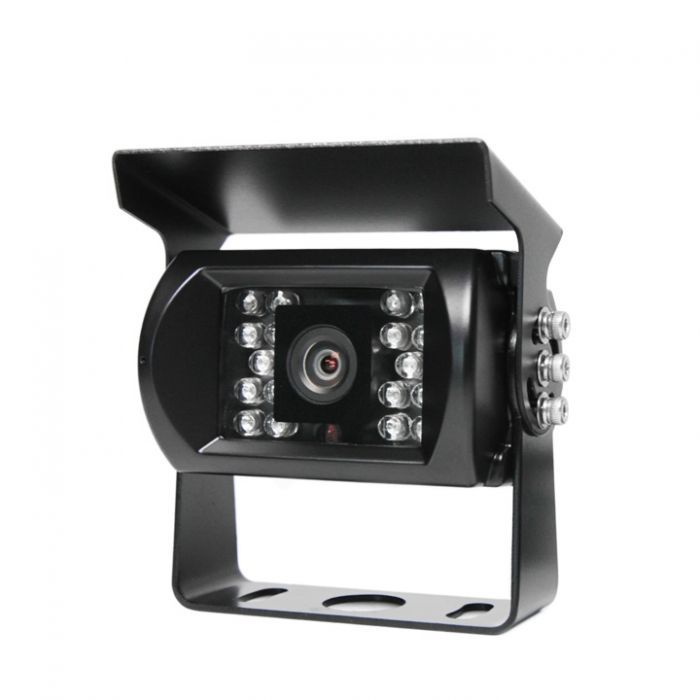

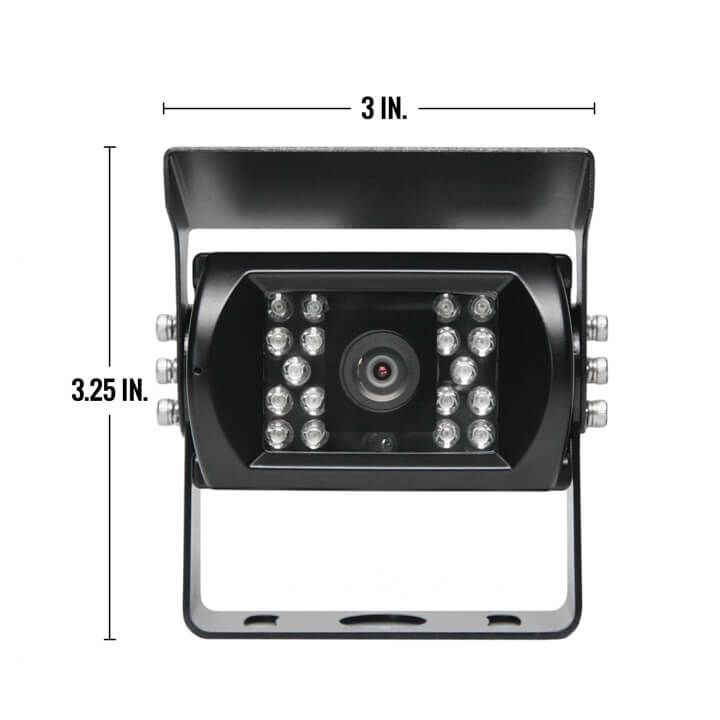

Backup Camera
The completely waterproof backup camera has an 130° viewing angle, and features 18 infra-red lights, allowing you to see up to 50ft even in complete darkness!
-

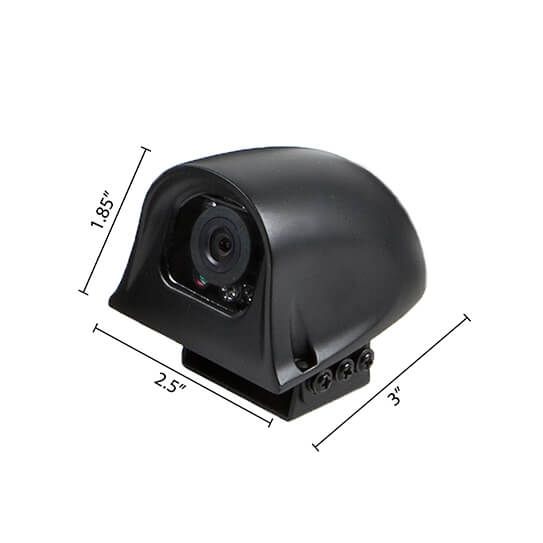

Side Cameras
The two waterproof side cameras each have a 120° viewing angle and feature 9 infra-red illuminators which enables you to see in total darkness.
-

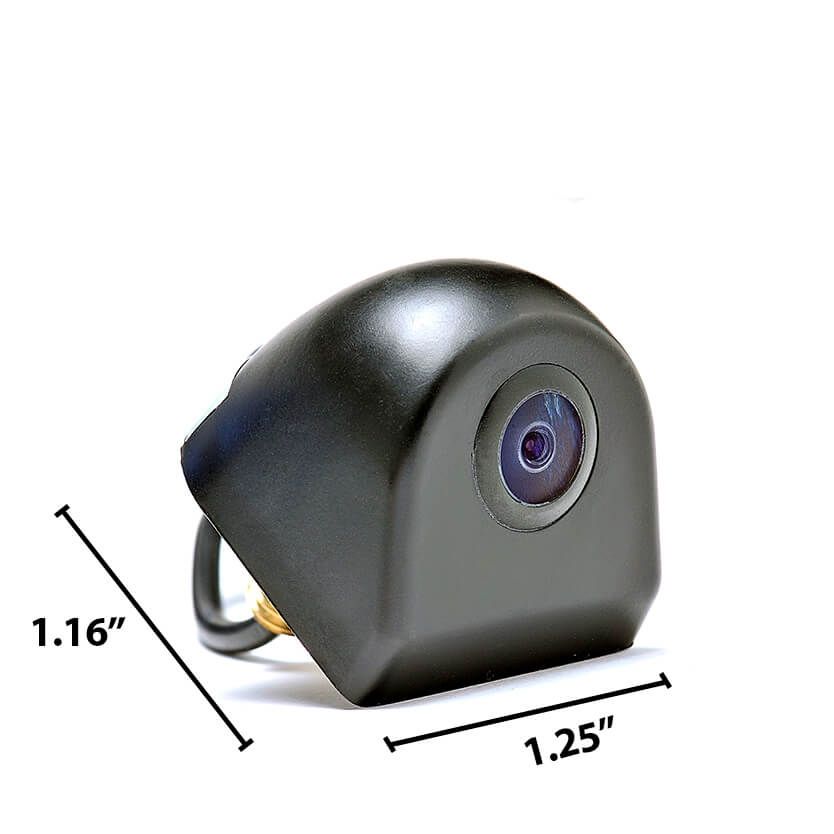

Forward Facing Camera
The waterproof forward facing camera mounts flush against the vehicle, has a 170° all-encompassing viewing angle as well as excellent night vision.
In the box
- 2 x Color CCD Waterproof Infra-Red Side Cameras
- 1 x Color CCD Waterproof Forward Facing Camera
- 1 x Color CCD Waterproof Infra-Red Backup Camera
- 1 x 7" TFT LCD Digital Quad View Replacement Mirror Monitor
- 1 x Power Harness with 4 Camera Inputs
- 1 x Universal Mounting Pin
- 4 x Waterproof Sensors
- 4 x Rubber Grommets

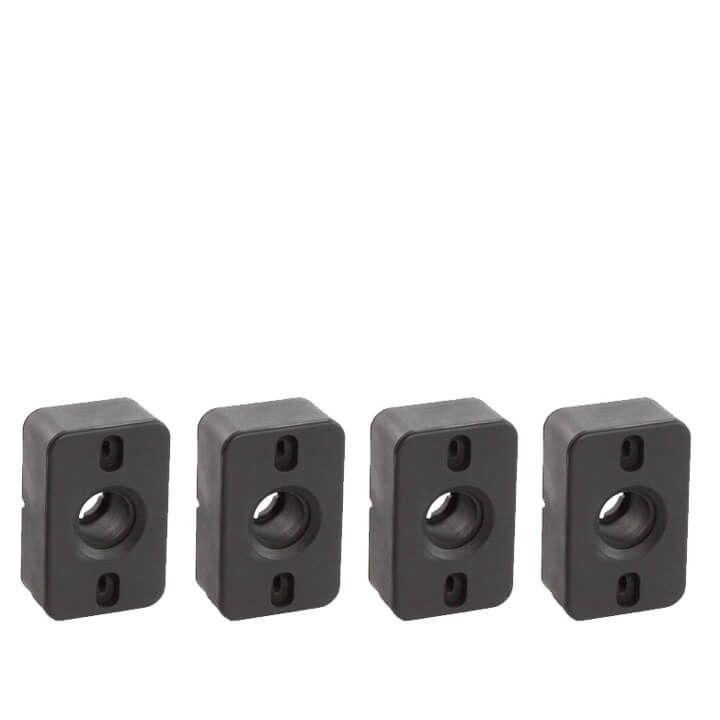

- 4 x Enhanced Sensor Mounts
- 1 x Control Module
- 1 x 9.5' Y-Adapter Power Cable
- 3 x Cable Clips
- 1 x Sensor Cable Harness
- 1 x Commercial Grade Quick Connect Kit
- 3 x 16' Camera Cable
- 1 x 50' Camera Cable
- 1 x 26' Camera Cable
- 1 x Screw Kit For Installation
- 1 x Power Connection Wire
- 1 x Remote Control
Specifications
- Type TFT LCD
- Screen Size 7"
- Dot Resolution 800 X 3 (RGB) X 480
- Display Format/Contrast 16:9
- Display Brightness 400cd/㎡
- Viewing Angle 90° Min
- Video Input 4 Channel
- Video Source 1Vp-p, 75Ω
- Power Supply DC 12V-24V (+/- 10%)
- Power Consumption 5W
- Operating Temperature -10°C ~ +65° C
- Video System Auto NTSC/PAL
- Overall Dimensions 9" (L) x 4.5" (H) x 1" (D)
- Weighty 400G
- Impact Rating 5G
- Dot Pitch 0.192 (H) X 0.1805 (V)
- Sync System Internal
- Camera 1/4" Sharp® Color CCD
- Picture Elements 250,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 600 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
- Lens 2.1mm
- View Angle 130°
- Waterproof Rating IP69K
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 9V-32V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp-p 75 Ω
- IR Switch Control ACDS Automatic Control
- Vibration and Impact Rating 20G / 100G
- Operating Temperature -40°C ~ +80°C / RH 95% Max
- Storage Temperature -40°C ~ +60°C / RH 95% Max
- Overall Dimensions 3.25" (H) x 3" (L) x 1.5" (D)
- Camera 1/4" Sharp® Color CCD
- Picture Elements 250,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 420 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
- Lens 2.1mm
- View Angle 120°
- Sync System Internal Synchronization
- Infra-red distance 30 Feet (9 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 9V-32V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp-p 75 Ω
- IR Switch Control ACDS Automatic Control
- Vibration and Impact Rating 20G / 100G
- Operating Temperature -40°C ~ +80°C / RH 95% Max
- Storage Temperature -40°C ~ +60°C / RH 95% Max
- Overall Dimensions 1.85 (H) x 2.5" (L) x 3" (D)
- Sensor MT9V139
- Sensor Format 728 (H) X 560 (V)
- Picture Elements 307,200 Pixels
- NTSC Output 720 (H) X 480 (V)
- PAL Output 720 (H) X 576 (V)
- Optical Format 1/4 Inch
- TV Lines 480
- Viewing Angle 170°
- Weatherproof Rating IP68
- Night Vision Yes
- Usable Illumination 0.5 Lux
- Power Source DC 12V-24V (+/- 10%)
- Power <1W
- S/N Ratio 48dB
- Video Output 1.0Vp-p 75ohm
- Dimensions 1.25" (H) x 1.25" (L) x 1.25" (D)
- Sensor Type Analog Sensor
- Sensor Quantity4 Sensors
- Sensor Frequency 40kHz +/- kHz
- Waterproof Rating IP68
- Static Capacitance 2000± 15%pF
- Input Voltage max. 140 Vp-p {at 40KHz)
- Decay Time <1.2ms
- Decay Parameter 20±3 (Admissible parameter)
- Echo Sensitivity >200mV
- Horizontal Angle 51°
- Vertical Angle 62°
- Detection Range 0.22mm (0.08ft) to 2.5m (8ft)
- Working Voltage 10.0 ~ 28.0 VDC
- Rated Current (ECU) 60mA max
- Wiring Harness Vehicle Spec. T-Piece
- Working Temperature -40°C ~ +75°C
- Storage Temperature -40°C ~ +90°C
- Normal Voltage 12 VDC
- Operating Voltage 1.0 ~ 28 VDC
- Rated Current6 0 mA
- Operating Frequency 40 +/- 1 kHz
- Housing Material ABS
- Housing Color Black
- Working Temperature -40°C ~ 75°C
- Storage Temperature -40°C ~ 90°C
- Waterproof Rating IP65
