Rear View Safety Backup Camera System For Pickup Trucks

Rear View Safety Backup Camera System For Pickup Trucks

$360.28 USD
$360.28 USD
Sale Sold out

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

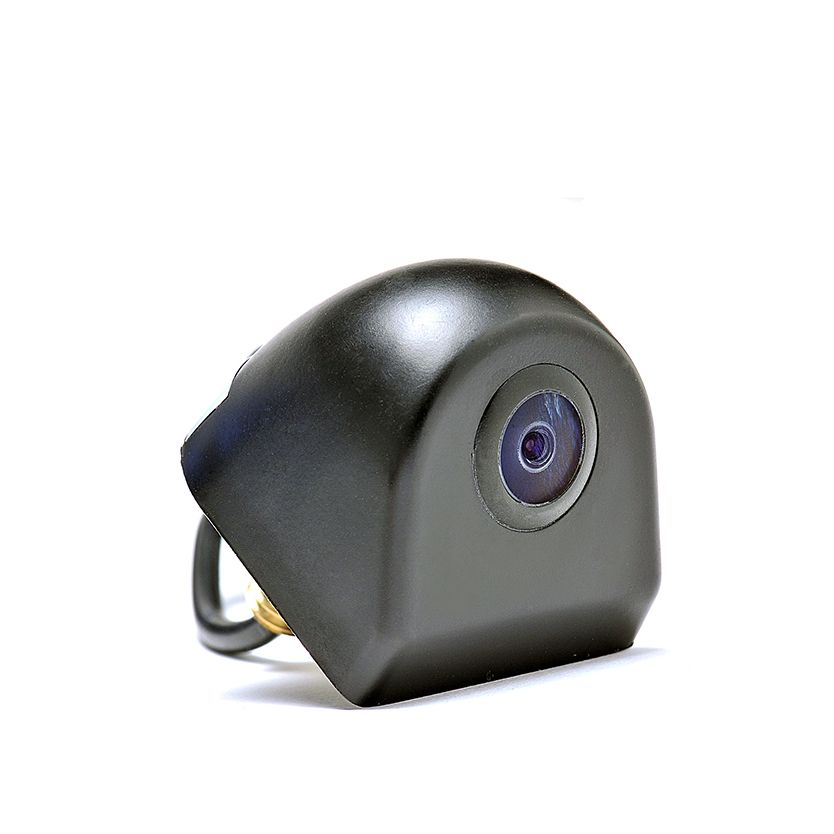

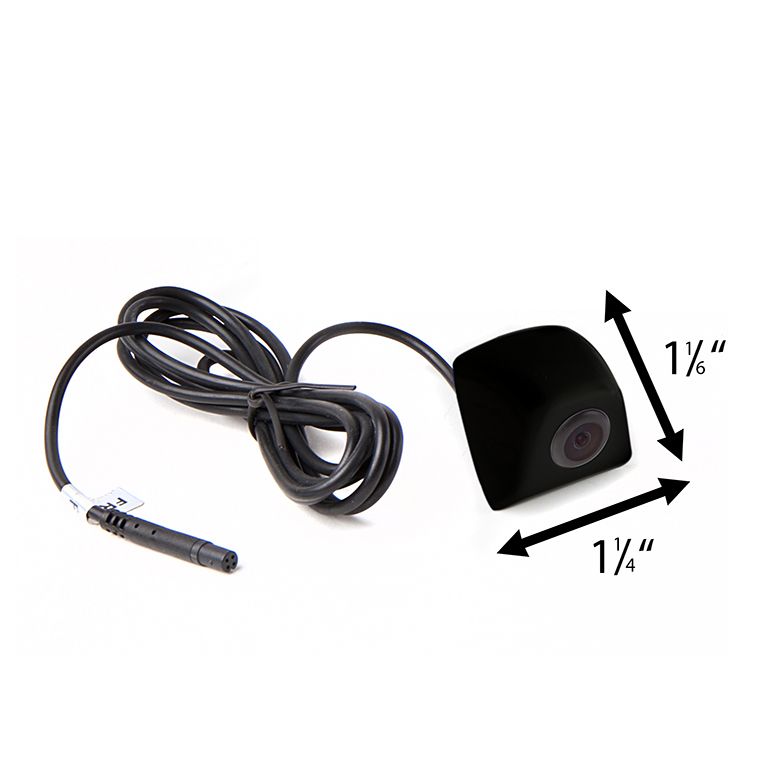

Tailgate Backup Camera

The Tailgate Backup Camera is built with an MT9V139 sensor and a lens with an ultra wide viewing angle of 170°.

Its tiny size (less than an inch long, wide and deep) makes it ideal for smaller vehicles and allows its installation

to be virtually invisible. It mounts flush against the vehicle and with an IP68 rating is fit to

operate in almost all weather conditions.

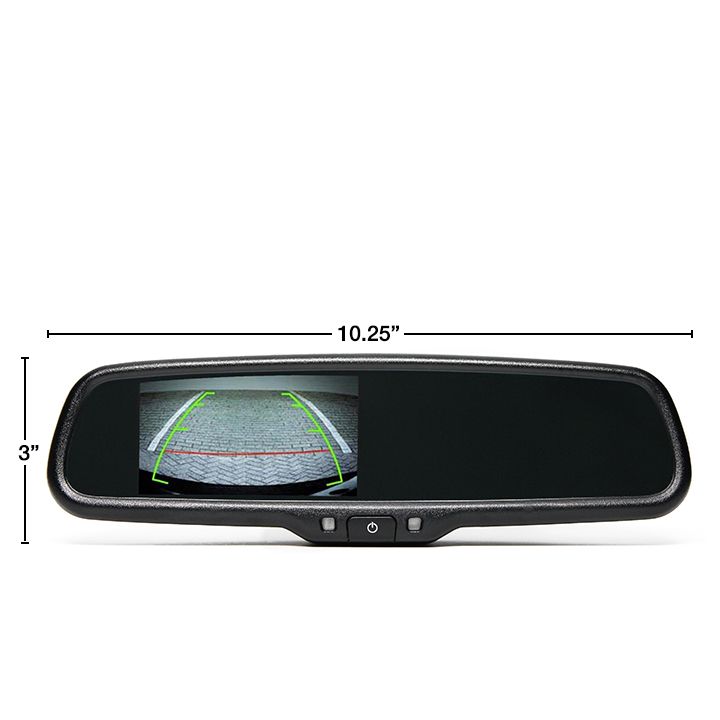

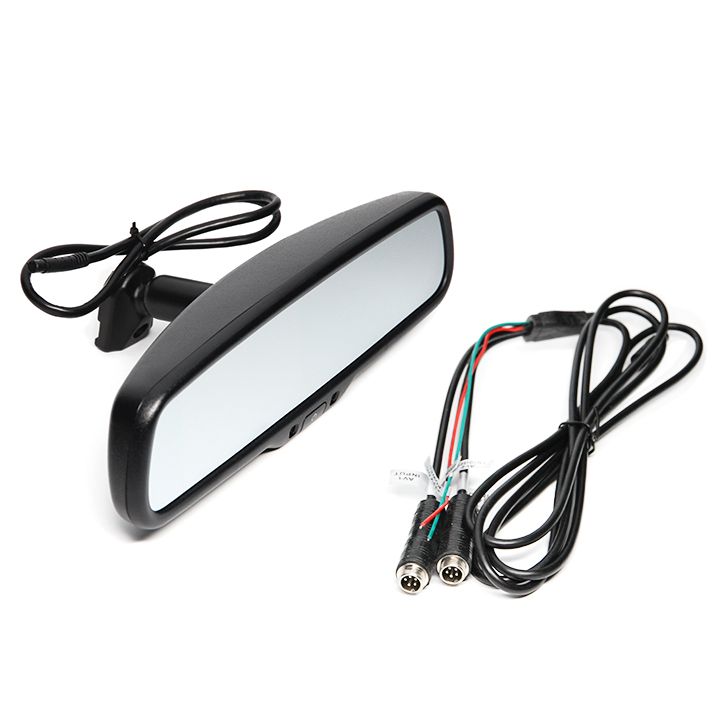

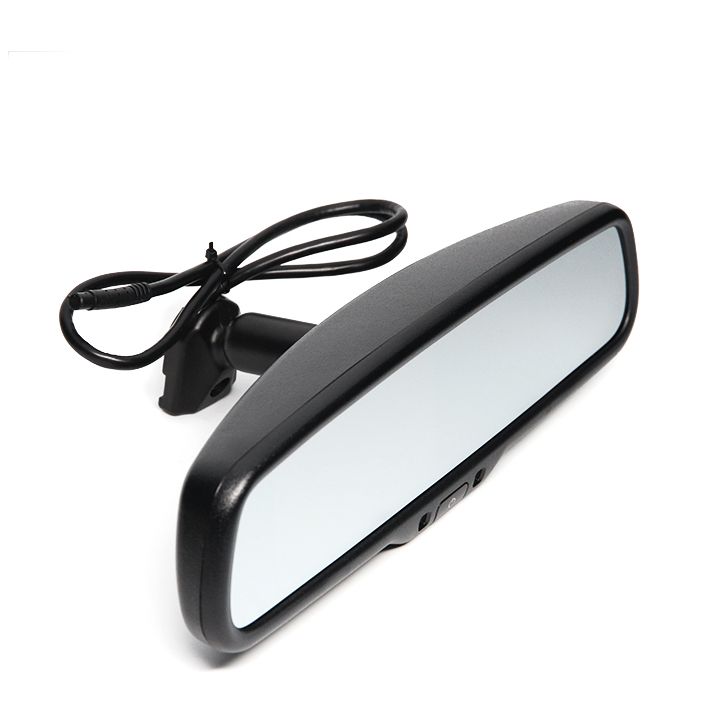

OEM Mirror Monitor

Our OEM Style Mirror Monitor provides ultimate performance together with a clean, factory like install.

It attaches to the windshield, either connecting to, or replacing the existing rear view mirror (see item options)

and its bright screen and reflective ability contribute to an all-in-one backup experience.

It comes with a 4.3" Color TFT Digital Display and its distance grid lines are optional and adjustable.

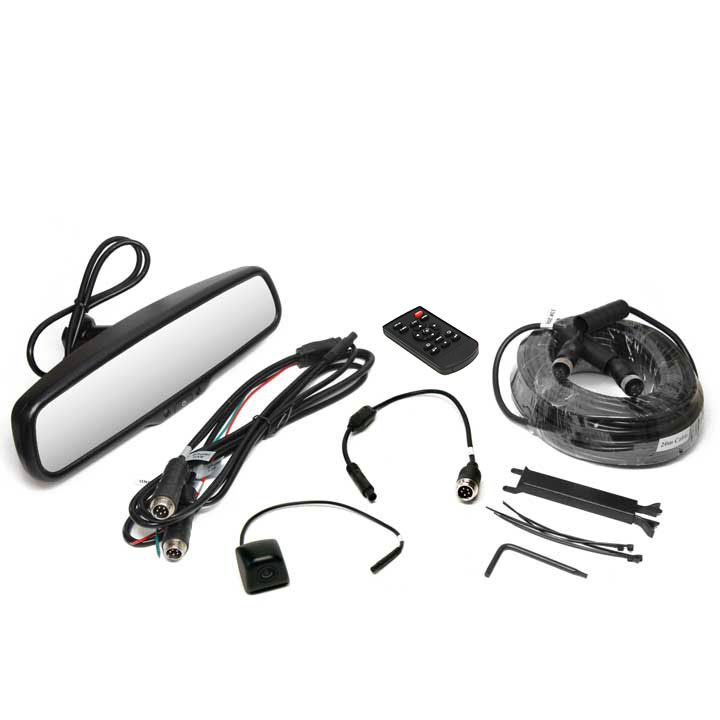

In the box

  • 1 x Color MT9V139 Camera with Night Vision
  • 1 x Mirror Monitor with 4.3" Display
  • 1 x Power Harness with Two Camera Inputs
  • 1 x 33' Camera Cable
  • 1 x Remote Control
  • 1 x Screw Kit for Installation

Specifications

Monitor Specs
    • Screen Size 4.3"
    • Dot Resolution 480 x 3 (RGB) x 272
    • Display Format 16:9
    • Display Brightness 12001x
    • Viewing Angle U&D: 100°, L&R: 120°
    • Video Input 2 Channel
    • Video Source 1Vp-p, 75 Ω
    • Power Supply DC 9V - 32V
    • Power Consumption 8W
    • Operating Temperature -20°C ~ +75°C
    • Video System Auto NTSC/PAL
    • Overall Dimensions 10.55" (L) x 3.15" (H) x 1" (D)
    • Weight 800G
    • Vibration Rating 5G
    • Sync System Internal
Camera Specs
  • Sensor MT9V139
  • Sensor Format 728 (H) X 560 (V)
  • Picture Elements 307,200 Pixels
  • NTSC Output 720 (H) X 480 (V)
  • PAL Output 720 (H) X 576 (V)
  • Optical Format 1/4 Inch
  • TV Lines 480
  • Viewing Angle 170°
  • Waterproof Rating IP68
  • Night Vision Yes
  • Usable Illumination 0.5 Lux
  • Power Source DC 9V-32V
  • Power <1W
  • S/N Ratio 48dB
  • Video Output 1.0Vp-p 75 Ω
  • White Balance Auto
  • AGC Auto
  • Overall Dimensions 1" (H) x 1.25" (L) x 1.16" (D)
