Rear View Safety

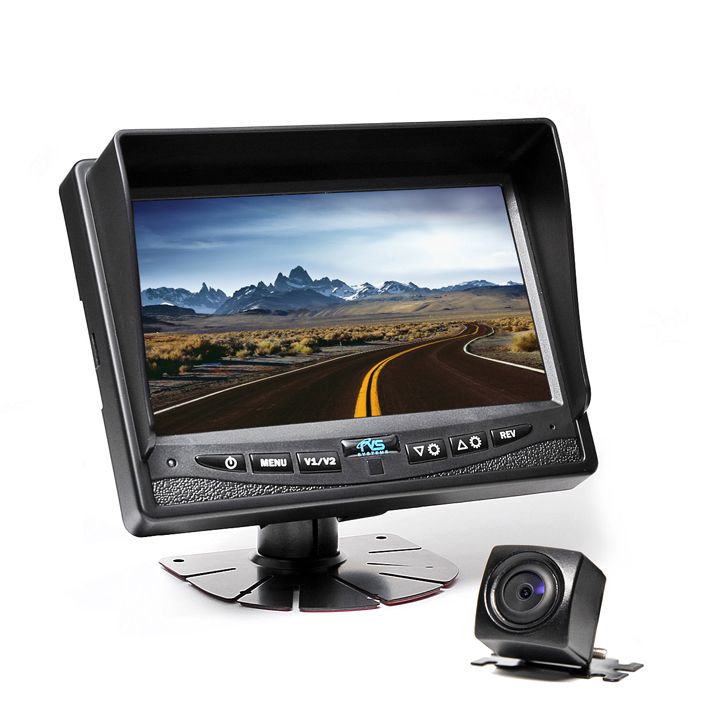

Rear View Safety Backup Camera System for Ford Econoline Vehicles

Rear View Safety Backup Camera System for Ford Econoline Vehicles

$360.28 USD
$360.28 USD
Sale Sold out

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

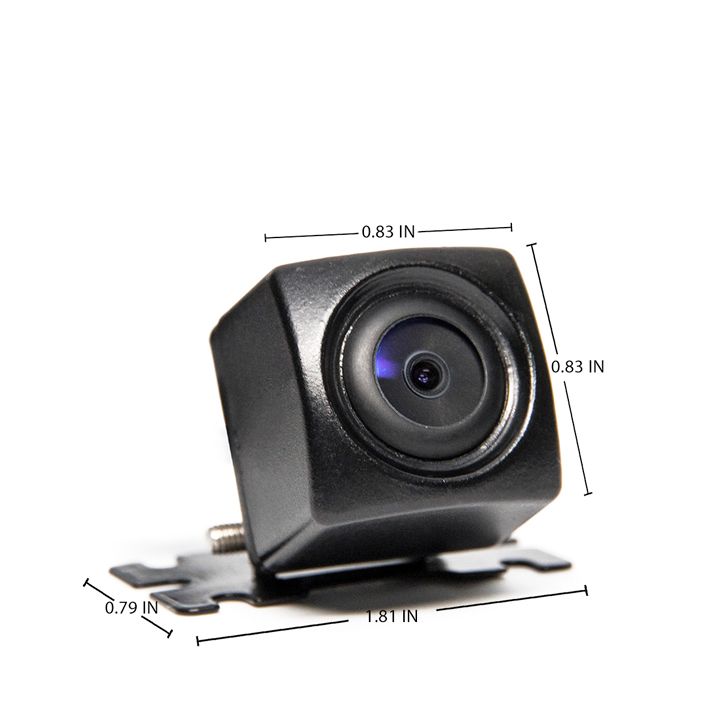

Compact Backup Camera

This Compact Backup Camera is built with a MT9V139 lens with an ultra wide viewing angle of 170°.

It's tiny size (less than an inch long, wide and deep) makes it ideal for smaller vehicles and allows its installation

to be virtually invisible. It comes with an adjustable mounting bracket and with an IP68 rating is fit to

operate in almost all weather conditions.

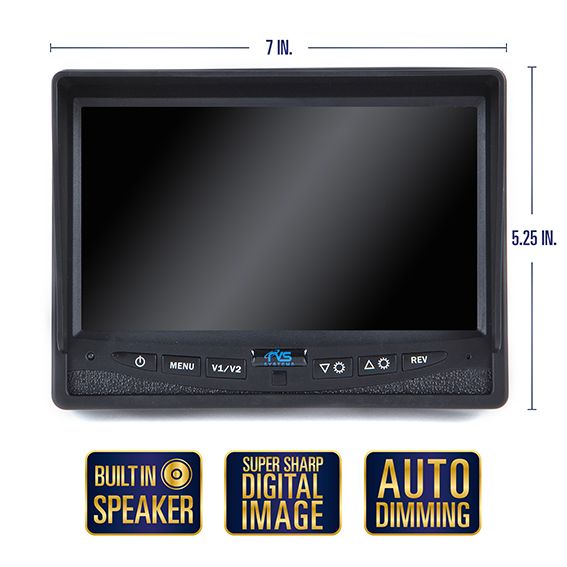

Widescreen Monitor

Our 7" LED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x  480.

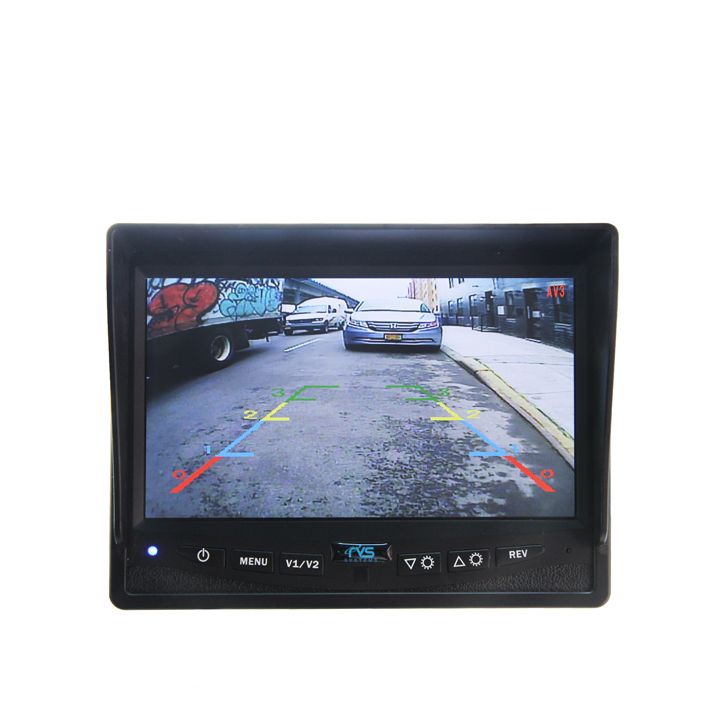

The distance grid lines that come standard with these monitors are optional and adjustable.

It has built-in speakers and its menu can be navigated with the on dash buttons or with the remote which comes included.

In the box

  • 1 x Color Waterproof Backup Camera
  • 1 x 7" LED Digital Panel Rear View Monitor with Universal Mount
  • 1 x 3 Channel Power Harness

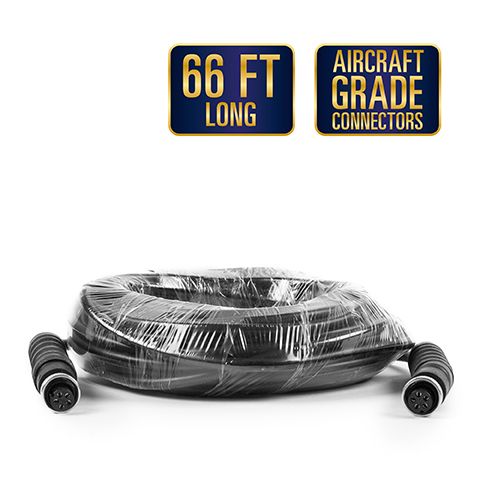

  • 1 x 66’ Camera Cable
  • 1 x Remote Control
  • 1 x Power Connection Wire
  • 1 x Double RCA + Power Converter (to connect external audio, video and power)
  • 1 x Screw Kit for Installation

Specifications

Monitor Specs
    • Type LED Digital Panel
    • Screen Size 7"
    • Dot Resolution 800 X 3 (RGB) X 480
    • Display Format/Contrast 16:09 / 500:01:00
    • Display Brightness 400cd/㎡
    • Viewing Angle U:50° D:60° L/R:70°
    • Video Input 3 channel CVBS
    • Video Source 1Vp-p, 75Ω
    • Power Supply DC 9V - 32V
    • Power Consumption 5W
    • Audio Output 0.5W speaker
    • Operating Temperature -20°C ~ +70° C
    • Storage Temperature -30°C ~ +85°C
    • Video System Auto NTSC/PAL
    • Overall Dimensions 7" (L) x 5" (H) x 1" (D)
    • Weight 400G
    • Impact Rating 5G
    • DOT PITCH 0.1926 (H) X 0.1710 (V)mm
    • Active Area 154.08 (H) x 85.92(V)mm
    • Sync System Internal
Camera Specs
  • Camera MT9V139
  • Sensor Format 728 (H) X 560 (V)
  • NTSC Output 720 (H) X 480 (V)
  • PAL Output 720 (H) X 576 (V)
  • Optical Format 1/4 Inch
  • Lens 2.1mm
  • TV Lines 480
  • Viewing Angle 170°
  • Weatherproof Rating IP68
  • Night Vision Yes
  • Usable Illumination 0.5 Lux
  • Power Source DC 9V - 32V
  • S/N Ratio 48dB
  • Electronic Iris 1/50, 160-1/100,000sec
  • Video Output 1Vp-p, 75 Ω
  • Shutter Type Electronic Rolling Shutter (ERS)
  • Vibration and Shock Rating 10G / 100G
  • White Balance Auto
  • AGC Auto
  • Operating Temperature -40°C ~ +70°C / RH 95% Max
  • Storage Temperature -40°C ~ +80°C / RH 95% Max
  • Dimension 0.83" (H) x 1.81" (L) x 0.79" (D)
