Rear View Safety
Rear View Safety Backup Camera for Pickup Trucks
Rear View Safety Backup Camera for Pickup Trucks
Regular price
$144.11 USD
Regular price
Sale price
$144.11 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

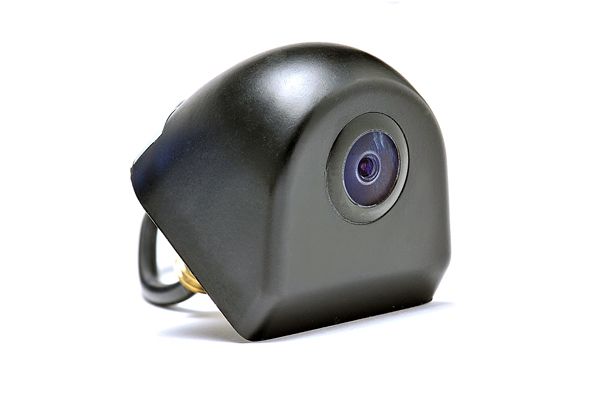

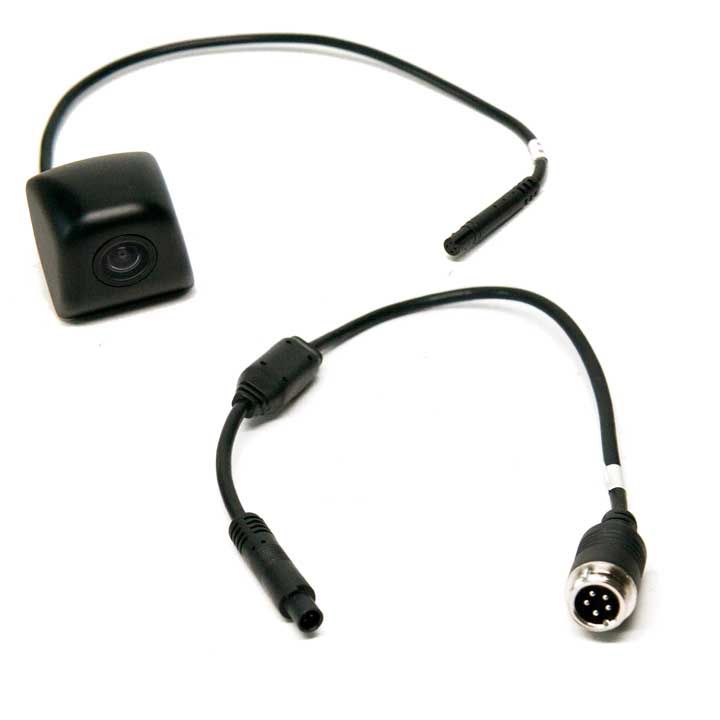

Tailgate Backup Camera
The Tailgate Backup Camera is built with an MT9V139 sensor and a lens with an ultra wide viewing angle of 170°. Its tiny size (less than an inch long, wide and deep) makes it ideal for smaller vehicles and allows its installation to be virtually invisible. It mounts flush against the vehicle and with an IP68 weatherproof rating is fit to operate in almost all weather conditions.
Specifications
Camera Specs
- Sensor MT9V139
- Sensor Format 728 (H) X 560 (V)
- Picture Elements 307,200 Pixels
- NTSC Output 720 (H) X 480 (V)
- PAL Output 720 (H) X 576 (V)
- Optical Format 1/4 Inch
- TV Lines 480
- Viewing Angle 170°
- Weatherproof Rating IP68
- Night Vision Yes
- Usable Illumination 0.5 Lux
- Power Source DC 12V-24V (+/- 10%)
- Power <1W
- S/N Ratio 48dB
- Video Output 1.0Vp-p 75ohm
- Dimensions 1.25" (H) x 1.25" (L) x 1.25" (D)
