Rear View Safety Arm Camera with Clamp

Rear View Safety Arm Camera with Clamp

$158.52 USD
$158.52 USD
Sale Sold out
Cable Length

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

Replaces Rear View Safety part number RVS-ARM-FR.

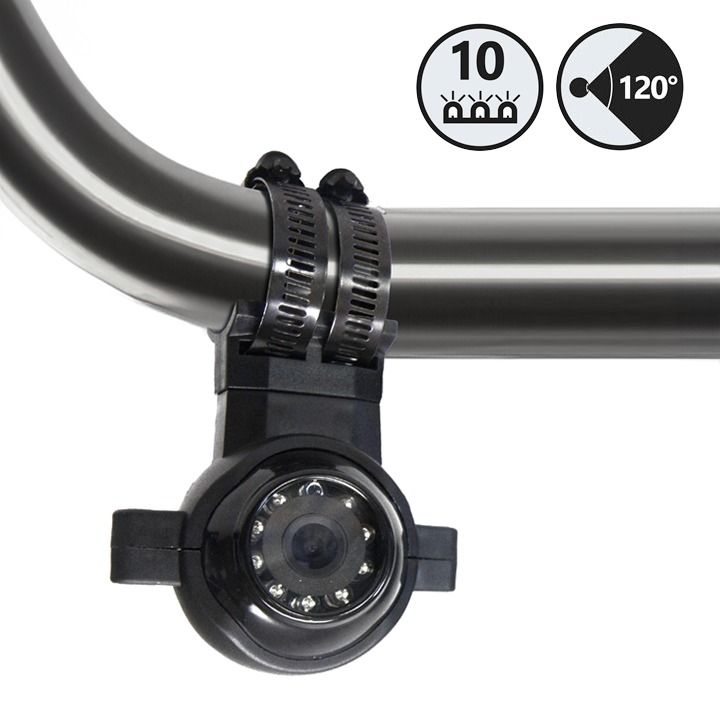

Arm Camera With Clamp

This color CCD camera is built with heavy duty zinc metal which encases the 2.8 mm Sharp lens. It has an ultra-wide viewing angle of 120 degrees and 700 TV lines, which means you get the best quality image with no blind spots.

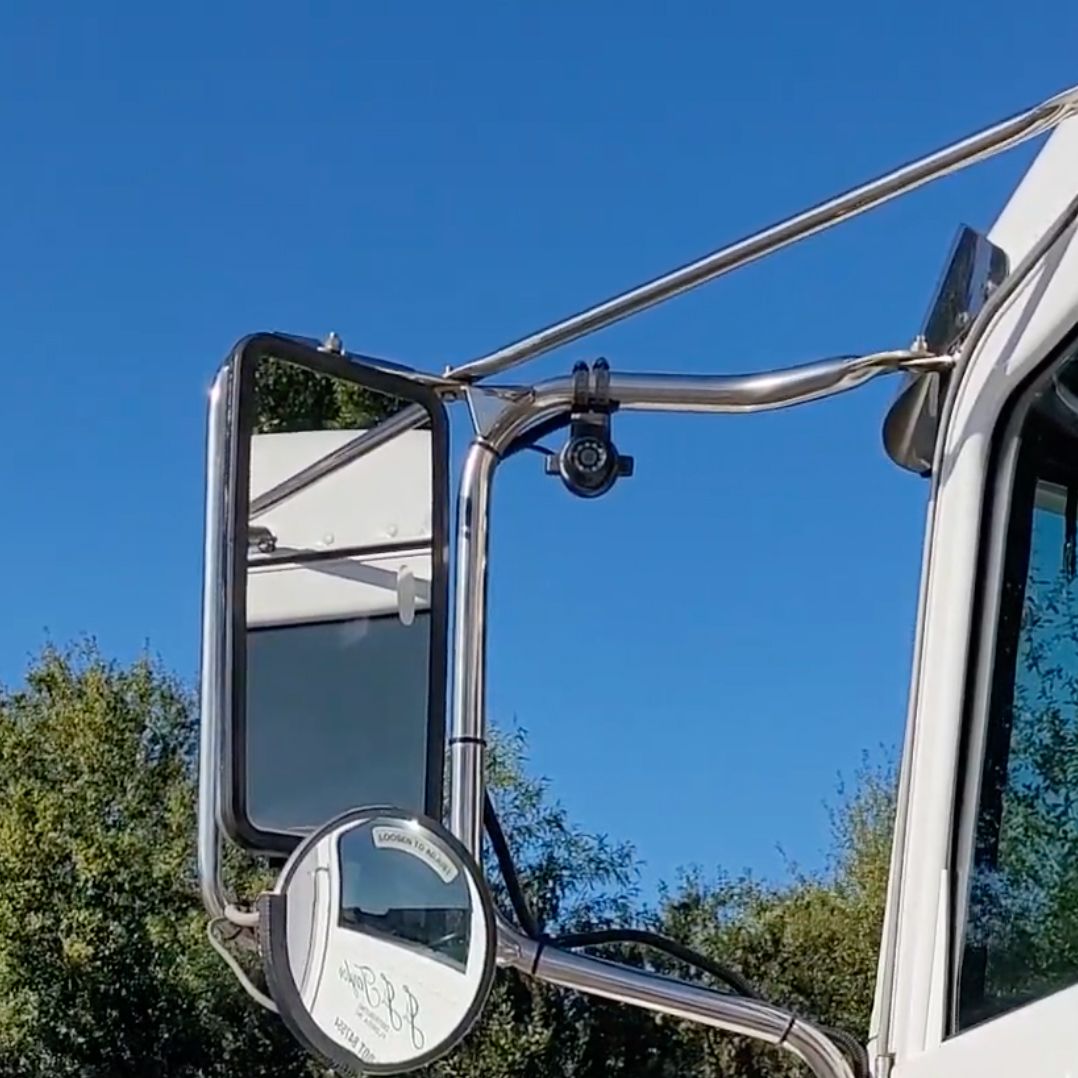

The camera fits easily onto truck arm brackets. No drilling or complicated installation necessary!

With an IP68 rating this camera will be fit to ride out any storm and is also equipped with a 10G vibration rating.

Specifications

Camera Specs
  • Image Type CCD
  • Lens 2.8mm
  • Image Sensor 700 TV Lines
  • View Angle 120°
  • Waterproof Rating IP69K
  • Usable Illumination 0 Lux (IR On)
  • Power Source DC 12V
  • Video Output 1Vp.p 75 Ω
  • Vibration Rating 10G
  • Large Clamp Min/Max Diameter 4"/3"
  • Small Clamp Min/Max Diameter 1.25"/1"
  • Power Consumption <3W
  • Operating Temperature -40°C - +80°C / RH 95% Max
  • Storage Temperature -40°C - +85°C / RH 95% Max
