Rear View Safety 7" Quad View Replacement Mirror Monitor
Rear View Safety 7" Quad View Replacement Mirror Monitor
Regular price
$324.25 USD
Regular price
Sale price
$324.25 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Quad View Mirror Mounted Monitor

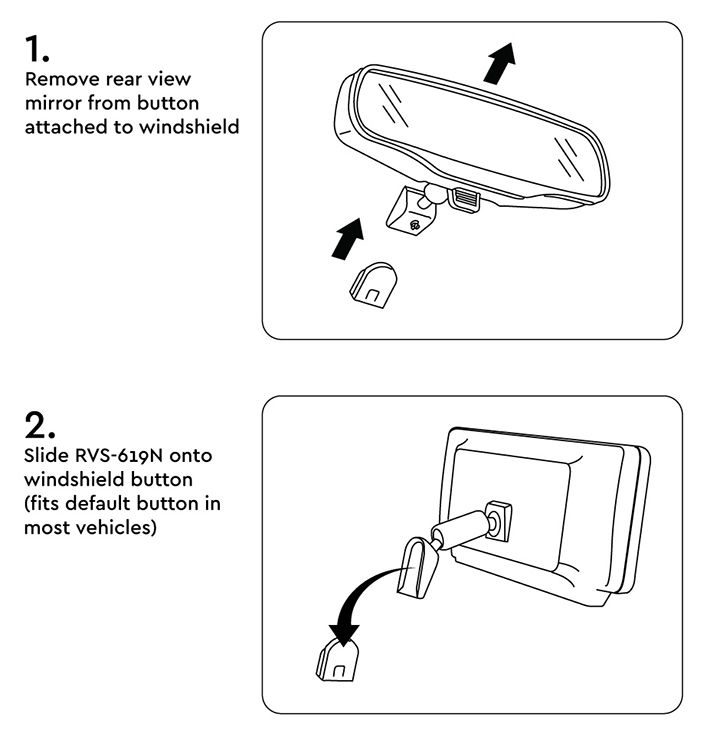

The 7" TFT LCD Digital Quad View Color Monitor attaches to the windshield, replacing the
existing rear view mirror in the vehicle. This placement gives you perfect viewing of our backup cameras without taking
up room on your dash. It comes with optional grid lines and an in-built speaker with all its functions controlled with the on-screen touch buttons or remote which comes included.
Monitor Viewing Options
In the box
- 1 - 7" TFT LCD Digital Replacement Mirror Monitor

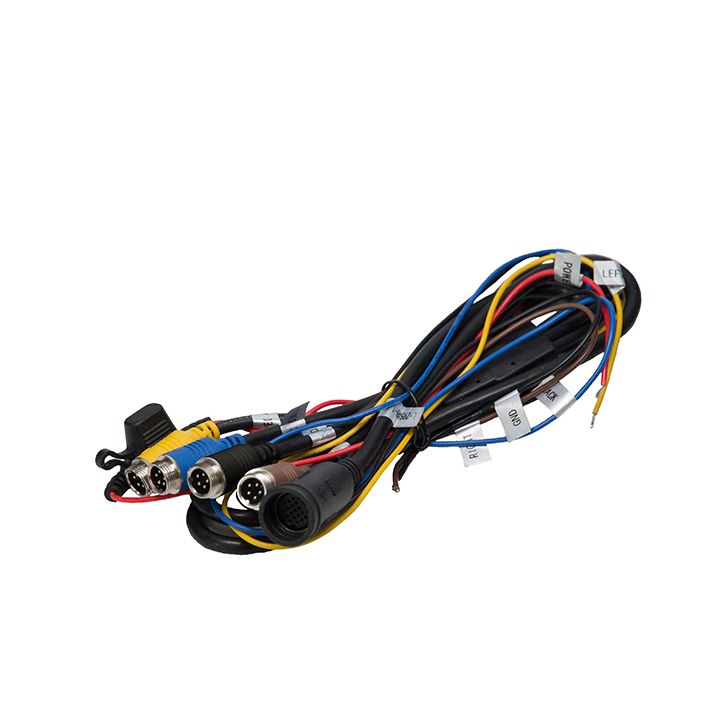

- 1 - Power Harness with 4 Camera Inputs

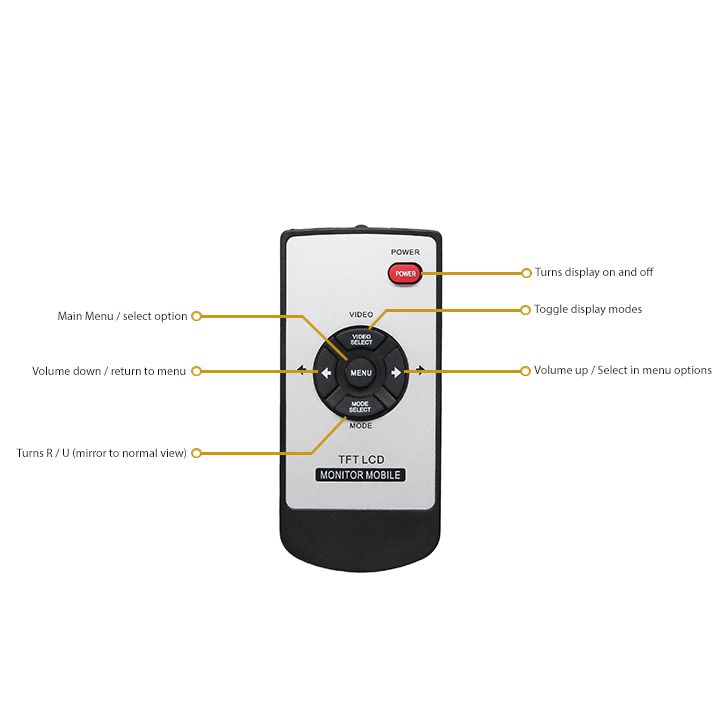

- 1 - Remote Control
Specifications
Monitor Specs
- Type TFT LCD
- Screen Size 7"
- Dot Resolution 800 X 3 (RGB) X 480
- Display Format/Contrast 16:9
- Display Brightness 400cd/㎡
- Viewing Angle 90° Min
- Video Input 4 Channel
- Video Source 1Vp-p, 75Ω
- Power Supply DC 12V-24V (+/- 10%)
- Power Consumption 5W
- Operating Temperature -10°C ~ +65° C
- Video System Auto NTSC/PAL

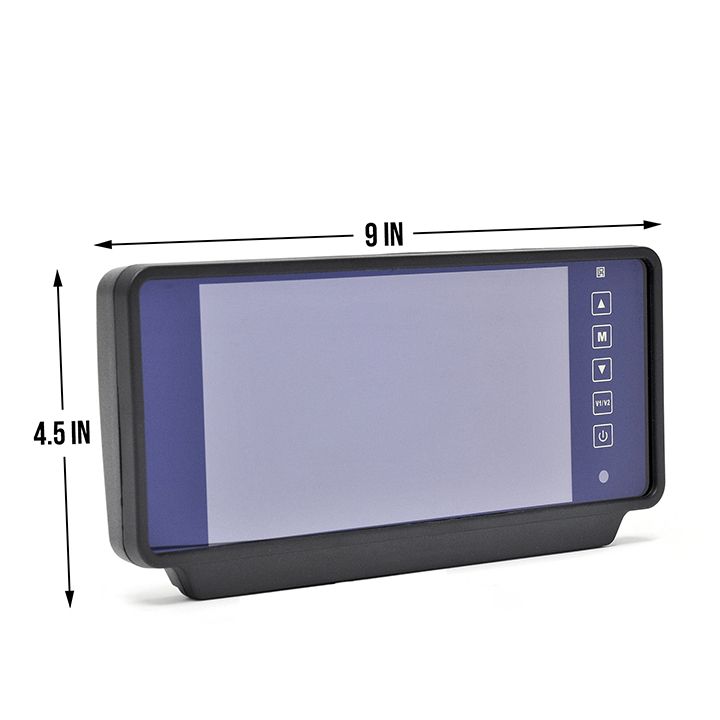

- Overall Dimensions 9" (L) x 4.5" (H) x 1" (D)
- Weighty 400G
- Impact Rating 5G
- Dot Pitch 0.192 (H) X 0.1805 (V)
- Sync System Internal
