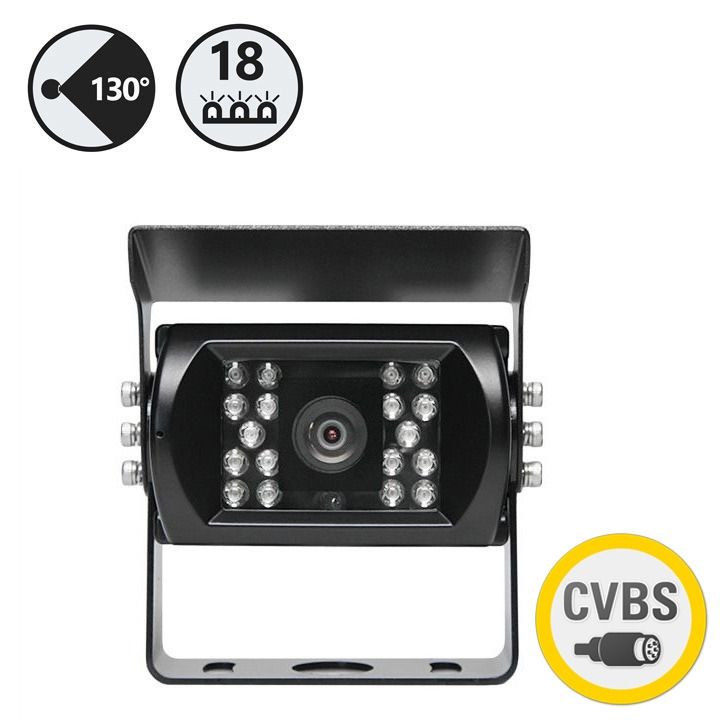

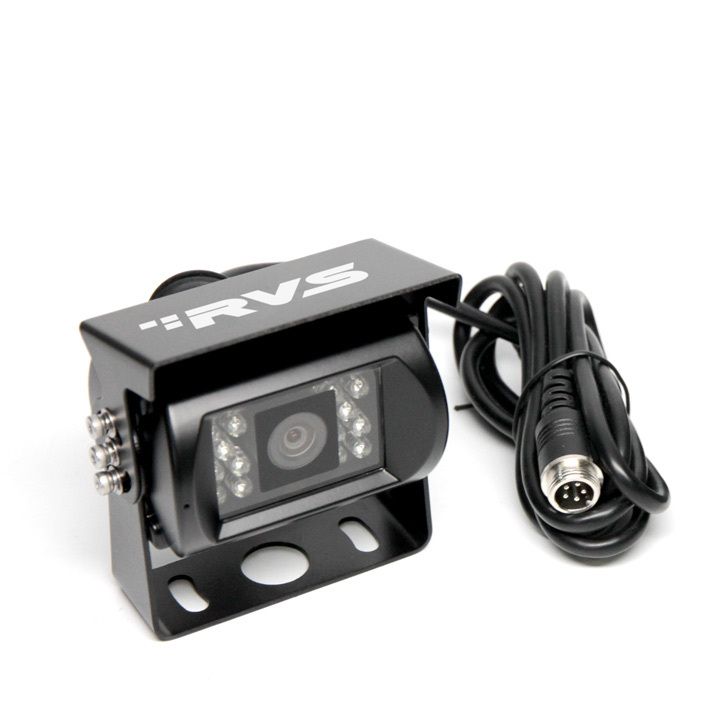

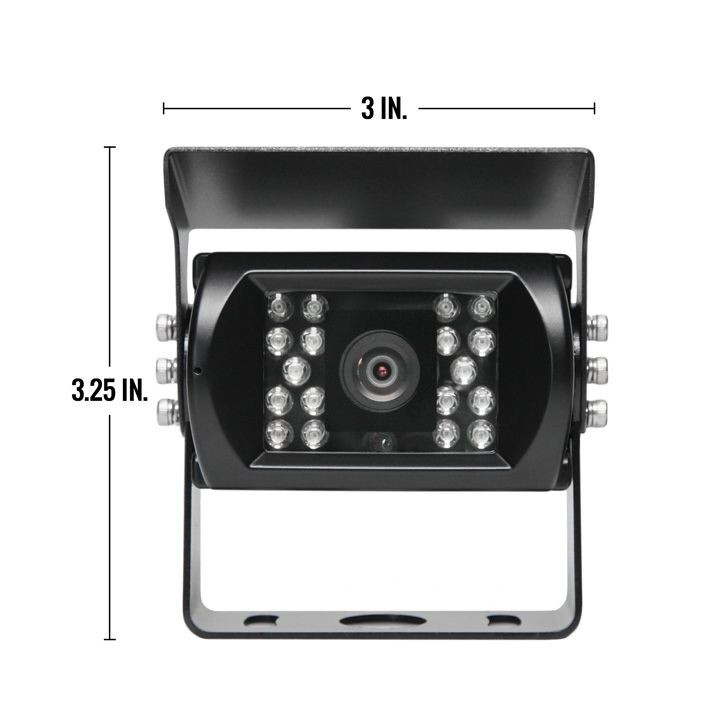

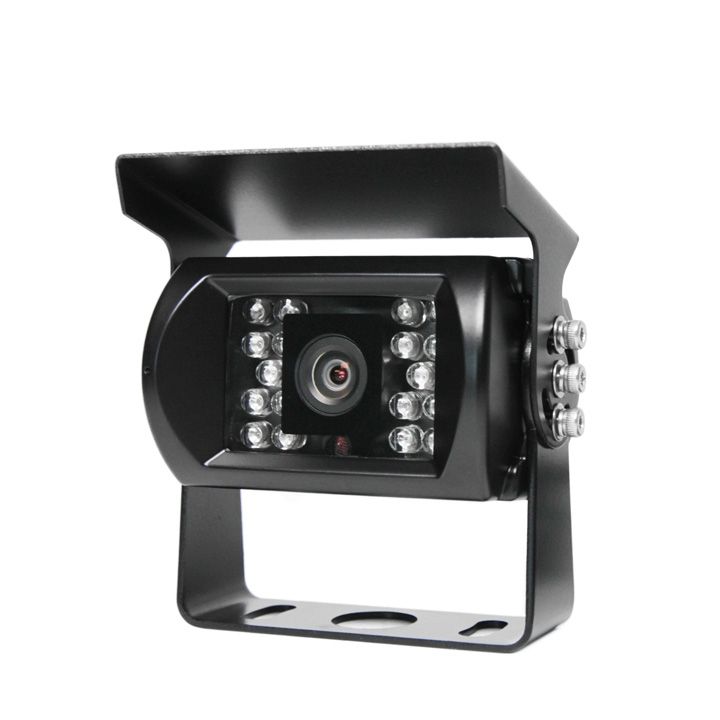

Rear View Safety 130° Backup Camera with 18 infrared illuminators
Rear View Safety 130° Backup Camera with 18 infrared illuminators
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Backup Camera
This color CCD camera is built with heavy duty zinc metal which encases the 2.5 mm Sharp lens. It has a viewing angle 130° and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allow you to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.
With an IP69K rating this camera will be fit to ride out any storm and boasts a 20G vibration rating as well as aircraft grade cable connections.
A 3-D Look Inside
Take a closer look at the components that make the RVS-770 a powerful, durable and reliable camera.
Specifications
- Camera 1/3" Sharp® Color CCD
- Picture Elements 410,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 620 TV lines
- Lens F=2.5mm
-
Pixels NTSC: 811(h) X 507(v)
PAL:752(H) X 582(V) - View Angle130°
- Waterproof Rating IP69K
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared IR)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 12V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp.p 75 ohm
- IR Switch Control ACDS Automatic Control
- Vibration and Impact Rating 20G Vibration / 100G Shock
- Operating Temperature -40°C - +70°C (-40°F - +158°F) / RH 95% Max
- Storage Temperature -40°C - +85°C (-40°F - +185°F) / RH 95% Max
- Net Weight 22 oz
