Rear View Safety 130° Backup Camera with 18 Infrared Illuminators (RCA Connectors)
Rear View Safety 130° Backup Camera with 18 Infrared Illuminators (RCA Connectors)
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Backup Camera

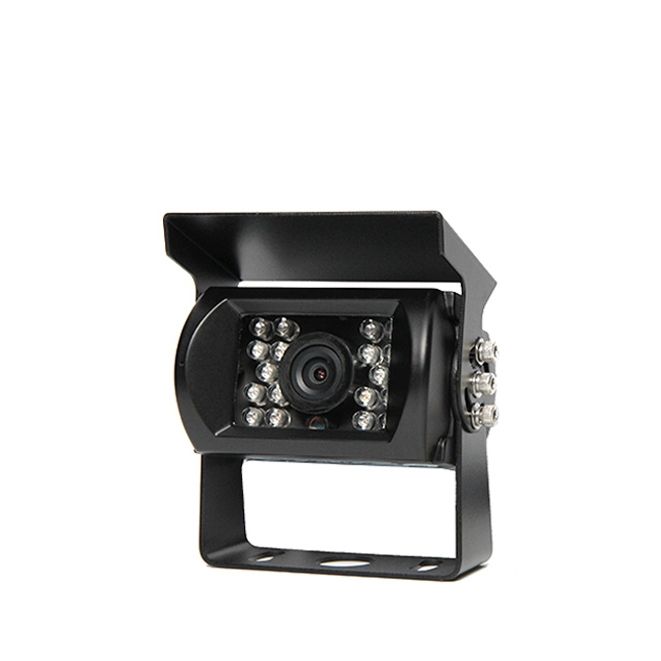

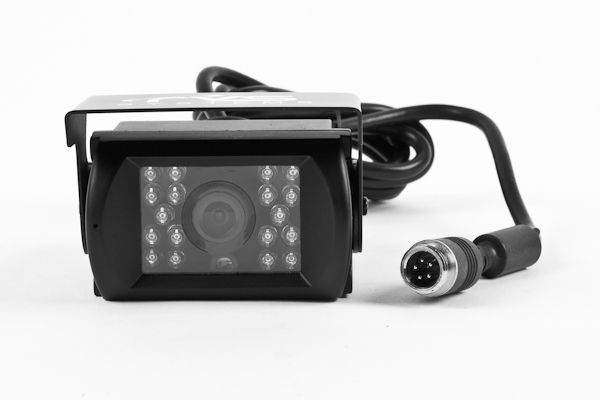

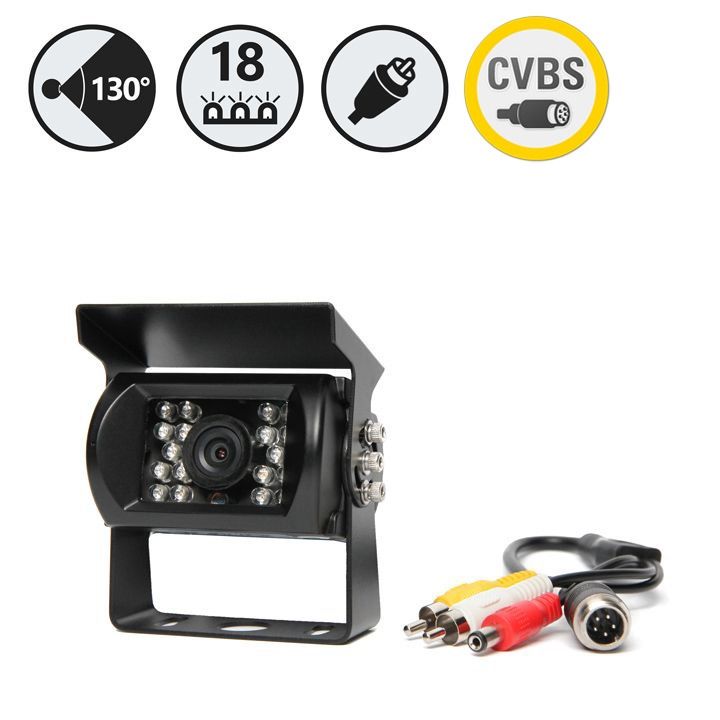

This color CCD camera is built with heavy duty zinc metal which encases the 2.5 mm Sharp lens. It has a viewing angle of 130° and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allowyou to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.

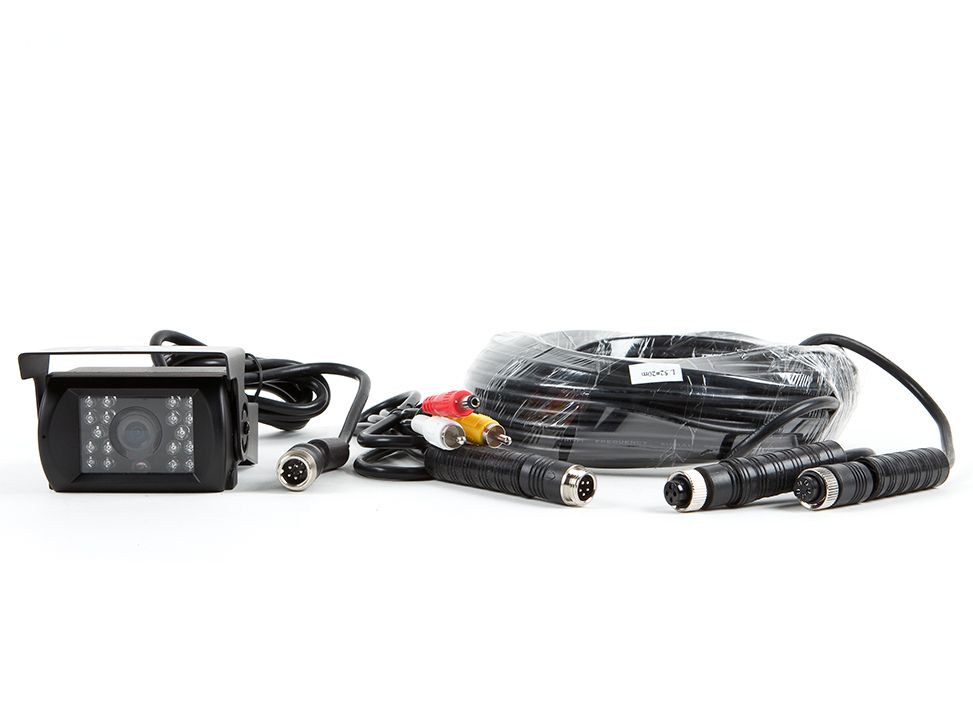

With an IP69K rating this camera will be fit to ride out any storm and boasts a 20G vibration rating as well as aircraft grade cable connections. It comes with RCA connectors as well.
Specifications
- Camera 1/3" Sharp® Color CCD
- Picture Elements 410,000 pixels
- Gamma Correction r=0.45 to 1.0
- Image Sensor 620 TV lines PAL:752(H)*582(V), NTSC:811(H)*507(V)
- Lens 2.5mm
- View Angle 130°
- Waterproof Rating IP69K
- Sync System Internal Synchronization
- Infra-red distance 50 Feet (18 Infrared)
- Usable Illumination 0 Lux (IR On)
- Power Source DC 12V
- S/N Ratio More than 48dB
- Electronic Iris 1/50, 160-1/100,000sec
- Video Output 1Vp.p 75 Ω
- IR Switch Control ACDS Automatic Control
- Vibration and Impact Rating 20G / 100G
- Operating Temperature -40°C - 70°C / RH 95% Max
- Storage Temperature -40°C - 85°C / RH 95% Max
- Net Weight 22oz
