Rear View Safety
Rear View Safety 120° Side Cameras
Rear View Safety 120° Side Cameras
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
Select the camera from the drop-down. Details for each part number are below.

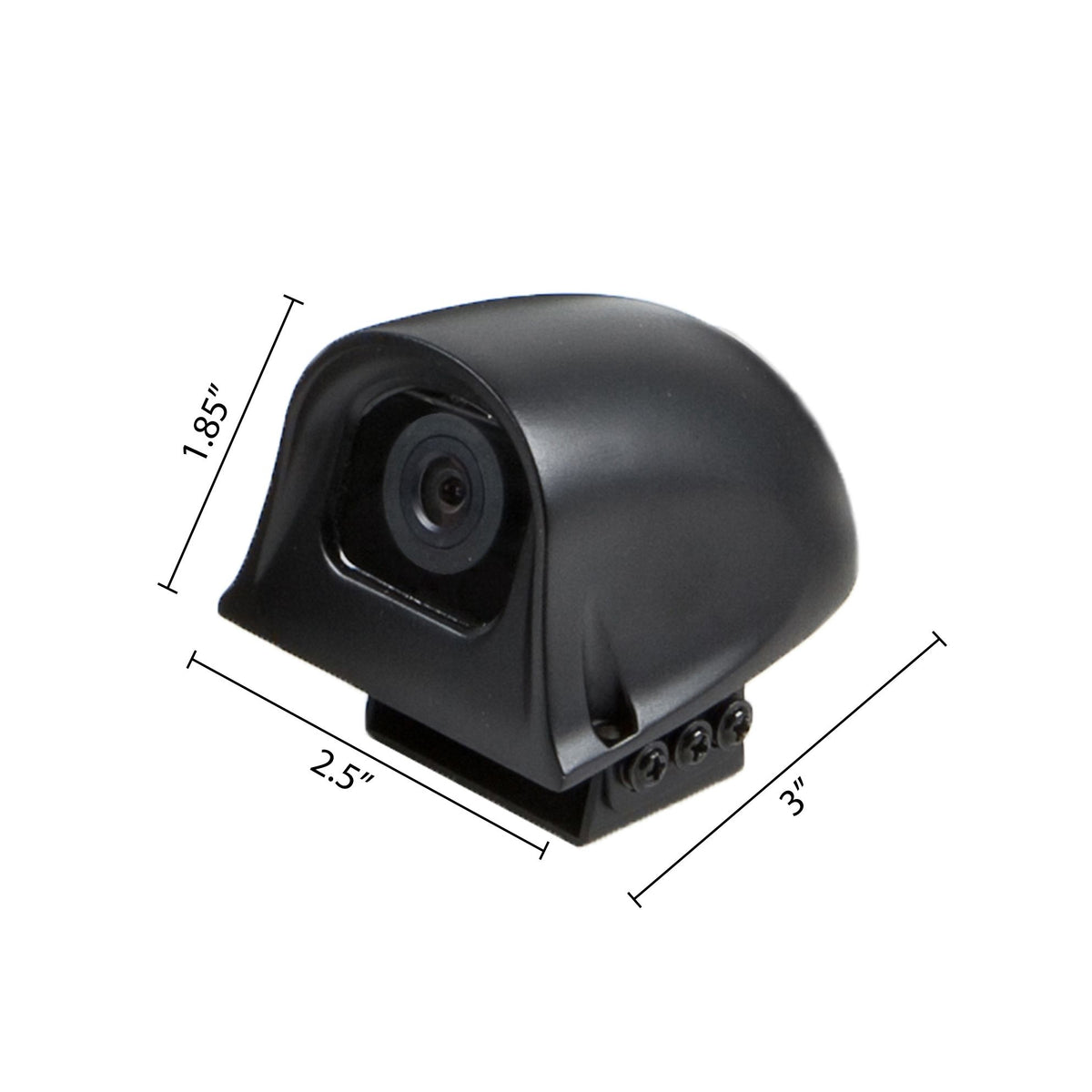

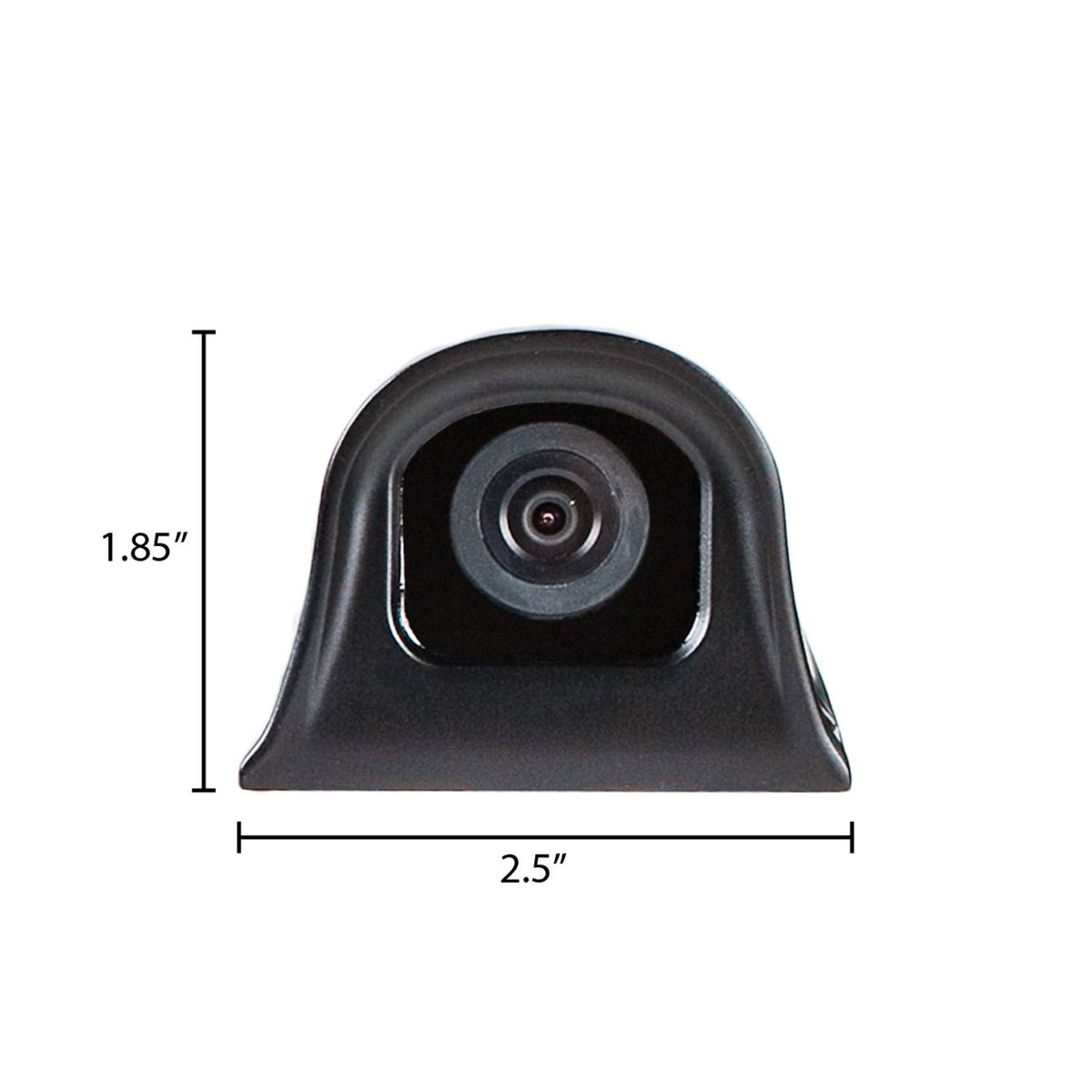

AHD 120° Side Camera (RVS-775-AHD)
-
Completely Waterproof
The RVS-775-AHD is completely waterproof with an IP69K rating.
-
Designed For MobileMule™
This side camera was designed solely for certain models of our MobilMule™ DVR series.
-
Analog HD
The RVS-775-AHD has an analog HD resolution of 1280 (H) x 720 (V).
Specifications
- Resolution 1280(H)720(V)
- Optical Format 1/3"
- Viewing Angle 120°
- Video Output 1.0Vp-p75
- Min. Illumination 0.01 Lux
- Working Temperature -20℃ ~+70℃
- Storage Temperature -30℃ ~+70℃
- Standard Voltage DC12V
- S/N Ratio >41.2db
- Waterproof Rating IP69K

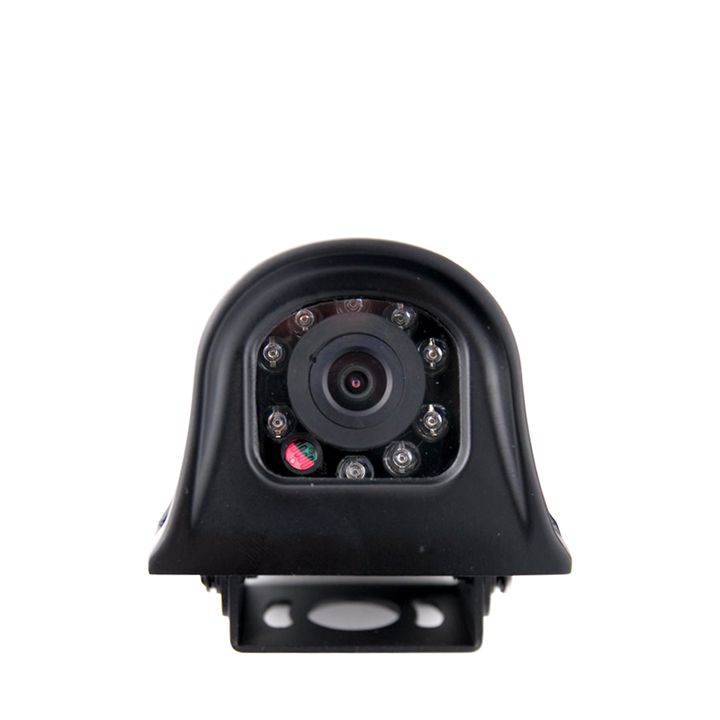

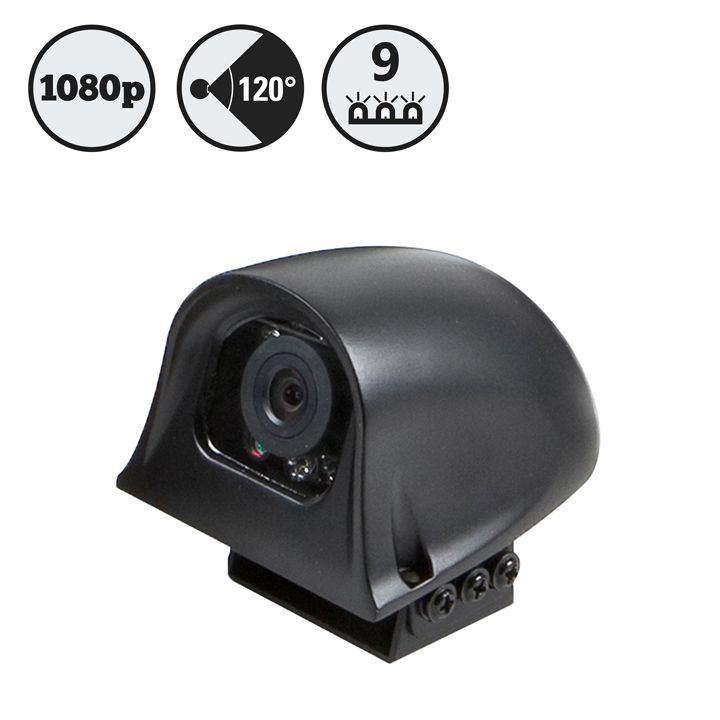

1080p FHD 120° Side Camera (CA-775M1L-2)
-
Completely Waterproof
The RVS-775-FHD is completely waterproof with an IP69K rating.
-
Designed For MobileMule™
This side camera was designed solely for for the 1080p MobileMule™ DVR Series
-
Analog FHD
The RVS-775-FHD has an analog FHD resolution of 1920 (H) x 1080 (V).
Specifications
- Number Of Pixels 1920(H) x 1080(V)
- Built-In Microphone Yes
- Frame Rate 1080P@30fps
- Video Signal System AHD
- S/N Ratio ≥50db(AGC OFF)
- Minimum Illumination 0Lux (With IR LED)
- Lens F2.5
- Viewing Angle 120°
- Waterproof Rating IP69K
- Power Input Range DC 12V+ / 20%
- Power Consumption IR on Max(180MA), IR off Max (90MA)
- Operating Temperature -20℃ ~ +70℃
- Storage Temperature -30℃ ~+75℃ (humidity: RH 85% Max)

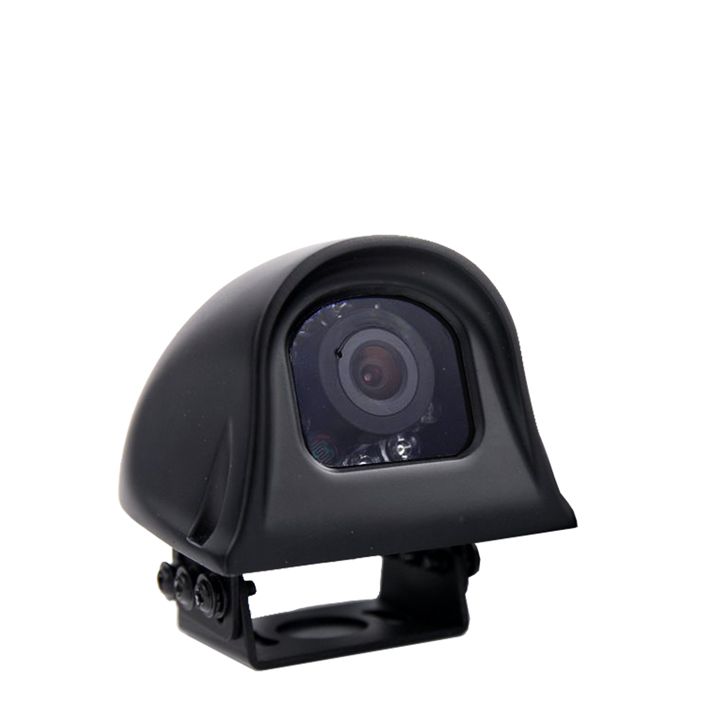

1080p FHD 120° Right Side Camera (CA-775M1R)
-
Completely Waterproof
The RVS-775-FHD is completely waterproof with an IP69K rating.
-
Designed For MobileMule™
This side camera was designed solely for for the 1080p MobileMule™ DVR Series
-
Analog FHD
The CA-775M1R has an analog FHD resolution of 1920 (H) x 1080 (V).
Specifications
- Number Of Pixels 1920(H) x 1080(V)
- Built-In Microphone Yes
- Frame Rate 1080P@30fps
- Video Signal System AHD
- S/N Ratio ≥50db(AGC OFF)
- Minimum Illumination 0Lux (With IR LED)
- Lens F2.5
- Viewing Angle 120°
- Waterproof Rating IP69K
- Power Input Range DC 12V+ / 20%
- Power Consumption IR on Max(180MA), IR off Max (90MA)
- Operating Temperature -20℃ ~ +70℃
- Storage Temperature -30℃ ~+75℃ (humidity: RH 85% Max)
