Rear View Safety 120° Heated Backup Camera with 30 Infrared illuminators

Heated Camera

Our Heated CCD Camera is made for those real intense moments. With an IP69K rating and heated lens, this camera is made to withstand almost anything mother nature throws against us. It has a viewing angle of 120° and boasts 30 Infra-red Illuminators giving you an ideal image at all times. Adding to its durability is its 100G Impact Rating and Aircraft Grade Cable Connections.

• Image Device 1/3'' SONY® Super HAD CCD
• TV System PAL / NTSC
• Total Number Of Pixels PAL: 537 (H) 597 (V) / NTSC: 537 (H) 505 (V)
• Effective Pixels PAL: 500 (H) 582 (V) / NTSC: 510 (H) 492 (V)
• Sensing Area 4.9 mm (H) 3.7 mm (V)
• Sync. System Internal
• Resolution7 00 TV Lines
• Minimum Illumination 0 Lux (With IR)
• Microphone Yes
• Video Output Composite Signal (1.0 Vp-p, 75 Ω)
• Gamma Correction 0.45
• AGC On
• S/N Ratio Better Than 48 dB
• White Balance Auto
• Electronic Shutter 1/50-1/100,000 Sec. / 1/60-1/100,000 Sec.
• BLC Auto
• Current Consumption Max. 300 mA
• Power Supply DC 9V - 32V
• Anti-vibration5.9 g
• Operating Temperature-45°C~70°C, RH 95% MAX.
• Storage Temperature-45°C~80°C, RH 95% MAX.
• Lens3.6 mm Optional
• Lens Angle120°

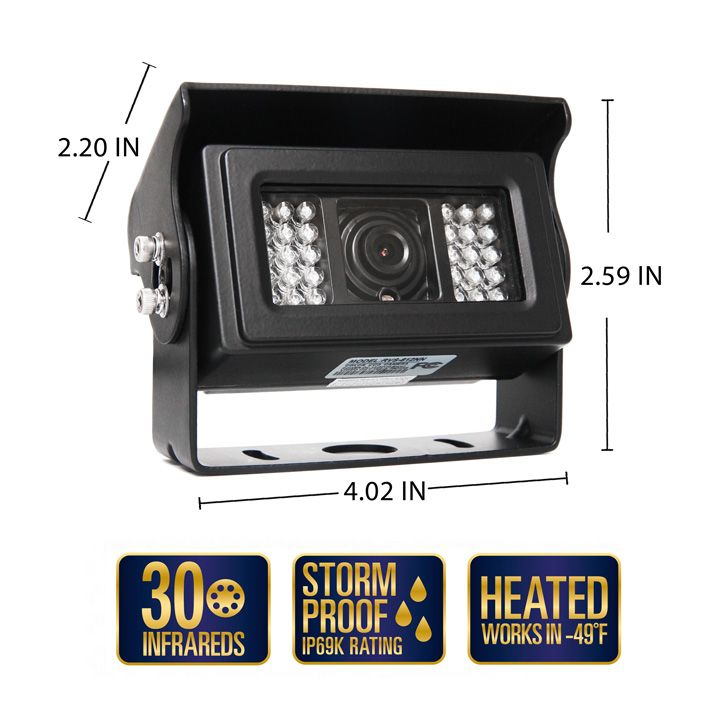

• Dimensions 2.59" (H) x 4.02" (L) x 2.20" (D)
