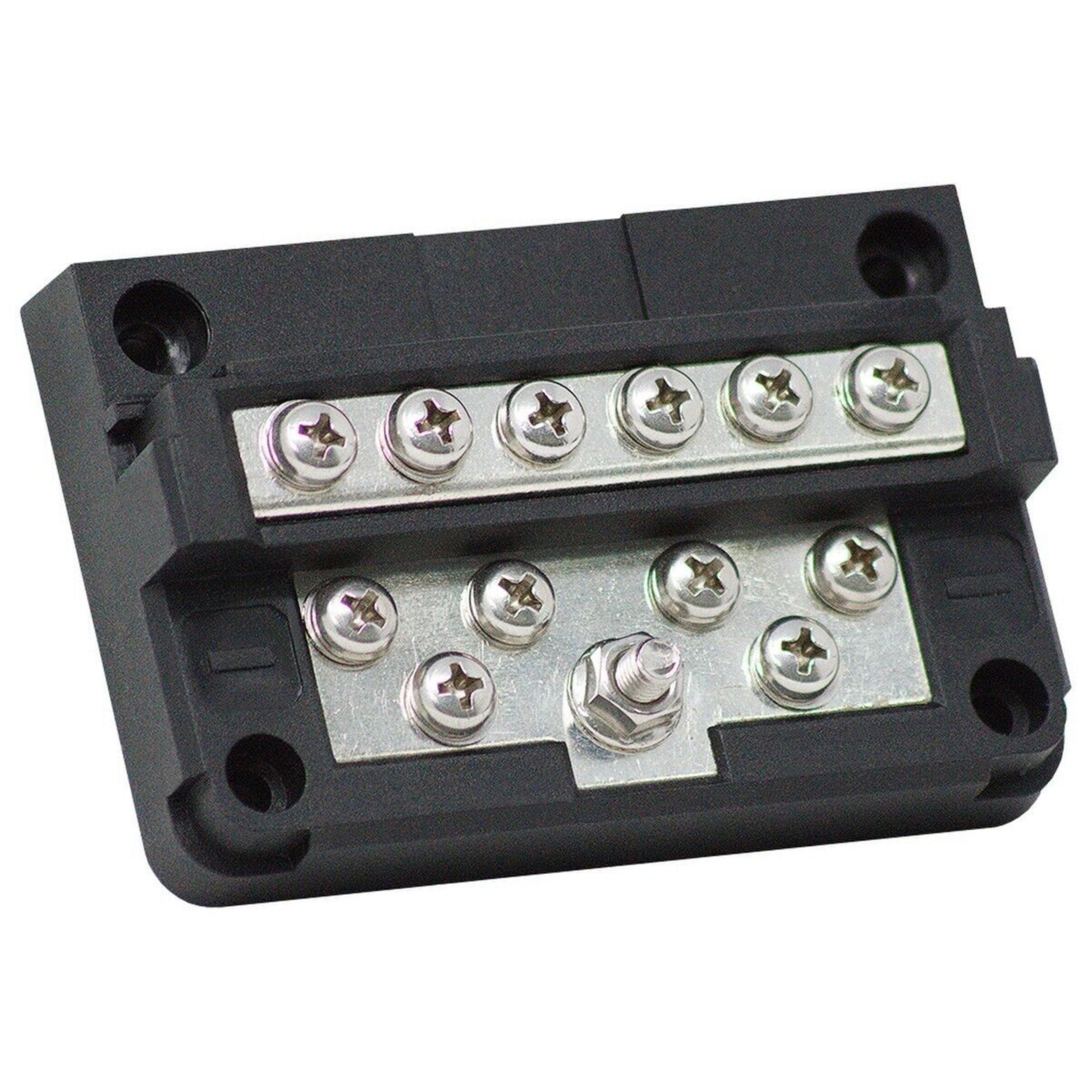

The Egis RT 12 Circuit Ground Bus Bar is a compact, well-constructed ground bus block. Use it as a standalone ground bus or assembled with an existing RT Series fuse block, so ground connections stay reliable.
- Positions: 12
- Maximum current, entire block: 100 A
- Maximum current, per circuit: 30 A
- Maximum output wire size: #10 AWG
- Voltage range: 0 to 36 Vdc
- Output ring terminal size: M4 / #8
- Conductor: plated copper alloy
- Insulator: engineering-grade composite for high-temperature exposure such as engine compartments
- Manufacturer: Egis Mobile Electric
- Part number: 8030B
Fits and pairs with: RT Series fuse blocks, which Egis lists as connection compatible for a smaller installation footprint.
