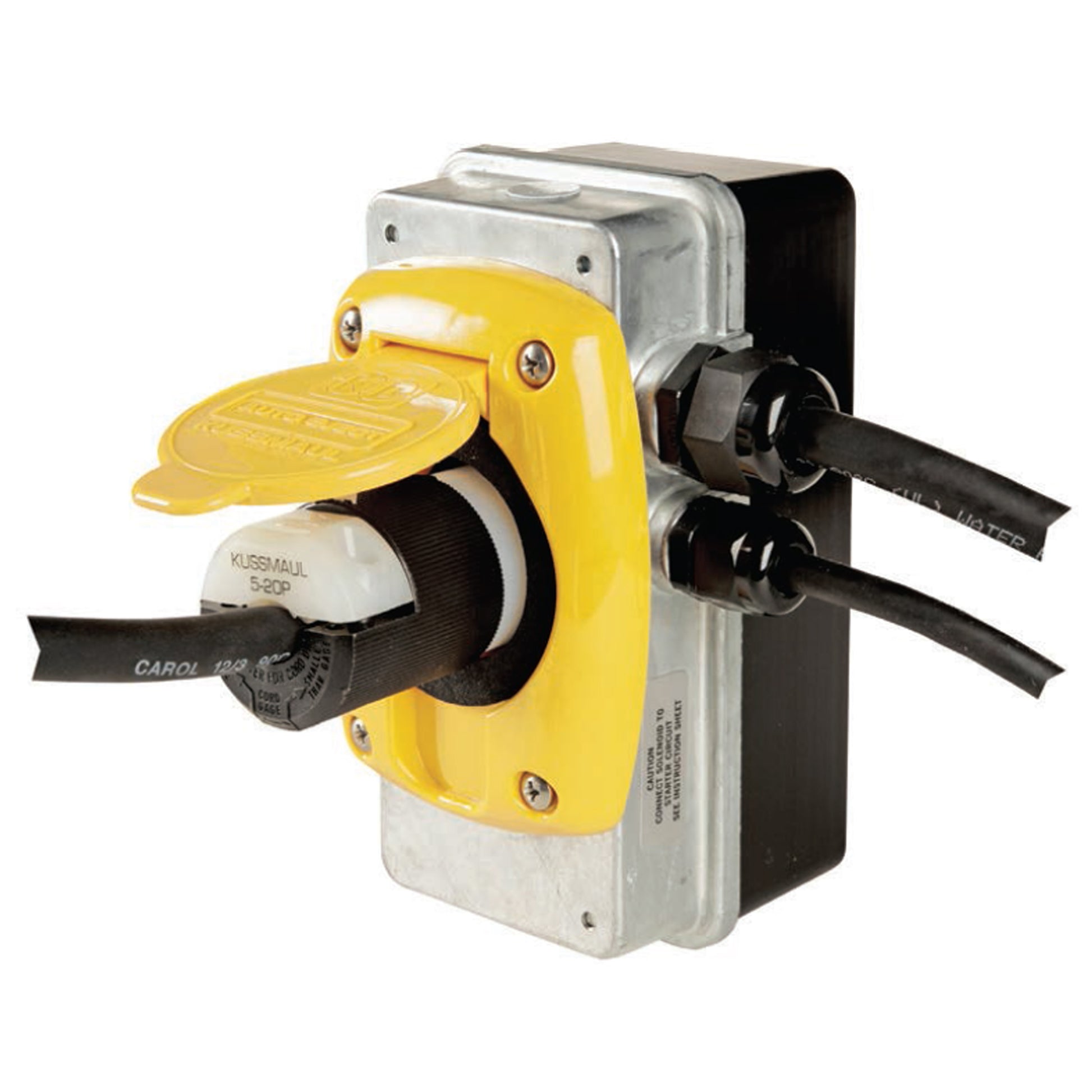

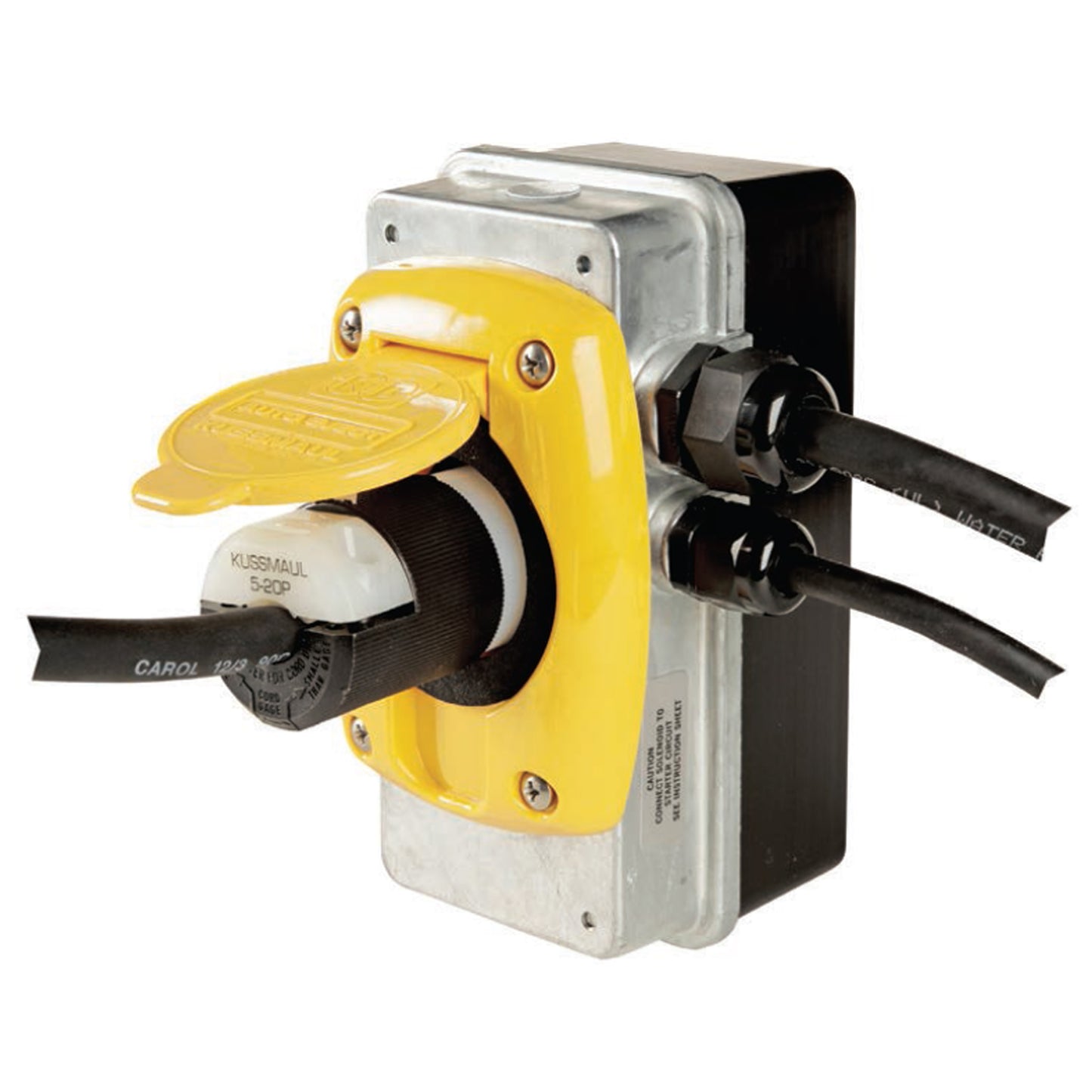

Kussmaul Super Trailer Eject

Eject Plug from Trailer Shore Power Upon Depressing Brake Pedal.

The Super Trailer Eject is a specialized version of the Super Auto Eject automatic shoreline disconnect, engineered for vehicles and equipment without an available “Start Signal.” Designed for seamless operation, the unit connects directly to the brake light circuit, triggering automatic shoreline ejection as soon as the driver presses the foot brake to shift into gear. This smart, durable solution enhances safety, reduces cord hazards, and ensures dependable power disconnection in demanding environments.

• 12 Vdc
• Receptacles:
  120 Volts AC, 15 Amps (Super Trailer Eject 091-55-15-120T)
  120 Volts AC, 20 Amps (Super Trailer Eject 091-55-20-120T)
  12V/240V, 15A DC, 15A AC (Super Trailer Eject 091-55-15-DCT)
• Pre-wired with 3’ AC cord and eject sense wire, side case entry standard, back case entry optional
• A back entry is also available. (091-55-15-120T-BW, 091-55-20-120TBW, 091-55-15-DCT-BW). The back wire configuration is especially useful in places where space is limited on the sides of the unit.
• Automatically disconnects shoreline
• Eliminates broken shoreline
• Completely sealed
• System includes: Auto-Eject, Cover, Plug, and pre-wired with 3’ AC power and Eject Sense Wire
• Cover color options: Yellow, White, Blue, Black, Red, Gray (Note: Not all colors are available for the Back Wire version)
• Dimensions: 4.08" W x 6.17" H x 2.80" D
• 2 year warranty

Optional Accessories for Kussmaul Super Trailer Eject
