Kussmaul Shore Power Alarm

Kussmaul Shore Power Alarm

$48.15 USD
$87.20 USD $48.15 USD
Sale Sold out
Model

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

DASHMOUNT ACCESSORY

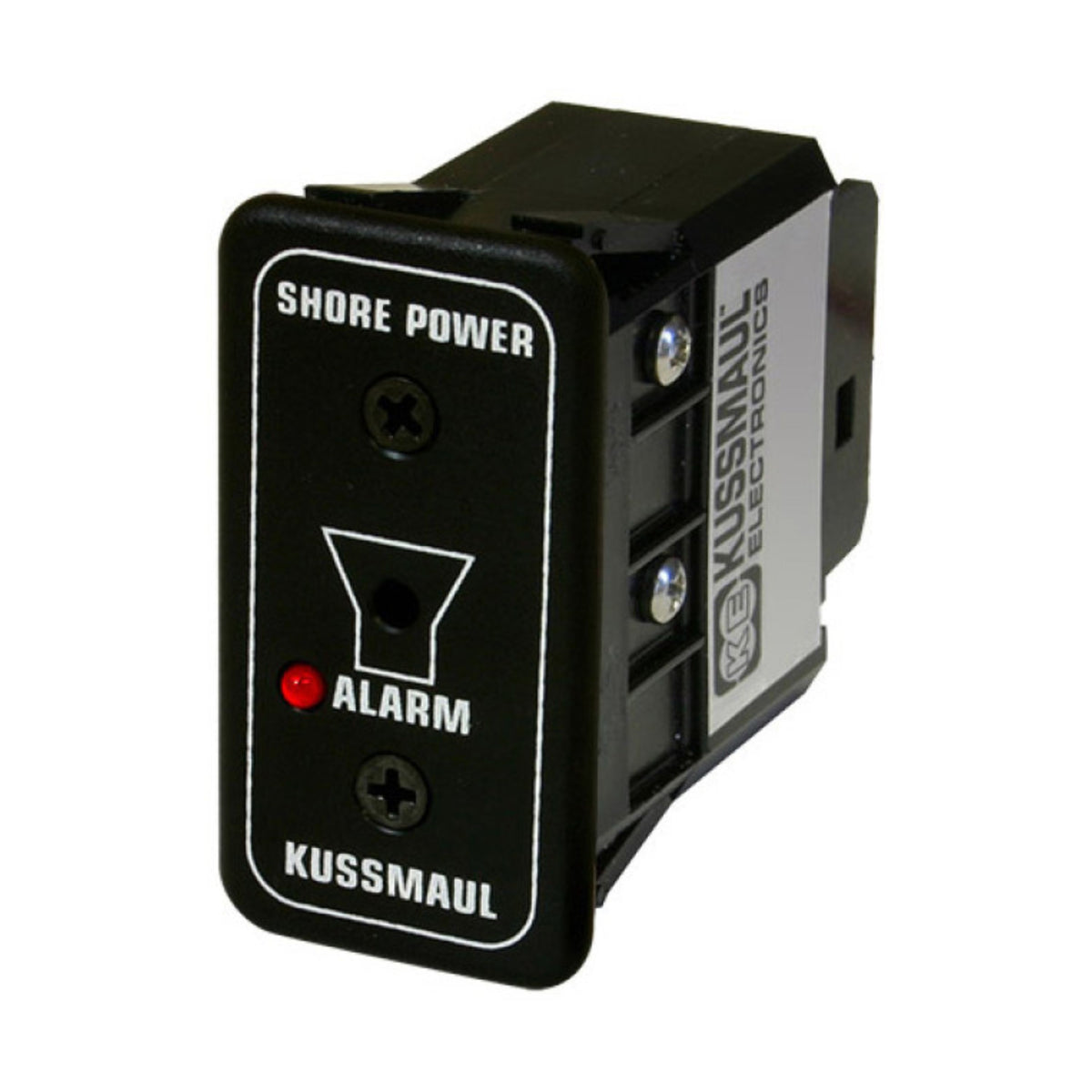

The 091-231 Shore Power Alarm Eaton Euro alerts the driver with an audible alarm and red LED indicator if shore power is connected while the vehicle is running. Once shore power is disconnected, the alarm and LED light will turn off. The Eaton SVR (091-231-S) type is designed to fit into a standard 1.45” x 0.83” panel cutout while the Eaton Euro (091-231-E) and Eaton NGR (091-231-N) types are designed to fit into a standard 2.26" x 1.17" panel cutout.

  • Audible alarm sounds and LED illuminates to alert driver when shore power is connected and vehicle is running
  • 85 dB alarm
  • Built-In LED Indicator
  • Designed for easy installation in vehicle switch panels
  • Reverse polarity protected
  • Input Voltage: 10-16 Vdc
  • Input Current: .030 Amps Max
  • Output: 85 dB alarm
  • Indicator: Device Powered: Red LED
  • SVR Cut-Out Size: 1.45” x .83”
  • Euro & NGR Cut-Out Size: 1.73” x 0.87”
  • Warranty: 3 Years
